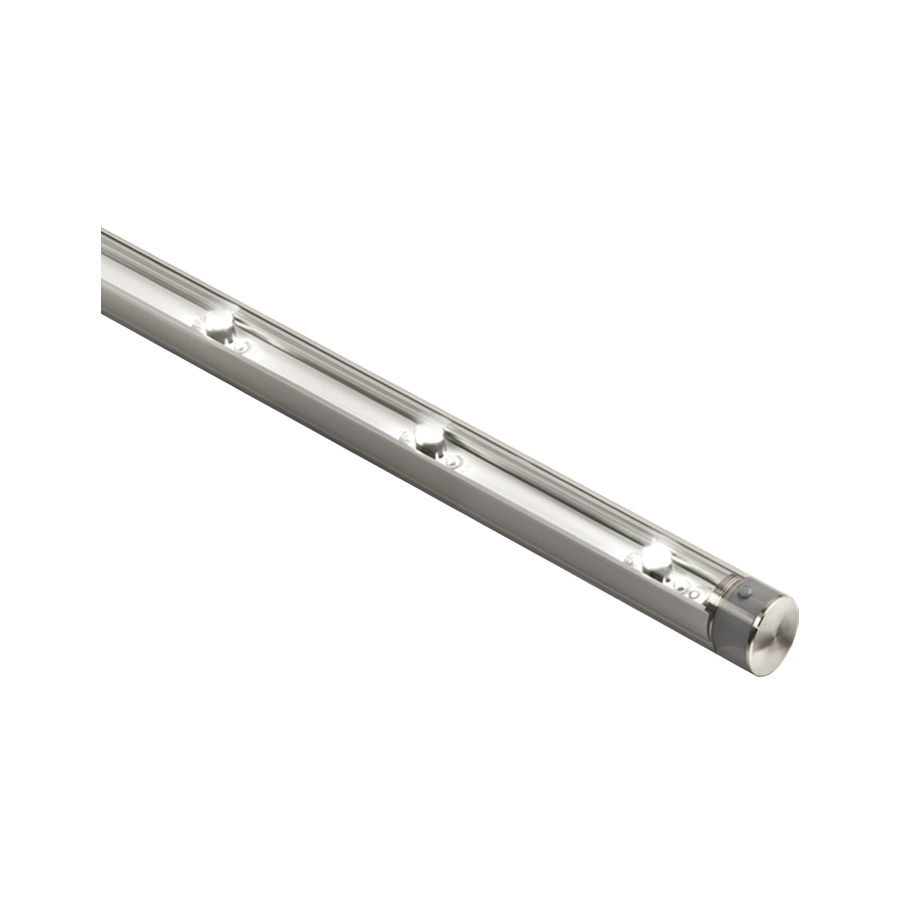

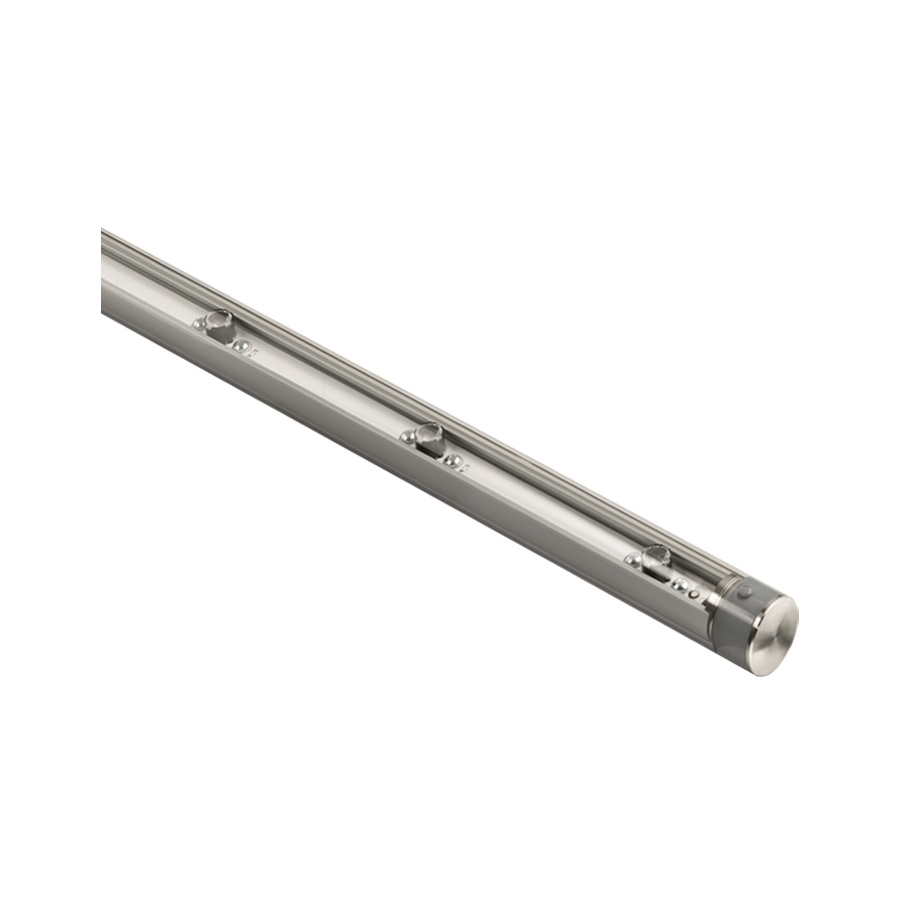

Trevi 1.1
Linear profiles for outdoor and underwater applications
linear profile for outdoor and underwater applications - 14/21/24W 24Vdc - 1208 mm
Linear profiles for outdoor and underwater applications
linear profile for outdoor and underwater applications - 14/21/24W 24Vdc - 1208 mm
This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.
Updated to TR11005WA
Installation | linear profile for outdoor and underwater applications |
---|---|
Power consumption | 14W |
Power supply | 24Vdc |
Lumen output at source | 1237 lm (3000K, optics version) |
Delivered lumen output | 1008 lm (3000K, 40°) |
Datasheet | Copied |
Mounting | surface mounted (ceiling, wall, ground), max depth 10 m |
---|---|
Number and type of LED | 12 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) |
LED colour | 3000K |
Optics | 20°x50° |
CRI Colour Rendering Index | 80 |
Body material | end caps in AISI 316L stainless steel |
Screen material | screen in transparent polycarbonate |
Power supply unit | power supply unit not included |
Power cables | includes 5 m neoprene cable H05RN-F 2x0,75 Ø6,3 mm |
Ingress protection | IP68 |
Impact resistance | IK10 |
Notes | available on request in 313mm-long, 5W (diffuse optics), 4W (with multiple optics) and 5W (RGB) versions |
Status | Available |
Accessories for product code TR11005WA
Required installation accessories, not included![]() WM0501Clips pair |
Required installation accessories, not included![]() WM0502Pair of tamper-resistant clips |
Required installation accessories, not included![]() WMA07Suspension kit |
Power supply units for product code TR11005WA
Control gear for product code TR11005WA
![]() ADV576DALIN1Low-voltage dimmerorder in addition to PSU
|
![]() ARVUNID2-01Universal sequencer - Low-voltage 4-channel controller with constant-voltage outputorder in addition to PSU
|
||||||||||||||||
![]() EC0CEN12445A20Low-voltage 4-channel controller with constant-voltage output for CASAMBIWhite, dynamic white, RGB, RGBW, RGB+W
|
![]() EC0CEN1244DA20Low-voltage dimmer for CASAMBIorder in addition to PSU
|
![]() AE01350T1Emergency module integrated
|
![]() EC0TIM12840020Timer for CASAMBI
|
||||||||||||||||||||
![]() ECPNL2301DM20Touch-screen deviceRequired outer casing not included
|
![]() TLC08Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers
|
||||||||||||||||||||
![]() TLC09Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers
|
![]() TLC151-channel remote control for TLR07
|
||||||||||||||||||||
![]() TLC162-channel remote control for TLR07
|
![]() TLC174-channel remote control for TLR07
|
||||||||||||||||||||
![]() TLR072-channel receiver for TLC15, TLC16, TLC17 remote control(1/2 NO push buttons)
|
![]() TOUCH02L1Single-zone touch-screen deviceRequired outer casing not included WC0302
|
||||||||||||||||||||
![]() TOUCH03L14-zone touch-screen device with memoryRequired outer casing not included WC0302
|
