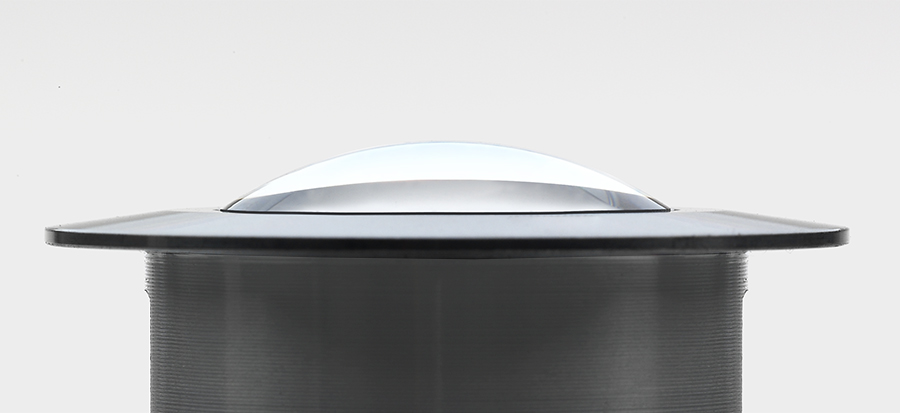

Bright 1.6

Recessed for outdoor applications

recessed for outdoor applications - 2W 24Vdc - diffuse and with optics - ø35 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Finishes: anthracite, white, bronze, cor-ten, black, brass, antique bronze
  • 2200K LED colour

Technical data

Print technical data

Updated to CB16005DI

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • BIS R-41105201
  • ETL
    on request
  • lighting fixture with LED technology
  • appliance class III
  • walkover fixture
  • gross weight
    kg 0,20
  • IP65
  • IP68
  • IK10
  • IPS
  • RAL finish on request
  • Casambi control
  • maximum device temperature50°C
  • F
Installation recessed for outdoor applications (not suitable for use in immersion in swimming pools or fountains)
Power consumption 2W
Power supply 24Vdc
Lumen output at source 195 lm (3000K)
Delivered lumen output 127 lm (3000K, 21°)
Datasheet

Copied
Mounting recessed (ceiling, wall, floor)
Number and type of LED 1 power LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour 3000K
Optics diffuse
CRI Colour Rendering Index 80
Body material body and trim in AISI 316L stainless steel
Screen material screen in tempered, acid-etched glass
Power supply unit power supply unit not included
Power cables includes 1.5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection IP65, IP68
Impact resistance IK10
Status Available

Read more

Close

Accessories and power supply units

Accessories (2)

Accessories for product code CB16005DI

Outer casings

WC0202

Outer casing

Retaining spring clips

WG0301

Retaining spring clip Ø30mm

Power supply units (24)

Power supply units for product code CB16005DI

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ✓
250mA constant current; max 13W ⚠
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W ✓
250mA constant current; max 10W ⚠
350mA constant current; max 15W ⚠
400mA constant current; max 17W ⚠
450mA constant current; max 19W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W ⚠
24Vdc; 20W ✓
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ✓
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W ✓
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W ✓
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W ✓
Power30W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
Power100W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W ✓
Power200W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W ✓
Power300W
DimmeringDALI-2
Power supply unit IPIP66

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 8W ✓
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 10W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W ✓
DimmeringON/OFF
Power supply unit IPIP67
Read more

Control gear (4)

Control gear for product code CB16005DI

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 12Vdc; 144W ⚠
With 24 Vdc input:; 24Vdc; 288W ✓
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20
