Pivot 3.9

Bollards for outdoor applications

bollard for outdoor applications - 25W 24Vdc - Ø80x123 mm

fixed focus
12°x66° optics adjustable through 360° using magnet included
manual zoom lens adjustable using magnet included

Technical data

Print technical data

Required spike, not included. Order the dual-fixture spike together with two lighting fixtures

kg 0.960
IP66
IK08

Installation	bollard for outdoor applications
Power consumption	25W
Power supply	24Vdc
Lumen output at source	1890 lm (3000K, 25W, CRI 90), 2175 lm (3000K, 25W, CRI 80)
Delivered lumen output	1575 lm (3000K, 13°,25W, CRI 90), 1818 lm (3000K, 13° 25W, CRI 80)
Datasheet	Pivot 3.9 bollard for outdoor applications; surface mounted (spike); Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 1890 lm (3000K, 25W, CRI 90), 2175 lm (3000K, 25W, CRI 80); Delivered lumen output: 1575 lm (3000K, 13°,25W, CRI 90), 1818 lm (3000K, 13° 25W, CRI 80); 1 COB LED, 2-step MacAdam, 55 000h L70 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°, 29°, 42°, 59°, adjustable 12°x66°, optical range 15°—38°; CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray., jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray; RAL finish on request; Screen material: screen in serigraphed, tempered extra-clear glass; Installation: Two installation options: spike with single lighting fixture, or spike with additional arm for a second lighting fixture. The pivot at the base of the lighting fixture enables great flexibility in aiming the light output.; power supply unit not included; includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Control system: Casambi; Ingress protection: IP66; Impact resistance: IK08; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +50°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 960 g; Dimensions: Ø80x123 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, WBA165 Standard snoot - jasper green, WBA16E Standard snoot - white, WBA16H Standard snoot - anthracite, WBA16T Standard snoot - cor-ten, WBA175 Asymmetrical snoot - jasper green, WBA17E Asymmetrical snoot - white, WBA17H Asymmetrical snoot - anthracite, WBA17T Asymmetrical snoot - cor-ten, WE0201 Magnet for adjustable optics and zoom lens, WPA055 Spike for in-ground installation - h 500 mm - jasper green, WPA05E Spike for in-ground installation - h 500 mm - white, WPA05H Spike for in-ground installation - h 500 mm - anthracite, WPA05T Spike for in-ground installation - h 500 mm - cor-ten, WPA065 Spike for in-ground installation - h 800 mm - jasper green, WPA06E Spike for in-ground installation - h 800 mm - white, WPA06H Spike for in-ground installation - h 800 mm - anthracite, WPA06T Spike for in-ground installation - h 800 mm - cor-ten, WPA075 Spike for in-ground installation - h 1100 mm - jasper green, WPA07E Spike for in-ground installation - h 1100 mm - white, WPA07H Spike for in-ground installation - h 1100 mm - anthracite, WPA07T Spike for in-ground installation - h 1100 mm - cor-ten, WPA085 Dual-fixture spike for in-ground installation - h 500 mm - jasper green, WPA08E Dual-fixture spike for in-ground installation - h 500 mm - white, WPA08H Dual-fixture spike for in-ground installation - h 500 mm - anthracite, WPA08T Dual-fixture spike for in-ground installation - h 500 mm - cor-ten, WPA095 Dual-fixture spike for in-ground installation - h 800 mm - jasper green, WPA09E Dual-fixture spike for in-ground installation - h 800 mm - white, WPA09H Dual-fixture spike for in-ground installation - h 800 mm - antracite, WPA09T Dual-fixture spike for in-ground installation - h 800 mm - cor-ten, WPA105 Dual-fixture spike for in-ground installation - h 1100 mm - jasper green, WPA10E Dual-fixture spike for in-ground installation - h 1100 mm - white, WPA10H Dual-fixture spike for in-ground installation - h 1100 mm - anthracite, WPA10T Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPivot 3.9 bollard for outdoor applications surface mounted (spike) Power consumption: 25W Power supply: 24Vdc Lumen output at source: 1890 lm (3000K, 25W, CRI 90), 2175 lm (3000K, 25W, CRI 80) Delivered lumen output: 1575 lm (3000K, 13°,25W, CRI 90), 1818 lm (3000K, 13° 25W, CRI 80) 1 COB LED, 2-step MacAdam, 55 000h L70 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 13°, 29°, 42°, 59°, adjustable 12°x66°, optical range 15°—38° CRI Colour Rendering Index: 80, >90 Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray., jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray RAL finish on request Screen material: screen in serigraphed, tempered extra-clear glass Installation: Two installation options: spike with single lighting fixture, or spike with additional arm for a second lighting fixture. The pivot at the base of the lighting fixture enables great flexibility in aiming the light output. power supply unit not included includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm Control system: Casambi Ingress protection: IP66 Impact resistance: IK08 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +50°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 960 g Dimensions: Ø80x123 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, WBA165 Standard snoot - jasper green, WBA16E Standard snoot - white, WBA16H Standard snoot - anthracite, WBA16T Standard snoot - cor-ten, WBA175 Asymmetrical snoot - jasper green, WBA17E Asymmetrical snoot - white, WBA17H Asymmetrical snoot - anthracite, WBA17T Asymmetrical snoot - cor-ten, WE0201 Magnet for adjustable optics and zoom lens, WPA055 Spike for in-ground installation - h 500 mm - jasper green, WPA05E Spike for in-ground installation - h 500 mm - white, WPA05H Spike for in-ground installation - h 500 mm - anthracite, WPA05T Spike for in-ground installation - h 500 mm - cor-ten, WPA065 Spike for in-ground installation - h 800 mm - jasper green, WPA06E Spike for in-ground installation - h 800 mm - white, WPA06H Spike for in-ground installation - h 800 mm - anthracite, WPA06T Spike for in-ground installation - h 800 mm - cor-ten, WPA075 Spike for in-ground installation - h 1100 mm - jasper green, WPA07E Spike for in-ground installation - h 1100 mm - white, WPA07H Spike for in-ground installation - h 1100 mm - anthracite, WPA07T Spike for in-ground installation - h 1100 mm - cor-ten, WPA085 Dual-fixture spike for in-ground installation - h 500 mm - jasper green, WPA08E Dual-fixture spike for in-ground installation - h 500 mm - white, WPA08H Dual-fixture spike for in-ground installation - h 500 mm - anthracite, WPA08T Dual-fixture spike for in-ground installation - h 500 mm - cor-ten, WPA095 Dual-fixture spike for in-ground installation - h 800 mm - jasper green, WPA09E Dual-fixture spike for in-ground installation - h 800 mm - white, WPA09H Dual-fixture spike for in-ground installation - h 800 mm - antracite, WPA09T Dual-fixture spike for in-ground installation - h 800 mm - cor-ten, WPA105 Dual-fixture spike for in-ground installation - h 1100 mm - jasper green, WPA10E Dual-fixture spike for in-ground installation - h 1100 mm - white, WPA10H Dual-fixture spike for in-ground installation - h 1100 mm - anthracite, WPA10T Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (spike)
Number and type of LED	1 COB LED, 2-step MacAdam, 55 000h L70 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	13°, 29°, 42°, 59°, adjustable 12°x66°, optical range 15°—38°
CRI Colour Rendering Index	80, >90
Body material	body in anticorodal aluminium
Screen material	screen in serigraphed, tempered extra-clear glass
Finishes	anthracite, white, cor-ten, jasper green
Power supply unit	power supply unit not included
Power cables	includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Control system	Casambi
Ingress protection	IP66
Impact resistance	IK08
Status	Available

Read more

Close

Download

See all downloads

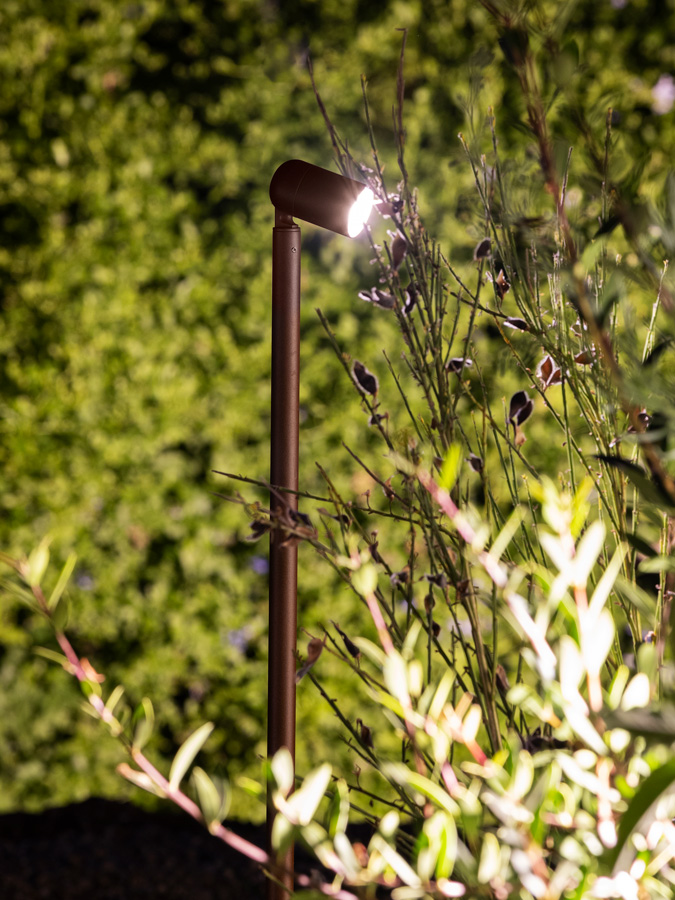

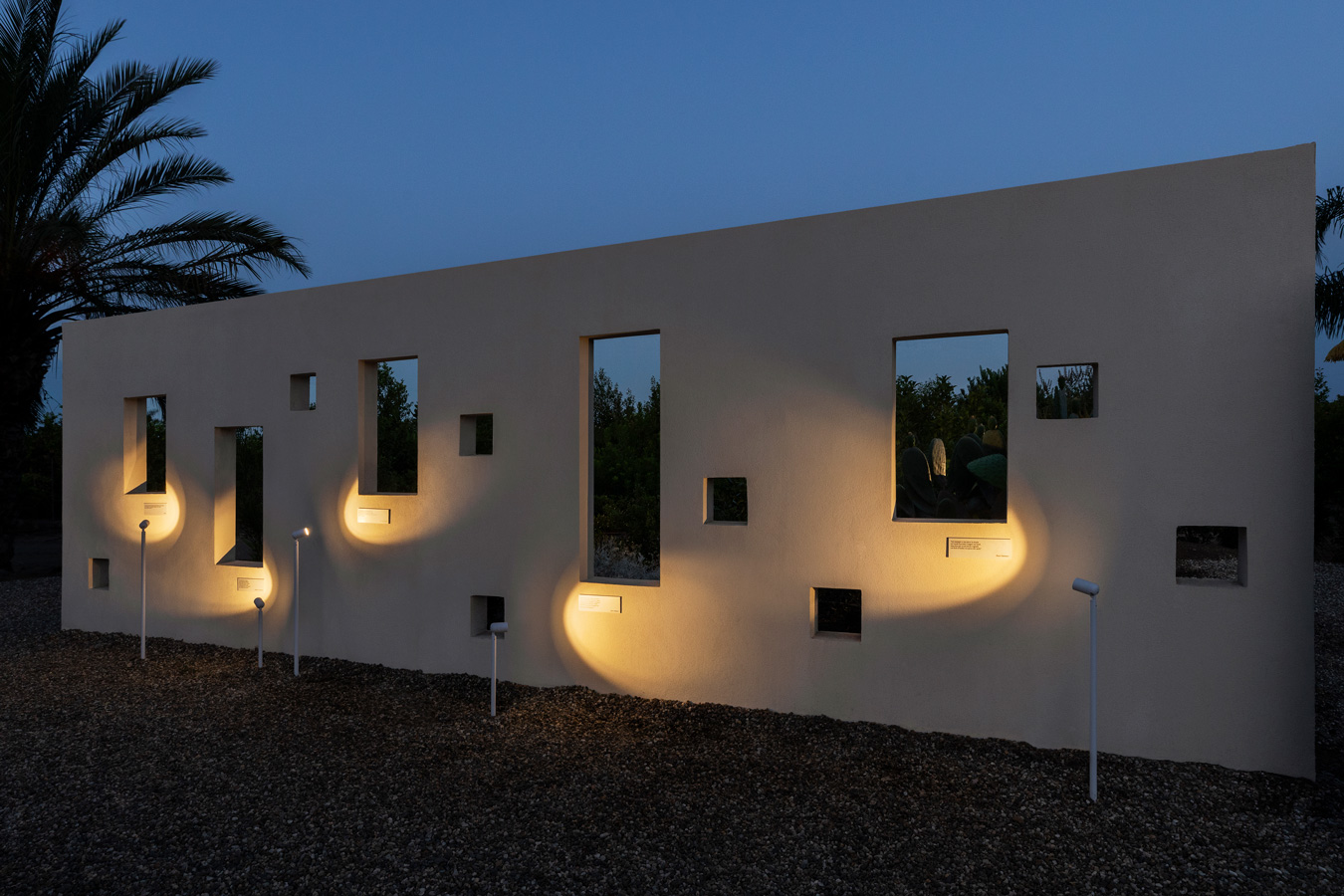

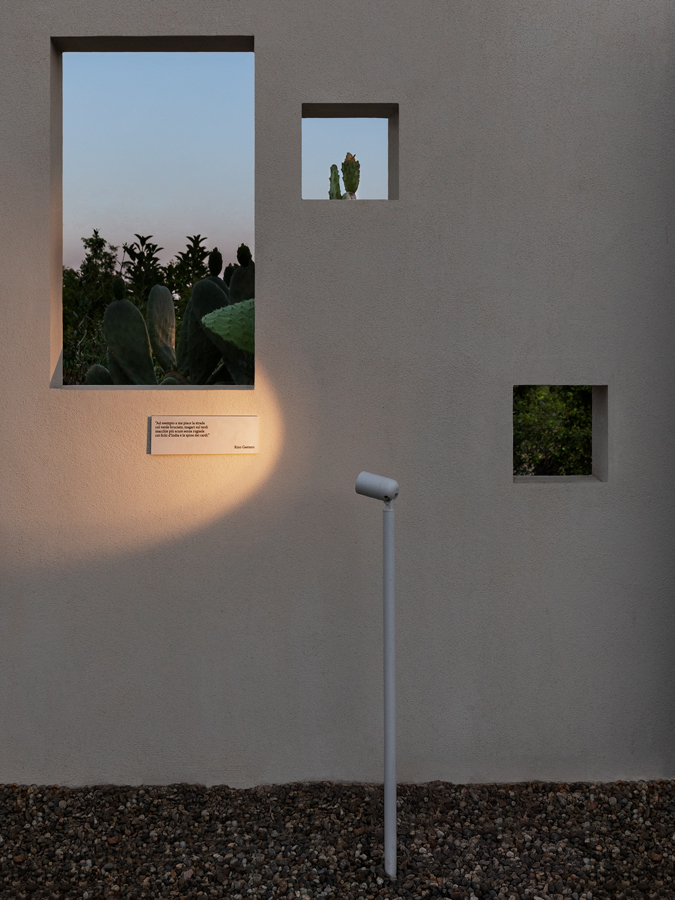

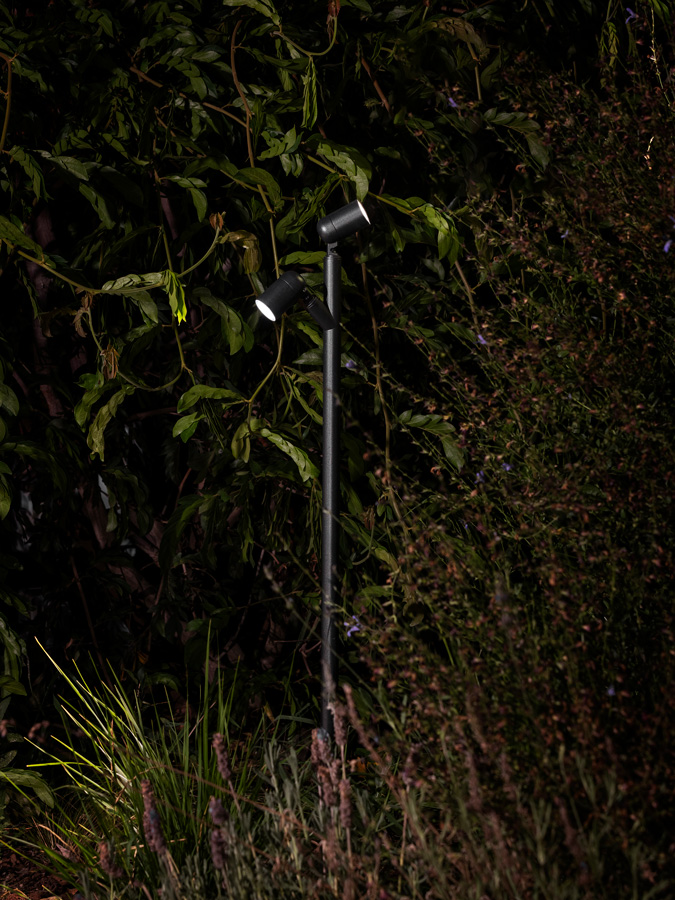

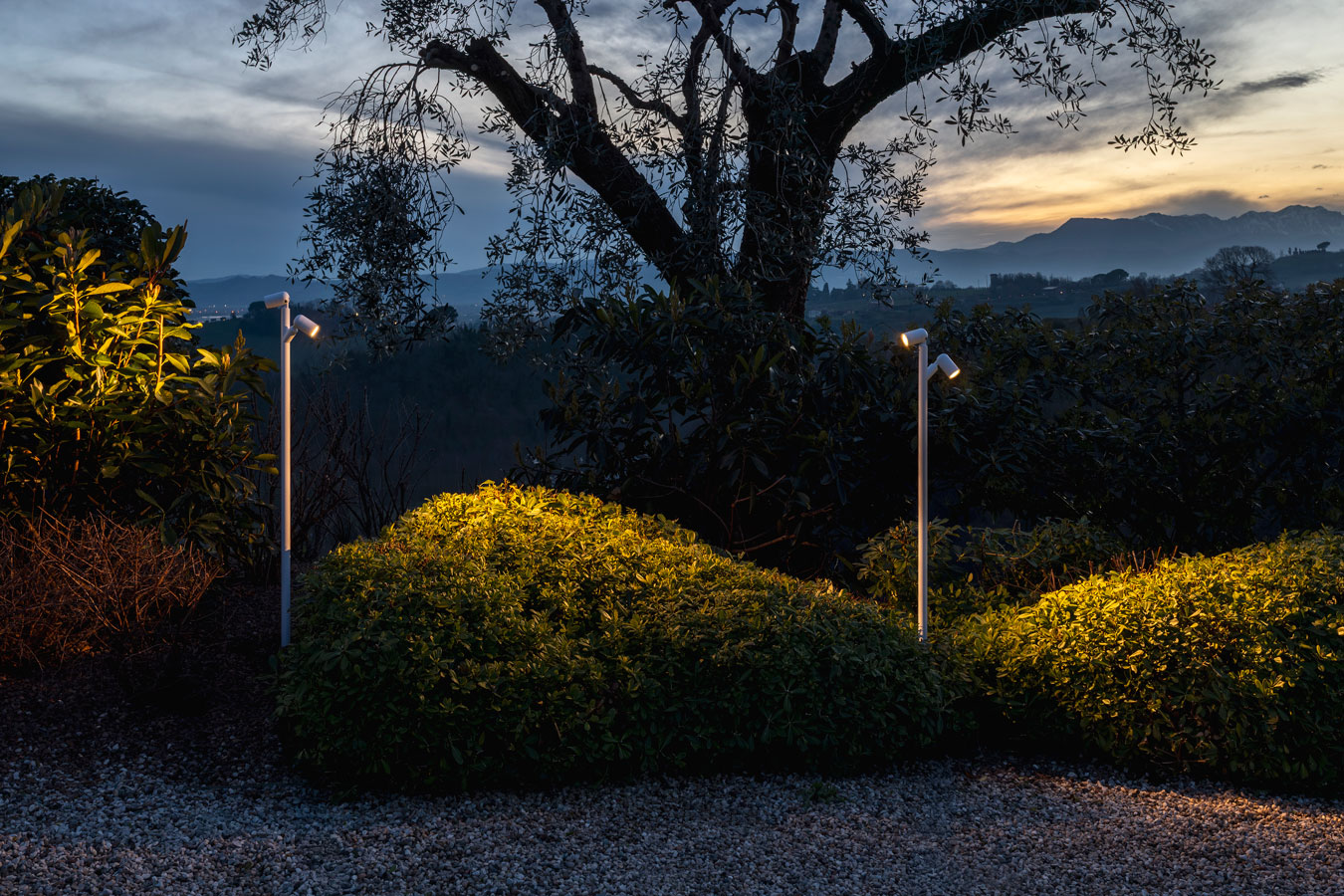

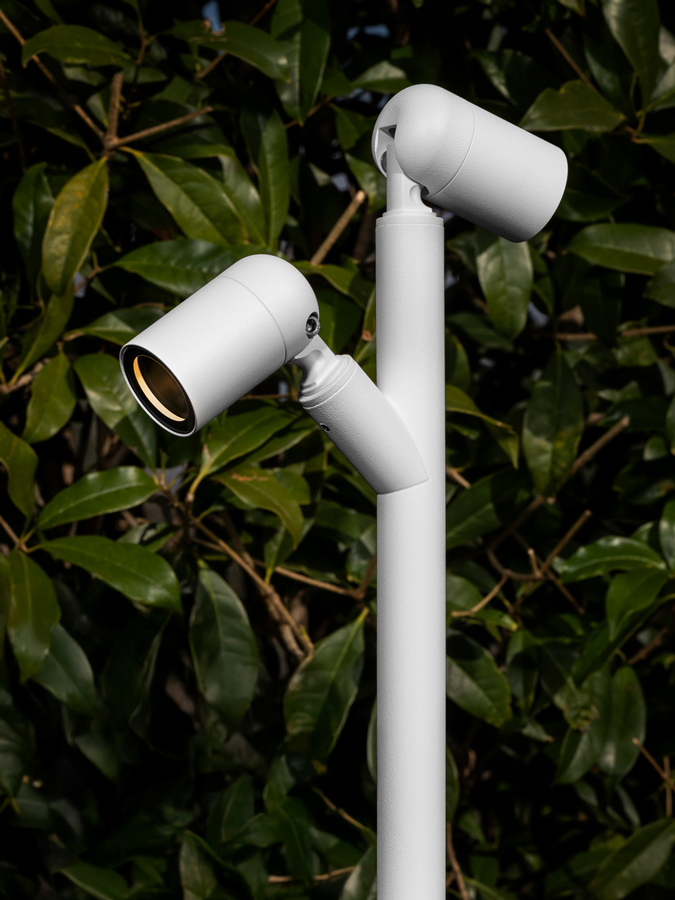

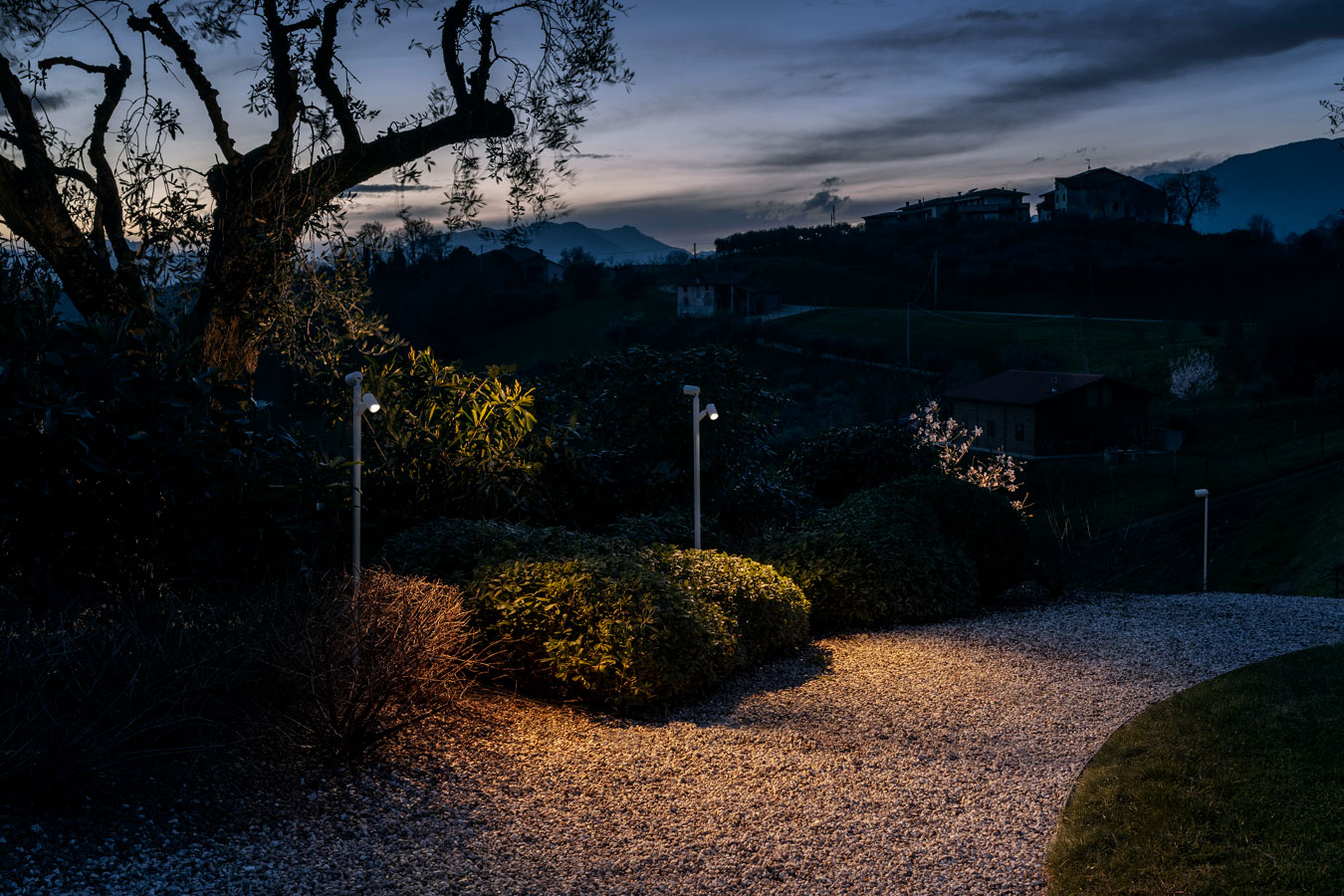

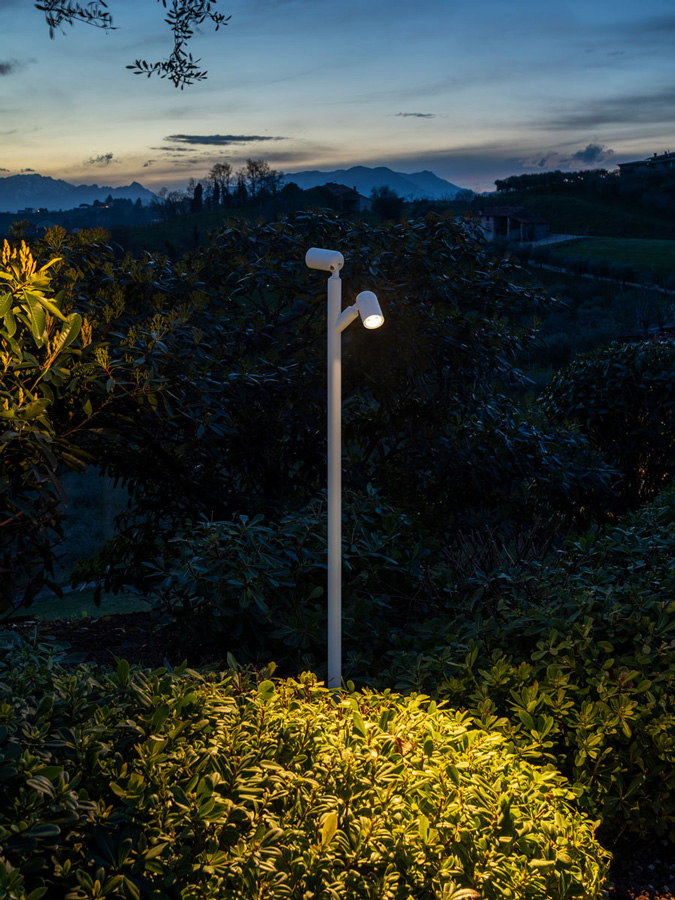

Gallery

Accessories and power supply units

Accessories (34)

Spikes and arms

Required installation accessories, not included WPA055 Spike for in-ground installation - h 500 mm - jasper green Order together with the lighting fixture	Required installation accessories, not included WPA05E Spike for in-ground installation - h 500 mm - white Order together with the lighting fixture
Required installation accessories, not included WPA05H Spike for in-ground installation - h 500 mm - anthracite Order together with the lighting fixture	Required installation accessories, not included WPA05T Spike for in-ground installation - h 500 mm - cor-ten Order together with the lighting fixture
Required installation accessories, not included WPA065 Spike for in-ground installation - h 800 mm - jasper green Order together with the lighting fixture	Required installation accessories, not included WPA06E Spike for in-ground installation - h 800 mm - white Order together with the lighting fixture
Required installation accessories, not included WPA06H Spike for in-ground installation - h 800 mm - anthracite Order together with the lighting fixture	Required installation accessories, not included WPA06T Spike for in-ground installation - h 800 mm - cor-ten Order together with the lighting fixture
Required installation accessories, not included WPA075 Spike for in-ground installation - h 1100 mm - jasper green Order together with the lighting fixture	Required installation accessories, not included WPA07E Spike for in-ground installation - h 1100 mm - white Order together with the lighting fixture
Required installation accessories, not included WPA07H Spike for in-ground installation - h 1100 mm - anthracite Order together with the lighting fixture	Required installation accessories, not included WPA07T Spike for in-ground installation - h 1100 mm - cor-ten Order together with the lighting fixture
Required installation accessories, not included WPA085 Dual-fixture spike for in-ground installation - h 500 mm - jasper green Order together with two lighting fixtures	Required installation accessories, not included WPA08E Dual-fixture spike for in-ground installation - h 500 mm - white Order together with two lighting fixtures
Required installation accessories, not included WPA08H Dual-fixture spike for in-ground installation - h 500 mm - anthracite Order together with two lighting fixtures	Required installation accessories, not included WPA08T Dual-fixture spike for in-ground installation - h 500 mm - cor-ten Order together with two lighting fixtures
Required installation accessories, not included WPA095 Dual-fixture spike for in-ground installation - h 800 mm - jasper green Order together with two lighting fixtures	Required installation accessories, not included WPA09E Dual-fixture spike for in-ground installation - h 800 mm - white Order together with two lighting fixtures
Required installation accessories, not included WPA09H Dual-fixture spike for in-ground installation - h 800 mm - antracite Order together with two lighting fixtures	Required installation accessories, not included WPA09T Dual-fixture spike for in-ground installation - h 800 mm - cor-ten Order together with two lighting fixtures
Required installation accessories, not included WPA105 Dual-fixture spike for in-ground installation - h 1100 mm - jasper green Order together with two lighting fixtures	Required installation accessories, not included WPA10E Dual-fixture spike for in-ground installation - h 1100 mm - white Order together with two lighting fixtures
Required installation accessories, not included WPA10H Dual-fixture spike for in-ground installation - h 1100 mm - anthracite Order together with two lighting fixtures	Required installation accessories, not included WPA10T Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten Order together with two lighting fixtures

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics, except for 12°x66° optics and optical range 15°—38°

Snoots

WBA165 Standard snoot - jasper green	WBA16E Standard snoot - white
WBA16H Standard snoot - anthracite	WBA16T Standard snoot - cor-ten
WBA175 Asymmetrical snoot - jasper green	WBA17E Asymmetrical snoot - white
WBA17H Asymmetrical snoot - anthracite	WBA17T Asymmetrical snoot - cor-ten

Spare parts

WE0201

Magnet for adjustable optics and zoom lens

Cables

Choose the power cable in the code generator

Power supply units (17)

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (4)

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm
