Pivot 1.9

Bollards for outdoor applications

bollard for outdoor applications - 7W 24Vdc - Ø40x70 mm

Technical data

Print technical data

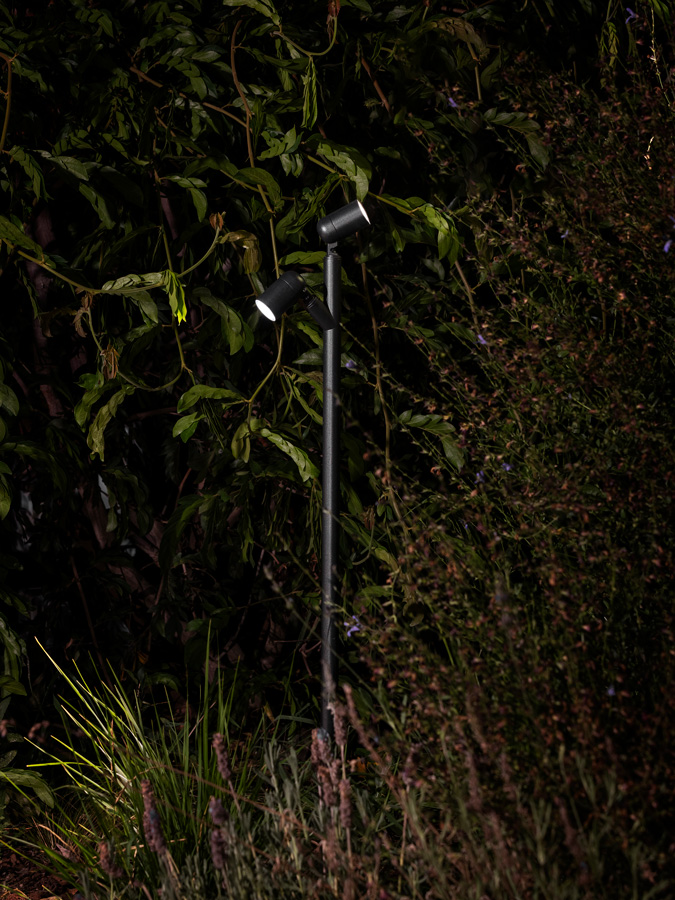

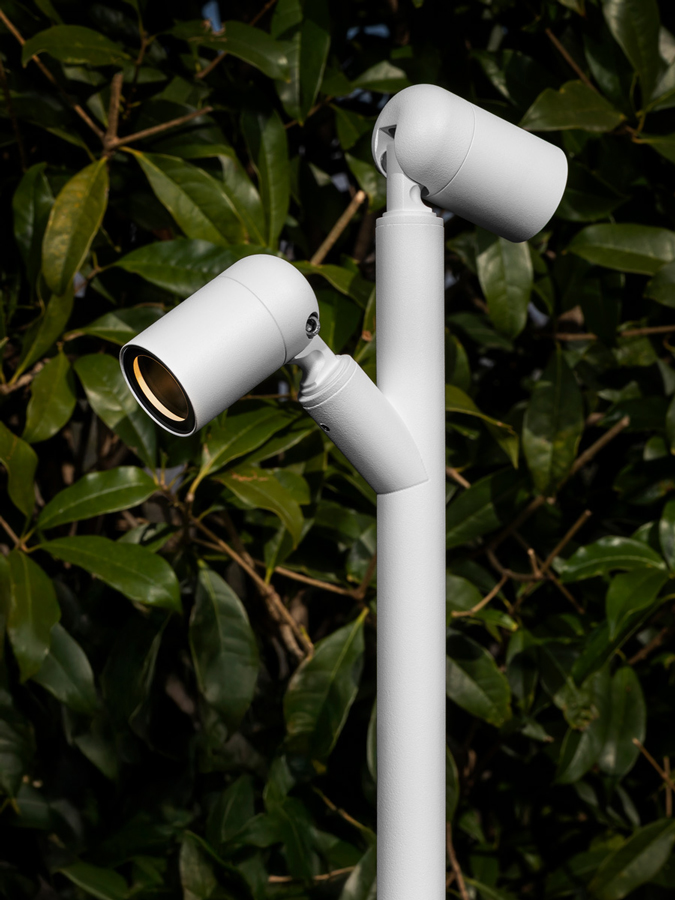

Required spike, not included. Order the dual-fixture spike together with two lighting fixtures

kg 0,24
IP66
IK07

Installation	bollard for outdoor applications
Power consumption	7W
Power supply	24Vdc
Lumen output at source	608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80)
Delivered lumen output	374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80)
Datasheet	Pivot 1.9 bollard for outdoor applications; surface mounted (spike); Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80); Delivered lumen output: 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 8°, 11°, 17°, 34°, 43°, 45°, 54°, 15°x47°; CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe; Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray., anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003); RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; Installation: Two installation options: spike with single lighting fixture, or spike with additional arm for a second lighting fixture. The pivot at the base of the lighting fixture enables great flexibility in aiming the light output.; power supply unit not included; includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP66; Impact resistance: IK07; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 240 g; Dimensions: Ø40x70 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, WB03105 Standard snoot - jasper green, WB0310E Standard snoot - white, WB0310H Standard snoot - anthracite, WB0310T Standard snoot - cor-ten, WB03115 Asymmetrical snoot - jasper green, WB0311E Asymmetrical snoot - white, WB0311H Asymmetrical snoot - anthracite, WB0311T Asymmetrical snoot - cor-ten, WPA005 Spike for in-ground installation - h 500 mm - jasper green, WPA00E Spike for in-ground installation - h 500 mm - white, WPA00H Spike for in-ground installation - h 500 mm - anthracite, WPA00T Spike for in-ground installation - h 500 mm - cor-ten, WPA015 Spike for in-ground installation - h 800 mm - jasper green, WPA01E Spike for in-ground installation - h 800 mm - white, WPA01H Spike for in-ground installation - h 800 mm - anthracite, WPA01T Spike for in-ground installation - h 800 mm - cor-ten, WPA025 Spike for in-ground installation - h 1100 mm - jasper green, WPA02E Spike for in-ground installation - h 1100 mm - white, WPA02H Spike for in-ground installation - h 1100 mm - anthracite, WPA02T Spike for in-ground installation - h 1100 mm - cor-ten, WPA035 Dual-fixture spike for in-ground installation - h 500 mm - jasper green, WPA03E Dual-fixture spike for in-ground installation - h 500 mm - white, WPA03H Dual-fixture spike for in-ground installation - h 500 mm - anthracite, WPA03T Dual-fixture spike for in-ground installation - h 500 mm - cor-ten, WPA045 Dual-fixture spike for in-ground installation - h 800 mm - jasper green, WPA04E Dual-fixture spike for in-ground installation - h 800 mm - white, WPA04H Dual-fixture spike for in-ground installation - h 800 mm - anthracite, WPA04T Dual-fixture spike for in-ground installation - h 800 mm - cor-ten, WPA115 Dual-fixture spike for in-ground installation - h 1100 mm - jasper green, WPA11E Dual-fixture spike for in-ground installation - h 1100 mm - white, WPA11H Dual-fixture spike for in-ground installation - h 1100 mm - anthracite, WPA11T Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPivot 1.9 bollard for outdoor applications surface mounted (spike) Power consumption: 7W Power supply: 24Vdc Lumen output at source: 608 lm (3000K, 7W, CRI >90), 657 lm (3000K, 7W, CRI 80) Delivered lumen output: 374 lm (3000K, 34°, 7W, CRI >90), 463 lm (3000K, 34°, 7W, CRI 80) 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 8°, 11°, 17°, 34°, 43°, 45°, 54°, 15°x47° CRI Colour Rendering Index: 80, >90 Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray., anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003) RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time Installation: Two installation options: spike with single lighting fixture, or spike with additional arm for a second lighting fixture. The pivot at the base of the lighting fixture enables great flexibility in aiming the light output. power supply unit not included includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP66 Impact resistance: IK07 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 240 g Dimensions: Ø40x70 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, WB03105 Standard snoot - jasper green, WB0310E Standard snoot - white, WB0310H Standard snoot - anthracite, WB0310T Standard snoot - cor-ten, WB03115 Asymmetrical snoot - jasper green, WB0311E Asymmetrical snoot - white, WB0311H Asymmetrical snoot - anthracite, WB0311T Asymmetrical snoot - cor-ten, WPA005 Spike for in-ground installation - h 500 mm - jasper green, WPA00E Spike for in-ground installation - h 500 mm - white, WPA00H Spike for in-ground installation - h 500 mm - anthracite, WPA00T Spike for in-ground installation - h 500 mm - cor-ten, WPA015 Spike for in-ground installation - h 800 mm - jasper green, WPA01E Spike for in-ground installation - h 800 mm - white, WPA01H Spike for in-ground installation - h 800 mm - anthracite, WPA01T Spike for in-ground installation - h 800 mm - cor-ten, WPA025 Spike for in-ground installation - h 1100 mm - jasper green, WPA02E Spike for in-ground installation - h 1100 mm - white, WPA02H Spike for in-ground installation - h 1100 mm - anthracite, WPA02T Spike for in-ground installation - h 1100 mm - cor-ten, WPA035 Dual-fixture spike for in-ground installation - h 500 mm - jasper green, WPA03E Dual-fixture spike for in-ground installation - h 500 mm - white, WPA03H Dual-fixture spike for in-ground installation - h 500 mm - anthracite, WPA03T Dual-fixture spike for in-ground installation - h 500 mm - cor-ten, WPA045 Dual-fixture spike for in-ground installation - h 800 mm - jasper green, WPA04E Dual-fixture spike for in-ground installation - h 800 mm - white, WPA04H Dual-fixture spike for in-ground installation - h 800 mm - anthracite, WPA04T Dual-fixture spike for in-ground installation - h 800 mm - cor-ten, WPA115 Dual-fixture spike for in-ground installation - h 1100 mm - jasper green, WPA11E Dual-fixture spike for in-ground installation - h 1100 mm - white, WPA11H Dual-fixture spike for in-ground installation - h 1100 mm - anthracite, WPA11T Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (spike)
Number and type of LED	1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	8°, 11°, 17°, 34°, 43°, 45°, 54°, 15°x47°
CRI Colour Rendering Index	80, >90
Body material	body in anticorodal aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	cor-ten, anthracite, jasper green, white
Power supply unit	power supply unit not included
Power cables	includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP66
Impact resistance	IK07
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (33)

Spikes and arms

Required installation accessories, not included WPA005 Spike for in-ground installation - h 500 mm - jasper green Order together with the lighting fixture	Required installation accessories, not included WPA00E Spike for in-ground installation - h 500 mm - white Order together with the lighting fixture
Required installation accessories, not included WPA00H Spike for in-ground installation - h 500 mm - anthracite Order together with the lighting fixture	Required installation accessories, not included WPA00T Spike for in-ground installation - h 500 mm - cor-ten Order together with the lighting fixture
Required installation accessories, not included WPA015 Spike for in-ground installation - h 800 mm - jasper green Order together with the lighting fixture	Required installation accessories, not included WPA01E Spike for in-ground installation - h 800 mm - white Order together with the lighting fixture
Required installation accessories, not included WPA01H Spike for in-ground installation - h 800 mm - anthracite Order together with the lighting fixture	Required installation accessories, not included WPA01T Spike for in-ground installation - h 800 mm - cor-ten Order together with the lighting fixture
Required installation accessories, not included WPA025 Spike for in-ground installation - h 1100 mm - jasper green Order together with the lighting fixture	Required installation accessories, not included WPA02E Spike for in-ground installation - h 1100 mm - white Order together with the lighting fixture
Required installation accessories, not included WPA02H Spike for in-ground installation - h 1100 mm - anthracite Order together with the lighting fixture	Required installation accessories, not included WPA02T Spike for in-ground installation - h 1100 mm - cor-ten Order together with the lighting fixture
Required installation accessories, not included WPA035 Dual-fixture spike for in-ground installation - h 500 mm - jasper green Order together with two lighting fixtures	Required installation accessories, not included WPA03E Dual-fixture spike for in-ground installation - h 500 mm - white Order together with two lighting fixtures
Required installation accessories, not included WPA03H Dual-fixture spike for in-ground installation - h 500 mm - anthracite Order together with two lighting fixtures	Required installation accessories, not included WPA03T Dual-fixture spike for in-ground installation - h 500 mm - cor-ten Order together with two lighting fixtures
Required installation accessories, not included WPA045 Dual-fixture spike for in-ground installation - h 800 mm - jasper green Order together with two lighting fixtures	Required installation accessories, not included WPA04E Dual-fixture spike for in-ground installation - h 800 mm - white Order together with two lighting fixtures
Required installation accessories, not included WPA04H Dual-fixture spike for in-ground installation - h 800 mm - anthracite Order together with two lighting fixtures	Required installation accessories, not included WPA04T Dual-fixture spike for in-ground installation - h 800 mm - cor-ten Order together with two lighting fixtures
Required installation accessories, not included WPA115 Dual-fixture spike for in-ground installation - h 1100 mm - jasper green Order together with two lighting fixtures	Required installation accessories, not included WPA11E Dual-fixture spike for in-ground installation - h 1100 mm - white Order together with two lighting fixtures
Required installation accessories, not included WPA11H Dual-fixture spike for in-ground installation - h 1100 mm - anthracite Order together with two lighting fixtures	Required installation accessories, not included WPA11T Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten Order together with two lighting fixtures

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

Snoots

WB03105 Standard snoot - jasper green	WB0310E Standard snoot - white
WB0310H Standard snoot - anthracite	WB0310T Standard snoot - cor-ten
WB03115 Asymmetrical snoot - jasper green	WB0311E Asymmetrical snoot - white
WB0311H Asymmetrical snoot - anthracite	WB0311T Asymmetrical snoot - cor-ten

Cables

Choose the power cable in the code generator

Power supply units (24)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 10W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W 12Vdc; 11W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV0D024V03066

DALI 2 + PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 + PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 + PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 + PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 + PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 + PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	PUSH, DALI-2
Power supply unit IP	IP66

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 24 Vdc input:; 24Vdc; 288W With 12 Vdc input:; 12Vdc; 144W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 24 Vdc input:; 24Vdc; 120W With 12 Vdc input:; 12Vdc; 60W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 24 Vdc input:; 24Vdc; 240W With 12 Vdc input:; 12Vdc; 120W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (4)

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm
