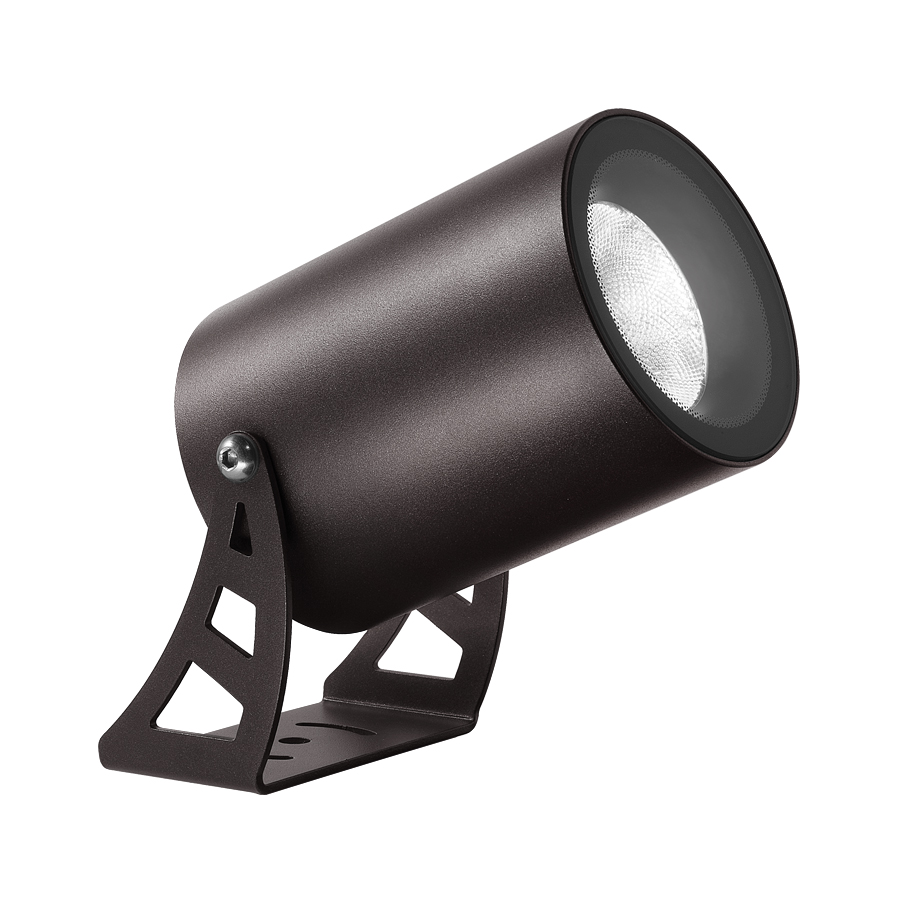

Spot 4.4

Projectors for outdoor applications

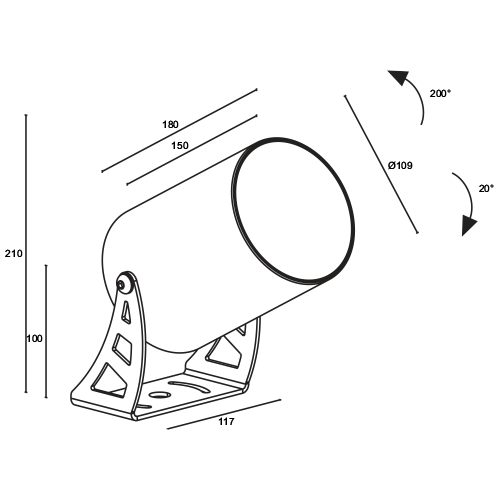

projector for outdoor applications - 22W / 32W 230Vac - Ø109x179 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finishes: anthracite, white, bronze, cor-ten, black

Technical data

Print technical data

kg 2,50
IP66
IK08
DALI-2
PUSH

Installation	projector for outdoor applications
Power consumption	22W, 32W
Power supply	230Vac
Lumen output at source	2073 lm (3000K, 22W), 2840 lm (3000K, 32W)
Delivered lumen output	1818 lm (3000K, 14°, 22W), 2491 lm (3000K, 14°, 32W)
Datasheet	Spot 4.4 projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 22W, 32W; Power supply: 230Vac; Lumen output at source: 2073 lm (3000K, 22W), 2840 lm (3000K, 32W); Delivered lumen output: 1818 lm (3000K, 14°, 22W), 2491 lm (3000K, 14°, 32W); 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 14°, 27°, 36°, 56°, 14°, 27°, 36°, 56°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754; Finishes: jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003); RAL finish on request; Screen material: 5-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with RAL 7015 grey vitrified serigraphy around the edge; built-in power supply unit; on/off: includes 1.50 m neoprene cable H05RN-F 3x1,0 Ø7 mm DALI-2: includes two 1.5 m neoprene cables, H05RN-F 3x1.0 Ø7 mm and H05RN-F 2x0.75 Ø6.3 mm; Control system: PUSH, DALI-2, ON/OFF; Ingress protection: IP66; Impact resistance: IK08; version with honeycomb louvre available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class I; Weight: 2500 g; Dimensions: Ø109x179 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB11015 Standard snoot - jasper green, WB1101E Standard snoot - white, WB1101H Standard snoot - anthracite, WB11025 Asymmetrical snoot - jasper green, WB1102E Asymmetrical snoot - white, WB1102H Asymmetrical snoot - anthracite, WP0300 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSpot 4.4 projector for outdoor applications surface mounted (ceiling, wall, ground, spike) Power consumption: 22W, 32W Power supply: 230Vac Lumen output at source: 2073 lm (3000K, 22W), 2840 lm (3000K, 32W) Delivered lumen output: 1818 lm (3000K, 14°, 22W), 2491 lm (3000K, 14°, 32W) 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 14°, 27°, 36°, 56°, 14°, 27°, 36°, 56°: optical system consisting of a high-efficiency TIR lens CRI Colour Rendering Index: 80 Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754 Finishes: jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003) RAL finish on request Screen material: 5-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with RAL 7015 grey vitrified serigraphy around the edge built-in power supply unit on/off: includes 1.50 m neoprene cable H05RN-F 3x1,0 Ø7 mm DALI-2: includes two 1.5 m neoprene cables, H05RN-F 3x1.0 Ø7 mm and H05RN-F 2x0.75 Ø6.3 mm Control system: PUSH, DALI-2, ON/OFF Ingress protection: IP66 Impact resistance: IK08 version with honeycomb louvre available on request, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class I Weight: 2500 g Dimensions: Ø109x179 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB11015 Standard snoot - jasper green, WB1101E Standard snoot - white, WB1101H Standard snoot - anthracite, WB11025 Asymmetrical snoot - jasper green, WB1102E Asymmetrical snoot - white, WB1102H Asymmetrical snoot - anthracite, WP0300 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	14°, 27°, 36°, 56°
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium, bracket in aluminium
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	jasper green, anthracite, white
Power supply unit	built-in power supply unit
Power cables	on/off: includes 1.50 m neoprene cable H05RN-F 3x1,0 Ø7 mm DALI-2: includes two 1.5 m neoprene cables, H05RN-F 3x1.0 Ø7 mm and H05RN-F 2x0.75 Ø6.3 mm
Control system	PUSH, DALI-2, ON/OFF
Ingress protection	IP66
Impact resistance	IK08
Notes	version with honeycomb louvre available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Accessories and power supply units

Accessories (7)

Spikes and arms

WP0300

Spike for in-ground installation

Snoots

WB11015 Standard snoot - jasper green	WB1101E Standard snoot - white
WB1101H Standard snoot - anthracite	WB11025 Asymmetrical snoot - jasper green
WB1102E Asymmetrical snoot - white	WB1102H Asymmetrical snoot - anthracite

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
