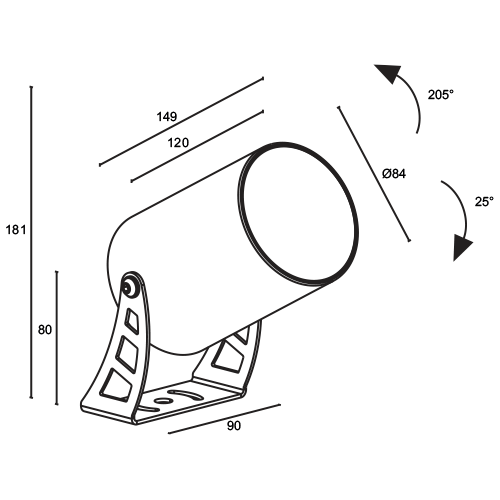

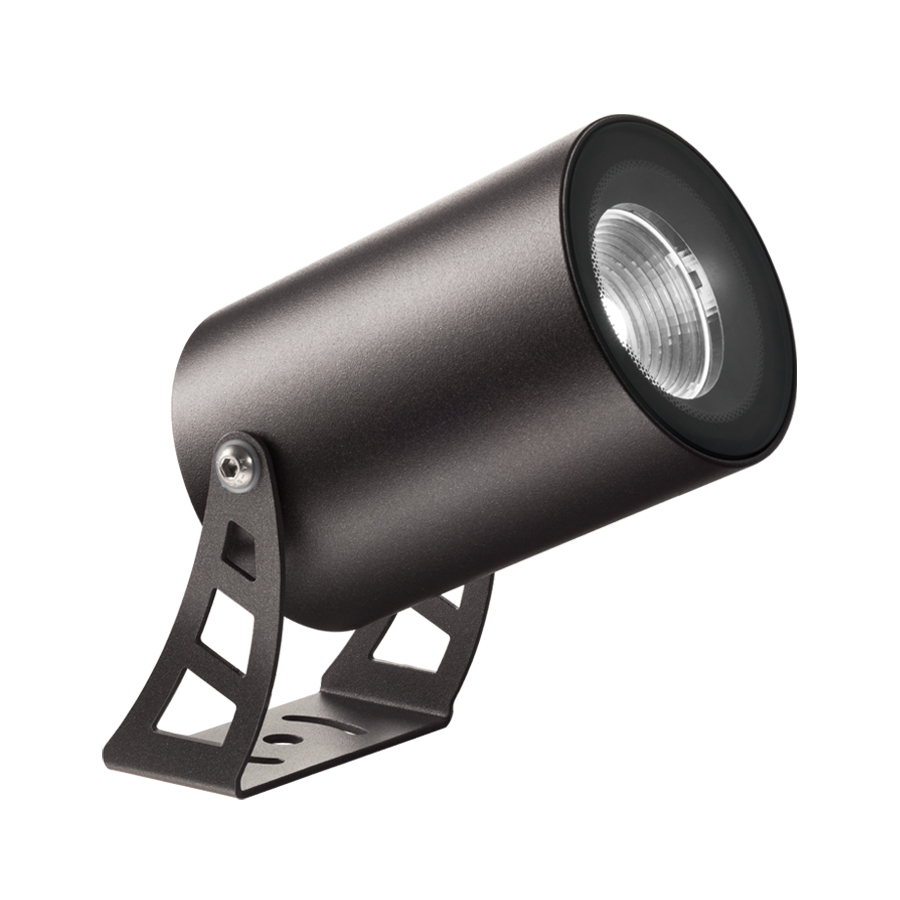

Spot 3.4

Projectors for outdoor applications

projector for outdoor applications - 15W 230Vac - Ø84x149 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finishes: anthracite, white, bronze, cor-ten, black
Elliptical optics - zoom optics

Technical data

Print technical data

kg 1,20
IP66
IK09

Installation	projector for outdoor applications
Power consumption	15W
Power supply	230Vac
Lumen output at source	1476 lm (3000K)
Delivered lumen output	1042 lm (3000K, 39°)
Datasheet	Spot 3.4 projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 15W; Power supply: 230Vac; Lumen output at source: 1476 lm (3000K); Delivered lumen output: 1042 lm (3000K, 39°); 1 COB LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 15°, 39°, 55°: optical system consisting of a high-efficiency TIR lens, 15°, 39°, 55°; CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754; Finishes: jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003); RAL finish on request; Screen material: 5-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches; built-in power supply unit; includes 1.50/1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK09; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1200 g; Dimensions: Ø84x149 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB80105 Standard snoot - jasper green, WB8010E Standard snoot - white, WB8010H Standard snoot - anthracite, WB80205 Asymmetrical snoot - jasper green, WB8020E Asymmetrical snoot - white, WB8020H Asymmetrical snoot - anthracite, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike for in-ground installation - h 500 mm - jasper green, WP1006E Spike for in-ground installation - h 500 mm - white, WP1006H Spike for in-ground installation - h 500 mm - anthracite, WP10075 Spike for in-ground installation - h 800 mm - jasper green, WP1007E Spike for in-ground installation - h 800 mm - white, WP1007H Spike for in-ground installation - h 800 mm - anthracite; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSpot 3.4 projector for outdoor applications surface mounted (ceiling, wall, ground, spike, strap) Power consumption: 15W Power supply: 230Vac Lumen output at source: 1476 lm (3000K) Delivered lumen output: 1042 lm (3000K, 39°) 1 COB LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 15°, 39°, 55°: optical system consisting of a high-efficiency TIR lens, 15°, 39°, 55° CRI Colour Rendering Index: 80 Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754 Finishes: jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003) RAL finish on request Screen material: 5-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches built-in power supply unit includes 1.50/1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK09 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1200 g Dimensions: Ø84x149 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB80105 Standard snoot - jasper green, WB8010E Standard snoot - white, WB8010H Standard snoot - anthracite, WB80205 Asymmetrical snoot - jasper green, WB8020E Asymmetrical snoot - white, WB8020H Asymmetrical snoot - anthracite, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike for in-ground installation - h 500 mm - jasper green, WP1006E Spike for in-ground installation - h 500 mm - white, WP1006H Spike for in-ground installation - h 500 mm - anthracite, WP10075 Spike for in-ground installation - h 800 mm - jasper green, WP1007E Spike for in-ground installation - h 800 mm - white, WP1007H Spike for in-ground installation - h 800 mm - anthracite tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike, strap)
Number and type of LED	1 COB LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	15°, 39°, 55°
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium, bracket in aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	jasper green, anthracite, white
Power supply unit	built-in power supply unit
Power cables	includes 1.50/1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK09
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Accessories and power supply units

Accessories (14)

Spikes and arms

WP0100 Spike for in-ground installation	WP10065 Spike for in-ground installation - h 500 mm - jasper green
WP1006E Spike for in-ground installation - h 500 mm - white	WP1006H Spike for in-ground installation - h 500 mm - anthracite
WP10075 Spike for in-ground installation - h 800 mm - jasper green	WP1007E Spike for in-ground installation - h 800 mm - white
WP1007H Spike for in-ground installation - h 800 mm - anthracite

Snoots

WB80105 Standard snoot - jasper green	WB8010E Standard snoot - white
WB8010H Standard snoot - anthracite	WB80205 Asymmetrical snoot - jasper green
WB8020E Asymmetrical snoot - white	WB8020H Asymmetrical snoot - anthracite

Various accessories

WP1004

Fastener strap - 5 m

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
