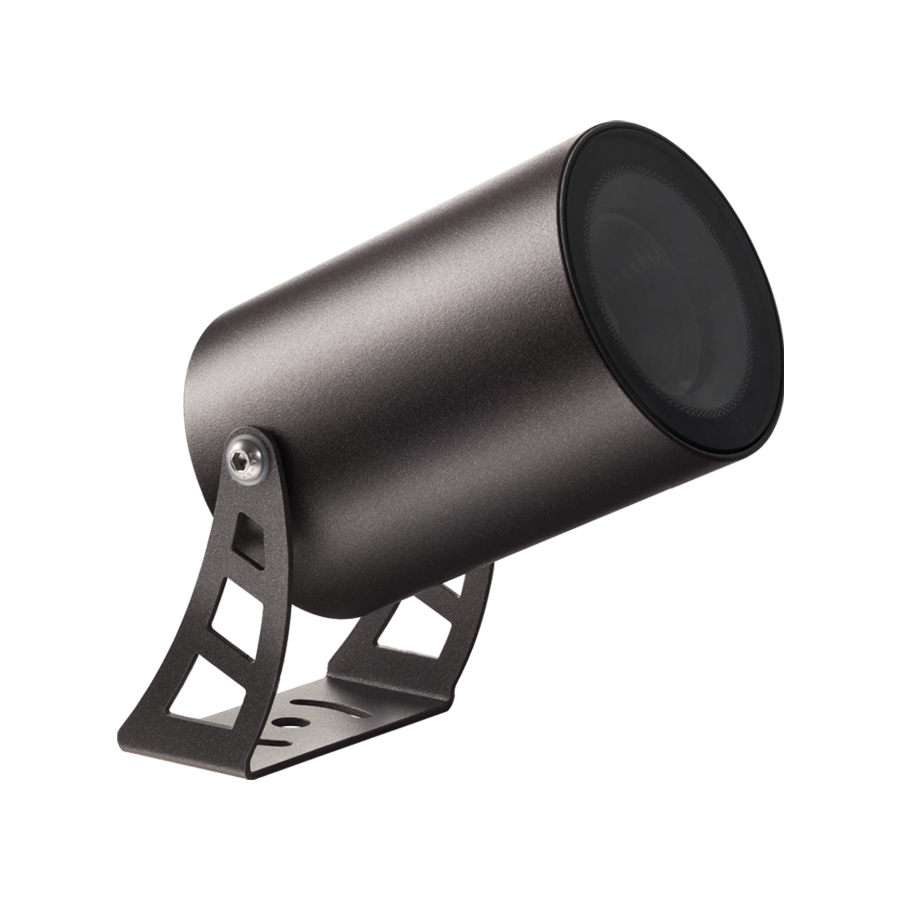

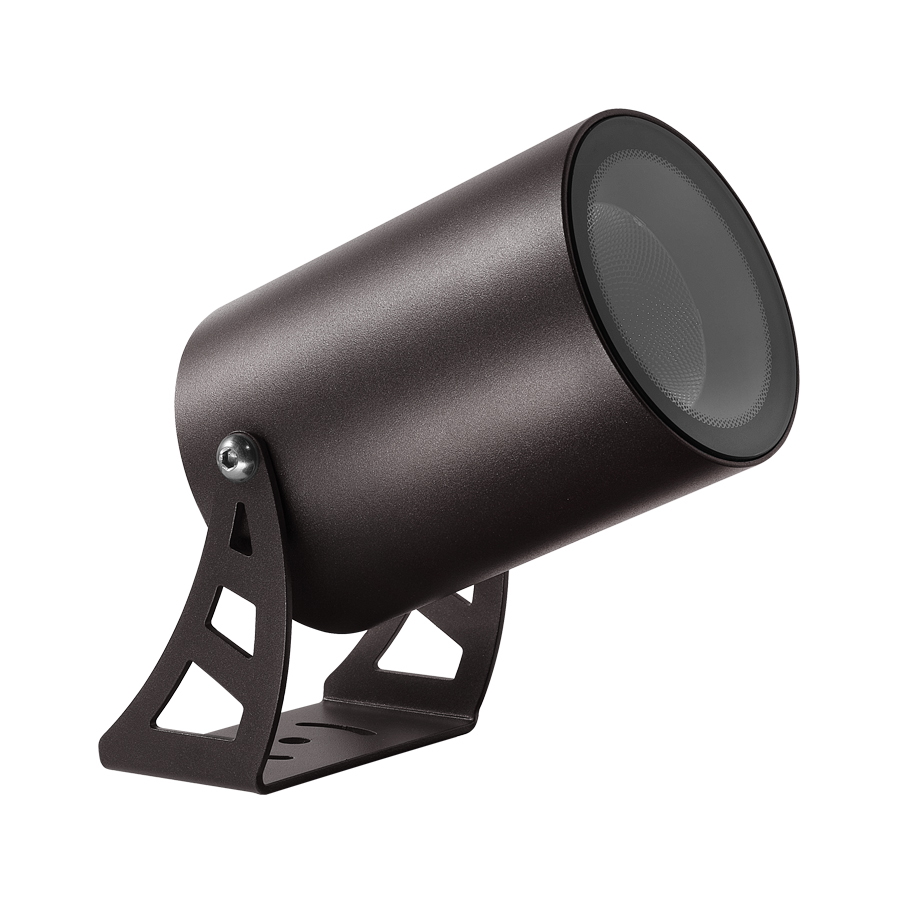

Spot 2.4

Projectors for outdoor applications

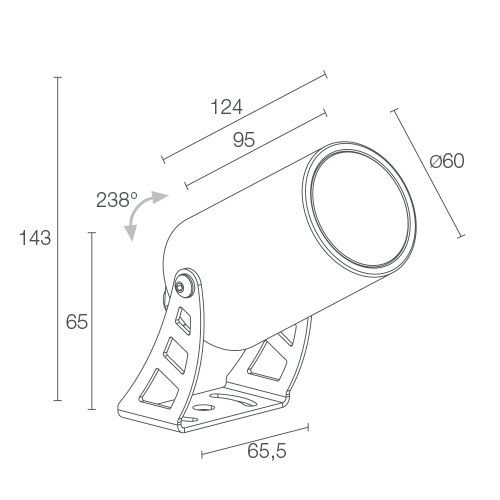

projector for outdoor applications - 8W 230Vac - Ø60x124 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finishes: anthracite, white, bronze, cor-ten, black
Elliptical optics

Technical data

Print technical data

kg 0,70
IP66
IK07

Installation	projector for outdoor applications
Power consumption	8W
Power supply	230Vac
Lumen output at source	586 lm (3000K)
Delivered lumen output	515 lm (3000K, 29°)
Datasheet	Spot 2.4 projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 8W; Power supply: 230Vac; Lumen output at source: 586 lm (3000K); Delivered lumen output: 515 lm (3000K, 29°); 1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C), 1 power LED, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 21°, 29°, 58°: optical system consisting of a high-efficiency TIR lens, 21°, 29°, 58°; CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754, body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version); Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003); RAL finish on request; Screen material: 4-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches, 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with RAL 7015 grey vitrified serigraphy around the edge, 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; built-in power supply unit; includes 1.5/1.50 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK07; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 700 g; Dimensions: Ø60x124 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB10015 Standard snoot - jasper green, WB1001E Standard snoot - white, WB1001H Standard snoot - anthracite, WB10025 Asymmetrical snoot - jasper green, WB1002E Asymmetrical snoot - white, WB1002H Asymmetrical snoot - anthracite, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike for in-ground installation - h 500 mm - jasper green, WP1006E Spike for in-ground installation - h 500 mm - white, WP1006H Spike for in-ground installation - h 500 mm - anthracite, WP1007E Spike for in-ground installation - h 800 mm - white, WP1007H Spike for in-ground installation - h 800 mm - anthracite; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSpot 2.4 projector for outdoor applications surface mounted (ceiling, wall, ground, spike, strap) Power consumption: 8W Power supply: 230Vac Lumen output at source: 586 lm (3000K) Delivered lumen output: 515 lm (3000K, 29°) 1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C), 1 power LED, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 21°, 29°, 58°: optical system consisting of a high-efficiency TIR lens, 21°, 29°, 58° CRI Colour Rendering Index: 80 Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754, body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version) Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003) RAL finish on request Screen material: 4-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches, 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with RAL 7015 grey vitrified serigraphy around the edge, 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches built-in power supply unit includes 1.5/1.50 m neoprene cable H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK07 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 700 g Dimensions: Ø60x124 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB10015 Standard snoot - jasper green, WB1001E Standard snoot - white, WB1001H Standard snoot - anthracite, WB10025 Asymmetrical snoot - jasper green, WB1002E Asymmetrical snoot - white, WB1002H Asymmetrical snoot - anthracite, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP10065 Spike for in-ground installation - h 500 mm - jasper green, WP1006E Spike for in-ground installation - h 500 mm - white, WP1006H Spike for in-ground installation - h 500 mm - anthracite, WP1007E Spike for in-ground installation - h 800 mm - white, WP1007H Spike for in-ground installation - h 800 mm - anthracite tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike, strap)
Number and type of LED	1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C), 1 power LED, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	21°, 29°, 58°
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium, bracket in aluminium, body in anticorodal aluminium, AISI 316L stainless steel bracket
Screen material	screen in serigraphed, tempered, transparent extra-clear glass, screen in serigraphed-grey and transparent, tempered extra-clear glass, screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite, jasper green, white
Power supply unit	built-in power supply unit
Power cables	includes 1.5/1.50 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK07
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

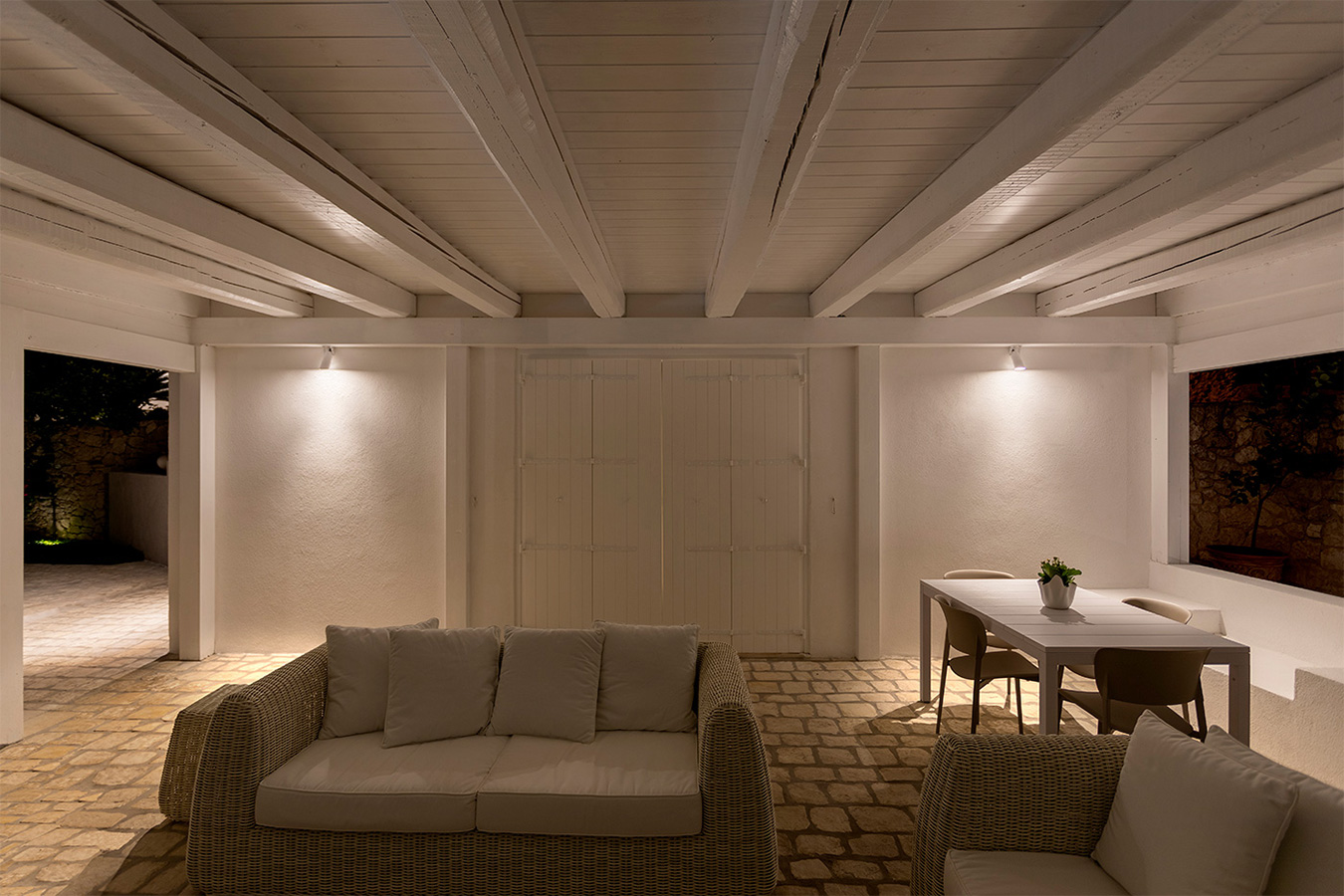

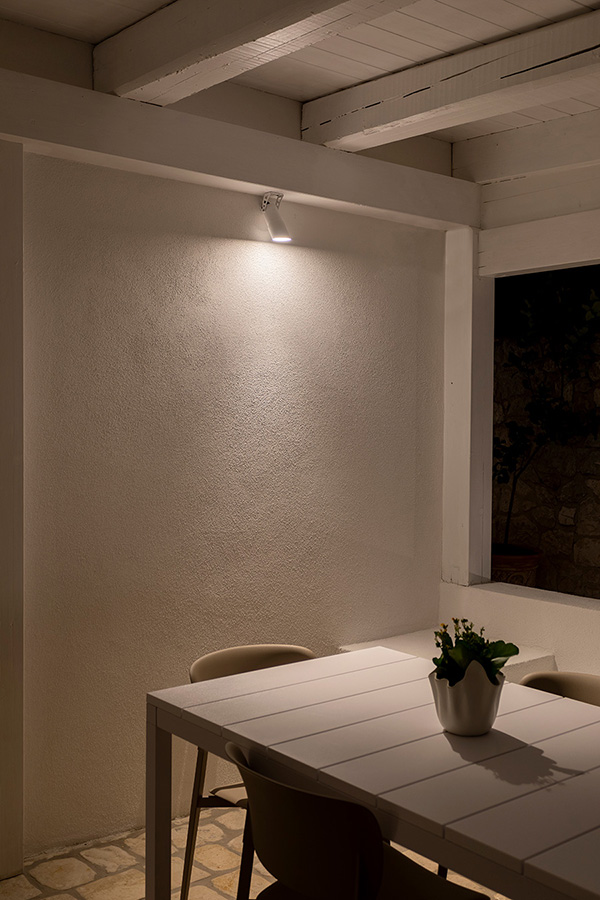

Gallery

Accessories and power supply units

Accessories (13)

Spikes and arms

WP0100 Spike for in-ground installation	WP10065 Spike for in-ground installation - h 500 mm - jasper green
WP1006E Spike for in-ground installation - h 500 mm - white	WP1006H Spike for in-ground installation - h 500 mm - anthracite
WP1007E Spike for in-ground installation - h 800 mm - white	WP1007H Spike for in-ground installation - h 800 mm - anthracite

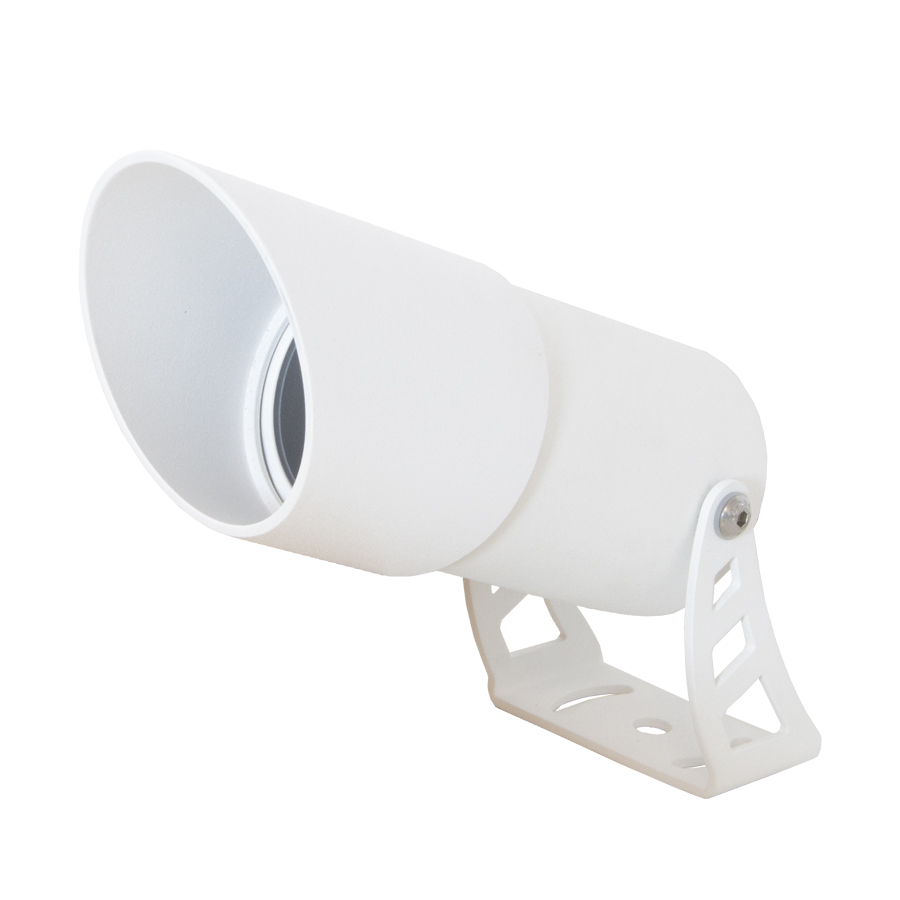

Snoots

WB10015 Standard snoot - jasper green	WB1001E Standard snoot - white
WB1001H Standard snoot - anthracite	WB10025 Asymmetrical snoot - jasper green
WB1002E Asymmetrical snoot - white	WB1002H Asymmetrical snoot - anthracite

Various accessories

WP1004

Fastener strap - 5 m

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs

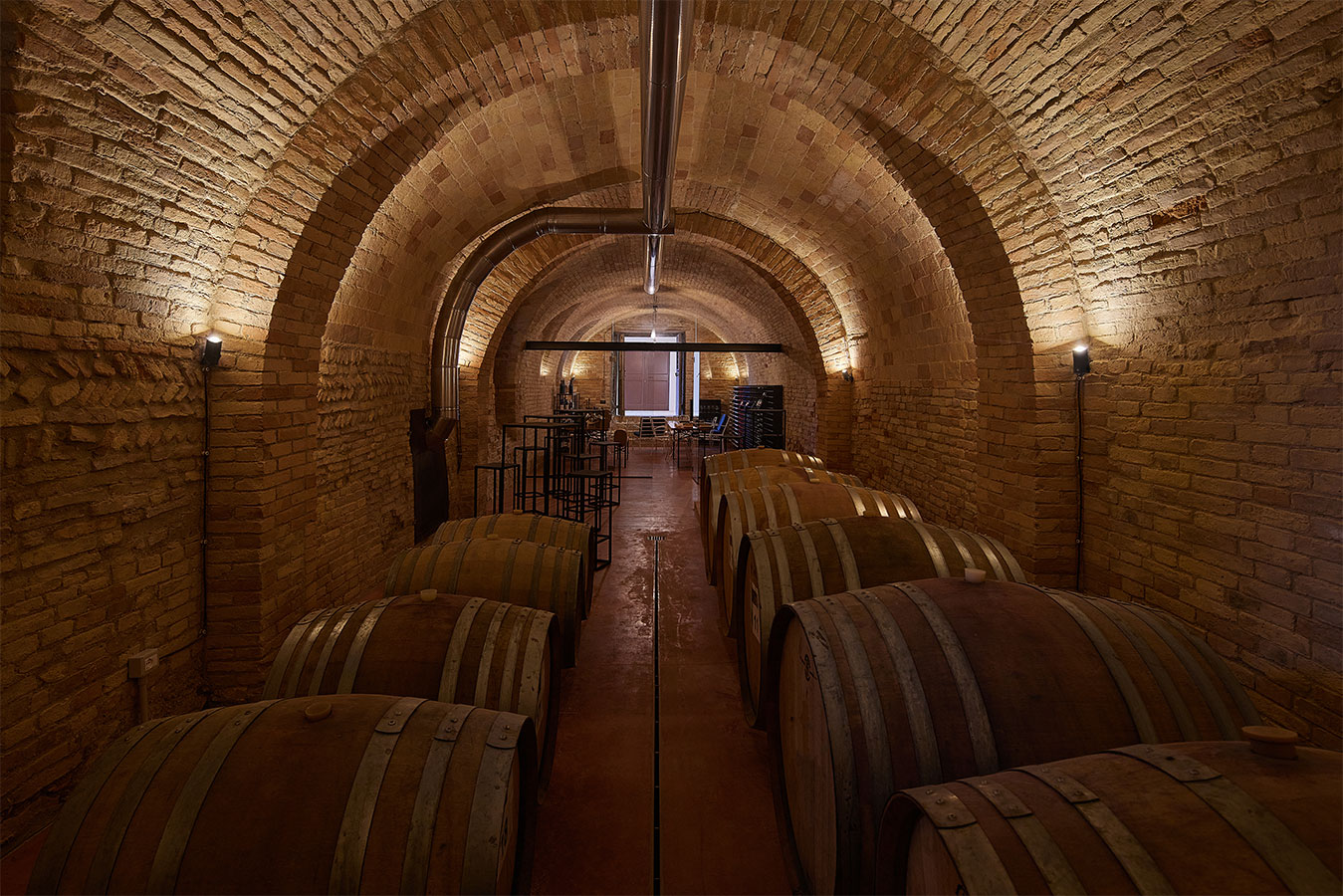

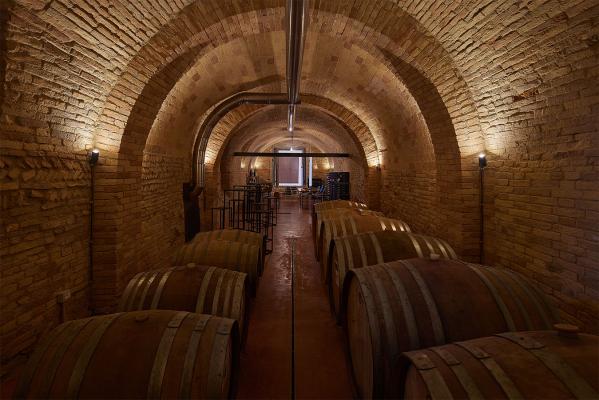

Projects

Versions

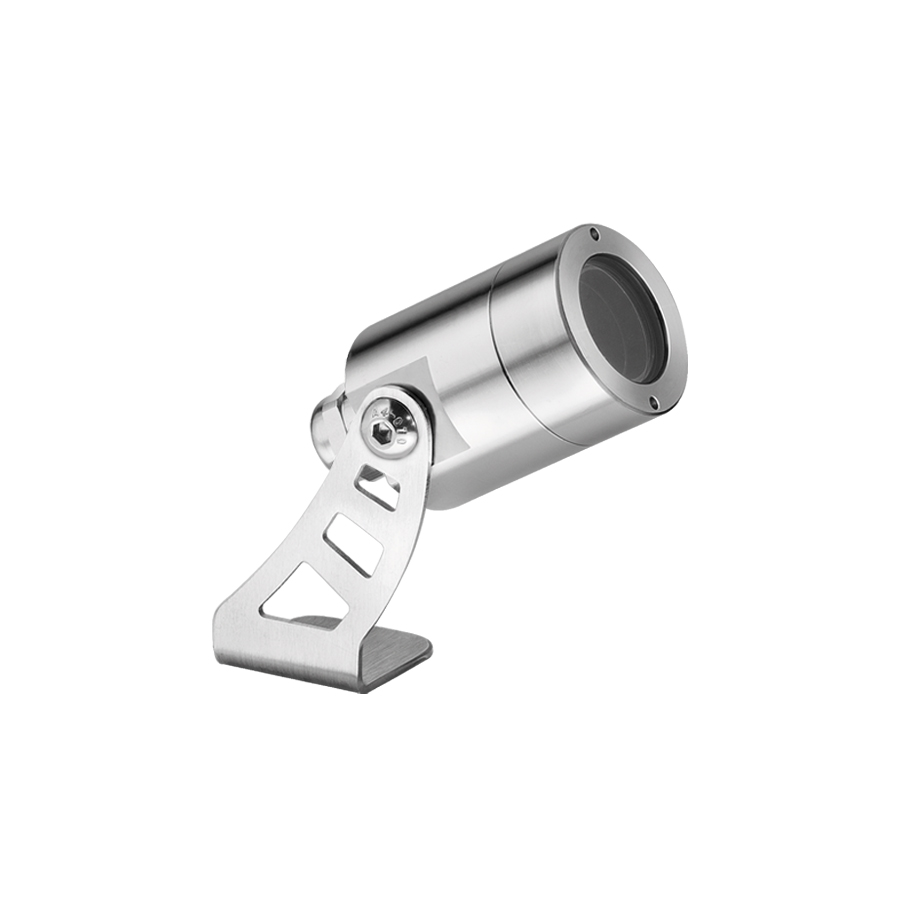

Spot 316L
