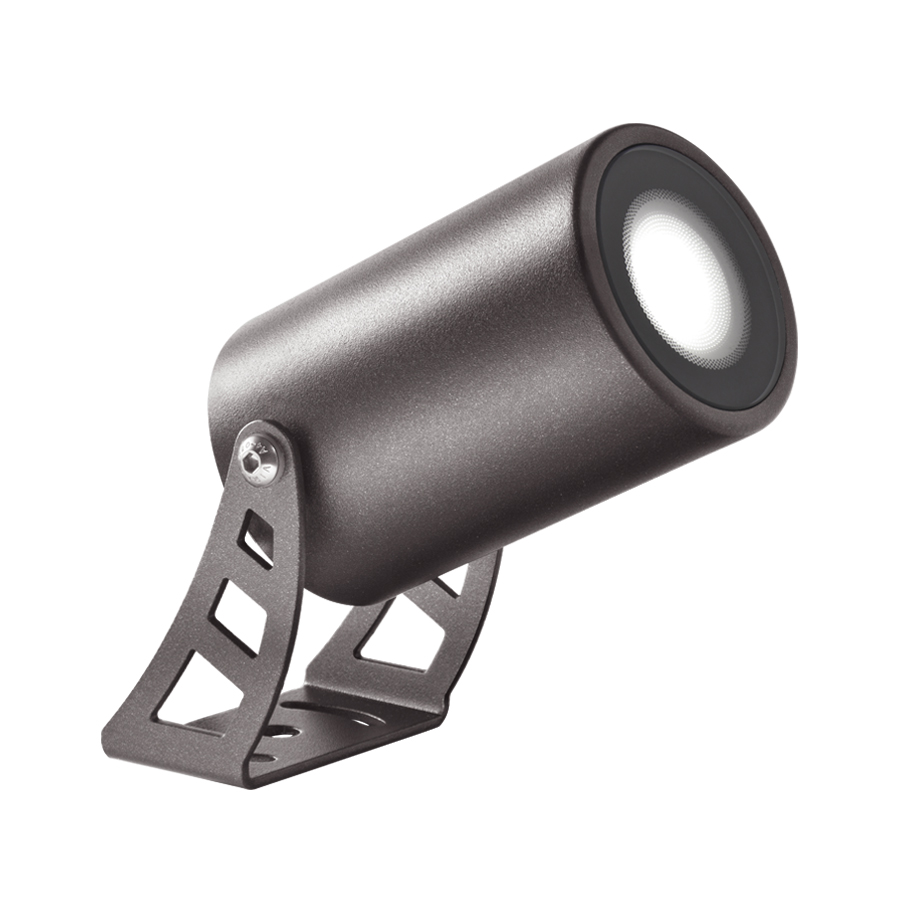

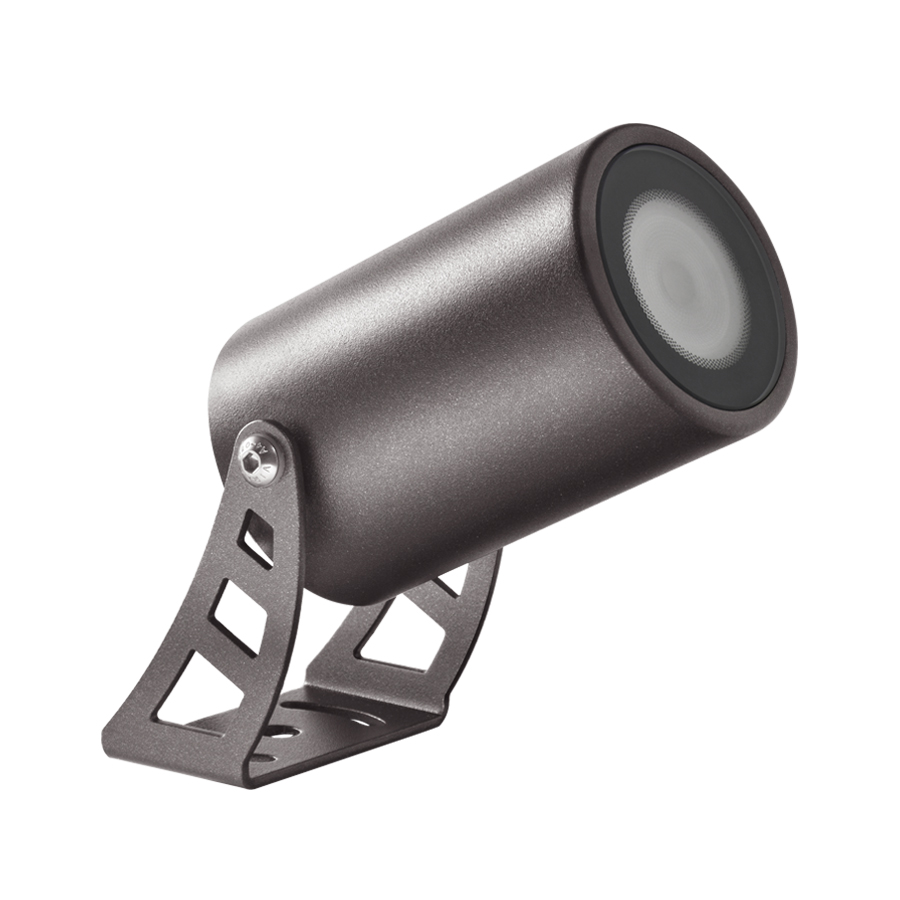

Spot 2.4

Projectors for outdoor applications

projector for outdoor applications - 8W 230Vac - Ø60x124 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finishes: anthracite, white, bronze, cor-ten, black
Elliptical optics

Technical data

Print technical data

Updated to CF2410000050MH

kg 0,70
IP66
IK07

Installation	projector for outdoor applications
Power consumption	8W
Power supply	230Vac
Lumen output at source	586 lm (3000K)
Delivered lumen output	515 lm (3000K, 29°)
Datasheet	Spot 2.4 code: CF2410000050MH projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 8W; Power supply: 230Vac; Lumen output at source: 586 lm (3000K); Delivered lumen output: 515 lm (3000K, 29°); 1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C); LED colour: 3000K; Optics: 29°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray; RAL finish on request; Screen material: 4-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK07; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 700 g; Dimensions: Ø60x124 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB1001H Standard snoot - anthracite, WB1002H Asymmetrical snoot - anthracite, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP1006H Spike for in-ground installation - h 500 mm - anthracite, WP1007H Spike for in-ground installation - h 800 mm - anthracite; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSpot 2.4 code: CF2410000050MH projector for outdoor applications surface mounted (ceiling, wall, ground, spike, strap) Power consumption: 8W Power supply: 230Vac Lumen output at source: 586 lm (3000K) Delivered lumen output: 515 lm (3000K, 29°) 1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C) LED colour: 3000K Optics: 29°: optical system consisting of a high-efficiency TIR lens CRI Colour Rendering Index: 80 Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754 Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray RAL finish on request Screen material: 4-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches built-in power supply unit includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK07 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 700 g Dimensions: Ø60x124 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB1001H Standard snoot - anthracite, WB1002H Asymmetrical snoot - anthracite, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP1006H Spike for in-ground installation - h 500 mm - anthracite, WP1007H Spike for in-ground installation - h 800 mm - anthracite tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike, strap)
Number and type of LED	1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour	3000K
Optics	29°
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium, bracket in aluminium
Screen material	screen in serigraphed, tempered, transparent extra-clear glass
Finishes	anthracite
Power supply unit	built-in power supply unit
Power cables	includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK07
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Spot 2.4
- Specific, for code CF2410000050MH
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file Type
- Generic, for the product Spot 2.4
- Specific, for code CF2410000050MH
IES Photometric file Type
- Generic, for the product Spot 2.4
- Specific, for code CF2410000050MH
CB marking
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (6)

Accessories for product code CF2410000050MH

Spikes and arms

WP0100 Spike for in-ground installation	WP1006H Spike for in-ground installation - h 500 mm - anthracite
WP1007H Spike for in-ground installation - h 800 mm - anthracite

Snoots

WB1001H

Standard snoot - anthracite

WB1002H

Asymmetrical snoot - anthracite

Various accessories

WP1004

Fastener strap - 5 m

Power supply units (0)

Power supply units for product code CF2410000050MH

No power supply units

Control gear (0)

Control gear for product code CF2410000050MH

No controllers

Control input (0)

No control inputs
