Moby 2.1

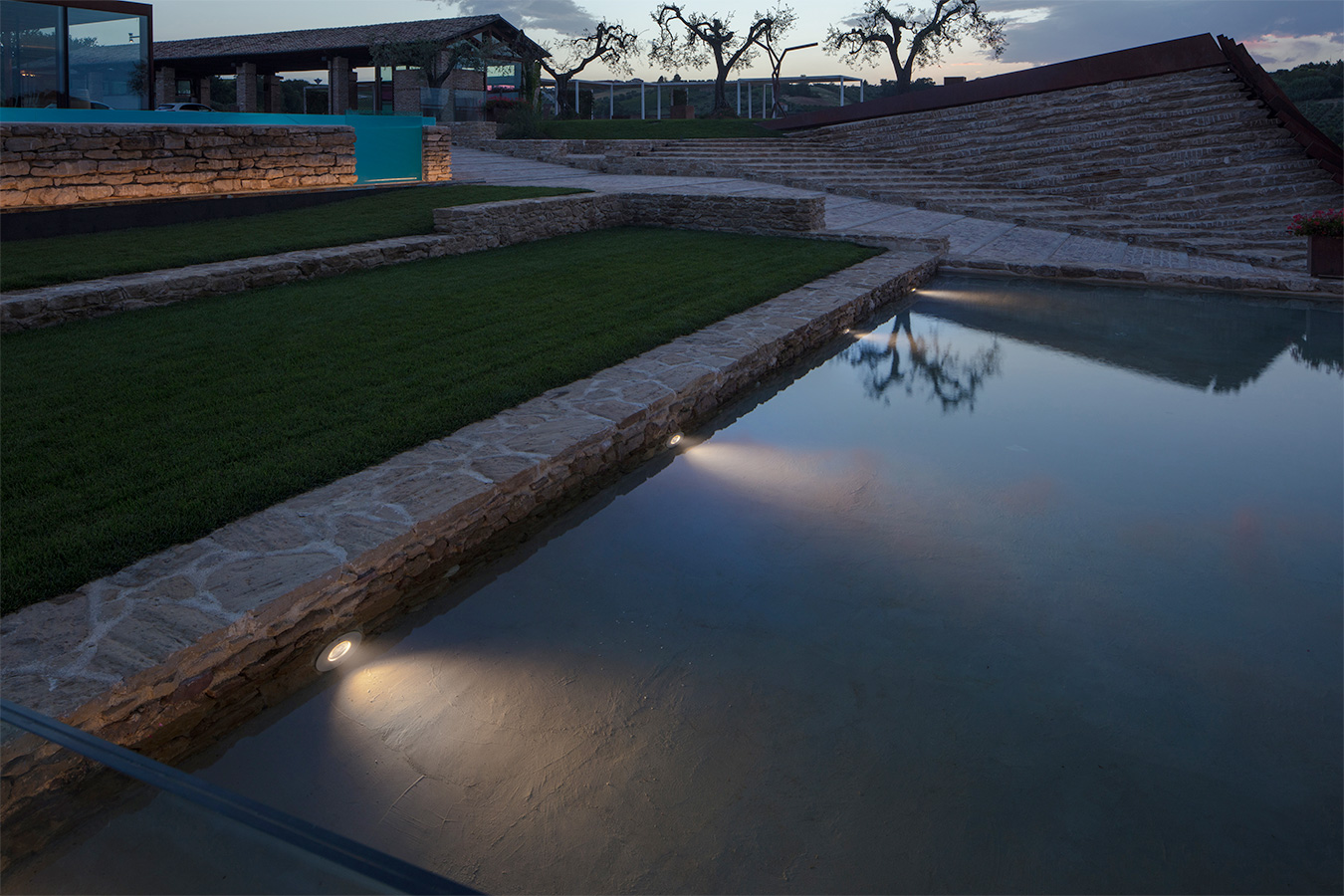

Recessed for underwater applications

recessed for underwater applications - 25W - 24Vdc - Ø232 mm -  glass cover

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Cables in non-standard length

Technical data

Print technical data

Updated to MY21005WV

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • BIS R-41105201
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 2,20
  • IP65
  • IP68
  • IK10
  • IPS
  • Casambi control
  • F
Installation recessed for underwater applications (suitable for use in seawater, only suitable for underwater applications)
Power consumption 25W
Power supply 24Vdc
Lumen output at source 2135 lm (3000K)
Delivered lumen output 1515 lm (3000K, 21°)
Datasheet

Copied
Mounting recessed (wall), max depth 10 m

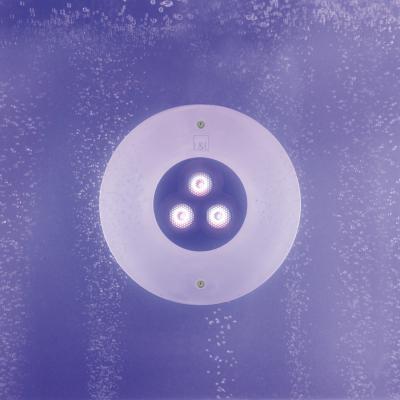

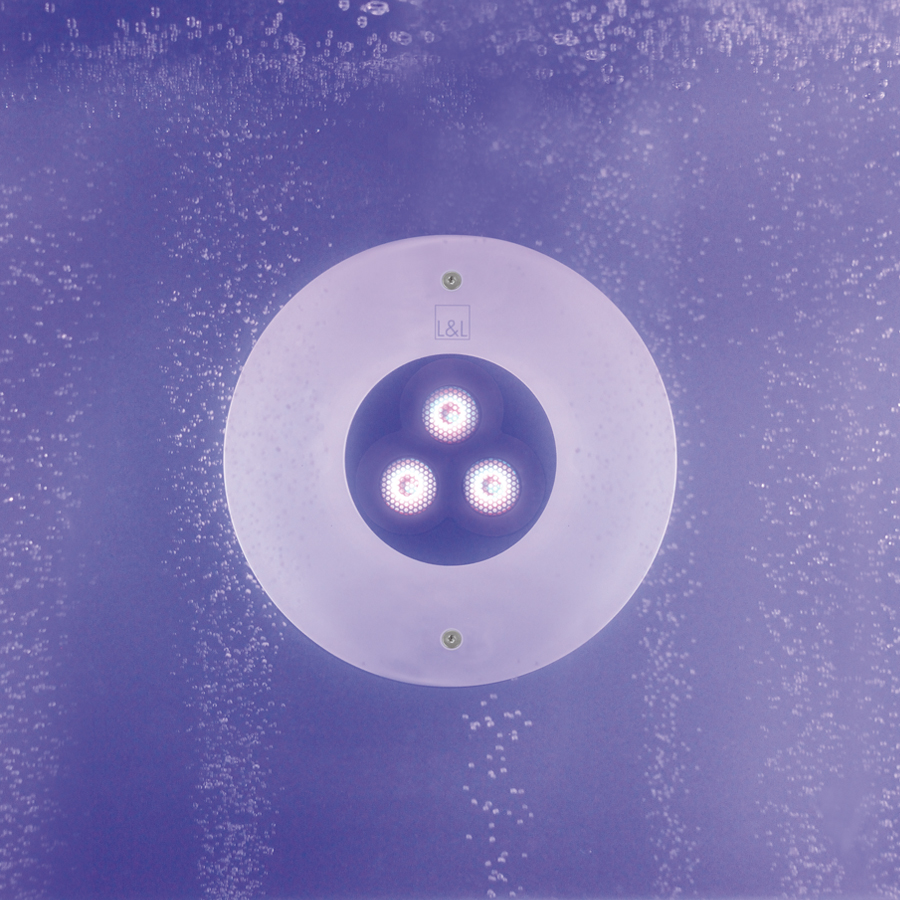

Number and type of LED 3 power LEDs groups, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour 3000K

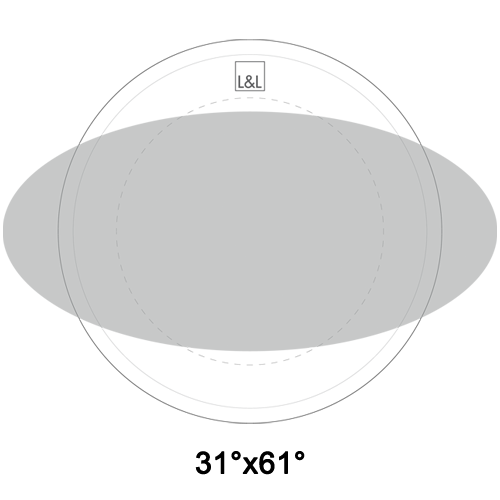

Optics 31°x61°
CRI Colour Rendering Index 80
Body material body in thermally conductive technopolymer
Screen material glass cover with vitrified serigraphy
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm
Ingress protection IP65, IP68
Impact resistance IK10
Status Available

Read more

Close

Accessories and power supply units

Accessories (2)

Accessories for product code MY21005WV

Outer casings

WC5202

Outer casing

Honeycomb louvre

Order together with the lighting fixture

WH0402

Honeycomb louvre

built into the lighting fixture

Power supply units (17)

Power supply units for product code MY21005WV

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W ✓
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W ✓
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W ✓
Power30W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
Power100W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W ✓
Power200W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W ✓
Power300W
DimmeringDALI-2
Power supply unit IPIP66

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W ✓
DimmeringON/OFF
Power supply unit IPIP67
Read more

Control gear (4)

Control gear for product code MY21005WV

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 12Vdc; 144W ⚠
With 24 Vdc input:; 24Vdc; 288W ✓
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

Control input (11)

EC0TIM12840020

Timer for CASAMBI

Input12-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC10

Remote control for TLR03

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
Read more
