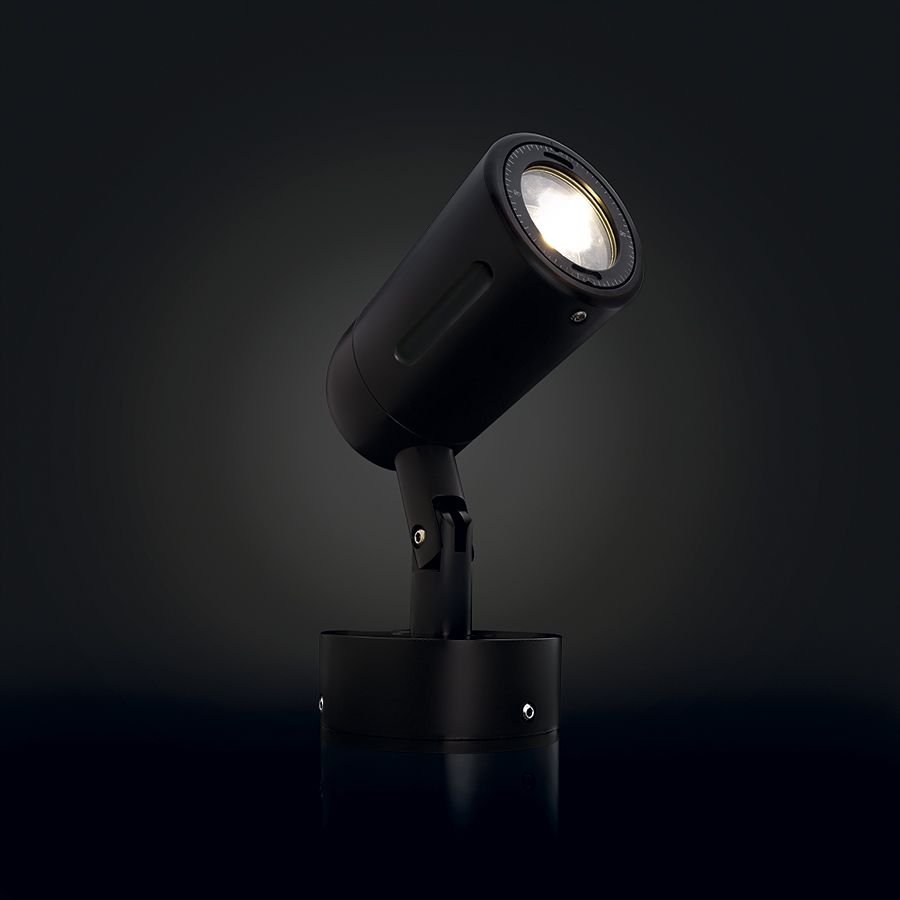

Akro 1.1

Projectors for outdoor applications

projector for outdoor applications - 43W 230Vac - built-in power supply unit - CRI 80 and CRI >90

Generate code

Technical data

Print technical data

kg 5,60
IP66
IK06

Installation	projector for outdoor applications
Power consumption	43W
Power supply	230Vac
Lumen output at source	2610 lm (3000K, CRI >90), 3260 lm (3000K, CRI 80)
Datasheet	Akro 1.1 projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 43W; Power supply: 230Vac; Lumen output at source: 2610 lm (3000K, CRI >90), 3260 lm (3000K, CRI 80); 1 COB power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: optical range 13°—32°, optical range 16°—42°: optical system consisting of 4 anti-reflective aspheric lenses in BK7 borosilicate glass. The diameter of the light emission can be modulated manually, ensuring maximum lighting flexibility; CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe; Finishes: black finish obtained through an initial treatment of the material with sandblasting and then electro-colouring to provide corrosion resistance equal to more than 1500 hours of salt spray testing; Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; built-in power supply unit; Ingress protection: IP66; Impact resistance: IK06; dichroic filters available on request in non-standard colouring; Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 5600 g; Dimensions: Ø109x290 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB1101N Standard snoot - black, WB1102N Asymmetrical snoot - black, WB1103N Barn doors - black, WE0300 Accessory for extracting IP66 cartridge, WE0301 Accessory for positioning filters, WH0506 Honeycomb louvre , WR0001 Dichroic filter - red, WR0002 Dichroic filter - green, WR0003 Dichroic filter - blue, WR0004 Dichroic filter - orange, WR0010 Optical filter - diffusion, WR0020 Optical filter - elliptical, WR0030 Colour temperature conversion filter - variation towards warm white light, WR0031 Colour temperature conversion filter - variation towards cold white light, WR0100 Mock-up cartridge; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionAkro 1.1 projector for outdoor applications surface mounted (ceiling, wall, floor) Power consumption: 43W Power supply: 230Vac Lumen output at source: 2610 lm (3000K, CRI >90), 3260 lm (3000K, CRI 80) 1 COB power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: optical range 13°—32°, optical range 16°—42°: optical system consisting of 4 anti-reflective aspheric lenses in BK7 borosilicate glass. The diameter of the light emission can be modulated manually, ensuring maximum lighting flexibility CRI Colour Rendering Index: 80, >90 Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe Finishes: black finish obtained through an initial treatment of the material with sandblasting and then electro-colouring to provide corrosion resistance equal to more than 1500 hours of salt spray testing Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches built-in power supply unit Ingress protection: IP66 Impact resistance: IK06 dichroic filters available on request in non-standard colouring Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 5600 g Dimensions: Ø109x290 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB1101N Standard snoot - black, WB1102N Asymmetrical snoot - black, WB1103N Barn doors - black, WE0300 Accessory for extracting IP66 cartridge, WE0301 Accessory for positioning filters, WH0506 Honeycomb louvre , WR0001 Dichroic filter - red, WR0002 Dichroic filter - green, WR0003 Dichroic filter - blue, WR0004 Dichroic filter - orange, WR0010 Optical filter - diffusion, WR0020 Optical filter - elliptical, WR0030 Colour temperature conversion filter - variation towards warm white light, WR0031 Colour temperature conversion filter - variation towards cold white light, WR0100 Mock-up cartridge tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, floor)
Number and type of LED	1 COB power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

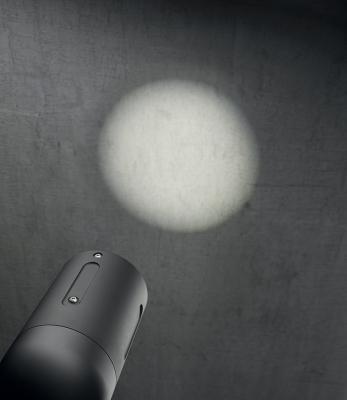

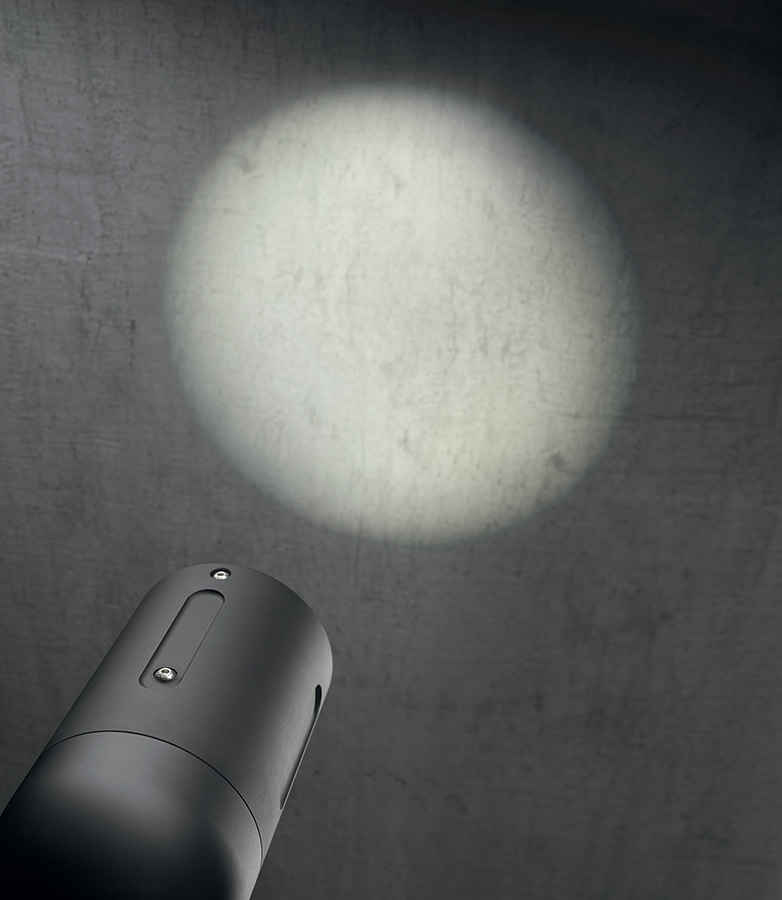

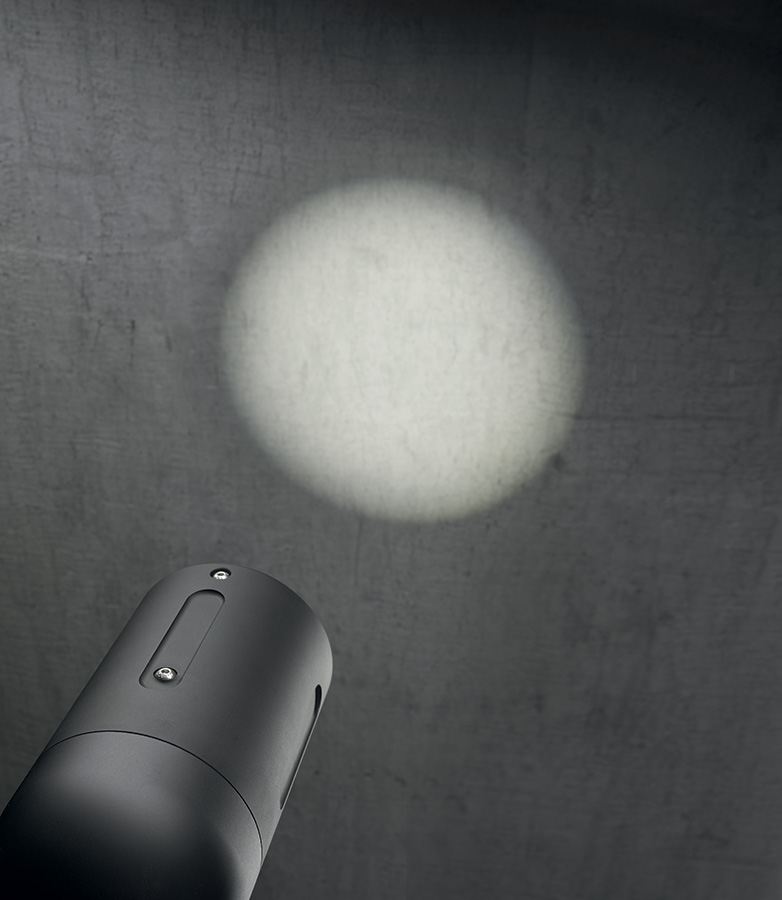

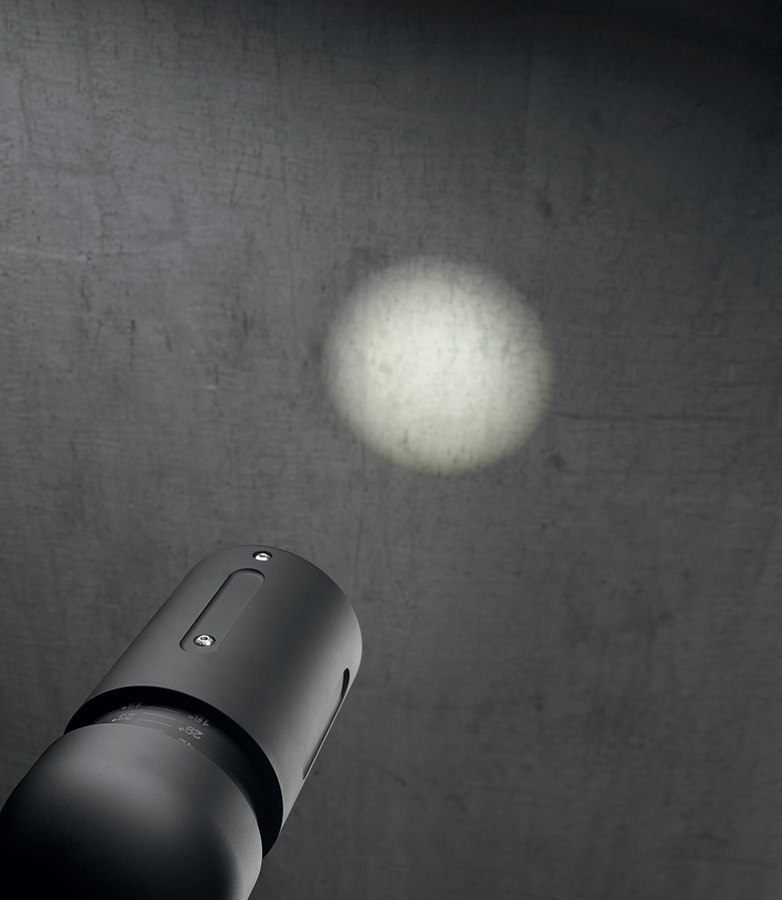

Optics	optical range 13°—32°, optical range 16°—42°
CRI Colour Rendering Index	80, >90
Body material	body in black-anodized aluminium
Screen material	screen in tempered, transparent extra-clear glass
Finishes	anodized black
Power supply unit	built-in power supply unit
Ingress protection	IP66
Impact resistance	IK06
Notes	dichroic filters available on request in non-standard colouring
Status	Available

Read more

Close

Download

See all downloads

Gallery

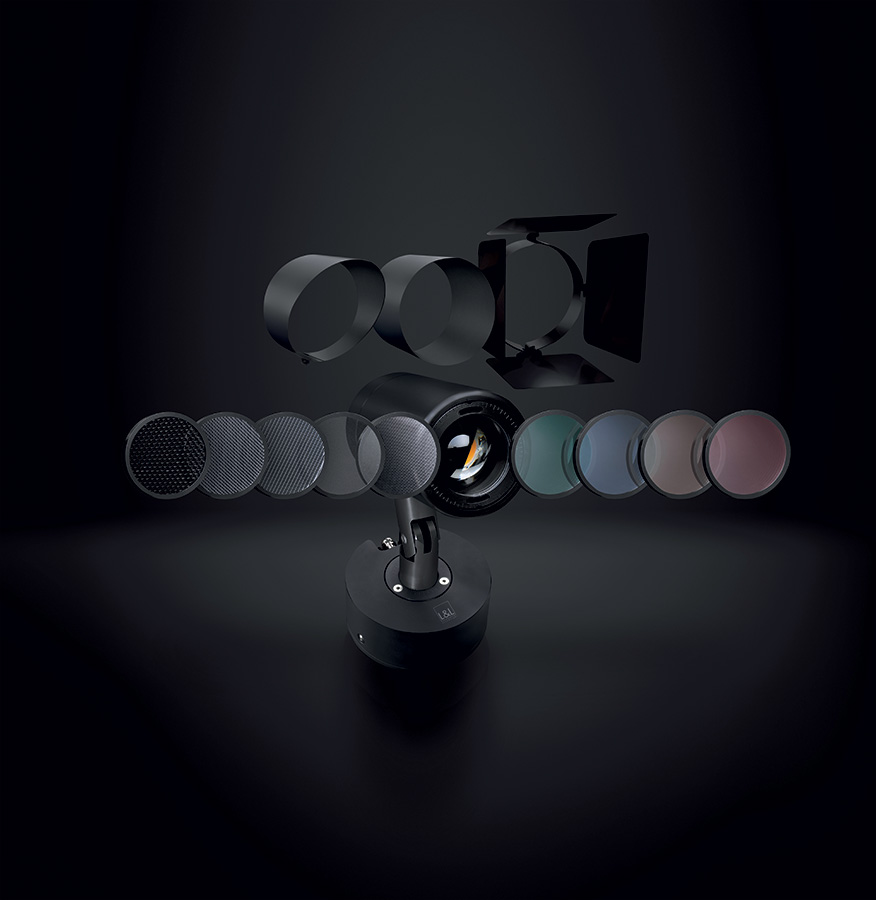

Accessories and power supply units

Accessories (15)

Honeycomb louvre

WH0506

Honeycomb louvre

order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters

Snoots

WB1101N

Standard snoot - black

WB1102N

Asymmetrical snoot - black

Barn doors

WB1103N

Barn doors - black

Filters

WR0001 Dichroic filter - red order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0002 Dichroic filter - green order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters
WR0003 Dichroic filter - blue order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0004 Dichroic filter - orange order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters
WR0010 Optical filter - diffusion order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0020 Optical filter - elliptical order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters
WR0030 Colour temperature conversion filter - variation towards warm white light order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0031 Colour temperature conversion filter - variation towards cold white light order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters

Various accessories

WE0300

Accessory for extracting IP66 cartridge

WR0100

Mock-up cartridge

Spare parts

WE0301

Accessory for positioning filters

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
