Akro 1.0 Outdoor projectors with interchangeable optical filters

Generate code

Technical data

kg 4,00
IP66
IK06

Installation	projector for outdoor applications
Power consumption	max 37W
Power supply	max 1050mA
Lumen output at source	2610 lm (3000K, 1050mA, CRI >90), 3260 lm (3000K, 1050mA, CRI 80)
Datasheet	Akro 1.0 projector for outdoor applications; surface mounted (ceiling, wall, floor, spike, pole); Power consumption: max 37W; Power supply: max 1050mA; Lumen output at source: 2610 lm (3000K, 1050mA, CRI >90), 3260 lm (3000K, 1050mA, CRI 80); 1 COB power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: optical range 13°—32°, optical range 16°—42°: optical system consisting of 4 anti-reflective aspheric lenses in BK7 borosilicate glass. The diameter of the light emission can be modulated manually, ensuring maximum lighting flexibility; CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe; Finishes: black finish obtained through an initial treatment of the material with sandblasting and then electro-colouring to provide corrosion resistance equal to more than 1500 hours of salt spray testing; Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; power supply unit not included; Wiring: series; includes 5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP66; Impact resistance: IK06; dimmable with remote PSU; dichroic filters available on request in non-standard colouring; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 4000 g; Dimensions: Ø109x237 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB1101N Standard snoot - black, WB1102N Asymmetrical snoot - black, WB1103N Barn doors - black, WE0300 Accessory for extracting IP66 cartridge, WE0301 Accessory for positioning filters, WH0506 Honeycomb louvre , WP0300 Spike for in-ground installation, WP1005N Arm for pole mounting, WR0001 Dichroic filter - red, WR0002 Dichroic filter - green, WR0003 Dichroic filter - blue, WR0004 Dichroic filter - orange, WR0010 Optical filter - diffusion, WR0020 Optical filter - elliptical, WR0030 Colour temperature conversion filter - variation towards warm white light, WR0031 Colour temperature conversion filter - variation towards cold white light, WR0100 Mock-up cartridge; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionAkro 1.0 projector for outdoor applications surface mounted (ceiling, wall, floor, spike, pole) Power consumption: max 37W Power supply: max 1050mA Lumen output at source: 2610 lm (3000K, 1050mA, CRI >90), 3260 lm (3000K, 1050mA, CRI 80) 1 COB power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: optical range 13°—32°, optical range 16°—42°: optical system consisting of 4 anti-reflective aspheric lenses in BK7 borosilicate glass. The diameter of the light emission can be modulated manually, ensuring maximum lighting flexibility CRI Colour Rendering Index: 80, >90 Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe Finishes: black finish obtained through an initial treatment of the material with sandblasting and then electro-colouring to provide corrosion resistance equal to more than 1500 hours of salt spray testing Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches power supply unit not included Wiring: series includes 5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP66 Impact resistance: IK06 dimmable with remote PSU dichroic filters available on request in non-standard colouring Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 4000 g Dimensions: Ø109x237 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB1101N Standard snoot - black, WB1102N Asymmetrical snoot - black, WB1103N Barn doors - black, WE0300 Accessory for extracting IP66 cartridge, WE0301 Accessory for positioning filters, WH0506 Honeycomb louvre , WP0300 Spike for in-ground installation, WP1005N Arm for pole mounting, WR0001 Dichroic filter - red, WR0002 Dichroic filter - green, WR0003 Dichroic filter - blue, WR0004 Dichroic filter - orange, WR0010 Optical filter - diffusion, WR0020 Optical filter - elliptical, WR0030 Colour temperature conversion filter - variation towards warm white light, WR0031 Colour temperature conversion filter - variation towards cold white light, WR0100 Mock-up cartridge tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

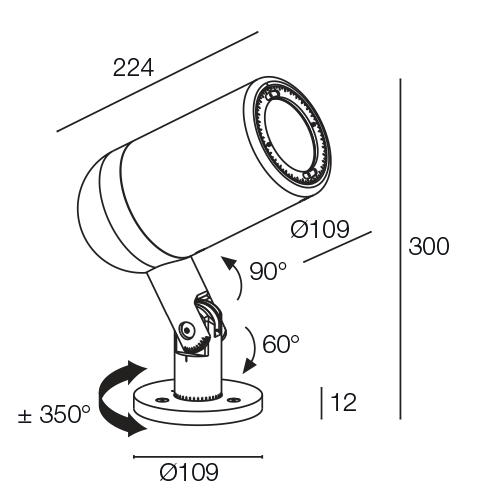

Mounting	surface mounted (ceiling, wall, floor, spike, pole)
Number and type of LED	1 COB power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

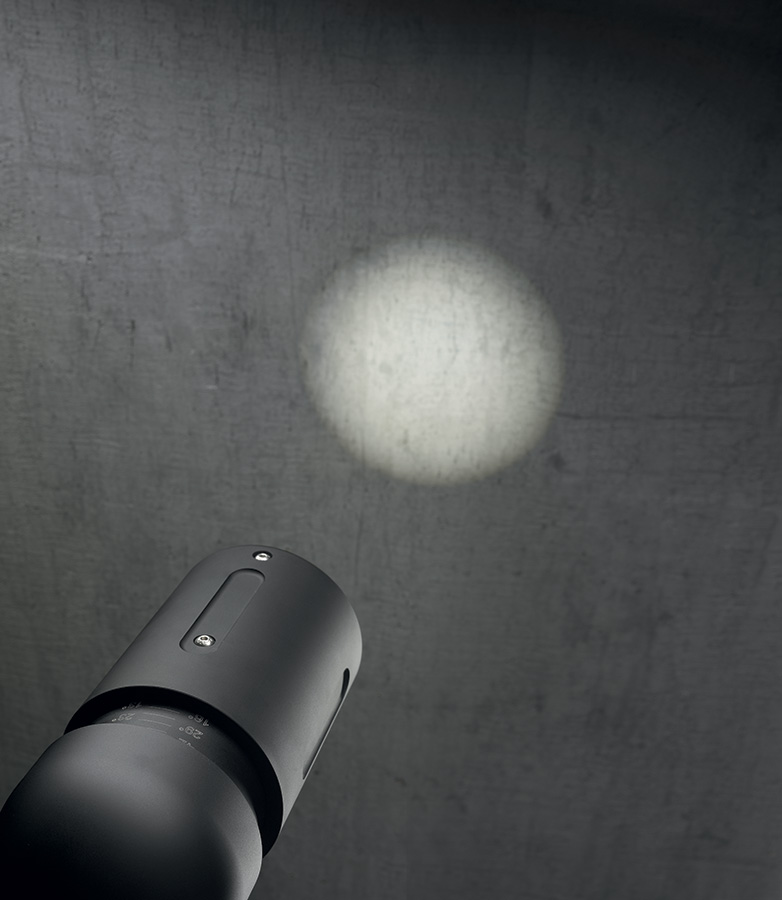

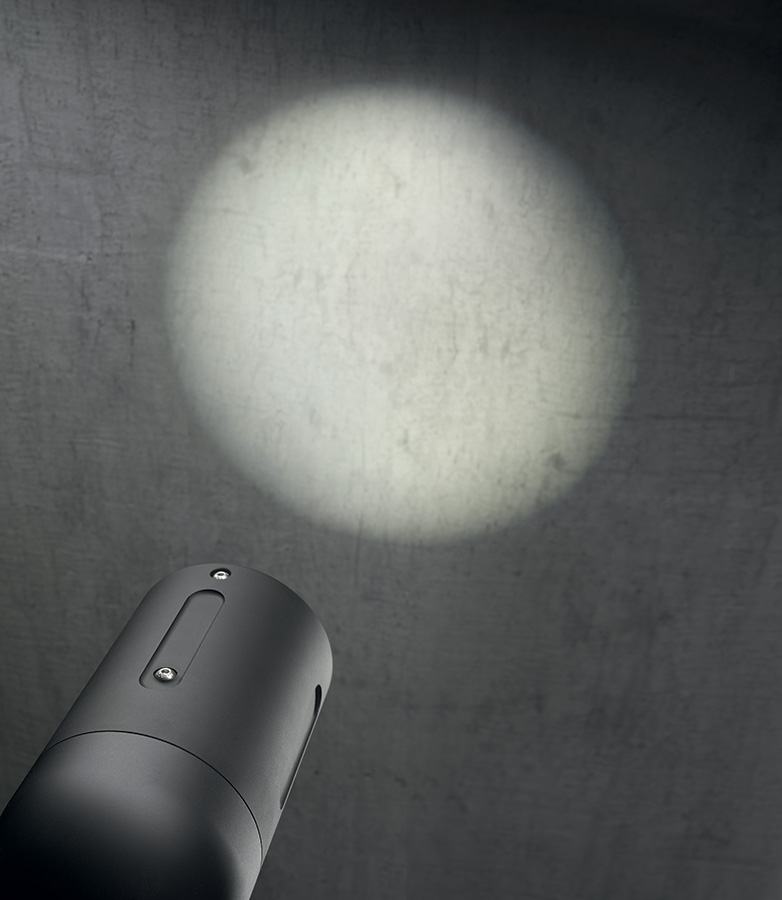

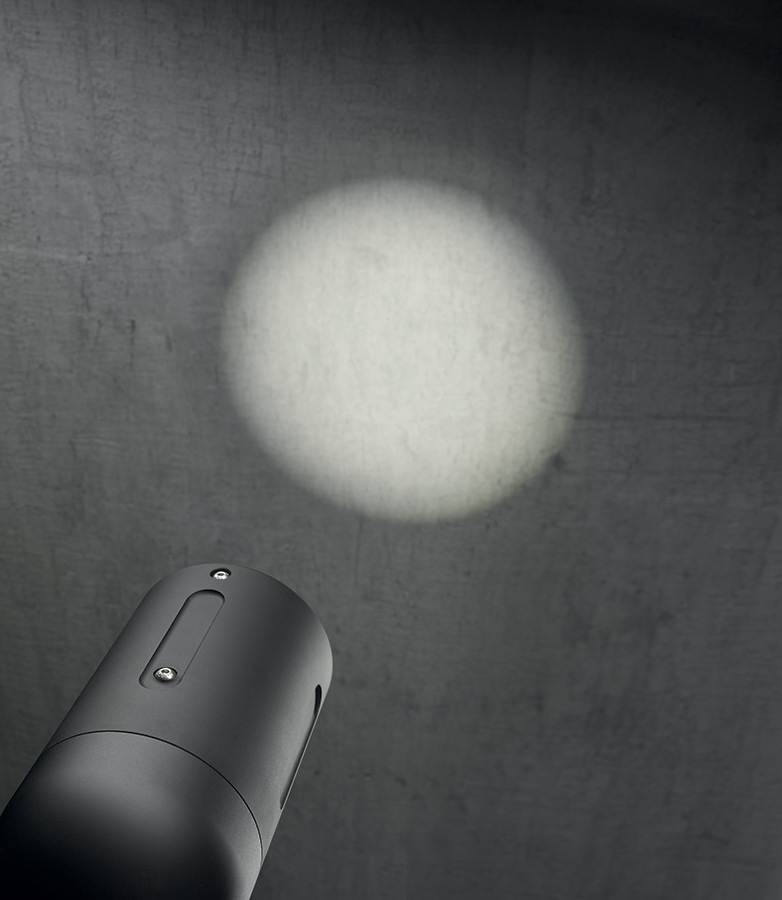

Optics	optical range 13°—32°, optical range 16°—42°
CRI Colour Rendering Index	80, >90
Body material	body in black-anodized aluminium
Screen material	screen in tempered, transparent extra-clear glass
Finishes	anodized black
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP66
Impact resistance	IK06
Features	dimmable with remote PSU
Notes	dichroic filters available on request in non-standard colouring
Status	Available

Close

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

100mA constant current; max 4,1W

120mA constant current; max 5W

140mA constant current; max 5,8W

160mA constant current; max 6,6W

180mA constant current; max 7,4W

200mA constant current; max 8,3W

220mA constant current; max 9,1W

240mA constant current; max 10W

260mA constant current; max 10,8W

280mA constant current; max 11,6W

300mA constant current; max 12,4W

320mA constant current; max 13,2W

340mA constant current; max 14,1W

360mA constant current; max 15W

60mA constant current; max 2,5W

80mA constant current; max 3,3W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

350mA constant current; max 15W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

350mA constant current; max 17W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

350mA constant current; max 17W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

24Vdc; 16W

250mA constant current; max 13W

350mA constant current; max 19W

400mA constant current; max 20W

450mA constant current; max 20W

500mA constant current; max 20W

550mA constant current; max 20W

600mA constant current; max 20W

700mA constant current; max 20W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

1050mA constant current; max 39W

350mA constant current; max 15W

500mA constant current; max 21W

550mA constant current; max 23W

650mA constant current; max 27W

700mA constant current; max 29W

750mA constant current; max 31W

850mA constant current; max 35W

900mA constant current; max 37W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

1000mA constant current; max 42W

1050mA constant current; max 42W

300mA constant current; max 13W

350mA constant current; max 15W

400mA constant current; max 18W

450mA constant current; max 20W

500mA constant current; max 22W

550mA constant current; max 24W

600mA constant current; max 27W

650mA constant current; max 29W

700mA constant current; max 31W

750mA constant current; max 32W

800mA constant current; max 33W

850mA constant current; max 35W

900mA constant current; max 38W

950mA constant current; max 40W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

250mA constant current; max 13W

280mA constant current; max 15W

310mA constant current; max 16,5W

340mA constant current; max 18W

370mA constant current; max 19,5W

400mA constant current; max 21W

430mA constant current; max 22,5W

460mA constant current; max 24W

490mA constant current; max 26W

520mA constant current; max 27,5W

550mA constant current; max 29W

580mA constant current; max 30W

610mA constant current; max 30W

640mA constant current; max 30W

670mA constant current; max 30W

700mA constant current; max 30W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

350mA constant current; max 18W

Dimmering

Mains dimming, ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

500mA constant current; max 21W

Dimmering

Mains dimming, ON/OFF

Power supply unit IP

IP20

Output

24Vdc; 16W

250mA constant current; max 10W

350mA constant current; max 15W

400mA constant current; max 17W

450mA constant current; max 19W

500mA constant current; max 20W

550mA constant current; max 20W

600mA constant current; max 20W

700mA constant current; max 20W

Dimmering

DALI, ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

250mA constant current; max 13W

280mA constant current; max 15W

310mA constant current; max 16,5W

340mA constant current; max 18W

370mA constant current; max 20W

400mA constant current; max 21W

430mA constant current; max 23W

460mA constant current; max 25W

490mA constant current; max 26W

520mA constant current; max 26W

550mA constant current; max 27W

580mA constant current; max 29W

610mA constant current; max 30W

640mA constant current; max 30W

670mA constant current; max 30W

700mA constant current; max 30W

Dimmering

PUSH, DALI, ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

12Vdc; 10W

24Vdc; 20W

28Vdc; 22W

350mA constant current; max 17W

500mA constant current; max 24W

550mA constant current; max 25W

700mA constant current; max 32W

750mA constant current; max 32W

Dimmering

PUSH, Mains dimming, ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

1050mA constant current; max 50W

350mA constant current; max 25W

500mA constant current; max 35W

550mA constant current; max 39W

650mA constant current; max 46W

700mA constant current; max 50W

750mA constant current; max 50W

850mA constant current; max 50W

900mA constant current; max 50W

Dimmering

0/1-10V, PUSH, DALI, ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

1050mA constant current; max 50W

350mA constant current; max 25W

500mA constant current; max 35W

550mA constant current; max 39W

650mA constant current; max 46W

700mA constant current; max 50W

750mA constant current; max 50W

850mA constant current; max 50W

900mA constant current; max 50W

Dimmering

0/1-10V, PUSH, ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

12Vdc; 11W

24Vdc; 20W

250mA constant current; max 13W

300mA constant current; max 16W

350mA constant current; max 18W

400mA constant current; max 21W

450mA constant current; max 23W

500mA constant current; max 25W

550mA constant current; max 27W

600mA constant current; max 30W

650mA constant current; max 32W

700mA constant current; max 32W

750mA constant current; max 20W

800mA constant current; max 20W

850mA constant current; max 20W

900mA constant current; max 20W

Dimmering

0/1-10V, PUSH, ON/OFF

Power supply unit IP

IP20

Input

24Vdc
48Vdc

Output

1 channel

With 24 Vdc input:; 1050mA constant current; max 20W

With 24 Vdc input:; 350mA constant current; max 6,7W

With 24 Vdc input:; 500mA constant current; max 9,5W

With 24 Vdc input:; 700mA constant current; max 13,3W

With 48 Vdc input:; 1050mA constant current; max 45W

With 48 Vdc input:; 350mA constant current; max 15,5W

With 48 Vdc input:; 500mA constant current; max 21,5W

With 48 Vdc input:; 700mA constant current; max 30W

2 channels

With 24 Vdc input:; 1050mA constant current; max 40W

With 24 Vdc input:; 350mA constant current; max 13,3W

With 24 Vdc input:; 500mA constant current; max 19W

With 24 Vdc input:; 700mA constant current; max 26,6W

With 48 Vdc input:; 1050mA constant current; max 90,3W

With 48 Vdc input:; 350mA constant current; max 30W

With 48 Vdc input:; 500mA constant current; max 43W

With 48 Vdc input:; 700mA constant current; max 60W

3 channels

With 24 Vdc input:; 1050mA constant current; max 60W

With 24 Vdc input:; 350mA constant current; max 20W

With 24 Vdc input:; 500mA constant current; max 28,5W

With 24 Vdc input:; 700mA constant current; max 40W

With 48 Vdc input:; 1050mA constant current; max 135W

With 48 Vdc input:; 350mA constant current; max 45W

With 48 Vdc input:; 500mA constant current; max 64,5W

With 48 Vdc input:; 700mA constant current; max 90,3W

4 channels

With 24 Vdc input:; 1050mA constant current; max 80W

With 24 Vdc input:; 350mA constant current; max 26,6W

With 24 Vdc input:; 500mA constant current; max 38W

With 24 Vdc input:; 700mA constant current; max 53,2W

With 48 Vdc input:; 1050mA constant current; max 180W

With 48 Vdc input:; 350mA constant current; max 62W

With 48 Vdc input:; 500mA constant current; max 86W

With 48 Vdc input:; 700mA constant current; max 120W

Dimmering

0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone

Power supply unit IP

IP20

Input

220─240Vac 50─60Hz

Output

max 350mA 58Vdc max

Ingress protection

IP20

Dimensions

35x47x166 mm, 185 g

Cutout dimensions

Ø58 mm

WR0001 Dichroic filter - red order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0002 Dichroic filter - green order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters
WR0003 Dichroic filter - blue order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0004 Dichroic filter - orange order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters
WR0010 Optical filter - diffusion order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0020 Optical filter - elliptical order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters
WR0030 Colour temperature conversion filter - variation towards warm white light order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters	WR0031 Colour temperature conversion filter - variation towards cold white light order together with the cartridge extractor tool WE0300. Only one WE0300 accessory is required with orders for multiple optical filters

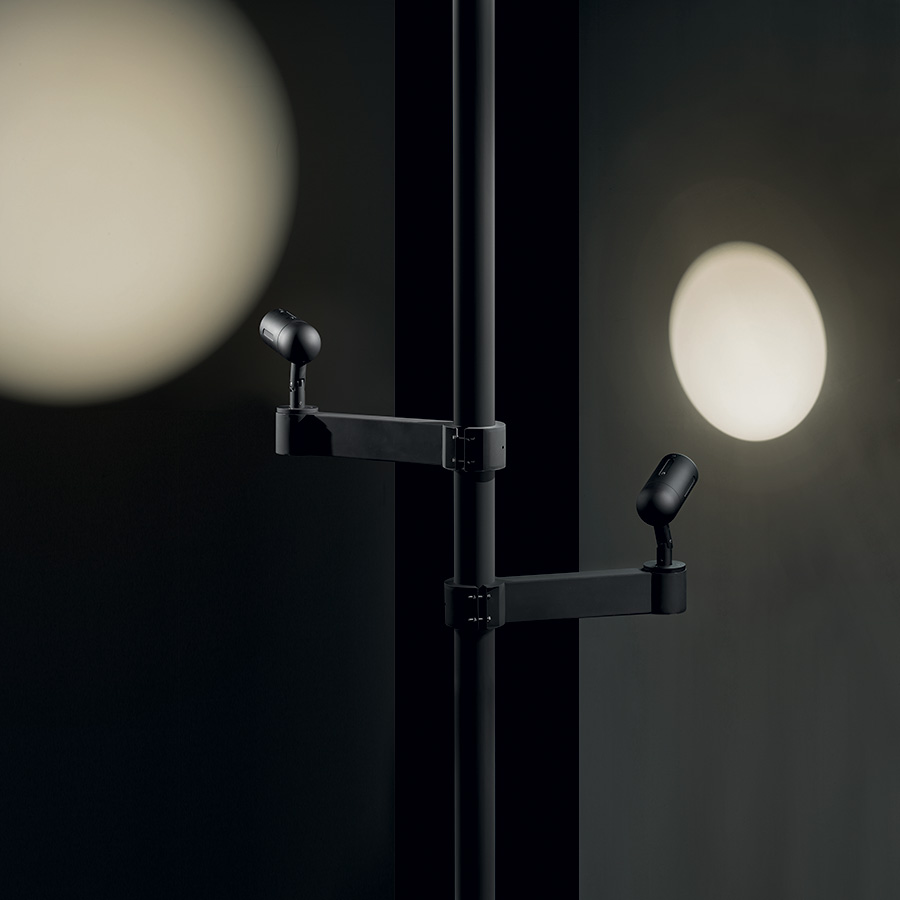

WE0300 Accessory for extracting IP66 cartridge	WP1005N Arm for pole mounting
WR0100 Mock-up cartridge

Akro 1.0

Generate code

Technical data

Read more

Close

Download

Gallery

Accessories and power supply units

Accessories (17)

Spikes and arms

WP0300

Spike for in-ground installation

Honeycomb louvre

WH0506

Honeycomb louvre

Snoots

WB1101N

Standard snoot - black

WB1102N

Asymmetrical snoot - black

Barn doors

WB1103N

Barn doors - black

Filters

WR0001

Dichroic filter - red

WR0002

Dichroic filter - green

WR0003

Dichroic filter - blue

WR0004

Dichroic filter - orange

WR0010

Optical filter - diffusion

WR0020

Optical filter - elliptical

WR0030

Colour temperature conversion filter - variation towards warm white light

WR0031

Colour temperature conversion filter - variation towards cold white light

Various accessories

WE0300

Accessory for extracting IP66 cartridge

WP1005N

Arm for pole mounting

WR0100

Mock-up cartridge

Spare parts

WE0301

Accessory for positioning filters

Power supply units (16)

A19220TC

ON/OFF constant-current PSU

A19350QL

ON/OFF constant-current PSU

A312350IP67

ON/OFF constant-current PSU

A312350QL

ON/OFF constant-current PSU

ACUNI020T1

ON/OFF constant-current PSU

ACUNI039T1

ON/OFF constant-current PSU

ACUNI042T1

ON/OFF constant-current PSU

ACUNIC30T1

ON/OFF constant-current PSU

AD018350TLT1

Dimmable power supply unit with mains dimming

AD020500TLT1

Dimmable power supply unit with mains dimming

AD020DALIT1

DALI dimmable power supply unit

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

AD032TLT1

Dimmable power supply unit

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

AD050PUSHT1
