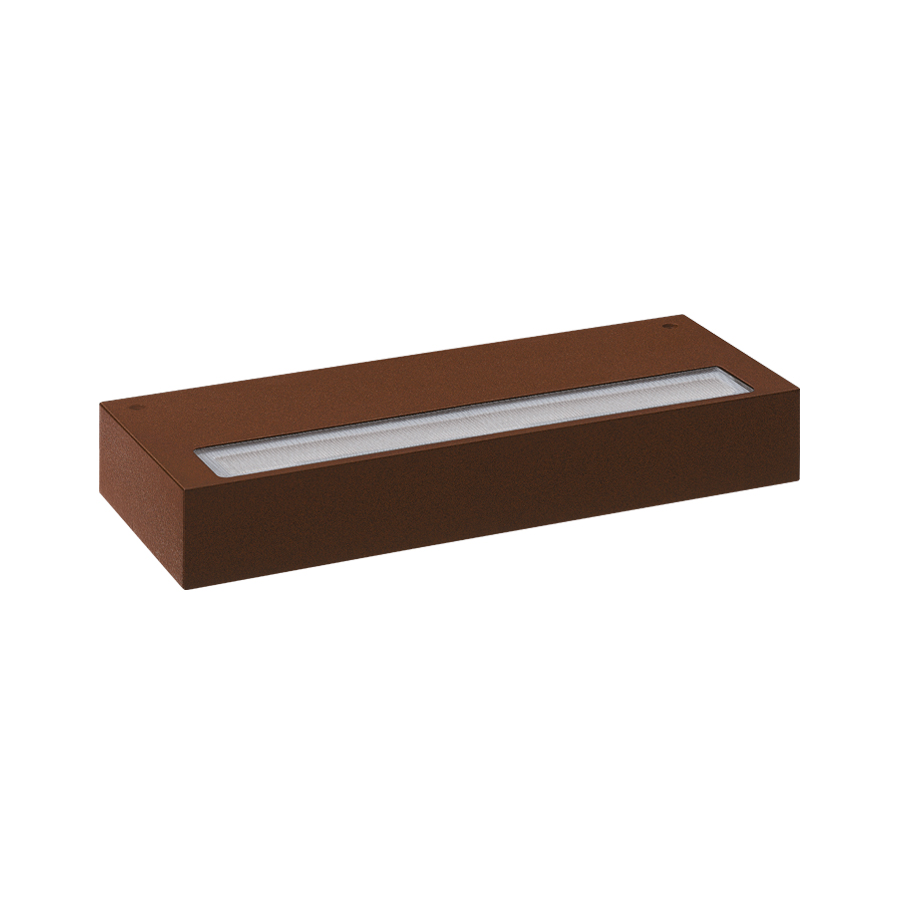

Ella OUT 2.0

Wall mounted for outdoor applications

wall mounted for outdoor applications - 16W 230Vac - 208 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Finish: black
  • Remote DALI control

Technical data

Print technical data

Updated to EA20105DTT

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • gross weight
    kg 0,80
  • IP65
  • IK08
  • RAL finish on request
  • F
Installation wall mounted for outdoor applications
Power consumption 16W
Power supply 230Vac
Lumen output at source 1908 lm (3000K)
Delivered lumen output 985 lm (3000K)
Datasheet

Copied

Mounting surface mounted (wall)
Number and type of LED 36 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 3000K
Optics diffuse
CRI Colour Rendering Index 80
Body material body in anticorodal aluminium
Screen material screen in serigraphed extra-clear microprismatic glass
Finishes cor-ten
Power supply unit built-in power supply unit
Power cables includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection IP65
Impact resistance IK08
Notes Casambi-compatible version, controllable with the Casambi app, available on request
Status Available
