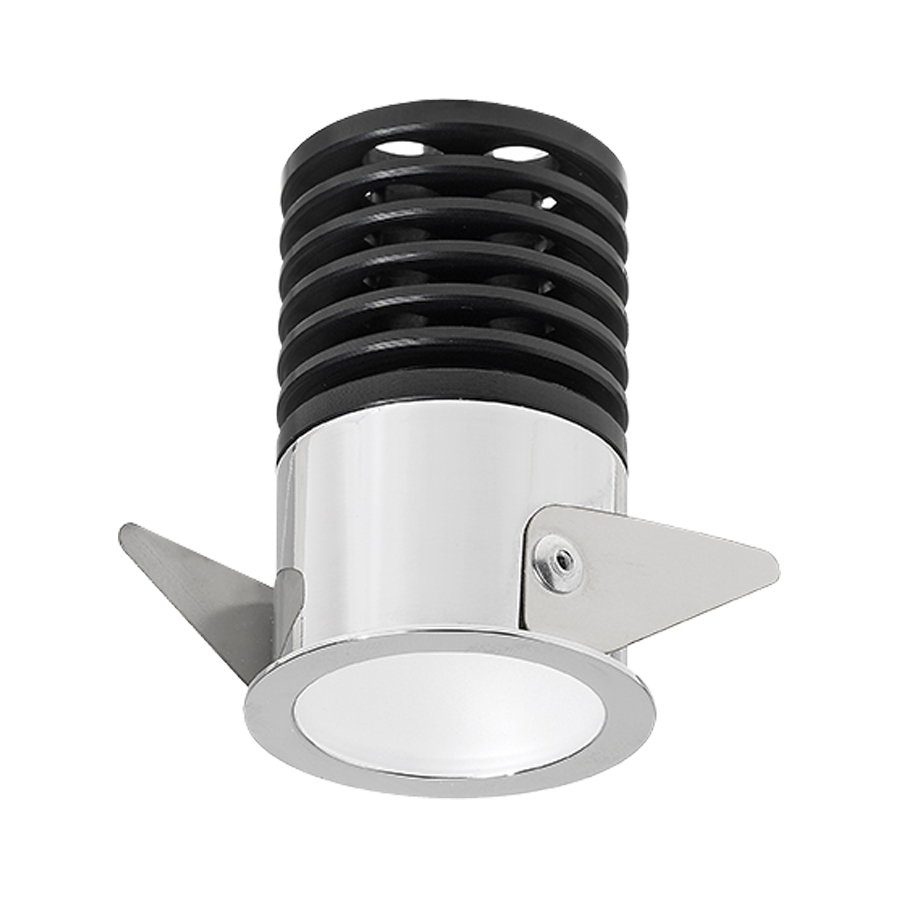

Turis Mini 1.1

Recessed for indoor applications

recessed for indoor applications - 5.5W - 230Vac / 4,5W - 24Vdc - Ø44 mm - with trim

Generate code

Technical data

Print technical data

Updated to MT11115DC

230Vac
kg 0,15
Ø40 mm
IP40

Installation	recessed downlight for indoor applications
Power consumption	5,5W
Power supply	230Vac
Lumen output at source	460 lm (3000K)
Delivered lumen output	310 lm (3000K)
Datasheet	Turis Mini 1.1 code: MT11115DC recessed downlight for indoor applications; recessed (ceiling); Power consumption: 5,5W; Power supply: 230Vac; Lumen output at source: 460 lm (3000K); Delivered lumen output: 310 lm (3000K); 1 multichip power LED, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 3000K; Optics: diffuse; CRI Colour Rendering Index: >90; Body material: body in black-anodized aluminium, trim in steel; Finishes: chrome; RAL finish on request; Screen material: screen in one-side-frosted, transparent plexiglass; Thickness of installation surface: min 5 mm, max 25 mm; power supply unit included; includes 0.30 m cable; Ingress protection: IP40; version with LED colour RGB available on request; Casambi control using the Casambi app with dedicated electronics; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 150 g; Dimensions: Ø44x73 mm; Cutout dimensions: Ø40 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC3108 Outer casing for solid walls; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionTuris Mini 1.1 code: MT11115DC recessed downlight for indoor applications recessed (ceiling) Power consumption: 5,5W Power supply: 230Vac Lumen output at source: 460 lm (3000K) Delivered lumen output: 310 lm (3000K) 1 multichip power LED, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 3000K Optics: diffuse CRI Colour Rendering Index: >90 Body material: body in black-anodized aluminium, trim in steel Finishes: chrome RAL finish on request Screen material: screen in one-side-frosted, transparent plexiglass Thickness of installation surface: min 5 mm, max 25 mm power supply unit included includes 0.30 m cable Ingress protection: IP40 version with LED colour RGB available on request; Casambi control using the Casambi app with dedicated electronics Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 150 g Dimensions: Ø44x73 mm Cutout dimensions: Ø40 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC3108 Outer casing for solid walls tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	1 multichip power LED, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	3000K
Optics	diffuse
CRI Colour Rendering Index	>90
Body material	body in black-anodized aluminium, trim in steel
Screen material	screen in one-side-frosted, transparent plexiglass
Finishes	chrome
Power supply unit	power supply unit included
Power cables	includes 0.30 m cable
Ingress protection	IP40
Notes	version with LED colour RGB available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Turis Mini 1.1
- Specific, for code MT11115DC
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product Turis Mini 1.1
- Specific, for code MT11115DC
IES Photometric file Type
- Generic, for the product Turis Mini 1.1
- Specific, for code MT11115DC
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (1)

Accessories for product code MT11115DC

Outer casings

WC3108

Outer casing for solid walls

Power supply units (0)

Power supply units for product code MT11115DC

No power supply units

Control gear (0)

Control gear for product code MT11115DC

No controllers

Control input (2)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g

Projects

Hospitality
Maniace-Ortigia
Syracuse, Italy

Versions

Turis Mini 1.0
5,5W - 230Vac; 4,5W - 24Vdc

24Vdc, 230Vac

2700K, 3000K, 4000K
