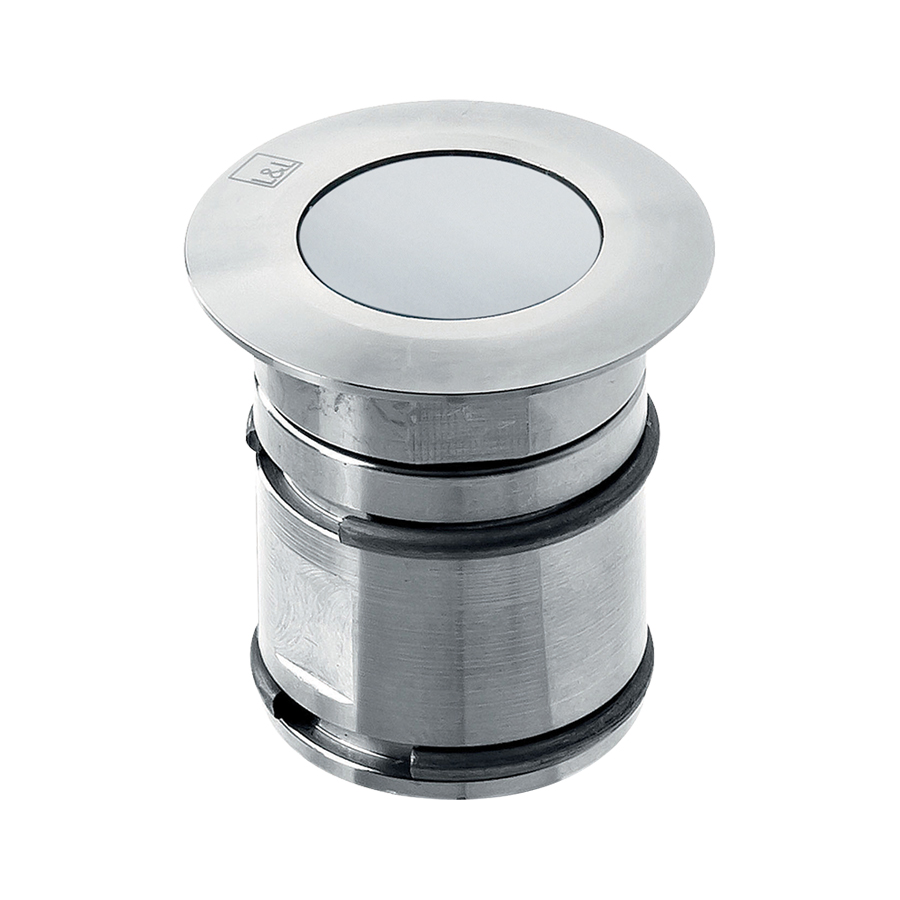

Bright 1.8

Recessed for outdoor applications

recessed for outdoor applications - 1.2W 12Vdc - ø35 mm - RGB

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Finishes: anthracite, white, bronze, cor-ten, black, brass, antique bronze

Technical data

Print technical data

Updated to CB18006DSI

  • RGB
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • BIS R-41105201
  • ETL
    on request
  • lighting fixture with LED technology
  • appliance class III
  • walkover fixture
  • gross weight
    kg 0,20
  • IP68
  • IK10
  • IPS
  • RAL finish on request
  • Casambi control
  • maximum device temperature50°C
  • F
Installation recessed for outdoor applications (not suitable for use in immersion in swimming pools or fountains)
Power consumption 1,2W
Power supply 12Vdc
Lumen output at source 15 lm, R: 4 lm G: 8 lm B: 3 lm
Delivered lumen output 11 lm, R: 3 lm G: 6 lm B: 2 lm (transparent diffuse optics)
Datasheet

Copied
Mounting recessed (ceiling, wall, floor)
Number and type of LED 1 mid-power, full-colour LED, 50 000h L90 B10 (Ta 25°C)
LED colour RGB
Optics diffuse sandblasted
Body material body and trim in AISI 316L stainless steel
Screen material screen in acid-etched, tempered extra-clear glass
Power supply unit power supply unit not included
Power cables includes 1.5 m neoprene cable, 05RN-F 4x0.50/0.50 Ø6.3 mm
Ingress protection IP68
Impact resistance IK10
Status Product being discontinued

Read more

Close

Accessories and power supply units

Accessories (2)

Accessories for product code CB18006DSI

Outer casings

WC0202

Outer casing

Retaining spring clips

WG0301

Retaining spring clip Ø30mm

Power supply units (7)

Power supply units for product code CB18006DSI

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W ✓
24Vdc; 20W ⚠
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ✓
24Vdc; 20W ⚠
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AV12020IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output12Vdc; 20W ✓
DimmeringON/OFF
Power supply unit IPIP20

AV12040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 40W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV12060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
Output12Vdc; 60W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV12150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 132W ✓
DimmeringON/OFF
Power supply unit IPIP67

AV12192IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 192W ✓
DimmeringON/OFF
Power supply unit IPIP67
Read more

Control gear (6)

Control gear for product code CB18006DSI

ARV230PD1

Easy RGB - Low-voltage 3-channel controller with constant-voltage output

order in addition to PSU

Input12-24Vdc
OutputWith 12 Vdc input:; 12Vdc; 90W ✓
With 24 Vdc input:; 24Vdc; 180W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ⚠
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ✓
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ✓
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ✓
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ✓
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input12-24Vdc
OutputWith 12 Vdc input:; 12Vdc; 192W ✓
With 24 Vdc input:; 24Vdc; 384W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24Vdc
OutputWith 12 Vdc input:; 12Vdc; 240W ✓
With 24 Vdc input:; 24Vdc; 480W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR02-01

Controller with integrated 4-channel receiver for RGB/RGBW/dynamic white/dimming

order in addition to PSU
RGB/RGBW: Required TLC08 or TLC09 remote control, not included
Dynamic white/dimming: PUSH switch

Input12-24Vdc
Output

3 channels

With 12 Vdc input:; 12Vdc; 90W ✓
With 24 Vdc input:; 24Vdc; 180W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ✓
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Stand alone, Radio frequency
Power supply unit IPIP20
Read more

Control input (11)

AE01350T1

Emergency module integrated

Input220─240Vac 50─60Hz
Outputmax 350mA 58Vdc max
Ingress protectionIP20
Dimensions35x47x166 mm, 185 g
Cutout dimensionsØ58 mm

EC0TIM12840020

Timer for CASAMBI

Input12-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
Read more
