Colorado 6.2

Projectors for outdoor applications

projector for outdoor applications - 85W 230Vac - 1225 mm - RGBW - DMX512+RDM

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Lenght 325 mm, class III, 48Vdc

Technical data

Print technical data

10 kg
IP65
IP67
IP69
IK09
DMX+RDM

Installation	linear profile for outdoor applications
Power consumption	85W
Power supply	230Vac
Lumen output at source	R: 2160 lm G: 3894 lm B: 913 lm W: 4776 lm (3000K)
Delivered lumen output	5104 lm, R: 1704 lm G: 3072 lm B: 720 lm W: 3768 lm (3000K, 25°)
Datasheet	Colorado 6.2 linear profile for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 85W; Power supply: 230Vac; Lumen output at source: R: 2160 lm G: 3894 lm B: 913 lm W: 4776 lm (3000K); Delivered lumen output: 5104 lm, R: 1704 lm G: 3072 lm B: 720 lm W: 3768 lm (3000K, 25°); 24 power LEDs multicolor High Intensity pitch 50 mm, 60000h L80 B10 (Ta 25°C); LED colour: RGBW; Optics: 15°, 25°, 37°: optical system composed of a series of equidistant light sources, 50 mm apart. The deep-set PMMA TIR lens guarantees high-quality light emission and visual comfort, 13°x65°, 65°x13°: optical system composed of a series of equidistant light sources, 50 mm apart. The deep-set elliptical PMMA TIR lens guarantees high-quality light emission and visual comfort, diffuse: optical system composed of a series of light sources. The PMMA TIR lens guarantees high-quality light emission and visual comfort; Body material: body made of Anticorodal® low-copper-content aluminium EN AW 6060 T5 for excellent heat dissipation, manufactured from an extruded profile and painted black (RAL 9005 matt) for excellent corrosion resistance. Caps made of black-painted (RAL 9005 matt) technopolymer for greater resistance to corrosion and atmospheric agents. AISI 304 stainless steel bracket painted matt RAL 9005 black with epoxy paint. Bushings in AISI 316L stainless steel, made with a CNC lathe; Finishes: black finish (RAL 9005 matt) obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9005); RAL finish on request; Screen material: 6-mm-thick transparent, tempered extra-clear glass, high-transmittance with grey-vitrified serigraphy (RAL 7015), to ensure chromatic uniformity and excellent resistance to knocks and scratches (optics version), 6-mm-thick acid-etched, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations (diffuse version); Seals: Black peroxide EPDM O-rings guarantee lasting resistance to UV rays; Installation: DMX+RDM version: IP68 five-pin female connector for the power supply, and IP68 four-pin female connector for the DMX+RDM signal; built-in power supply unit; Control system: DMX512+RDM; Ingress protection: IP65, IP67, IP69; Impact resistance: IK09; two brackets with two pivot points for accurate adjustment; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Glow wire test: 650°C; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 10000 g; Dimensions: 1225x73x173 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WFA0001 1.5-m 3-pin interconnect cable, WFA01 4-pin male connector, WFA0105 5-m 3-pin interconnect cable, WFA0201 1.5-m 5-pin interconnect cable, WFA0205 5-m 5-pin interconnect cable, WFA05 5-pin male connector, WMA04N brackets adjustable from 0 to 150 mm; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionColorado 6.2 linear profile for outdoor applications surface mounted (ceiling, wall, floor) Power consumption: 85W Power supply: 230Vac Lumen output at source: R: 2160 lm G: 3894 lm B: 913 lm W: 4776 lm (3000K) Delivered lumen output: 5104 lm, R: 1704 lm G: 3072 lm B: 720 lm W: 3768 lm (3000K, 25°) 24 power LEDs multicolor High Intensity pitch 50 mm, 60000h L80 B10 (Ta 25°C) LED colour: RGBW Optics: 15°, 25°, 37°: optical system composed of a series of equidistant light sources, 50 mm apart. The deep-set PMMA TIR lens guarantees high-quality light emission and visual comfort, 13°x65°, 65°x13°: optical system composed of a series of equidistant light sources, 50 mm apart. The deep-set elliptical PMMA TIR lens guarantees high-quality light emission and visual comfort, diffuse: optical system composed of a series of light sources. The PMMA TIR lens guarantees high-quality light emission and visual comfort Body material: body made of Anticorodal® low-copper-content aluminium EN AW 6060 T5 for excellent heat dissipation, manufactured from an extruded profile and painted black (RAL 9005 matt) for excellent corrosion resistance. Caps made of black-painted (RAL 9005 matt) technopolymer for greater resistance to corrosion and atmospheric agents. AISI 304 stainless steel bracket painted matt RAL 9005 black with epoxy paint. Bushings in AISI 316L stainless steel, made with a CNC lathe Finishes: black finish (RAL 9005 matt) obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9005) RAL finish on request Screen material: 6-mm-thick transparent, tempered extra-clear glass, high-transmittance with grey-vitrified serigraphy (RAL 7015), to ensure chromatic uniformity and excellent resistance to knocks and scratches (optics version), 6-mm-thick acid-etched, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations (diffuse version) Seals: Black peroxide EPDM O-rings guarantee lasting resistance to UV rays Installation: DMX+RDM version: IP68 five-pin female connector for the power supply, and IP68 four-pin female connector for the DMX+RDM signal built-in power supply unit Control system: DMX512+RDM Ingress protection: IP65, IP67, IP69 Impact resistance: IK09 two brackets with two pivot points for accurate adjustment Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: -20°C — +45°C Glow wire test: 650°C Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 10000 g Dimensions: 1225x73x173 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WFA0001 1.5-m 3-pin interconnect cable, WFA01 4-pin male connector, WFA0105 5-m 3-pin interconnect cable, WFA0201 1.5-m 5-pin interconnect cable, WFA0205 5-m 5-pin interconnect cable, WFA05 5-pin male connector, WMA04N brackets adjustable from 0 to 150 mm tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, floor)
Number and type of LED	24 power LEDs multicolor High Intensity pitch 50 mm, 60000h L80 B10 (Ta 25°C)
LED colour	RGBW
Optics	15°, 25°, 37°, 13°x65°, 65°x13°, diffuse
Body material	body in anticorodal aluminium, bracket in stainless steel, caps in technopolymer
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass (optics version), screen in grey-serigraphed, acid-etched, tempered extra-clear glass (diffuse version)
Finishes	black
Power supply unit	built-in power supply unit
Control system	DMX512+RDM
Ingress protection	IP65, IP67, IP69
Impact resistance	IK09
Features	two brackets with two pivot points for accurate adjustment
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

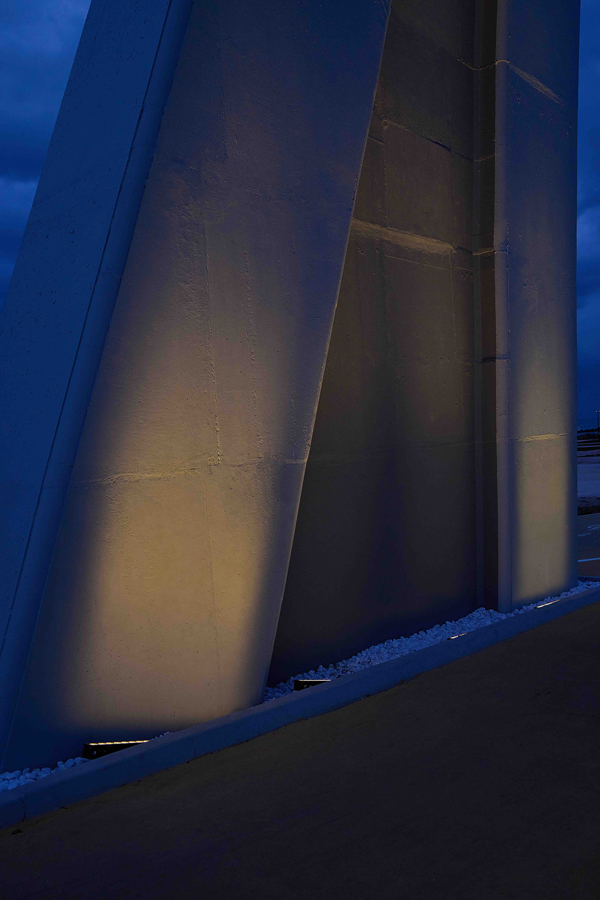

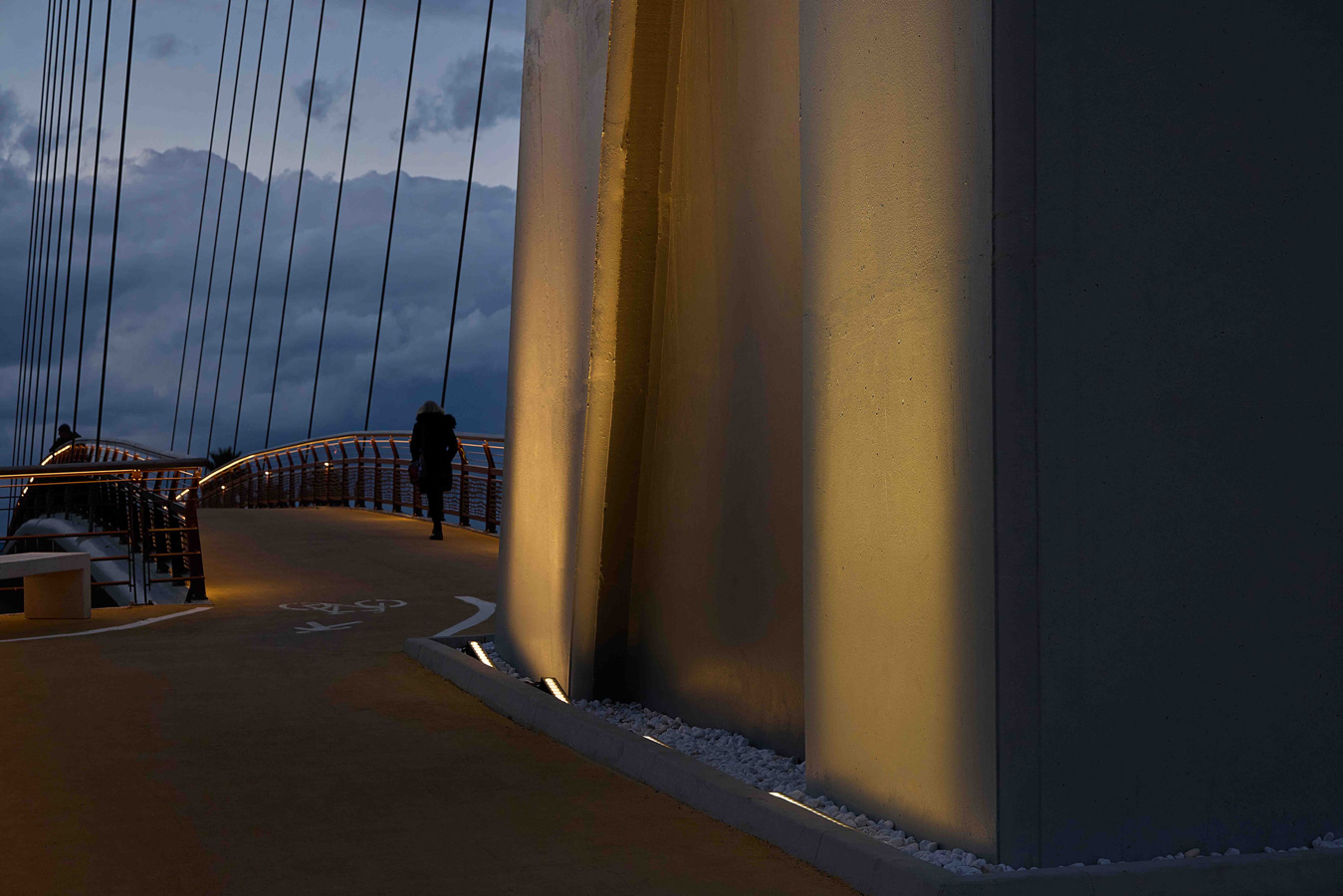

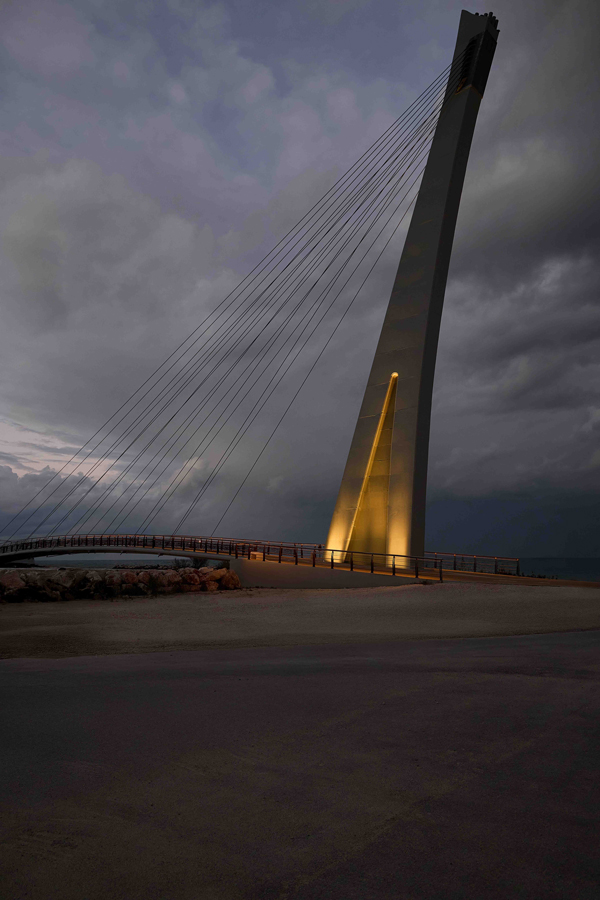

Gallery

Accessories and power supply units

Accessories (7)

Various accessories

WMA04N

brackets adjustable from 0 to 150 mm

Wiring materials

WFA0001 1.5-m 3-pin interconnect cable for the DMX signal	WFA01 4-pin male connector for in/out connection IP68
WFA0105 5-m 3-pin interconnect cable for the DMX signal	WFA0201 1.5-m 5-pin interconnect cable
WFA0205 5-m 5-pin interconnect cable	WFA05 5-pin male connector for in/out connection IP68

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (5)

DMX01

DMX Controller

Input	230Vac
Output	DMX512 bus
Dimensions	79x92x43 mm, 120 g

ECCTS5241DM20

RF to DMX receiver / converter

order in addition to PSU
to be used with ECCTR1244CV20

Input	12-24 Vdc
Output	DMX512 bus
Ingress protection	IP20
Dimensions	55x55x21 mm 70 g
Cutout dimensions	Ø55 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW
