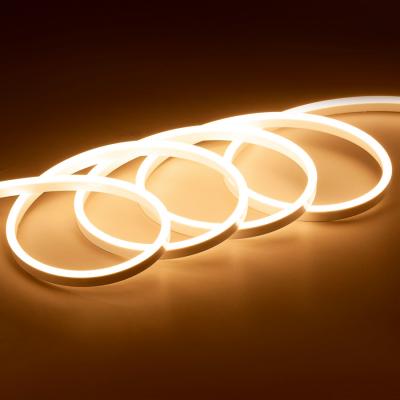

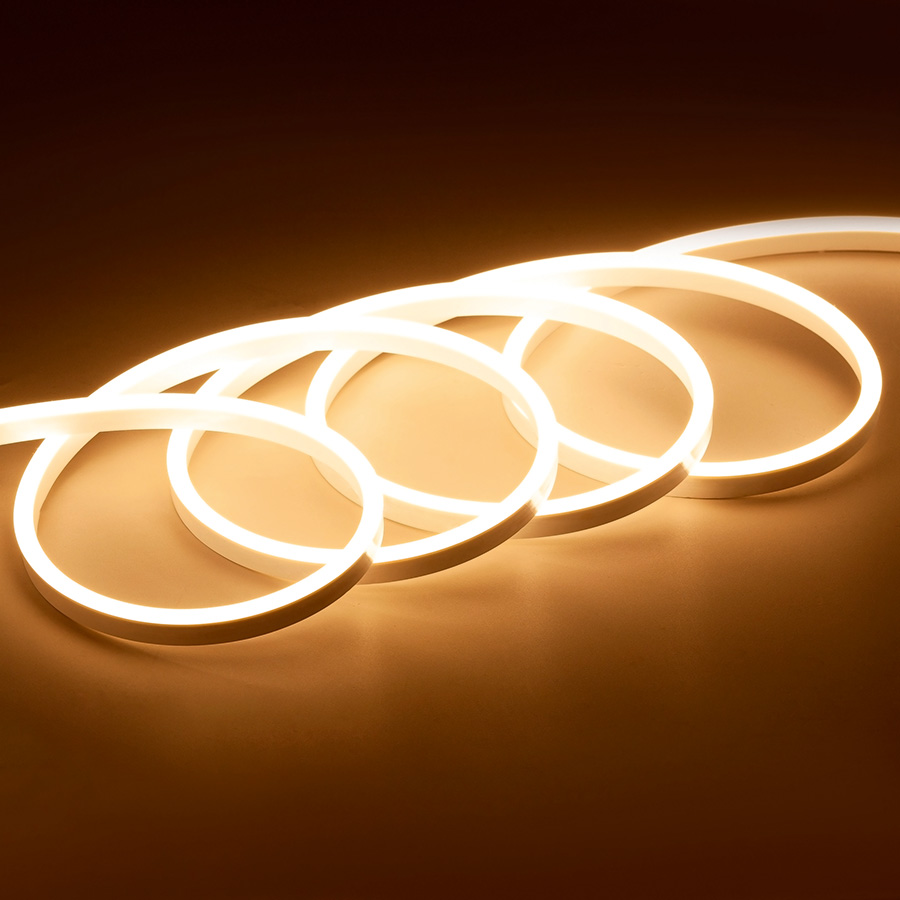

Neon Pro Top Bend

Technical data

IP65
IP67

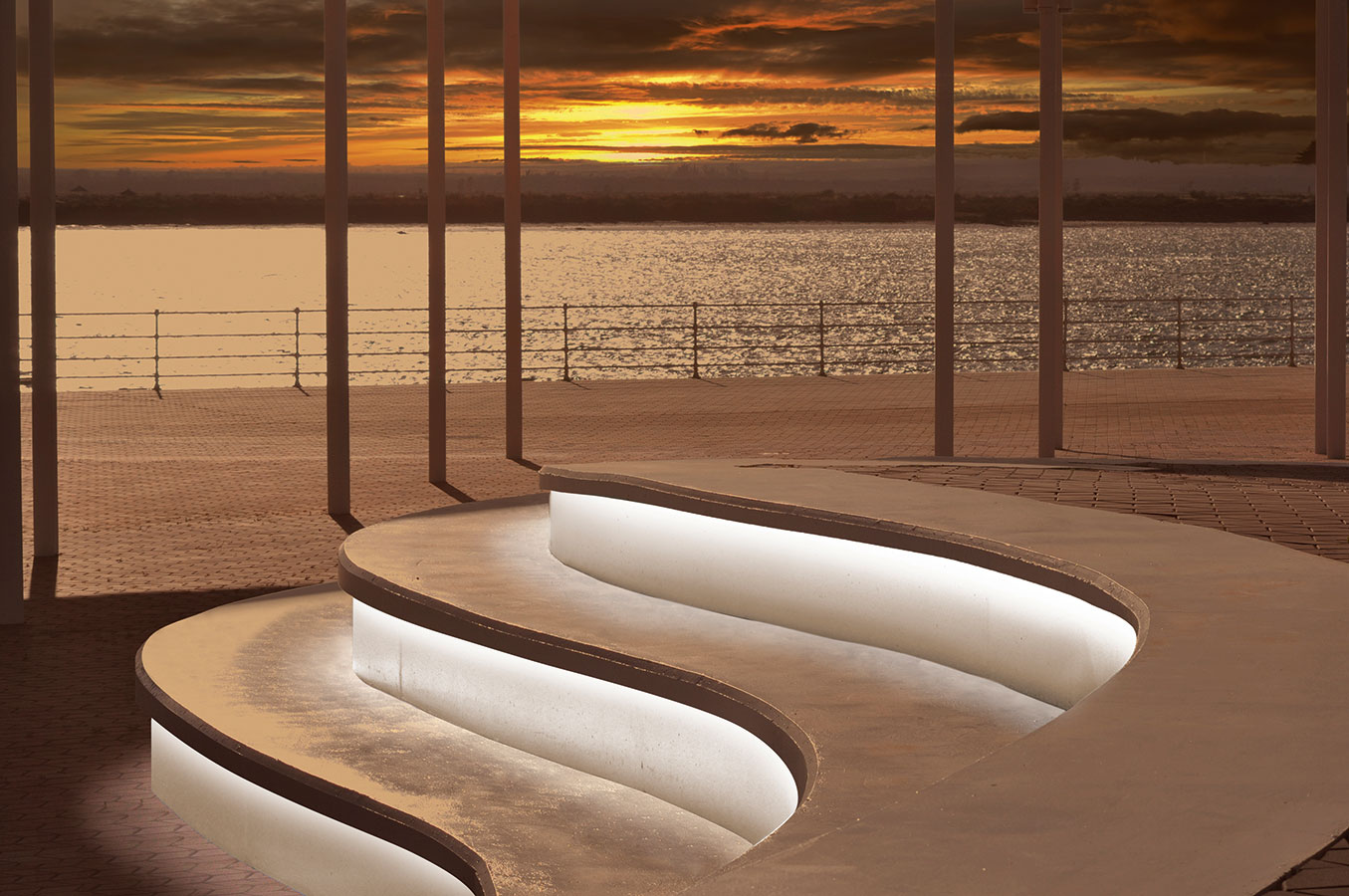

Installation	linear profile for outdoor applications
Power consumption	10W/m
Power supply	24Vdc
Delivered lumen output	750 lm/m
Datasheet	Neon Pro Top Bend linear profile for outdoor applications; flush or semi-recessed installation; Power consumption: 10W/m; Power supply: 24Vdc; Delivered lumen output: 750 lm/m; 140 LEDs/m; LED colour: 2700K, 3000K, 4000K; CRI Colour Rendering Index: >90; power supply unit not included; Ingress protection: IP65, IP67; it can be installed in one piece, without accessories. The profile can also be cut to size to meet your needs. The installation accessories ensure the IP67 rating is maintained; Dimensions: 5000x10x10 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WDA17 Profile, WDA23 Cap with in-line cable, WDA24 Cap with lateral cable, left, WDA25 Cap with lateral cable, right, WDA26 Cap with cable below, WDA27 Connector, WEA11 End cap with silicone, WEA12 End cap without silicone, WTBAS002A Mounting clip; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionNeon Pro Top Bend linear profile for outdoor applications flush or semi-recessed installation Power consumption: 10W/m Power supply: 24Vdc Delivered lumen output: 750 lm/m 140 LEDs/m LED colour: 2700K, 3000K, 4000K CRI Colour Rendering Index: >90 power supply unit not included Ingress protection: IP65, IP67 it can be installed in one piece, without accessories. The profile can also be cut to size to meet your needs. The installation accessories ensure the IP67 rating is maintained Dimensions: 5000x10x10 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WDA17 Profile, WDA23 Cap with in-line cable, WDA24 Cap with lateral cable, left, WDA25 Cap with lateral cable, right, WDA26 Cap with cable below, WDA27 Connector, WEA11 End cap with silicone, WEA12 End cap without silicone, WTBAS002A Mounting clip tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	flush or semi-recessed installation
Number and type of LED	140 LEDs/m
LED colour	2700K, 3000K, 4000K
CRI Colour Rendering Index	>90
Power supply unit	power supply unit not included
Ingress protection	IP65, IP67
Features	it can be installed in one piece, without accessories. The profile can also be cut to size to meet your needs. The installation accessories ensure the IP67 rating is maintained
Status	Product being discontinued

Close

Input

230Vac 50-60 Hz

Output

24Vdc; 16W

250mA constant current; max 13W

350mA constant current; max 19W

400mA constant current; max 20W

450mA constant current; max 20W

500mA constant current; max 20W

550mA constant current; max 20W

600mA constant current; max 20W

700mA constant current; max 20W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Output

24Vdc; 16W

250mA constant current; max 10W

350mA constant current; max 15W

400mA constant current; max 17W

450mA constant current; max 19W

500mA constant current; max 20W

550mA constant current; max 20W

600mA constant current; max 20W

700mA constant current; max 20W

Dimmering

DALI, ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

12Vdc; 10W

24Vdc; 20W

28Vdc; 22W

350mA constant current; max 17W

500mA constant current; max 24W

550mA constant current; max 25W

700mA constant current; max 32W

750mA constant current; max 32W

Dimmering

PUSH, Mains dimming, ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

12Vdc; 11W

24Vdc; 20W

250mA constant current; max 13W

300mA constant current; max 16W

350mA constant current; max 18W

400mA constant current; max 21W

450mA constant current; max 23W

500mA constant current; max 25W

550mA constant current; max 27W

600mA constant current; max 30W

650mA constant current; max 32W

700mA constant current; max 32W

750mA constant current; max 20W

800mA constant current; max 20W

850mA constant current; max 20W

900mA constant current; max 20W

Dimmering

0/1-10V, PUSH, ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

24Vdc; 60W

Power

60W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

24Vdc; 120W

Power

120W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

24Vdc; 180W

Power

180W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

24Vdc; 20W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

24Vdc; 40W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

230Vac 50-60 Hz

Output

24Vdc; 60W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

24Vdc; 60W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

230Vac 50-60 Hz

Output

24Vdc; 100W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

24Vdc; 150W

Power

150W

Dimmering

ON/OFF

Power supply unit IP

IP20

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

24Vdc; 150W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

24Vdc; 240W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

115-230Vac 50-60 Hz
230Vac 50-60 Hz

Output

24Vdc; 320W

Dimmering

ON/OFF

Power supply unit IP

IP67

Input

12-24-48Vdc

Output

With 12 Vdc input:; 12Vdc; 144W

With 24 Vdc input:; 24Vdc; 288W

With 48 Vdc input:; 48Vdc; 576W

Dimmering

0/1-10V, PUSH, DALI, 10kΩ potentiometer

Power supply unit IP

IP20

Input

12-24Vdc

Output

With 12 Vdc input:; 12Vdc; 192W

With 24 Vdc input:; 24Vdc; 384W

Dimmering

Radio frequency

Power supply unit IP

IP20

Input

12-24Vdc

Output

With 12 Vdc input:; 12Vdc; 240W

With 24 Vdc input:; 24Vdc; 480W

Dimmering

Radio frequency

Power supply unit IP

IP20

WDA17 Profile aluminium - 1000 mm	WDA23 Cap with in-line cable
WDA24 Cap with lateral cable, left	WDA25 Cap with lateral cable, right
WDA26 Cap with cable below	WDA27 Connector
WEA11 End cap with silicone	WEA12 End cap without silicone
WTBAS002A Mounting clip 1 piece
