Neon Art Side Bend

Linear profiles for outdoor applications

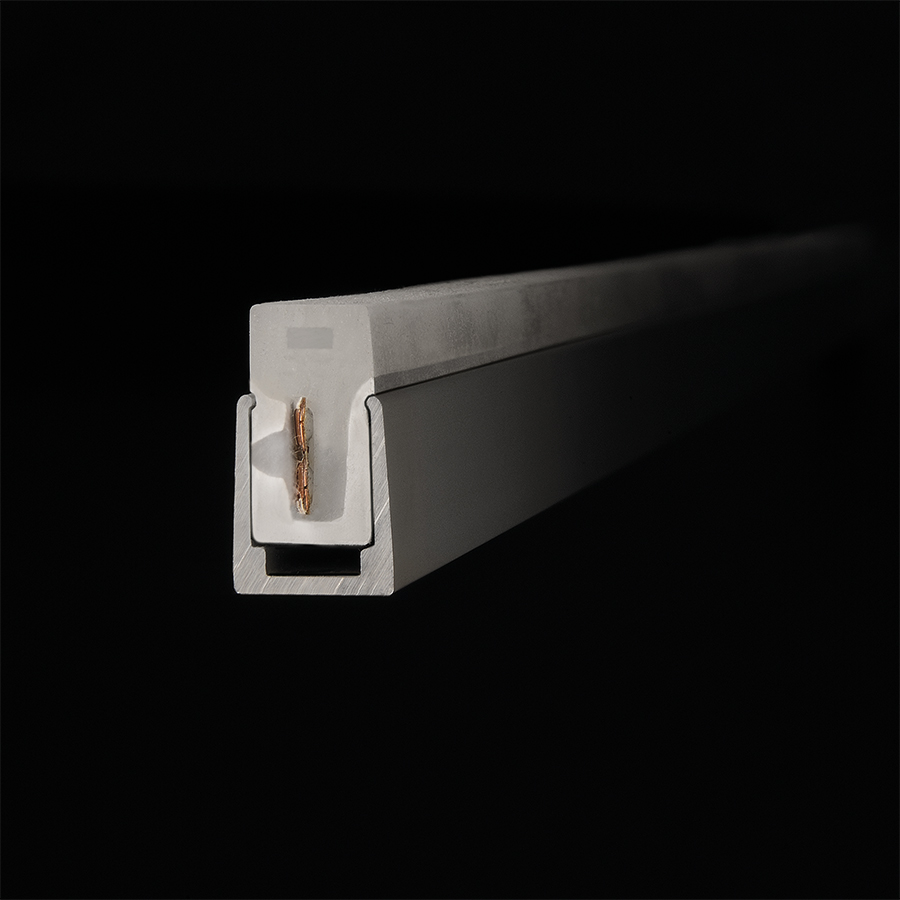

Linear profile for outdoor applications - 18W/m 24Vdc - 5000 mm

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • lighting fixture with LED technology
  • IP65
  • IP67
  • F
Installation linear profile for outdoor applications
Power consumption 18W/m
Power supply 24Vdc
Delivered lumen output 800 lm/m
Datasheet

Copied
Mounting flush or semi-recessed installation
Number and type of LED 120 LEDs/m
LED colour 2700K, 3000K, 4000K
CRI Colour Rendering Index 80
Power supply unit power supply unit not included
Ingress protection IP65, IP67
Features it can be installed in one piece, without accessories. The profile can also be cut to size to meet your needs. The installation accessories ensure the IP67 rating is maintained
Notes 10 clips, 10 screws, 2 start caps, 4 end caps and 2 tubes of silicone included
Status Product being discontinued

Read more

Close

Accessories and power supply units

Accessories (3)

Power supply units (16)

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ⚠
250mA constant current; max 13W ⚠
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W ⚠
250mA constant current; max 12W ⚠
350mA constant current; max 17W ⚠
400mA constant current; max 19W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W ⚠
24Vdc; 20W ✓
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ✓
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W ✓
Power120W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W ✓
Power180W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67
Read more
