Strip LED Professional

Linear profiles for indoor applications

Linear profile for indoor applications - 12.8W/m 24Vdc - 5000 mm - IP20

Generate code

Technical data

Print technical data

Updated to BASSTPRO2000195

IP20

Installation	linear profile for indoor applications
Power consumption	12,8W
Power supply	24Vdc
Delivered lumen output	1250 lm/m
Datasheet	Strip LED Professional code: BASSTPRO2000195 linear profile for indoor applications; recessed, surface mounted (ceiling, wall, floor); Power consumption: 12,8W; Power supply: 24Vdc; Delivered lumen output: 1250 lm/m; 120 mid-power LEDs; LED colour: 4000K; CRI Colour Rendering Index: 95; power supply unit not included; Ingress protection: IP20; Dimensions: 5000 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WDA01 Profile - Line, WDA01B Profile - Line, WDA02 Profile - Line, WDA05 Profile - Corner, WDA05N Profile - Corner, WDA05Z Profile - Corner, WDA06 Profile - Corner, WDA07 Profile - Line Plus, WDA08 Profile - Line Plus, WDA09 Profile - Plaster Plus, WDA10 Profile - Plaster Plus, WDA12 Profile - Lyna, WDA13 Profile - Lyna, WEA02 End cap - Line, WEA03 End cap with hole - Line, WEA05 End cap - Corner, WEA06 End cap with hole - Corner, WEA07 End cap - Line Plus, WEA08 End cap with hole - Line Plus, WEA09 End cap with hole - Plaster Plus, WEA10 End cap - Lyna, WR0000S1M Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S1S Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S1T Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S2M Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S2S Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S2T Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S3S Cover - Lyna, WR0000S4M Cover - Lyna, WR0000S4S Cover - Lyna, WR0000S5M Cover - Lyna; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionStrip LED Professional code: BASSTPRO2000195 linear profile for indoor applications recessed, surface mounted (ceiling, wall, floor) Power consumption: 12,8W Power supply: 24Vdc Delivered lumen output: 1250 lm/m 120 mid-power LEDs LED colour: 4000K CRI Colour Rendering Index: 95 power supply unit not included Ingress protection: IP20 Dimensions: 5000 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WDA01 Profile - Line, WDA01B Profile - Line, WDA02 Profile - Line, WDA05 Profile - Corner, WDA05N Profile - Corner, WDA05Z Profile - Corner, WDA06 Profile - Corner, WDA07 Profile - Line Plus, WDA08 Profile - Line Plus, WDA09 Profile - Plaster Plus, WDA10 Profile - Plaster Plus, WDA12 Profile - Lyna, WDA13 Profile - Lyna, WEA02 End cap - Line, WEA03 End cap with hole - Line, WEA05 End cap - Corner, WEA06 End cap with hole - Corner, WEA07 End cap - Line Plus, WEA08 End cap with hole - Line Plus, WEA09 End cap with hole - Plaster Plus, WEA10 End cap - Lyna, WR0000S1M Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S1S Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S1T Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S2M Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S2S Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S2T Cover - Line / Line Plus / Plaster / Plaster Plus / Corner, WR0000S3S Cover - Lyna, WR0000S4M Cover - Lyna, WR0000S4S Cover - Lyna, WR0000S5M Cover - Lyna tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed, surface mounted (ceiling, wall, floor)
Number and type of LED	120 mid-power LEDs
LED colour	4000K
CRI Colour Rendering Index	95
Power supply unit	power supply unit not included
Ingress protection	IP20
Status	Product being discontinued

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Strip LED Professional
- Specific, for code BASSTPRO2000195
LDT Photometric file Type
- Generic, for the product Strip LED Professional
- Specific, for code BASSTPRO2000195
IES Photometric file Type
- Generic, for the product Strip LED Professional
- Specific, for code BASSTPRO2000195

Gallery

Accessories and power supply units

Accessories (31)

Accessories for product code BASSTPRO2000195

Optics

WR0000S1M Cover - Line / Line Plus / Plaster / Plaster Plus / Corner milky - 2000 mm	WR0000S1S Cover - Line / Line Plus / Plaster / Plaster Plus / Corner frosted - 2000 mm
WR0000S1T Cover - Line / Line Plus / Plaster / Plaster Plus / Corner transparent - 2000 mm	WR0000S2M Cover - Line / Line Plus / Plaster / Plaster Plus / Corner milky - 3000 mm
WR0000S2S Cover - Line / Line Plus / Plaster / Plaster Plus / Corner frosted - 3000 mm	WR0000S2T Cover - Line / Line Plus / Plaster / Plaster Plus / Corner transparent - 3000 mm
WR0000S3S Cover - Lyna frosted - 2000 mm	WR0000S4M Cover - Lyna milky - 1000 mm
WR0000S4S Cover - Lyna frosted - 1000 mm	WR0000S5M Cover - Lyna milky - 2000 mm

Various accessories

WDA01 Profile - Line aluminium - 2000 mm	WDA01B Profile - Line aluminium - 2000 mm - white
WDA02 Profile - Line aluminium - 3000 mm	WDA05 Profile - Corner aluminium - 2000 mm
WDA05N Profile - Corner aluminium - 2000 mm - black	WDA05Z Profile - Corner aluminium - 2000 mm - bronze
WDA06 Profile - Corner aluminium - 3000 mm	WDA07 Profile - Line Plus aluminium - 2000 mm
WDA08 Profile - Line Plus aluminium - 3000 mm	WDA09 Profile - Plaster Plus aluminium - 2000 mm
WDA10 Profile - Plaster Plus aluminium - 3000 mm	WDA12 Profile - Lyna aluminium - 1000 mm
WDA13 Profile - Lyna aluminium - 2000 mm	WEA02 End cap - Line grey - 1 piece
WEA03 End cap with hole - Line grey - 1 piece	WEA05 End cap - Corner grey - 1 piece
WEA06 End cap with hole - Corner grey - 1 piece	WEA07 End cap - Line Plus grey - 1 piece
WEA08 End cap with hole - Line Plus grey - 1 piece	WEA09 End cap with hole - Plaster Plus grey - 1 piece
WEA10 End cap - Lyna grey - 1 piece

Power supply units (22)

Power supply units for product code BASSTPRO2000195

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

Control gear for product code BASSTPRO2000195

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (2)

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW

Projects

Retail

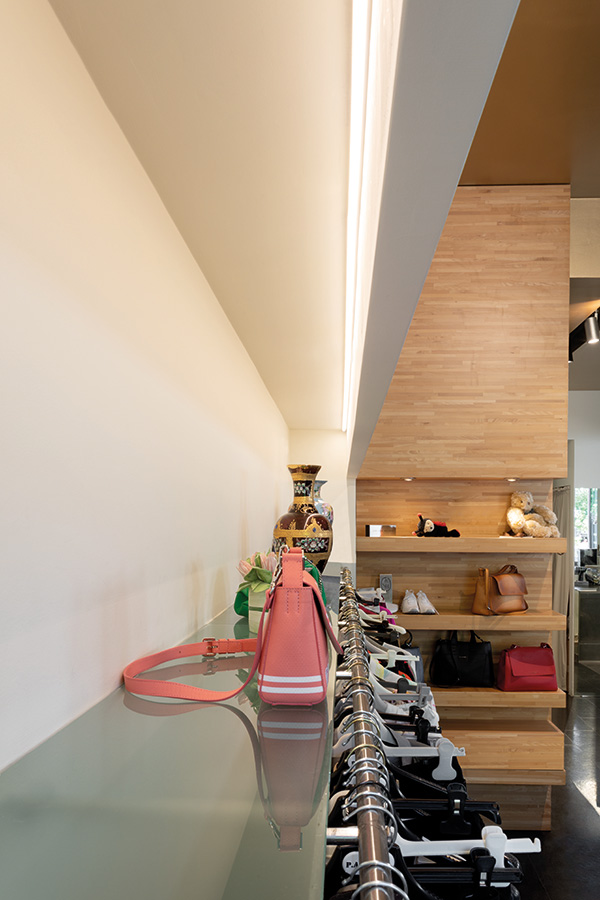

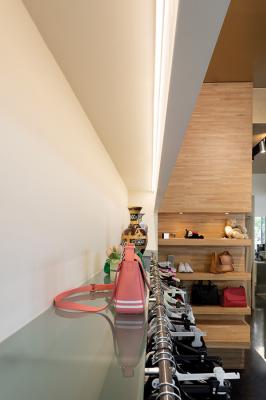

Planet clothing store
