Berica IN 3.1

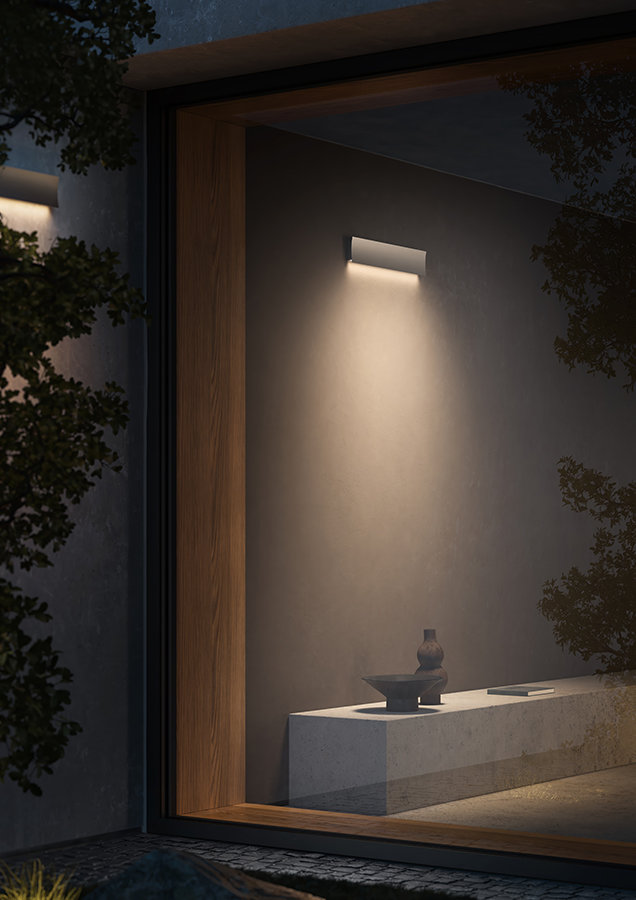

Wall mounted for indoor applications

wall mounted for indoor applications, double beam - 27W 230Vac - 340x120x37 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finish: black, anthracite

Technical data

Print technical data

Updated to BB31101D005LW8

0,90 kg
IP40
DALI
PUSH

Installation	wall mounted for indoor applications, double beam
Power consumption	27W
Power supply	230Vac
Lumen output at source	3280 lm (3000K)
Delivered lumen output	2728 lm (3000K, diffuse optics)
Datasheet	Berica IN 3.1 code: BB31101D005LW8 wall mounted for indoor applications, double beam; surface mounted (ceiling, wall); Power consumption: 27W; Power supply: 230Vac; Lumen output at source: 3280 lm (3000K); Delivered lumen output: 2728 lm (3000K, diffuse optics); 64 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 3000K; Optics: 45°x96°: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: >90; Body material: body and concave cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and concave cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel; Finishes: body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces; RAL finish on request; built-in power supply unit; Control system: PUSH, DALI; Ingress protection: IP40; non-standard lengths available on request (max 1100mm), single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints; Operating temperature: 0°C — +45°C; Glow wire test: 650°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 900 g; Dimensions: 340x120x37 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBerica IN 3.1 code: BB31101D005LW8 wall mounted for indoor applications, double beam surface mounted (ceiling, wall) Power consumption: 27W Power supply: 230Vac Lumen output at source: 3280 lm (3000K) Delivered lumen output: 2728 lm (3000K, diffuse optics) 64 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 3000K Optics: 45°x96°: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: >90 Body material: body and concave cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and concave cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel Finishes: body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces RAL finish on request built-in power supply unit Control system: PUSH, DALI Ingress protection: IP40 non-standard lengths available on request (max 1100mm), single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints Operating temperature: 0°C — +45°C Glow wire test: 650° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 900 g Dimensions: 340x120x37 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall)
Number and type of LED	64 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	3000K
Optics	45°x96°
CRI Colour Rendering Index	>90
Body material	body and cover in anticorodal aluminium
Finishes	primer
Power supply unit	built-in power supply unit
Control system	PUSH, DALI
Ingress protection	IP40
Notes	non-standard lengths available on request (max 1100mm), single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available
