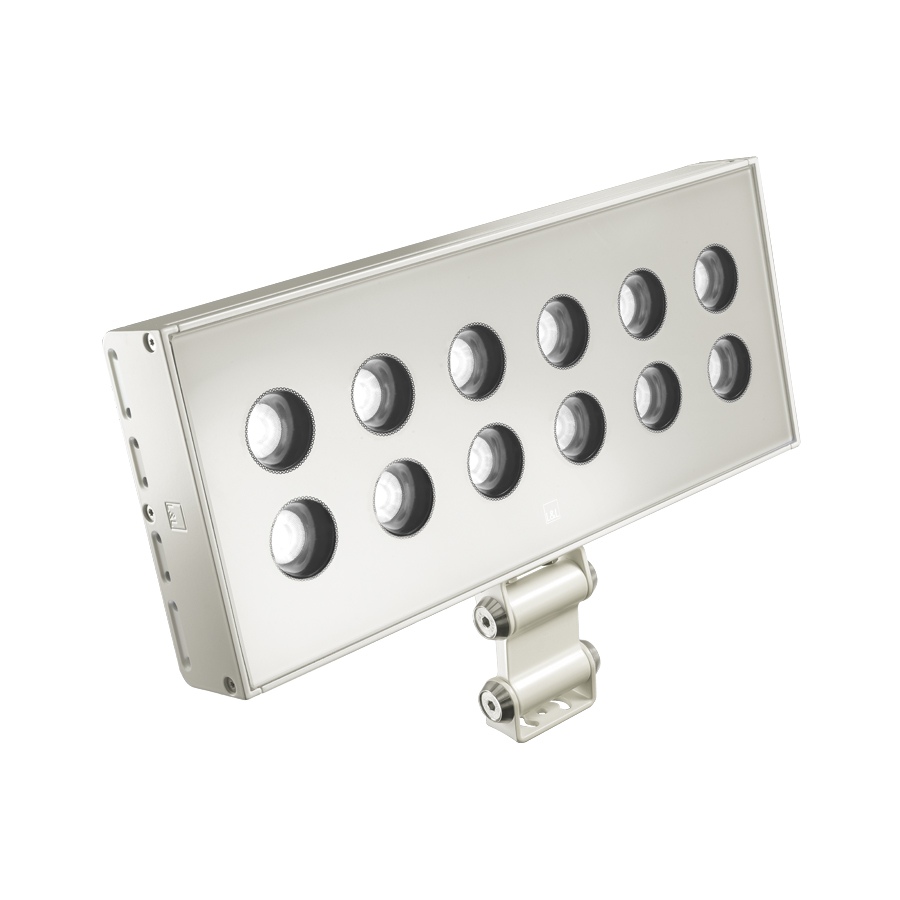

Duomo 4.0

Projectors for outdoor applications

projector for outdoor applications - 56W 230Vac

Technical data

Print technical data

kg 3,50
IP65
IK06
DALI-2
PUSH

Installation	projector for outdoor applications
Power consumption	56W
Power supply	230Vac
Lumen output at source	4886 lm (3000K, CRI 90), 5280 lm (3000K, CRI 80)
Delivered lumen output	3964 lm (3000K, 30°, CRI 90), 4284 lm (3000K, 30°, CRI 80)
Datasheet	Duomo 4.0 projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 56W; Power supply: 230Vac; Lumen output at source: 4886 lm (3000K, CRI 90), 5280 lm (3000K, CRI 80); Delivered lumen output: 3964 lm (3000K, 30°, CRI 90), 4284 lm (3000K, 30°, CRI 80); 12 power LEDs High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 10°: optical system consisting of 12 high-efficiency TIR lenses, 14°, 63°: optical system consisting of 12 high-efficiency, deep-set TIR lenses combined with a high-quality technical filter, 30°, 35°, 43°: optical system consisting of 12 high-efficiency deep-set TIR lenses, 18°x44°, 44°x18°: optical system consisting of 12 high-efficiency, deep-set elliptical TIR lenses combined with a high-quality technical filter; CRI Colour Rendering Index: 80, >90; Body material: body and bracket made of low-copper-content Anticorodal® aluminium alloy EN AW 6060 T5 for excellent resistance to corrosion. Body and bracket made by an extrusion process and subsequently finished on a CNC lathe; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003), antique white finish (RAL 9001) obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance equal to more than 1000 hours of salt spray testing (RAL 9001); RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches. Serigraphy in the same shade as the body of the fixture; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; Installation: product complete with IP68 connector and built-in PID system. Compatible with cables with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Simplified connection for quick, effective installation. Duomo's adjustable bracket means the fixture can be cantilevered from cornices or other architectural elements. Body can be tilted along the vertical axis by ± 20°; built-in power supply unit; Control system: PUSH, DALI-2, ON/OFF; Ingress protection: IP65; Impact resistance: IK06; Fast installation: direct connection between fixture and mains power supply; available on request with adapter for Eurostandard track and in 0/1-10V version, or with Bluetooth control, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 3500 g; Dimensions: 396x166x50 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, WFA00 2-pin male connector, WFA01 4-pin male connector, WMA006 Adjustable bracket, WMA00E Adjustable bracket, WMA00H Adjustable bracket, WMA066 Fixing bracket, WMA06E Fixing bracket, WMA06H Fixing bracket; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionDuomo 4.0 projector for outdoor applications surface mounted (ceiling, wall, floor) Power consumption: 56W Power supply: 230Vac Lumen output at source: 4886 lm (3000K, CRI 90), 5280 lm (3000K, CRI 80) Delivered lumen output: 3964 lm (3000K, 30°, CRI 90), 4284 lm (3000K, 30°, CRI 80) 12 power LEDs High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 10°: optical system consisting of 12 high-efficiency TIR lenses, 14°, 63°: optical system consisting of 12 high-efficiency, deep-set TIR lenses combined with a high-quality technical filter, 30°, 35°, 43°: optical system consisting of 12 high-efficiency deep-set TIR lenses, 18°x44°, 44°x18°: optical system consisting of 12 high-efficiency, deep-set elliptical TIR lenses combined with a high-quality technical filter CRI Colour Rendering Index: 80, >90 Body material: body and bracket made of low-copper-content Anticorodal® aluminium alloy EN AW 6060 T5 for excellent resistance to corrosion. Body and bracket made by an extrusion process and subsequently finished on a CNC lathe Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003), antique white finish (RAL 9001) obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance equal to more than 1000 hours of salt spray testing (RAL 9001) RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches. Serigraphy in the same shade as the body of the fixture Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time Installation: product complete with IP68 connector and built-in PID system. Compatible with cables with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Simplified connection for quick, effective installation. Duomo's adjustable bracket means the fixture can be cantilevered from cornices or other architectural elements. Body can be tilted along the vertical axis by ± 20° built-in power supply unit Control system: PUSH, DALI-2, ON/OFF Ingress protection: IP65 Impact resistance: IK06 Fast installation: direct connection between fixture and mains power supply available on request with adapter for Eurostandard track and in 0/1-10V version, or with Bluetooth control, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 3500 g Dimensions: 396x166x50 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, WFA00 2-pin male connector, WFA01 4-pin male connector, WMA006 Adjustable bracket, WMA00E Adjustable bracket, WMA00H Adjustable bracket, WMA066 Fixing bracket, WMA06E Fixing bracket, WMA06H Fixing bracket tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, floor)
Number and type of LED	12 power LEDs High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	10°, 14°, 30°, 35°, 43°, 63°, 18°x44°, 44°x18°
CRI Colour Rendering Index	80, >90
Body material	body and arm in Anticorodal aluminium
Screen material	screen in serigraphed, tempered, extra-clear glass
Finishes	anthracite, white, antique white
Power supply unit	built-in power supply unit
Control system	PUSH, DALI-2, ON/OFF
Ingress protection	IP65
Impact resistance	IK06
Features	Fast installation: direct connection between fixture and mains power supply
Notes	available on request with adapter for Eurostandard track and in 0/1-10V version, or with Bluetooth control, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available
