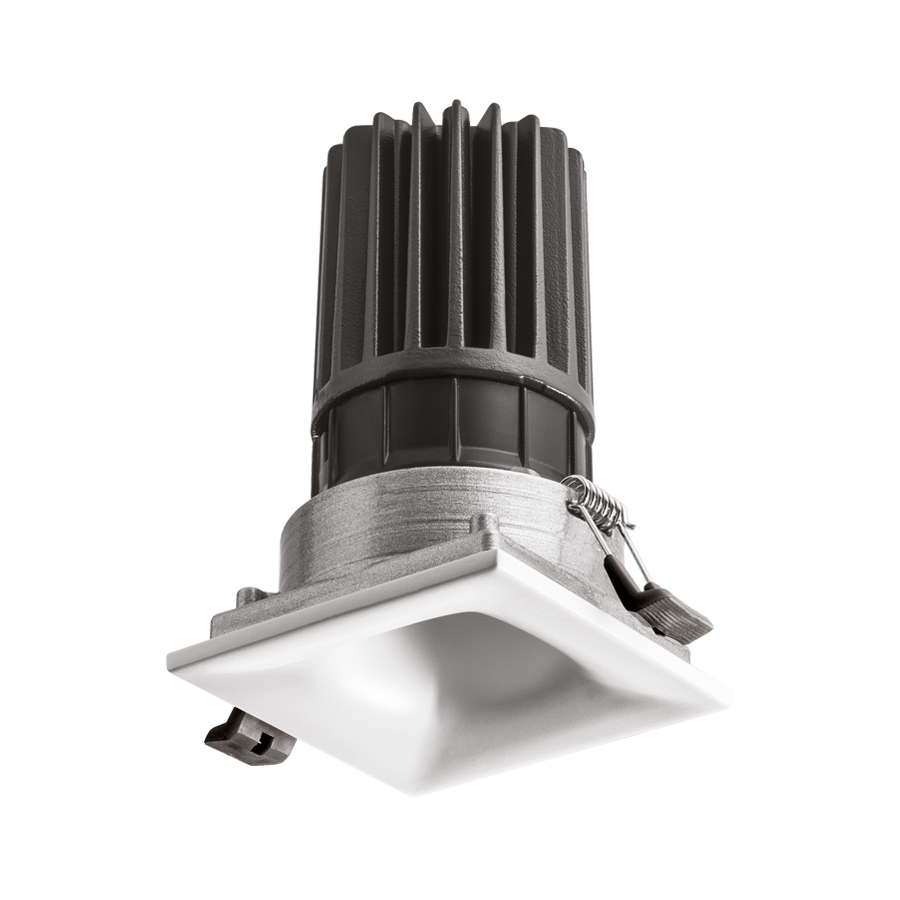

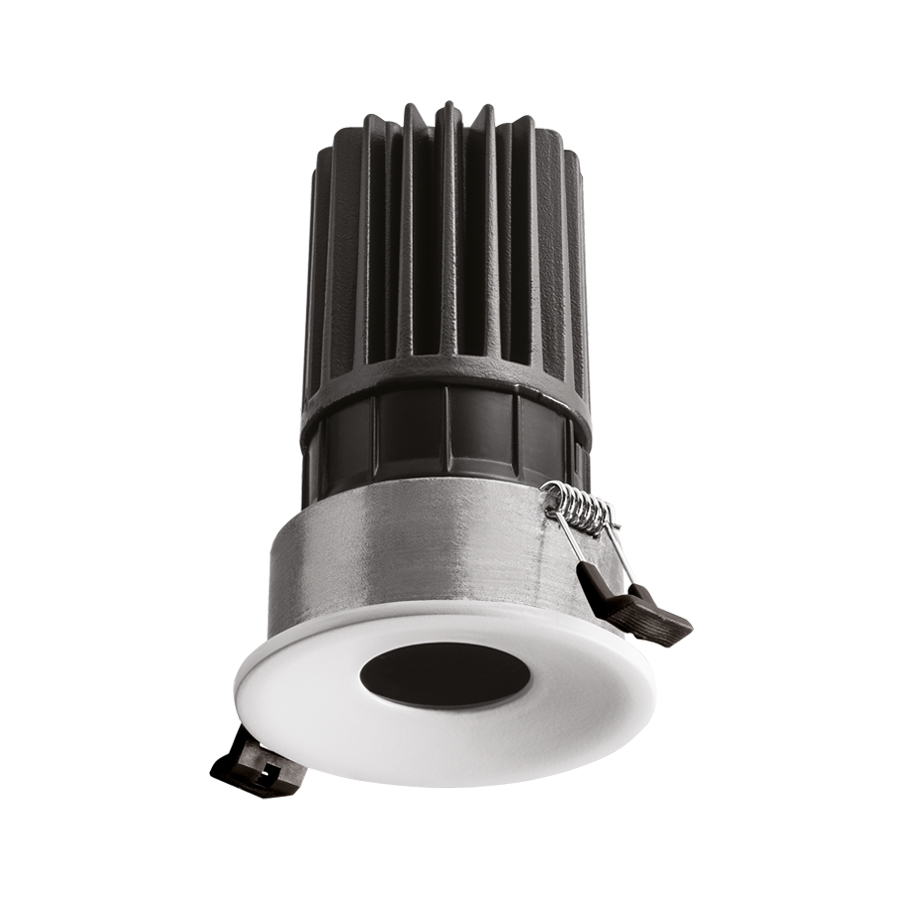

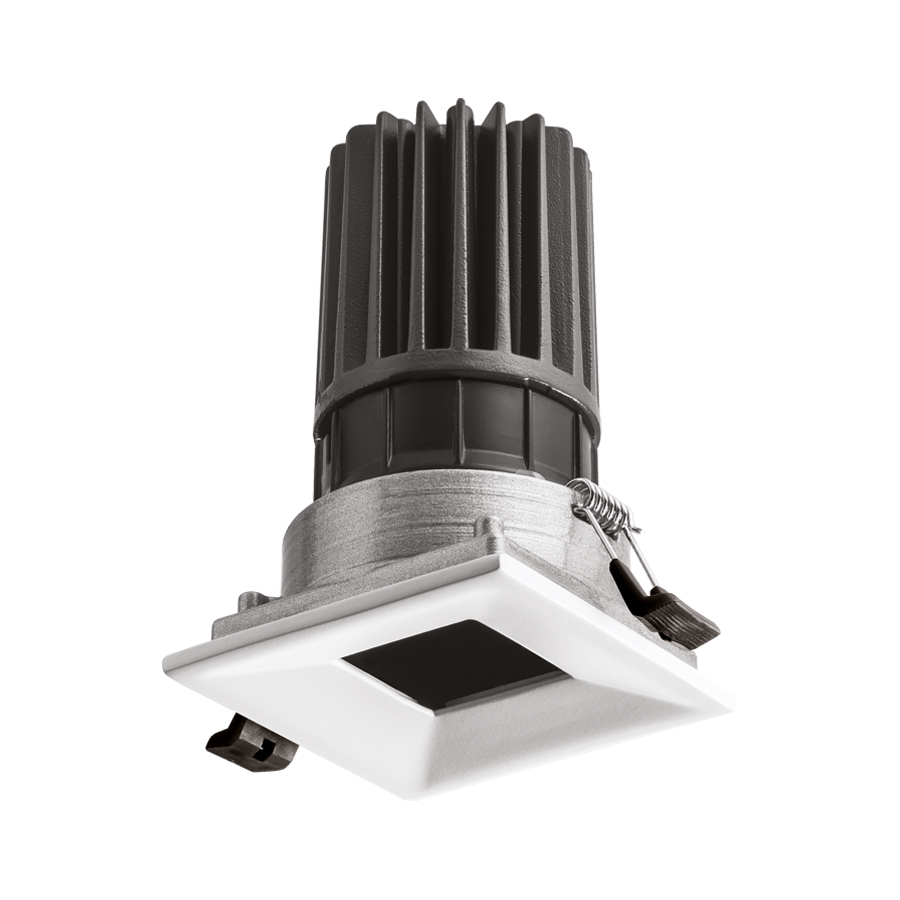

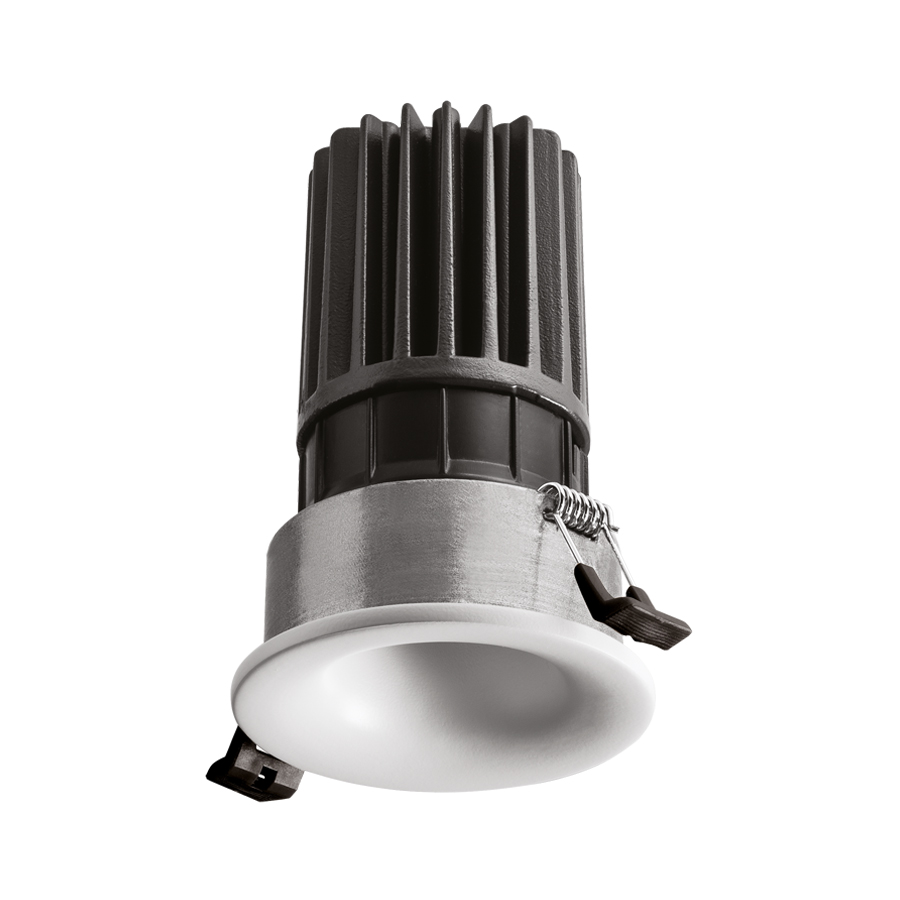

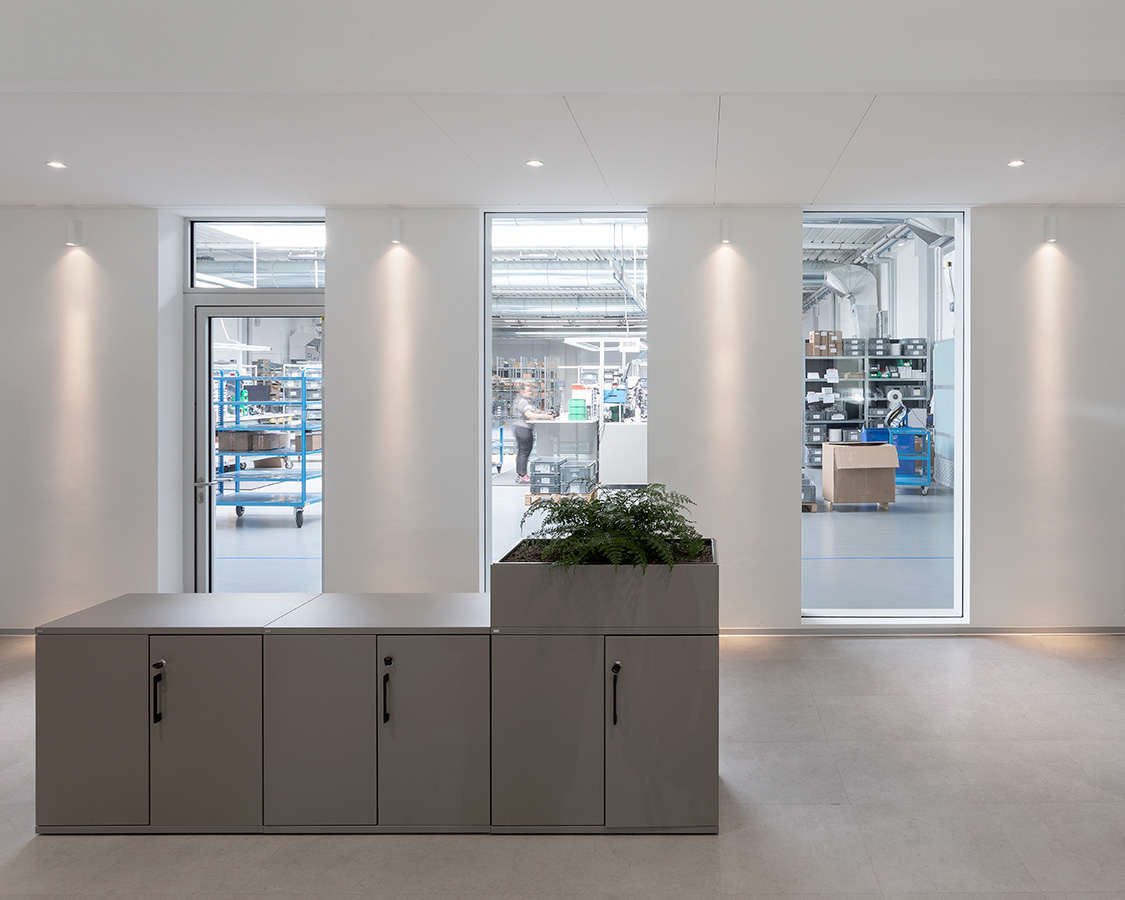

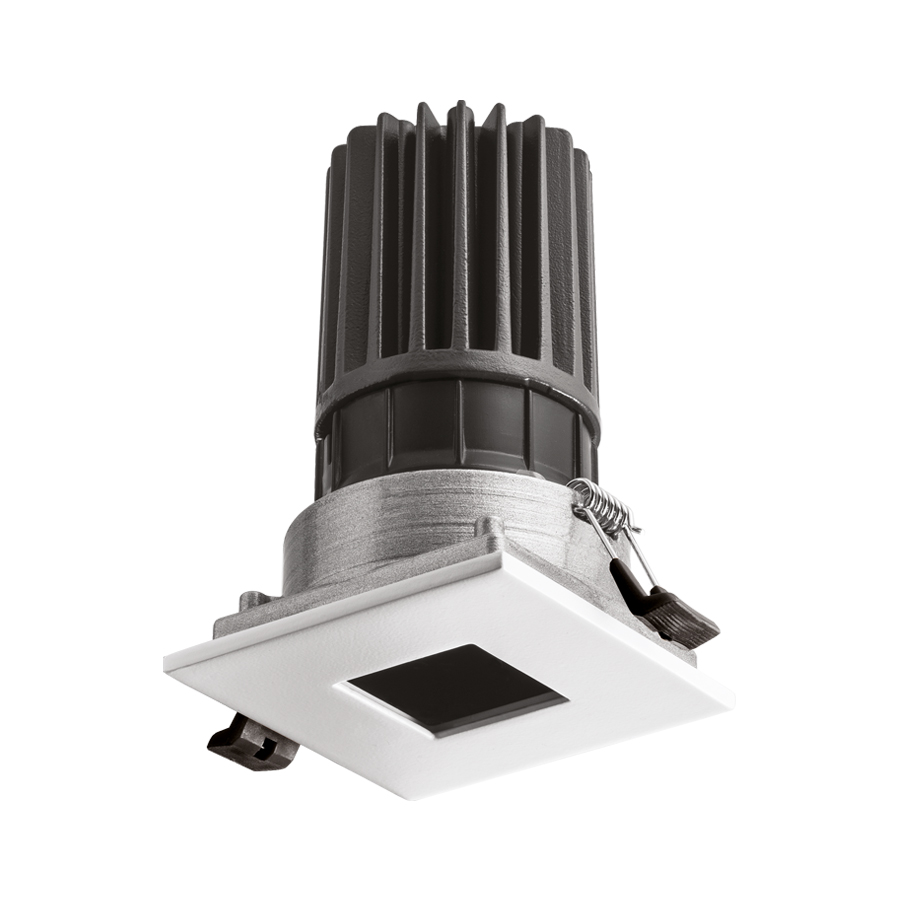

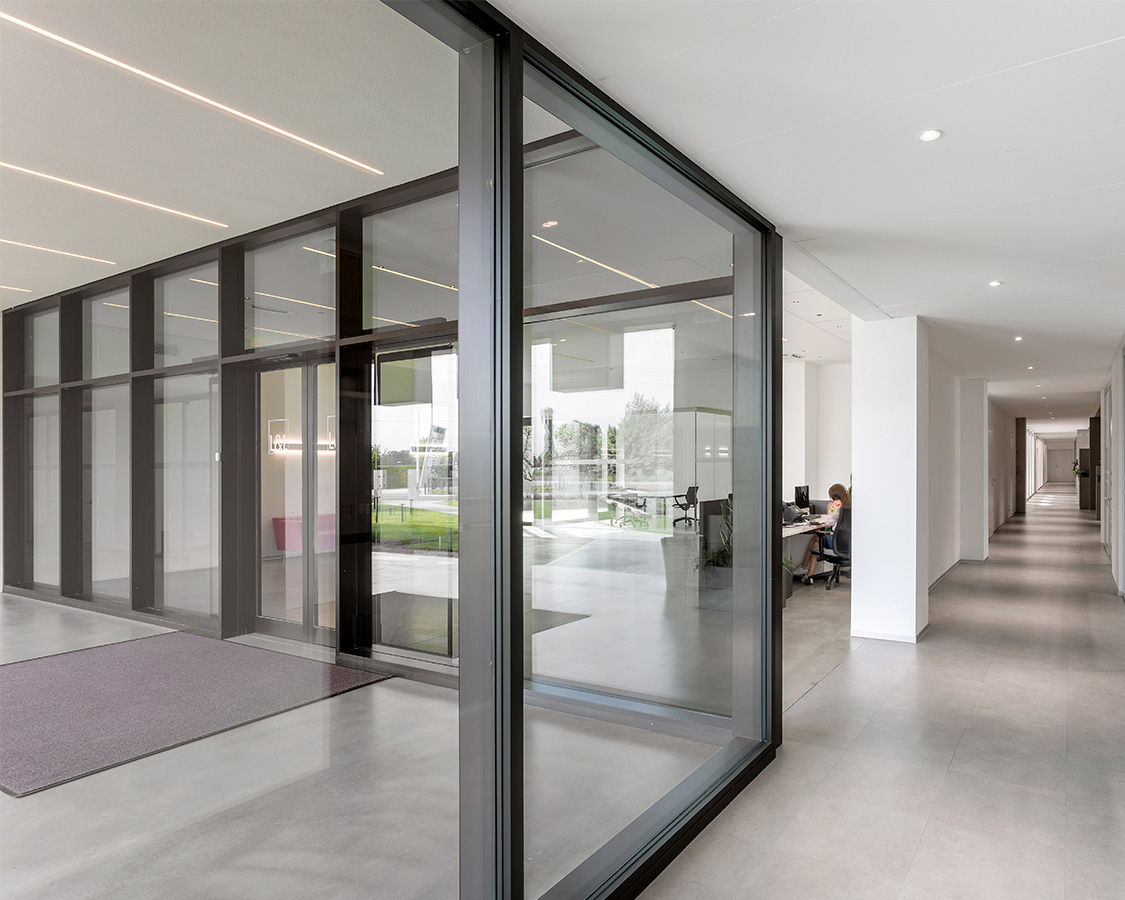

Combina D 2.0 Indoor recessed downlight for showrooms, offices and retail

Generate code

Technical data

Updated to CC2020100090L0

Required installation accessories, not included

0,50 kg
IP40
IP44 with filter

Installation	recessed downlight for indoor applications
Power consumption	max 11W
Power supply	max 300mA
Lumen output at source	960 lm (3000K, 300mA, CRI >90)
Delivered lumen output	756 lm (3000K, 300mA, 36°, CRI >90)
Datasheet	Combina D 2.0 code: CC2020100090L0 recessed downlight for indoor applications; recessed (ceiling); Power consumption: max 11W; Power supply: max 300mA; Lumen output at source: 960 lm (3000K, 300mA, CRI >90); Delivered lumen output: 756 lm (3000K, 300mA, 36°, CRI >90); 1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 4000K; Optics: 36°: optical system consisting of a deep-set, high-efficiency TIR lens; CRI Colour Rendering Index: >90; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100, for excellent corrosion resistance, and flame-retardant Bayblend. Trim and cover made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion; RAL finish on request; power supply unit not included; Wiring: series; includes 2x0.30 m single-core cables; Control system: dimming via dimmable driver; Ingress protection: IP40, IP44 with filter; UGR <13 for versions with flat and shallow covers, UGR <19 for versions with deep cover; Easy to wire. The electrical cables can be attached directly to the connector, making the product easier to install; Casambi control using the Casambi app with dedicated electronics; Operating temperature: 0°C — +45°C; Appliance class: class III; Weight: 500 gr; Dimensions: ø85 mm / 85x85 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WGCC20A1F Round bezel, WGCC20A1T Round bezel, WGCC20A2F Square bezel, WGCC20A2T Square bezel, WHCC20A1 Honeycomb louvre, WHCC20A2 Honeycomb louvre, WRCC20R1D Diffuser filter, WRCC20R1T Transparent IP44 screen, WRCC20R1W Elliptical filter, WRCC20S1D Diffuser filter, WRCC20S1T Transparent IP44 screen, WRCC20S1W Elliptical filter, WZCC20108 Flat, round cover, WZCC2010E Flat, round cover, WZCC2010N Flat, round cover, WZCC2010Z Flat, round cover, WZCC20208 Flat, square cover, WZCC2020E Flat, square cover, WZCC2020N Flat, square cover, WZCC2020Z Flat, square cover, WZCC20308 Shallow, round cover, WZCC2030E Shallow, round cover, WZCC2030N Shallow, round cover, WZCC2030Z Shallow, round cover, WZCC20408 Shallow, square cover, WZCC2040E Shallow, square cover, WZCC2040N Shallow, square cover, WZCC2040Z Shallow, square cover, WZCC20508 Deep, round cover, WZCC2050E Deep, round cover, WZCC2050N Deep, round cover, WZCC2050Z Deep, round cover, WZCC20608 Deep, square cover, WZCC2060E Deep, square cover, WZCC2060N Deep, square cover, WZCC2060Z Deep, square cover; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionCombina D 2.0 code: CC2020100090L0 recessed downlight for indoor applications recessed (ceiling) Power consumption: max 11W Power supply: max 300mA Lumen output at source: 960 lm (3000K, 300mA, CRI >90) Delivered lumen output: 756 lm (3000K, 300mA, 36°, CRI >90) 1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 4000K Optics: 36°: optical system consisting of a deep-set, high-efficiency TIR lens CRI Colour Rendering Index: >90 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100, for excellent corrosion resistance, and flame-retardant Bayblend. Trim and cover made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion RAL finish on request power supply unit not included Wiring: series includes 2x0.30 m single-core cables Control system: dimming via dimmable driver Ingress protection: IP40, IP44 with filter UGR <13 for versions with flat and shallow covers, UGR <19 for versions with deep cover Easy to wire. The electrical cables can be attached directly to the connector, making the product easier to install; Casambi control using the Casambi app with dedicated electronics Operating temperature: 0°C — +45°C Appliance class: class III Weight: 500 gr Dimensions: ø85 mm / 85x85 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WGCC20A1F Round bezel, WGCC20A1T Round bezel, WGCC20A2F Square bezel, WGCC20A2T Square bezel, WHCC20A1 Honeycomb louvre, WHCC20A2 Honeycomb louvre, WRCC20R1D Diffuser filter, WRCC20R1T Transparent IP44 screen, WRCC20R1W Elliptical filter, WRCC20S1D Diffuser filter, WRCC20S1T Transparent IP44 screen, WRCC20S1W Elliptical filter, WZCC20108 Flat, round cover, WZCC2010E Flat, round cover, WZCC2010N Flat, round cover, WZCC2010Z Flat, round cover, WZCC20208 Flat, square cover, WZCC2020E Flat, square cover, WZCC2020N Flat, square cover, WZCC2020Z Flat, square cover, WZCC20308 Shallow, round cover, WZCC2030E Shallow, round cover, WZCC2030N Shallow, round cover, WZCC2030Z Shallow, round cover, WZCC20408 Shallow, square cover, WZCC2040E Shallow, square cover, WZCC2040N Shallow, square cover, WZCC2040Z Shallow, square cover, WZCC20508 Deep, round cover, WZCC2050E Deep, round cover, WZCC2050N Deep, round cover, WZCC2050Z Deep, round cover, WZCC20608 Deep, square cover, WZCC2060E Deep, square cover, WZCC2060N Deep, square cover, WZCC2060Z Deep, square cover tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	4000K
Optics	36°
CRI Colour Rendering Index	>90
Body material	body in die-cast aluminium and Bayblend, bezel and cover in die-cast aluminium
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 2x0.30 m single-core cables
Ingress protection	IP40, IP44 with filter
Features	UGR <13 for versions with flat and shallow covers, UGR <19 for versions with deep cover
Notes	Easy to wire. The electrical cables can be attached directly to the connector, making the product easier to install
Status	Available

Close

Input

230Vac 50-60 Hz

Output

1000mA constant current; max 42W

1050mA constant current; max 42W

300mA constant current; max 13W

350mA constant current; max 15W

400mA constant current; max 18W

450mA constant current; max 20W

500mA constant current; max 22W

550mA constant current; max 24W

600mA constant current; max 27W

650mA constant current; max 29W

700mA constant current; max 31W

750mA constant current; max 32W

800mA constant current; max 33W

850mA constant current; max 35W

900mA constant current; max 38W

950mA constant current; max 40W

Dimmering

Cannot be dimmed

Power supply unit IP

IP20

Input

230Vac 50-60 Hz

Output

250mA constant current; max 13W

280mA constant current; max 15W

310mA constant current; max 16,5W

340mA constant current; max 18W

370mA constant current; max 20W

400mA constant current; max 21W

430mA constant current; max 23W

460mA constant current; max 25W

490mA constant current; max 26W

520mA constant current; max 26W

550mA constant current; max 27W

580mA constant current; max 29W

610mA constant current; max 30W

640mA constant current; max 30W

670mA constant current; max 30W

700mA constant current; max 30W

Dimmering

PUSH, DALI, ON/OFF

Power supply unit IP

IP20

Input

12-48 Vdc

Ingress protection

IP20

Dimensions

45x58x25 mm, 40g

Required installation accessories, not included WGCC20A1F Round bezel for installation flush with ceiling	Required installation accessories, not included WGCC20A1T Round bezel for rebated installation
Required installation accessories, not included WGCC20A2F Square bezel for installation flush with ceiling	Required installation accessories, not included WGCC20A2T Square bezel for rebated installation

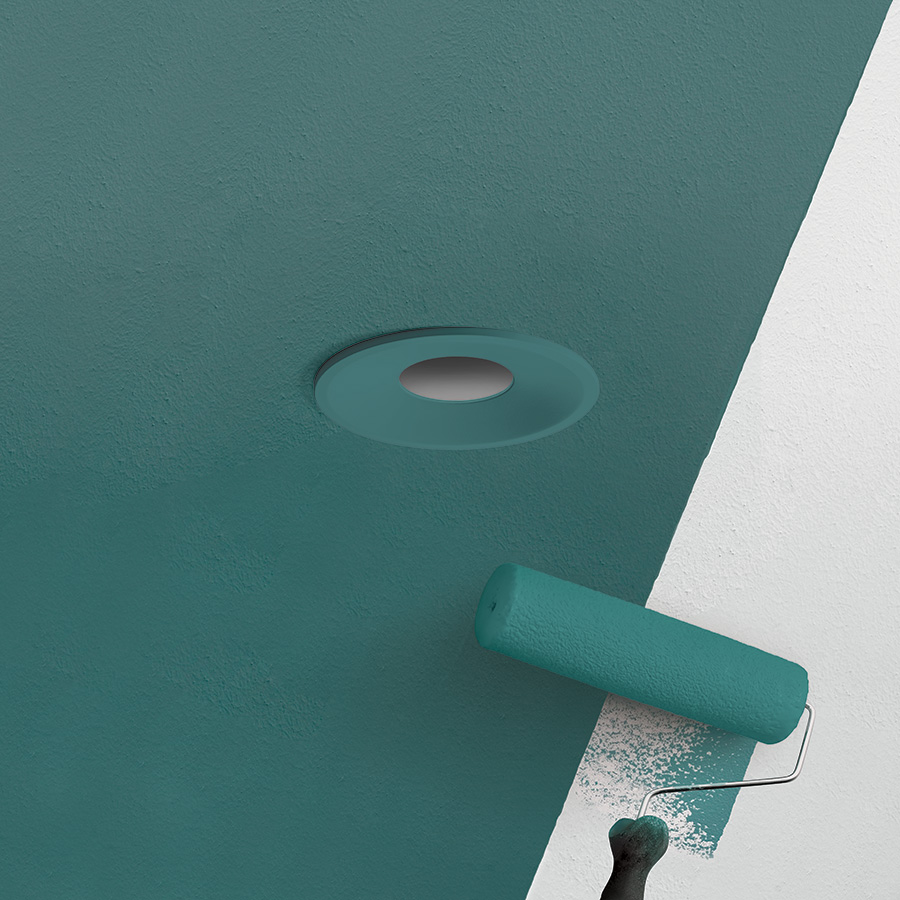

Required installation accessories, not included WZCC20108 Flat, round cover primer The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints	Required installation accessories, not included WZCC2010E Flat, round cover white
Required installation accessories, not included WZCC2010N Flat, round cover black	Required installation accessories, not included WZCC2010Z Flat, round cover antique bronze
Required installation accessories, not included WZCC20208 Flat, square cover primer The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints	Required installation accessories, not included WZCC2020E Flat, square cover white
Required installation accessories, not included WZCC2020N Flat, square cover black	Required installation accessories, not included WZCC2020Z Flat, square cover antique bronze
Required installation accessories, not included WZCC20308 Shallow, round cover primer The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints	Required installation accessories, not included WZCC2030E Shallow, round cover white
Required installation accessories, not included WZCC2030N Shallow, round cover black	Required installation accessories, not included WZCC2030Z Shallow, round cover antique bronze
Required installation accessories, not included WZCC20408 Shallow, square cover primer The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints	Required installation accessories, not included WZCC2040E Shallow, square cover white
Required installation accessories, not included WZCC2040N Shallow, square cover black	Required installation accessories, not included WZCC2040Z Shallow, square cover antique bronze
Required installation accessories, not included WZCC20508 Deep, round cover primer The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints	Required installation accessories, not included WZCC2050E Deep, round cover white
Required installation accessories, not included WZCC2050N Deep, round cover black	Required installation accessories, not included WZCC2050Z Deep, round cover antique bronze
Required installation accessories, not included WZCC20608 Deep, square cover primer The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints	Required installation accessories, not included WZCC2060E Deep, square cover white
Required installation accessories, not included WZCC2060N Deep, square cover black	Required installation accessories, not included WZCC2060Z Deep, square cover antique bronze

WRCC20R1D Diffuser filter round cover: flat, shallow, deep square cover: deep	WRCC20R1W Elliptical filter Adding the filter changes the light output: please consult the photometric data. round cover: flat, shallow, deep square cover: deep
WRCC20S1D Diffuser filter square cover: flat, shallow	WRCC20S1W Elliptical filter Adding the filter changes the light output: please consult the photometric data. square cover: flat, shallow
