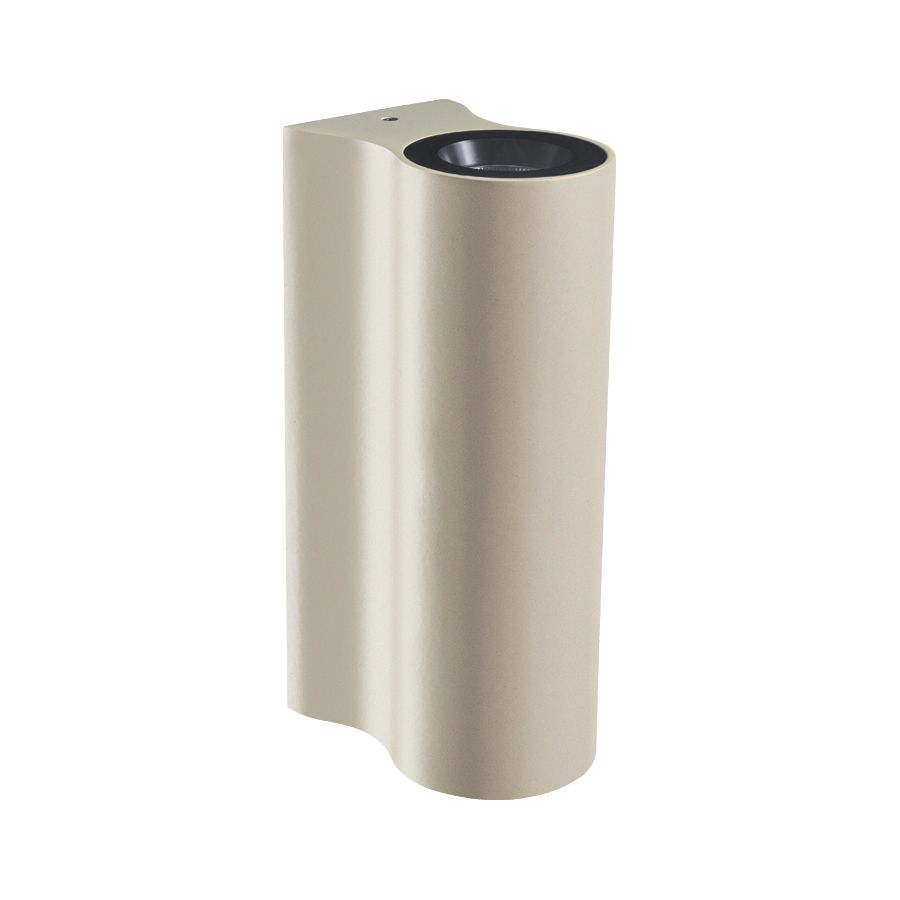

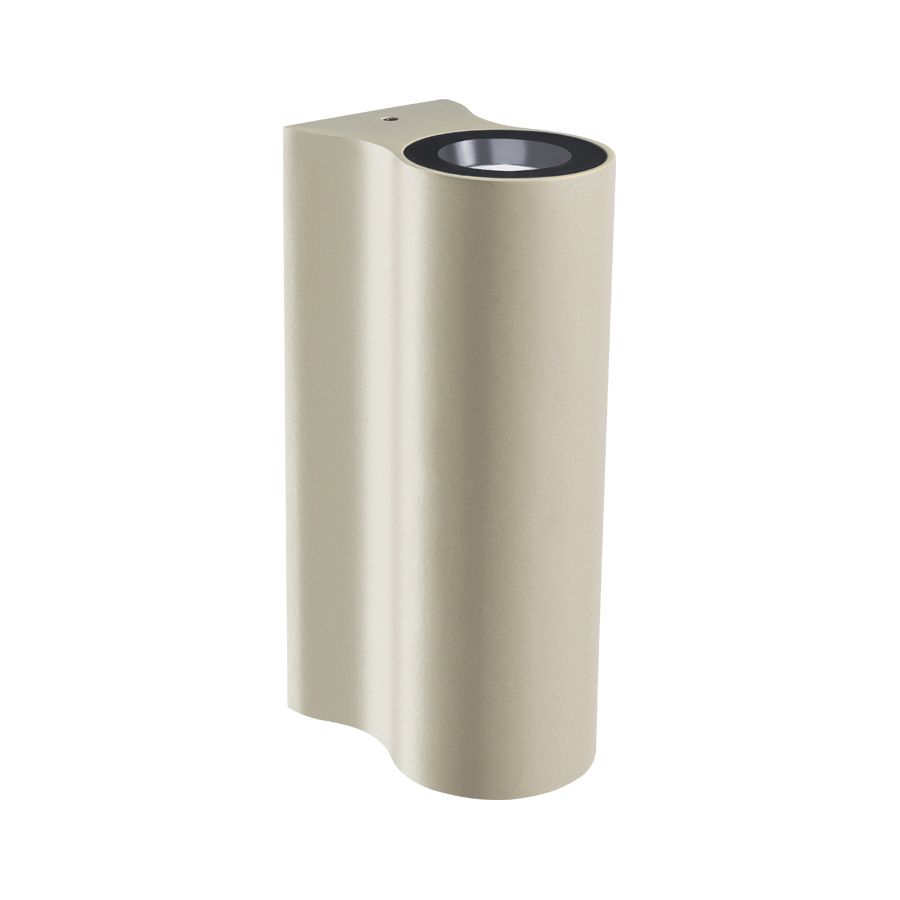

Intono 4.1

Wall mounted for outdoor applications

wall mounted for outdoor applications - 19W 230Vac - single beam - 166x110x330 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control
2200K LED colour
RGBW LED colour

Technical data

Print technical data

Updated to NT4110100050W7

kg 4,80
IP65
IK06

Installation	wall mounted for outdoor applications, single beam
Power consumption	19W
Power supply	230Vac
Lumen output at source	1368 lm (3000K, CRI >90)
Delivered lumen output	1152 lm (3000K, 12°, CRI >90)
Datasheet	Intono 4.1 code: NT4110100050W7 wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 19W; Power supply: 230Vac; Lumen output at source: 1368 lm (3000K, CRI >90); Delivered lumen output: 1152 lm (3000K, 12°, CRI >90); 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C); LED colour: 3000K; Optics: wall grazing: optical system consisting of a high-efficiency metallized technopolymer reflector and technical filter. An anti-glare black technopolymer holder completes the optical system; CRI Colour Rendering Index: >90; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion; Finishes: finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border; Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device; built-in power supply unit; Control system: ON/OFF; Ingress protection: IP65; Impact resistance: IK06; version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 4800 g; Dimensions: 166x110x330 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionIntono 4.1 code: NT4110100050W7 wall mounted for outdoor applications, single beam surface mounted (wall) Power consumption: 19W Power supply: 230Vac Lumen output at source: 1368 lm (3000K, CRI >90) Delivered lumen output: 1152 lm (3000K, 12°, CRI >90) 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C) LED colour: 3000K Optics: wall grazing: optical system consisting of a high-efficiency metallized technopolymer reflector and technical filter. An anti-glare black technopolymer holder completes the optical system CRI Colour Rendering Index: >90 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion Finishes: finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device built-in power supply unit Control system: ON/OFF Ingress protection: IP65 Impact resistance: IK06 version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; The paints that can be used on primed lighting fixtures are the same ones that are suitable for use on masonry surfaces, i.e: two-pack polyurethane varnishes, two-pack acrylic paints Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 4800 g Dimensions: 166x110x330 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour	3000K
Optics	wall grazing
CRI Colour Rendering Index	>90
Body material	body in die-cast aluminium
Screen material	screen in black-serigraphed, tempered, transparent extra-clear glass
Finishes	primer
Power supply unit	built-in power supply unit
Control system	ON/OFF
Ingress protection	IP65
Impact resistance	IK06
Notes	version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available
