Intono 1.2

Wall mounted for outdoor applications

wall mounted for outdoor applications - 6W 24Vdc - double beam - 46x30x90 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

2200K LED colour

Technical data

Print technical data

kg 0,17
IP65
IK04

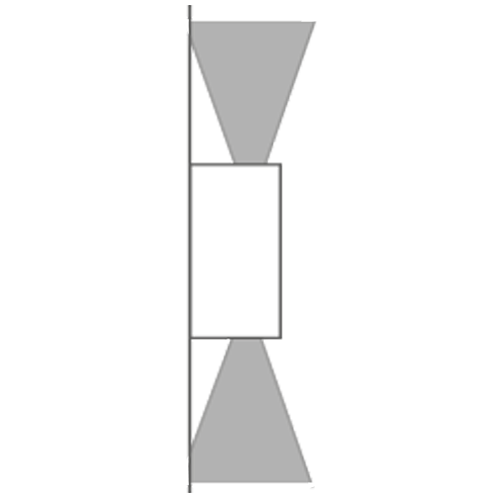

Installation	wall mounted for outdoor applications, double beam
Power consumption	6W
Power supply	24Vdc
Lumen output at source	294 lm (3000K, CRI >90), 336 lm (3000K, CRI 80)
Delivered lumen output	256 lm (3000K, 22°, CRI >90), 292 lm (3000K, 22°, CRI 80)
Datasheet	Intono 1.2 wall mounted for outdoor applications, double beam; surface mounted (wall); Power consumption: 6W; Power supply: 24Vdc; Lumen output at source: 294 lm (3000K, CRI >90), 336 lm (3000K, CRI 80); Delivered lumen output: 256 lm (3000K, 22°, CRI >90), 292 lm (3000K, 22°, CRI 80); 2 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°+13°, 13°+33°, 22°+22°, 33°+33°: double-beam optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80, >90; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces, grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 3-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border; Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device; power supply unit not included; Ingress protection: IP65; Impact resistance: IK04; version compatible with Google Home or Amazon Echo available on request for voice command control; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 170 g; Dimensions: 46x30x90 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionIntono 1.2 wall mounted for outdoor applications, double beam surface mounted (wall) Power consumption: 6W Power supply: 24Vdc Lumen output at source: 294 lm (3000K, CRI >90), 336 lm (3000K, CRI 80) Delivered lumen output: 256 lm (3000K, 22°, CRI >90), 292 lm (3000K, 22°, CRI 80) 2 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 13°+13°, 13°+33°, 22°+22°, 33°+33°: double-beam optical system consisting of a high-efficiency TIR lens CRI Colour Rendering Index: 80, >90 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces, grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 3-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches, with a RAL 9005 black serigraphed border Installation: the symmetric mounting bracket means the device can be installed without any restrictions on orientation between the bracket and the body of the device power supply unit not included Ingress protection: IP65 Impact resistance: IK04 version compatible with Google Home or Amazon Echo available on request for voice command control Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 170 g Dimensions: 46x30x90 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	2 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	13°+13°, 13°+33°, 22°+22°, 33°+33°
CRI Colour Rendering Index	80, >90
Body material	body in die-cast aluminium
Screen material	screen in black-serigraphed, tempered, transparent extra-clear glass
Finishes	anthracite, white, primer, grey, cor-ten
Power supply unit	power supply unit not included
Ingress protection	IP65
Impact resistance	IK04

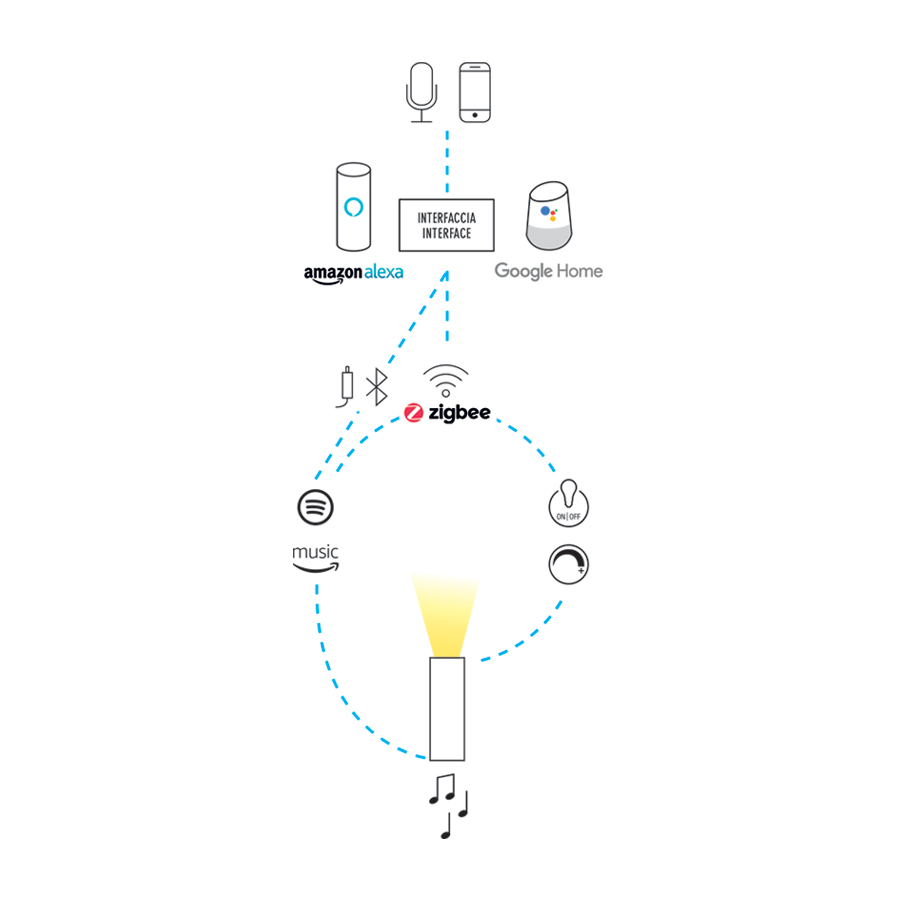

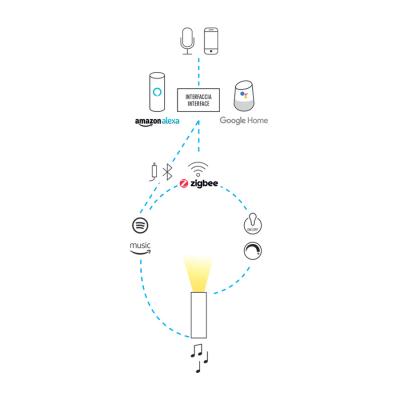

Notes	version compatible with Google Home or Amazon Echo available on request for voice command control
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (1)

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

Power supply units (24)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 12W 350mA constant current; max 17W 400mA constant current; max 19W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (1)

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g
