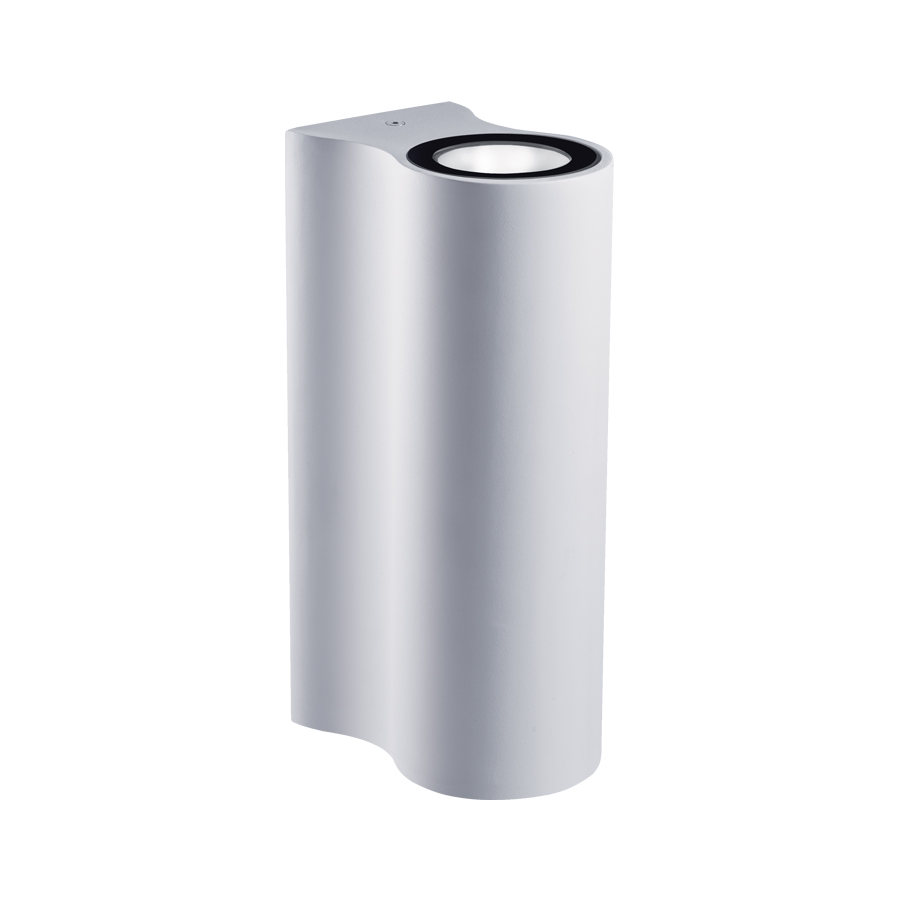

Intono 3.1

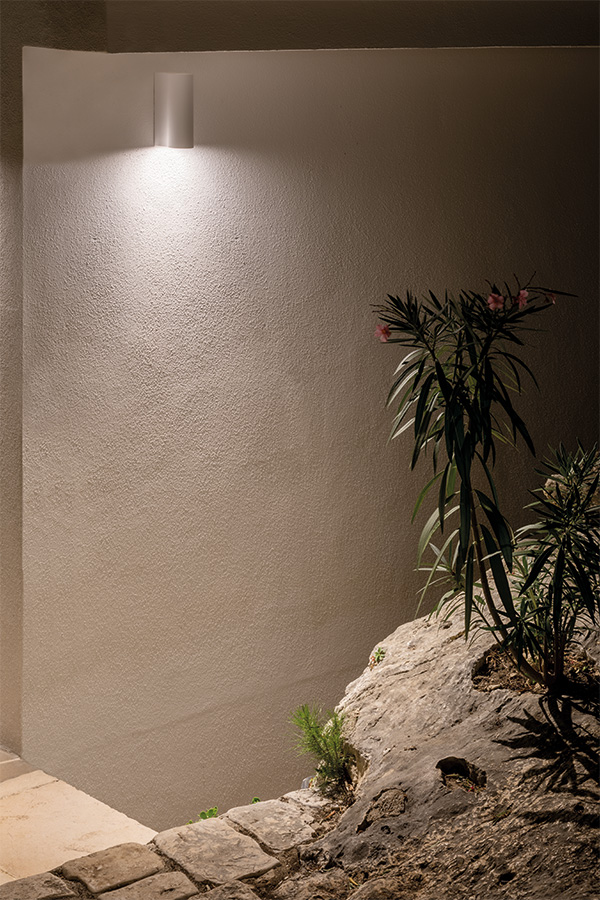

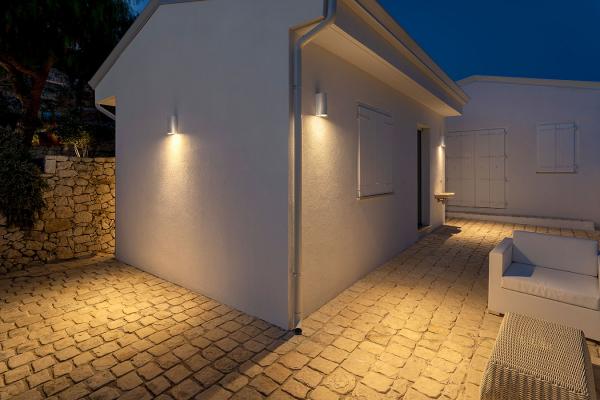

Wall mounted for outdoor applications

wall mounted for outdoor applications - 10W 230Vac - single beam - 121x80x240 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Built-in DALI control
  • 2200K LED colour
  • RGBW LED colour

Technical data

Print technical data

Updated to NT3110000050AE

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • appliance class II
  • gross weight
    kg 2,20
  • IP65
  • IK06
  • RAL finish on request
  • F
Installation wall mounted for outdoor applications, single beam
Power consumption 10W
Power supply 230Vac
Lumen output at source 988 lm (3000K, CRI 80)

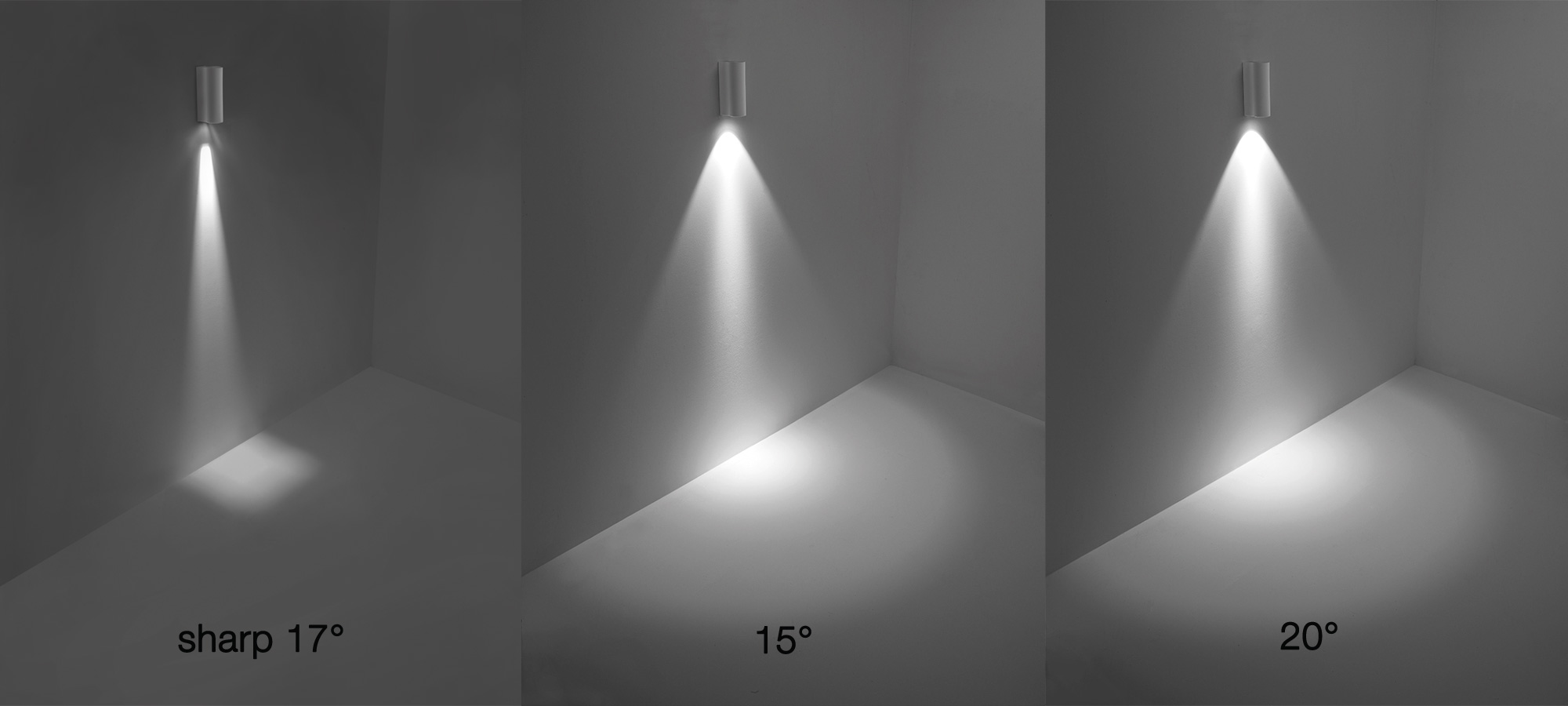

Delivered lumen output 837 lm (3000K, 15°, CRI 80)
Datasheet

Copied
Mounting surface mounted (wall)
Number and type of LED 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour 3000K
Optics asymmetrical
CRI Colour Rendering Index 80
Body material body in die-cast aluminium
Screen material screen in black-serigraphed, tempered, transparent extra-clear glass
Finishes white
Power supply unit built-in power supply unit
Control system ON/OFF
Ingress protection IP65
Impact resistance IK06

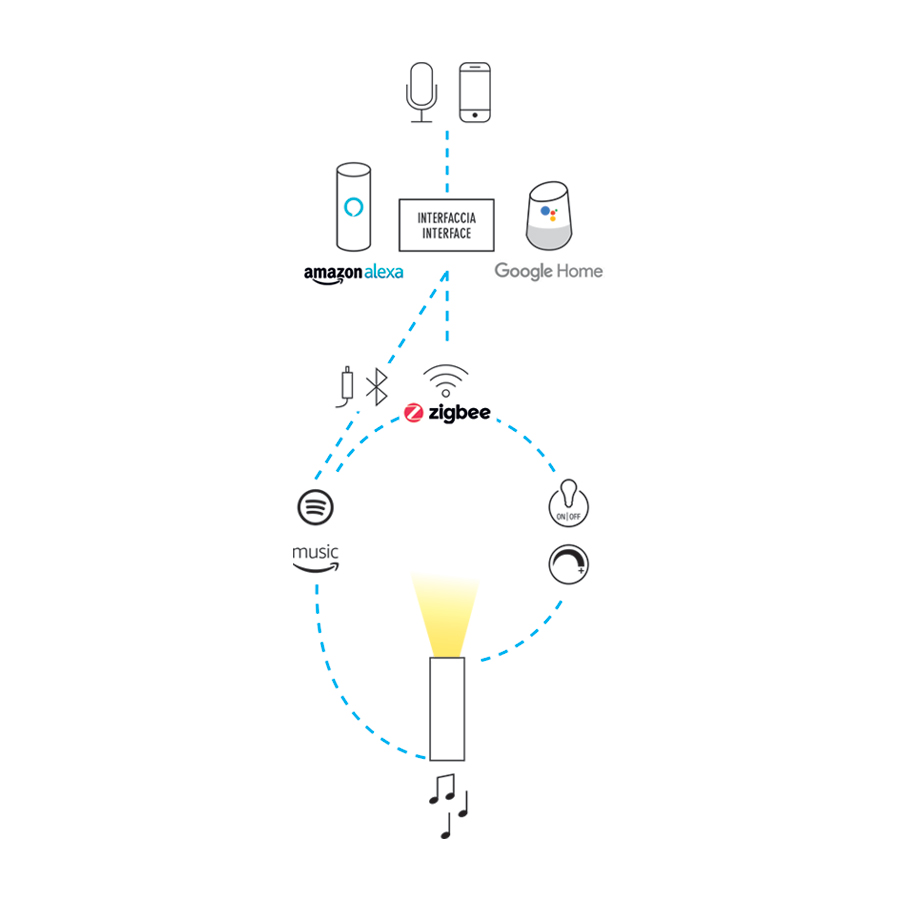

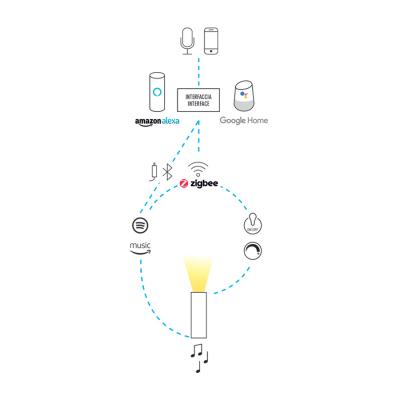

Notes version compatible with Google Home or Amazon Echo available on request for voice command control; DALI version available on request,
Casambi-compatible version, controllable with the Casambi app, available on request
Status Available
