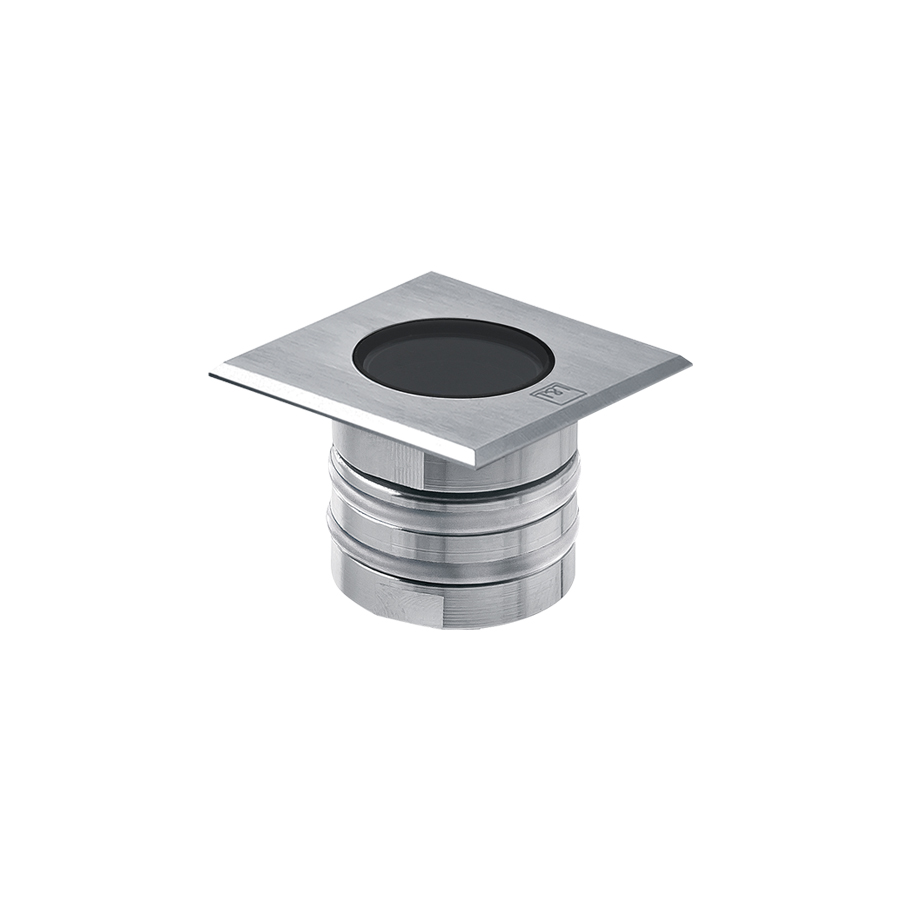

Bright Mini 1.0
Recessed for outdoor applications
recessed for outdoor applications - 0.5W 12Vac / 0.6W 12Vdc / 1.2W 24Vdc - ø35 mm
Recessed for outdoor applications
recessed for outdoor applications - 0.5W 12Vac / 0.6W 12Vdc / 1.2W 24Vdc - ø35 mm
This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.
Updated to MB10000DI
| Installation | recessed for outdoor applications (not suitable for use in immersion in swimming pools or fountains) |
|---|---|
| Power consumption | 1,2W |
| Power supply | 24Vdc |
| Lumen output at source | 23 lm (3000K, 12Vdc), 41 lm (3000K, 24Vdc) |
| Delivered lumen output | 11 lm (3000K, 12Vdc), 20 lm (3000K, 24Vdc) |
| Datasheet | Copied |
| Mounting | recessed (ceiling, wall, floor), thickness: min 3 mm, max 30 mm |
|---|---|
| Number and type of LED | 1 mid-power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) |
| LED colour | 5000K |
| Optics | diffuse |
| CRI Colour Rendering Index | 80 |
| Body material | body and trim in AISI 316L stainless steel |
| Screen material | screen in tempered, acid-etched glass |
| Power supply unit | power supply unit not included |
| Power cables | includes 1.50 m neoprene cable, 05RN-F 2x0.35 Ø4.3 mm |
| Ingress protection | IP65, IP68 |
| Impact resistance | IK10 |
| Status | Available |
Accessories for product code MB10000DI
WC0202Outer casing |
WG0302Retaining spring clip Ø30mm |
Order together with the lighting fixtureWF0510Neoprene cable 05RN-F 2x0,35 Ø4,3 mmyour choice of length |
Power supply units for product code MB10000DI
Control gear for product code MB10000DI
