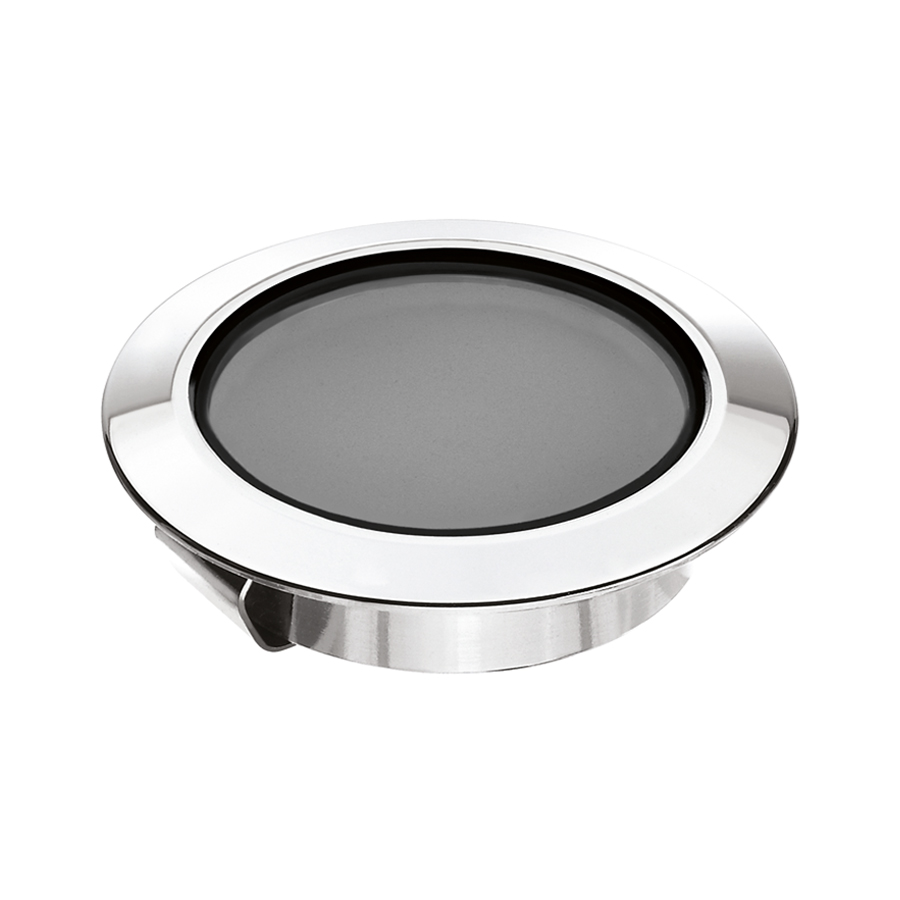

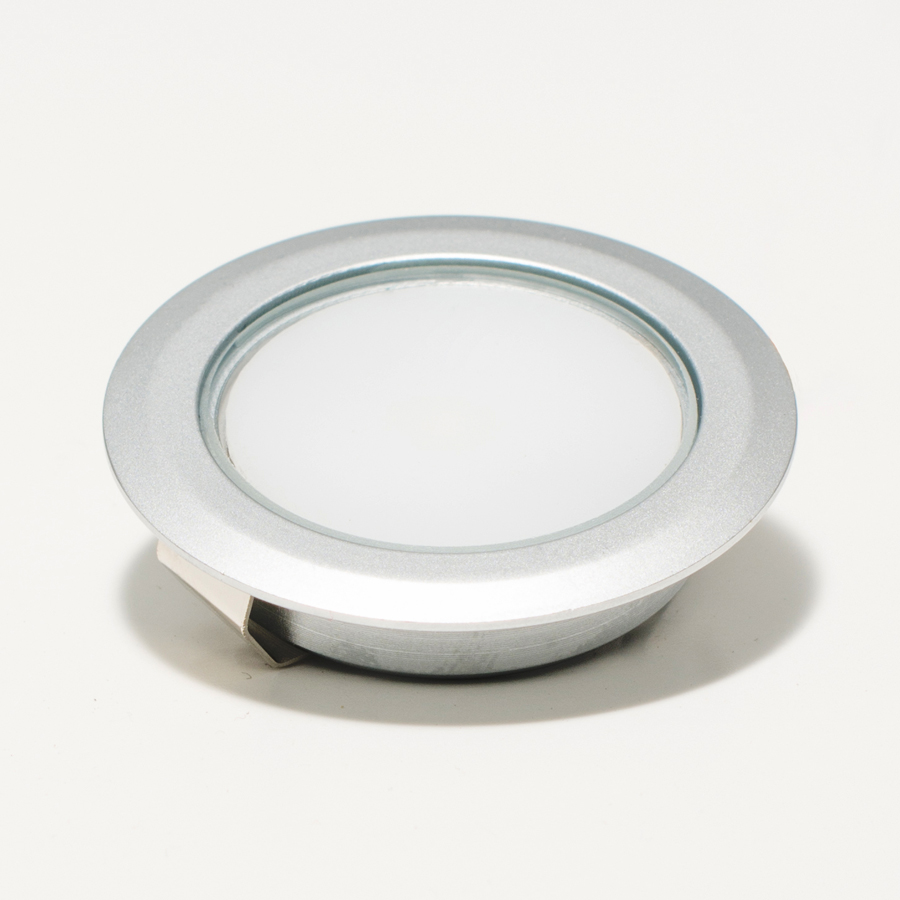

Simply 1.0

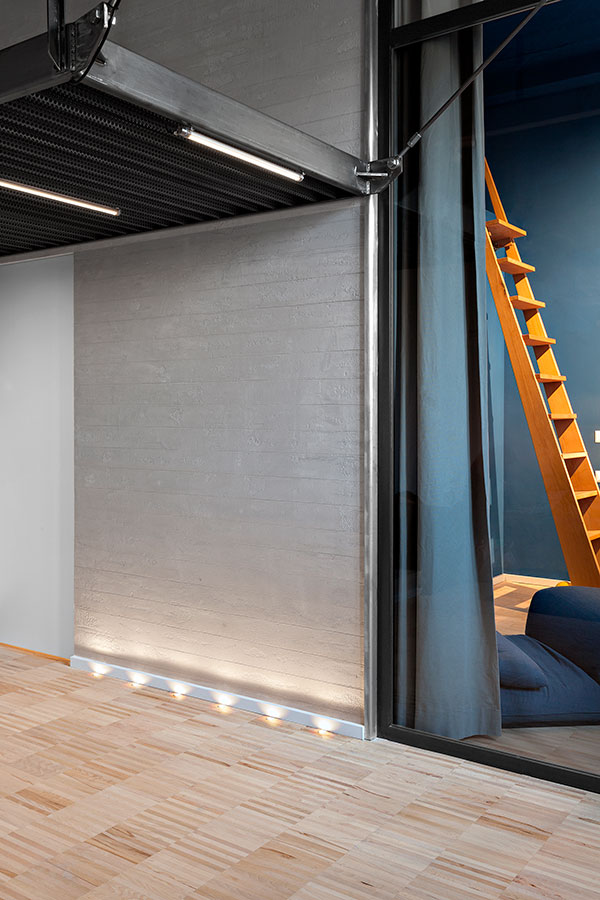

Step lights for indoor applications

step light for indoor applications - recessed for indoor applications - max 1W max 250mA - diffuse optics - ø35 mm

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • walkover fixture
  • gross weight
    kg 0,03
  • IP44
  • Casambi control
  • maximum device temperature40°C
  • F
Installation step light for indoor applications
Power consumption max 1W
Power supply max 250mA
Lumen output at source 75 lm (3000K, 250mA)
Delivered lumen output 37 lm (3000K, 250mA)
Datasheet

Copied
Mounting recessed (ceiling, wall, floor)
Number and type of LED 1 power LED, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C),
1 power LED, 50 000h L95 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, 5000K, blue
Optics diffuse
CRI Colour Rendering Index 80
Body material body and trim in anodized aluminium
Screen material screen in opal polycarbonate
Finishes chrome, pearl chrome
Power supply unit power supply unit not included
Wiring series
Power cables includes 0.30 m two-core cable
Ingress protection IP44
Status Available

Read more

Close

Accessories and power supply units

Accessories (0)

No accessories

Power supply units (6)

A19220TC

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output100mA constant current; max 4,1W ✓
120mA constant current; max 5W ✓
140mA constant current; max 5,8W ✓
160mA constant current; max 6,6W ✓
180mA constant current; max 7,4W ✓
200mA constant current; max 8,3W ✓
220mA constant current; max 9,1W ✓
240mA constant current; max 10W ✓
260mA constant current; max 10,8W ⚠
280mA constant current; max 11,6W ⚠
300mA constant current; max 12,4W ⚠
320mA constant current; max 13,2W ⚠
340mA constant current; max 14,1W ⚠
360mA constant current; max 15W ⚠
60mA constant current; max 2,5W ✓
80mA constant current; max 3,3W ✓
DimmeringON/OFF
Power supply unit IPIP20

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ⚠
250mA constant current; max 13W ⚠
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNIC30T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output250mA constant current; max 13W ⚠
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ⚠
340mA constant current; max 18W ⚠
370mA constant current; max 19,5W ⚠
400mA constant current; max 21W ⚠
430mA constant current; max 22,5W ⚠
460mA constant current; max 24W ⚠
490mA constant current; max 26W ⚠
520mA constant current; max 27,5W ⚠
550mA constant current; max 29W ⚠
580mA constant current; max 30W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W ⚠
250mA constant current; max 10W ✓
350mA constant current; max 15W ⚠
400mA constant current; max 17W ⚠
450mA constant current; max 19W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output250mA constant current; max 13W ⚠
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ⚠
340mA constant current; max 18W ⚠
370mA constant current; max 20W ⚠
400mA constant current; max 21W ⚠
430mA constant current; max 23W ⚠
460mA constant current; max 25W ⚠
490mA constant current; max 26W ⚠
520mA constant current; max 26W ⚠
550mA constant current; max 27W ⚠
580mA constant current; max 29W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringPUSH, DALI, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ⚠
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20
Read more

Control gear (0)

No controllers

Control input (2)
