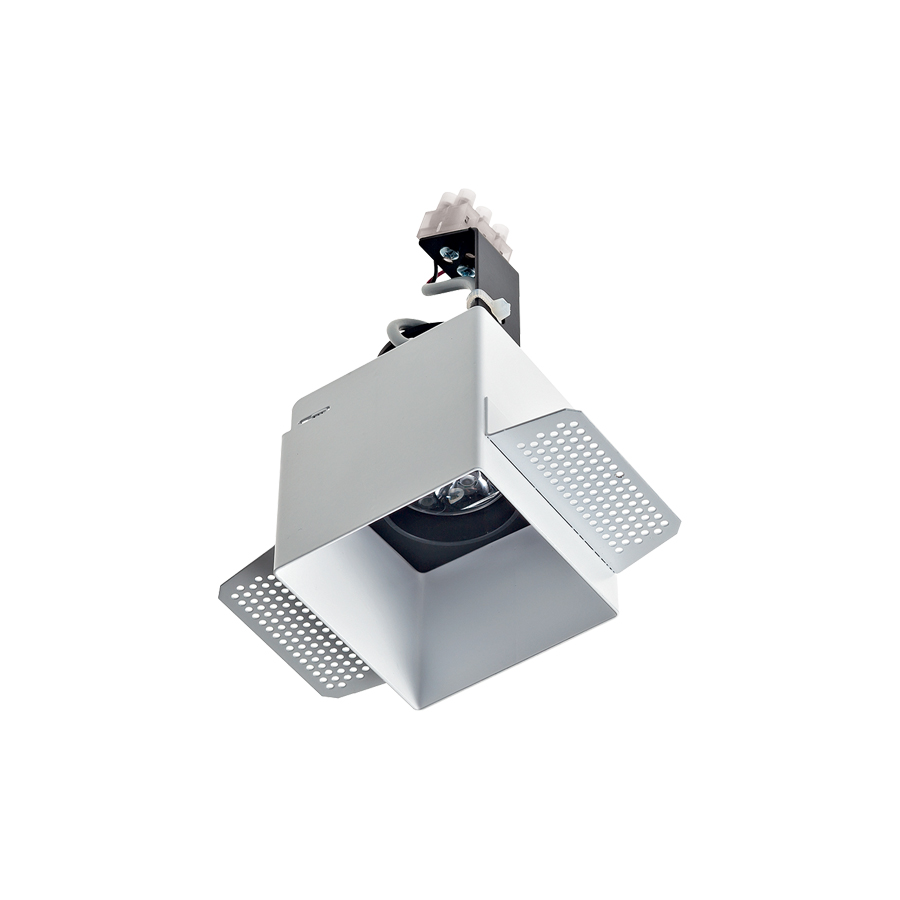

Quad 6.3

Recessed for indoor applications

recessed for indoor applications - max 18W max 500mA - tiltable optics ±15° - 65x220 mm - RGB

Technical data

Print technical data

Updated to QD63925MB

Required outer casing not included

kg 0,80
65x220 mm
IP40

Installation	recessed downlight for indoor applications
Power consumption	max 18W
Power supply	max 500mA
Lumen output at source	1308 lm (3000K, 500mA)
Delivered lumen output	1008 lm (3000K, 500mA, 24°)
Datasheet	Quad 6.3 code: QD63925MB recessed downlight for indoor applications; recessed (ceiling); Power consumption: max 18W; Power supply: max 500mA; Lumen output at source: 1308 lm (3000K, 500mA); Delivered lumen output: 1008 lm (3000K, 500mA, 24°); 9 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 24° tiltable ±15°; CRI Colour Rendering Index: 80; Body material: body in anodized aluminium, trim in steel; Finishes: white (RAL 9003); RAL finish on request; Thickness of installation surface: min 5 mm, max 25 mm; power supply unit not included; Wiring: series; terminal block; Control system: dimming via dimmable driver; Ingress protection: IP40; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 800 g; Dimensions: 65x220x125 mm; Cutout dimensions: 65x220 mm; Volume of thermal heatsink: 165x325x150 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC2003 Outer casing for plasterboard; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionQuad 6.3 code: QD63925MB recessed downlight for indoor applications recessed (ceiling) Power consumption: max 18W Power supply: max 500mA Lumen output at source: 1308 lm (3000K, 500mA) Delivered lumen output: 1008 lm (3000K, 500mA, 24°) 9 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 3000K Optics: 24° tiltable ±15° CRI Colour Rendering Index: 80 Body material: body in anodized aluminium, trim in steel Finishes: white (RAL 9003) RAL finish on request Thickness of installation surface: min 5 mm, max 25 mm power supply unit not included Wiring: series terminal block Control system: dimming via dimmable driver Ingress protection: IP40 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 800 g Dimensions: 65x220x125 mm Cutout dimensions: 65x220 mm Volume of thermal heatsink: 165x325x150 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC2003 Outer casing for plasterboard tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	9 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	3000K
Optics	24° tiltable ±15°
CRI Colour Rendering Index	80
Body material	body in anodized aluminium, trim in steel
Finishes	white
Power supply unit	power supply unit not included
Wiring	series
Power cables	terminal block
Ingress protection	IP40
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Quad 6.3
- Specific, for code QD63925MB
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product Quad 6.3
- Specific, for code QD63925MB
IES Photometric file Type
- Generic, for the product Quad 6.3
- Specific, for code QD63925MB
EU declaration of conformity

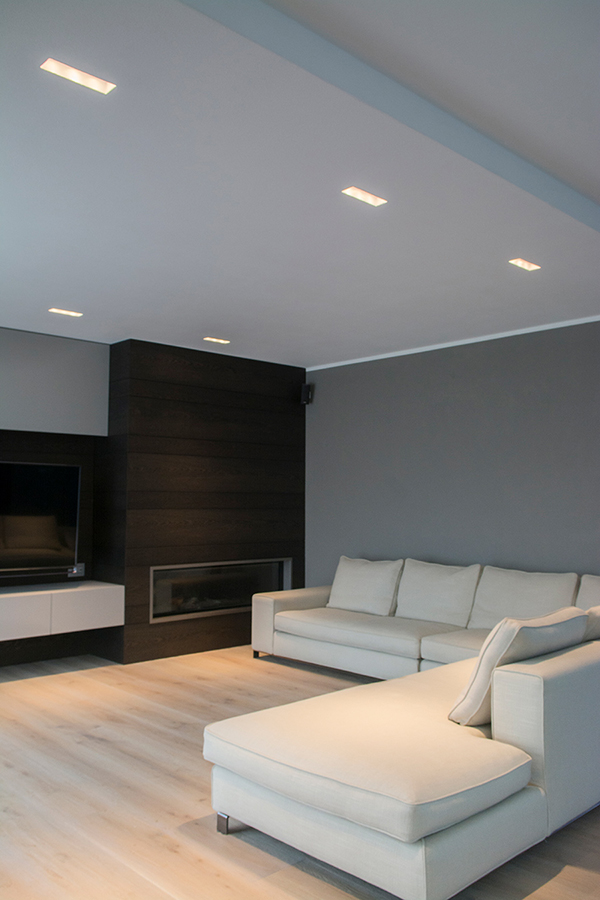

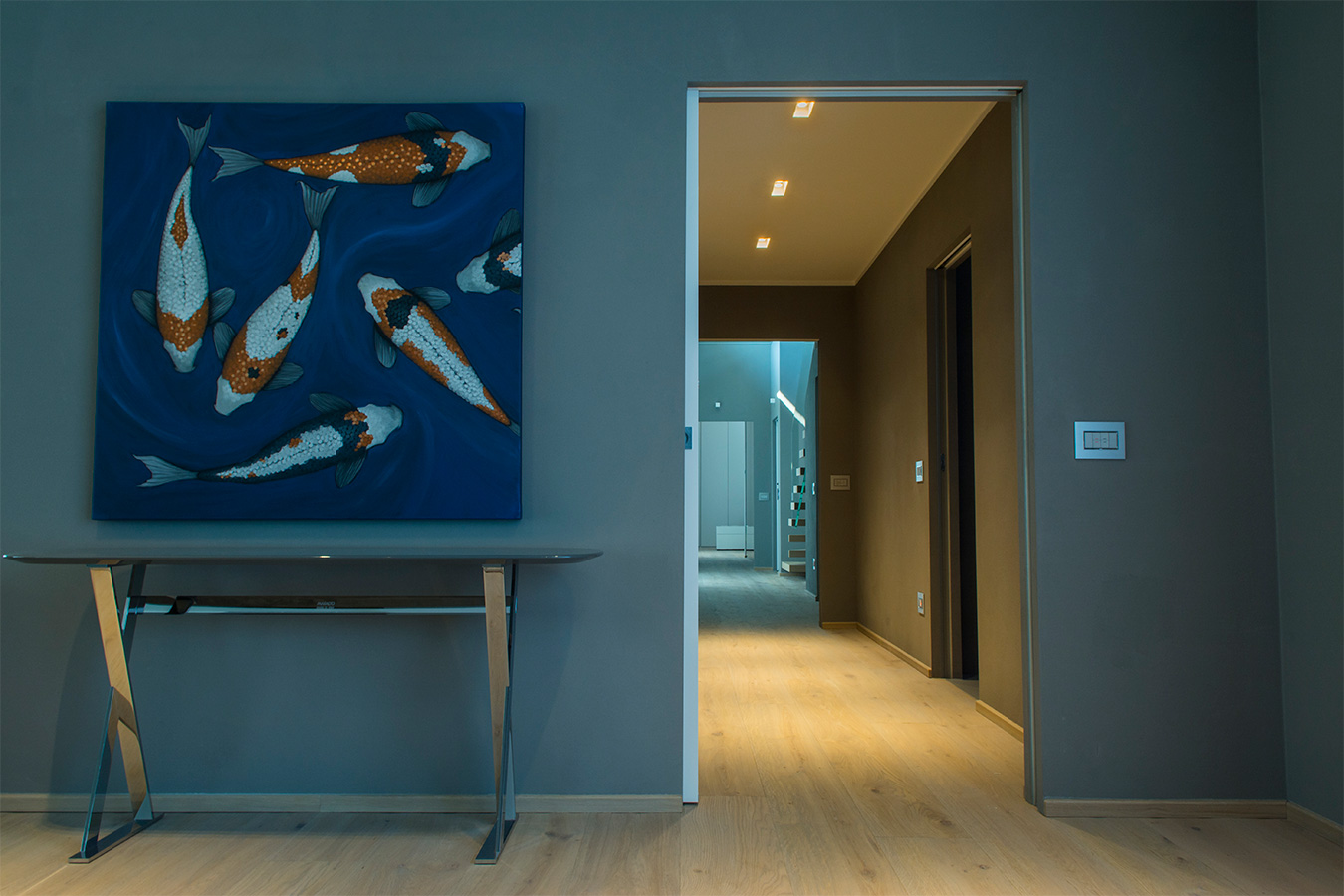

Gallery

Accessories and power supply units

Accessories (1)

Accessories for product code QD63925MB

Outer casings

Required outer casing not included

WC2003

Outer casing for plasterboard

Power supply units (19)

Power supply units for product code QD63925MB

A16350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 11W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A19220TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	100mA constant current; max 4,1W 120mA constant current; max 5W 140mA constant current; max 5,8W 160mA constant current; max 6,6W 180mA constant current; max 7,4W 200mA constant current; max 8,3W 220mA constant current; max 9,1W 240mA constant current; max 10W 260mA constant current; max 10,8W 280mA constant current; max 11,6W 300mA constant current; max 12,4W 320mA constant current; max 13,2W 340mA constant current; max 14,1W 360mA constant current; max 15W 60mA constant current; max 2,5W 80mA constant current; max 3,3W
Dimmering	ON/OFF
Power supply unit IP	IP20

A19350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 15W
Dimmering	ON/OFF
Power supply unit IP	IP20

A310500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

A310500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

A312350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP67

A312350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP20

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI039T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1050mA constant current; max 39W 350mA constant current; max 15W 500mA constant current; max 21W 550mA constant current; max 23W 650mA constant current; max 27W 700mA constant current; max 29W 750mA constant current; max 31W 850mA constant current; max 35W 900mA constant current; max 37W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI042T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1000mA constant current; max 42W 1050mA constant current; max 42W 300mA constant current; max 13W 350mA constant current; max 15W 400mA constant current; max 18W 450mA constant current; max 20W 500mA constant current; max 22W 550mA constant current; max 24W 600mA constant current; max 27W 650mA constant current; max 29W 700mA constant current; max 31W 750mA constant current; max 32W 800mA constant current; max 33W 850mA constant current; max 35W 900mA constant current; max 38W 950mA constant current; max 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNIC30T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 19,5W 400mA constant current; max 21W 430mA constant current; max 22,5W 460mA constant current; max 24W 490mA constant current; max 26W 520mA constant current; max 27,5W 550mA constant current; max 29W 580mA constant current; max 30W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	350mA constant current; max 18W
Dimmering	Mains dimming, ON/OFF
Power supply unit IP	IP20

AD020500TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	500mA constant current; max 21W
Dimmering	Mains dimming, ON/OFF
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 20W 400mA constant current; max 21W 430mA constant current; max 23W 460mA constant current; max 25W 490mA constant current; max 26W 520mA constant current; max 26W 550mA constant current; max 27W 580mA constant current; max 29W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

Control gear (1)

Control gear for product code QD63925MB

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input	24Vdc 48Vdc
Output	1 channel With 24 Vdc input:; 1050mA constant current; max 20W With 24 Vdc input:; 350mA constant current; max 6,7W With 24 Vdc input:; 500mA constant current; max 9,5W With 24 Vdc input:; 700mA constant current; max 13,3W With 48 Vdc input:; 1050mA constant current; max 45W With 48 Vdc input:; 350mA constant current; max 15,5W With 48 Vdc input:; 500mA constant current; max 21,5W With 48 Vdc input:; 700mA constant current; max 30W 2 channels With 24 Vdc input:; 1050mA constant current; max 40W With 24 Vdc input:; 350mA constant current; max 13,3W With 24 Vdc input:; 500mA constant current; max 19W With 24 Vdc input:; 700mA constant current; max 26,6W With 48 Vdc input:; 1050mA constant current; max 90,3W With 48 Vdc input:; 350mA constant current; max 30W With 48 Vdc input:; 500mA constant current; max 43W With 48 Vdc input:; 700mA constant current; max 60W 3 channels With 24 Vdc input:; 1050mA constant current; max 60W With 24 Vdc input:; 350mA constant current; max 20W With 24 Vdc input:; 500mA constant current; max 28,5W With 24 Vdc input:; 700mA constant current; max 40W With 48 Vdc input:; 1050mA constant current; max 135W With 48 Vdc input:; 350mA constant current; max 45W With 48 Vdc input:; 500mA constant current; max 64,5W With 48 Vdc input:; 700mA constant current; max 90,3W 4 channels With 24 Vdc input:; 1050mA constant current; max 80W With 24 Vdc input:; 350mA constant current; max 26,6W With 24 Vdc input:; 500mA constant current; max 38W With 24 Vdc input:; 700mA constant current; max 53,2W With 48 Vdc input:; 1050mA constant current; max 180W With 48 Vdc input:; 350mA constant current; max 62W With 48 Vdc input:; 500mA constant current; max 86W With 48 Vdc input:; 700mA constant current; max 120W
Dimmering	0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

Control input (10)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW
