Quad 6.1 Quad. Recessed fixtures for false ceilings in retail and residences - L&L Luce&Light

Search

Quad 6.1

Recessed for indoor applications

recessed for indoor applications - max 6W max 500mA - tiltable optics ±15° - 65x65 mm - RGB

Technical data

Print technical data

Required outer casing not included

kg 0,30
65x65 mm
IP40

Installation	recessed downlight for indoor applications
Power consumption	max 6W (3 power LEDs x 2W)
Power supply	max 500mA
Lumen output at source	436 lm (3000K, 500mA), RGB: 294 lm, R: 108 lm G: 140 lm B: 46 lm (500mA)
Delivered lumen output	336 lm (3000K, 500mA, 24°), RGB: 210 lm, R: 77 lm G: 100 lm B: 33 lm (500mA, 24°)
Datasheet	Quad 6.1 recessed downlight for indoor applications; recessed (ceiling); Power consumption: max 6W (3 power LEDs x 2W); Power supply: max 500mA; Lumen output at source: 436 lm (3000K, 500mA), RGB: 294 lm, R: 108 lm G: 140 lm B: 46 lm (500mA); Delivered lumen output: 336 lm (3000K, 500mA, 24°), RGB: 210 lm, R: 77 lm G: 100 lm B: 33 lm (500mA, 24°); 3 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, RGB, blue; Optics: 12° tiltable ±15°, 24° tiltable ±15°, 56° tiltable ±15°; CRI Colour Rendering Index: 80; Body material: body in anodized aluminium, trim in steel; Finishes: black (RAL 9005), white (RAL 9003); RAL finish on request; Thickness of installation surface: min 5 mm, max 25 mm; power supply unit not included; Wiring: series; terminal block; Ingress protection: IP40; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 300 g; Dimensions: 65x65x125 mm; Cutout dimensions: 65x65 mm; Volume of thermal heatsink: 165x165x150 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC2001 Outer casing for plasterboard; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionQuad 6.1 recessed downlight for indoor applications recessed (ceiling) Power consumption: max 6W (3 power LEDs x 2W) Power supply: max 500mA Lumen output at source: 436 lm (3000K, 500mA), RGB: 294 lm, R: 108 lm G: 140 lm B: 46 lm (500mA) Delivered lumen output: 336 lm (3000K, 500mA, 24°), RGB: 210 lm, R: 77 lm G: 100 lm B: 33 lm (500mA, 24°) 3 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, RGB, blue Optics: 12° tiltable ±15°, 24° tiltable ±15°, 56° tiltable ±15° CRI Colour Rendering Index: 80 Body material: body in anodized aluminium, trim in steel Finishes: black (RAL 9005), white (RAL 9003) RAL finish on request Thickness of installation surface: min 5 mm, max 25 mm power supply unit not included Wiring: series terminal block Ingress protection: IP40 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 300 g Dimensions: 65x65x125 mm Cutout dimensions: 65x65 mm Volume of thermal heatsink: 165x165x150 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC2001 Outer casing for plasterboard tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	3 power LEDs, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, RGB, blue
Optics	12° tiltable ±15°, 24° tiltable ±15°, 56° tiltable ±15°
CRI Colour Rendering Index	80
Body material	body in anodized aluminium, trim in steel
Finishes	black, white
Power supply unit	power supply unit not included
Wiring	series
Power cables	terminal block
Ingress protection	IP40
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

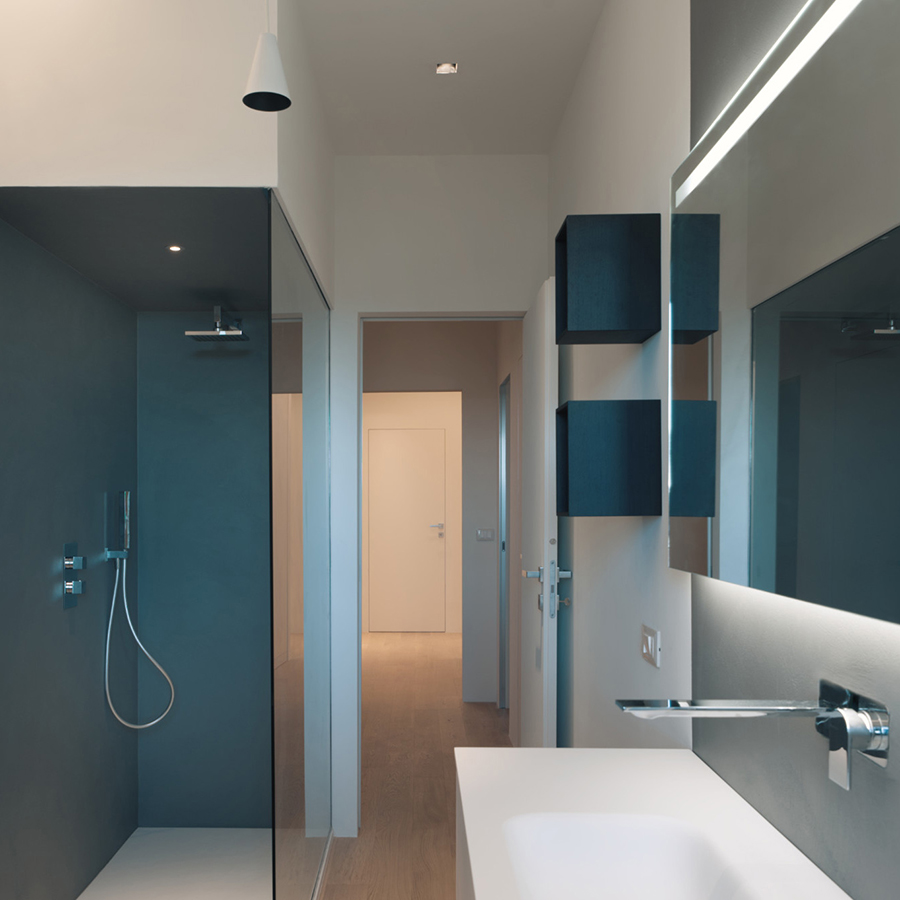

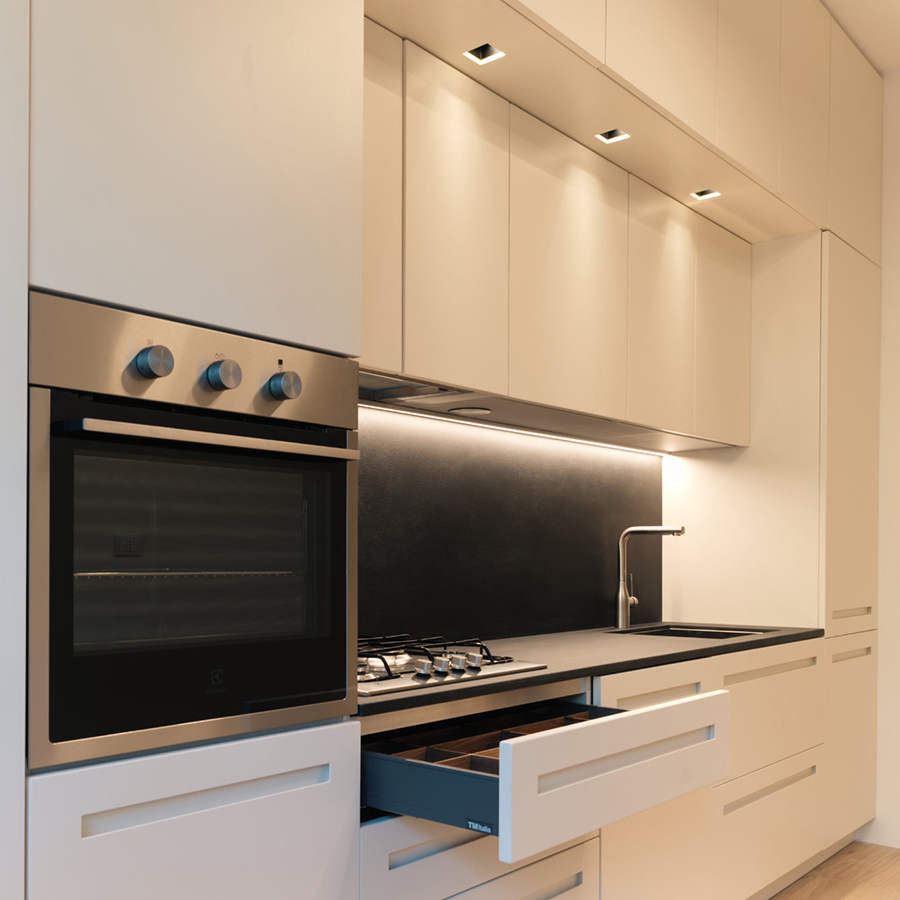

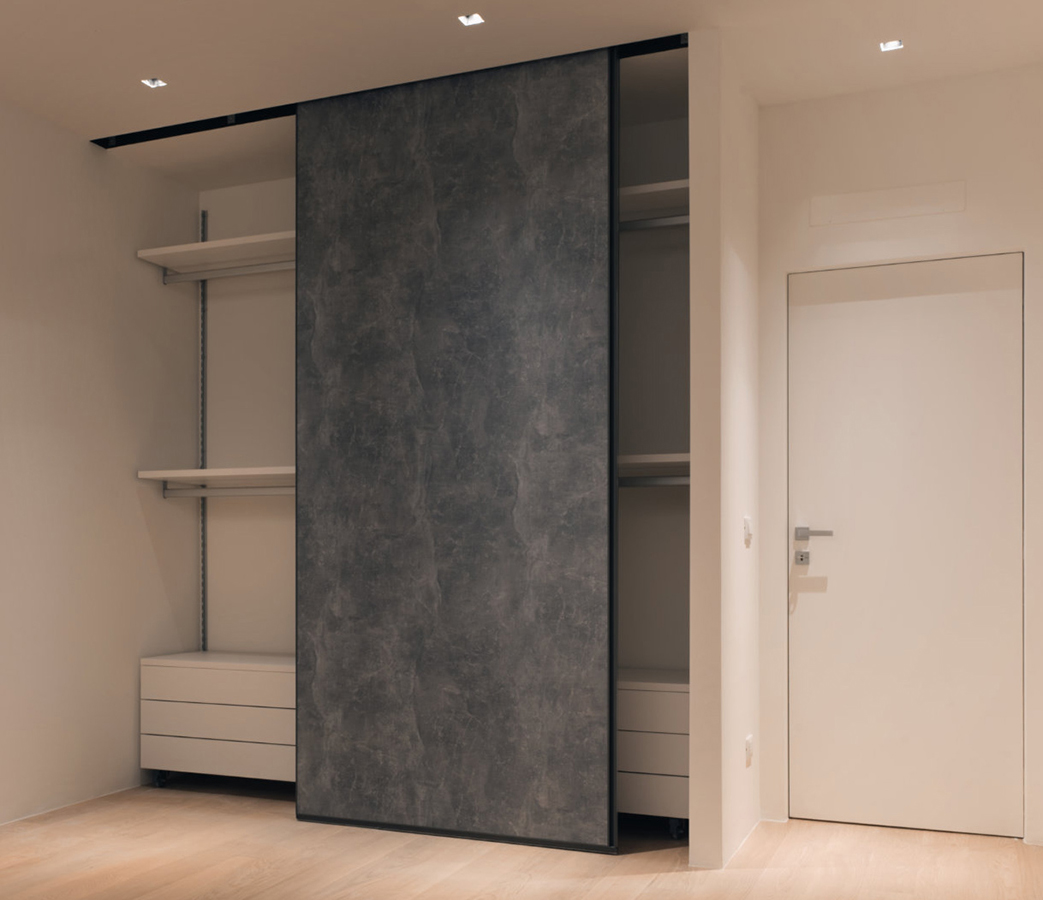

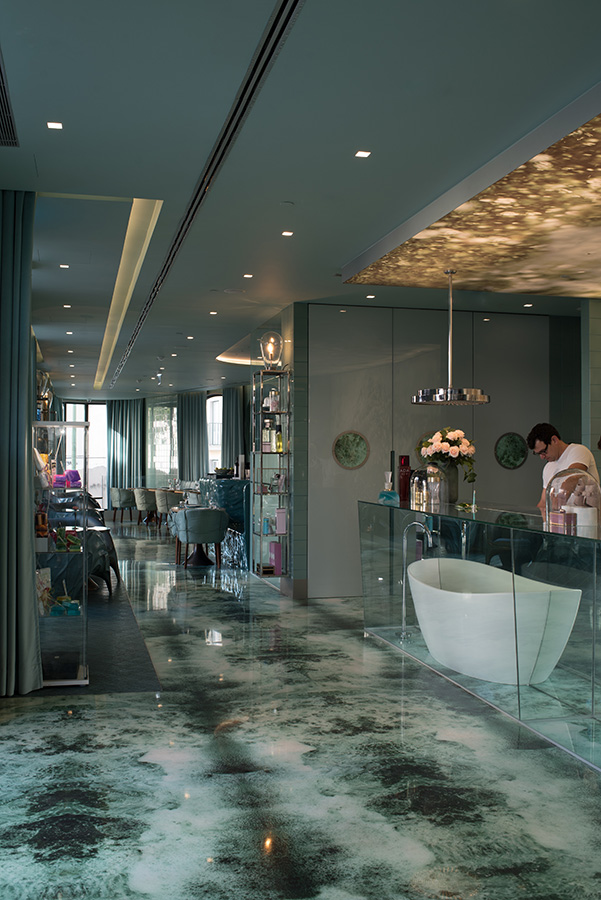

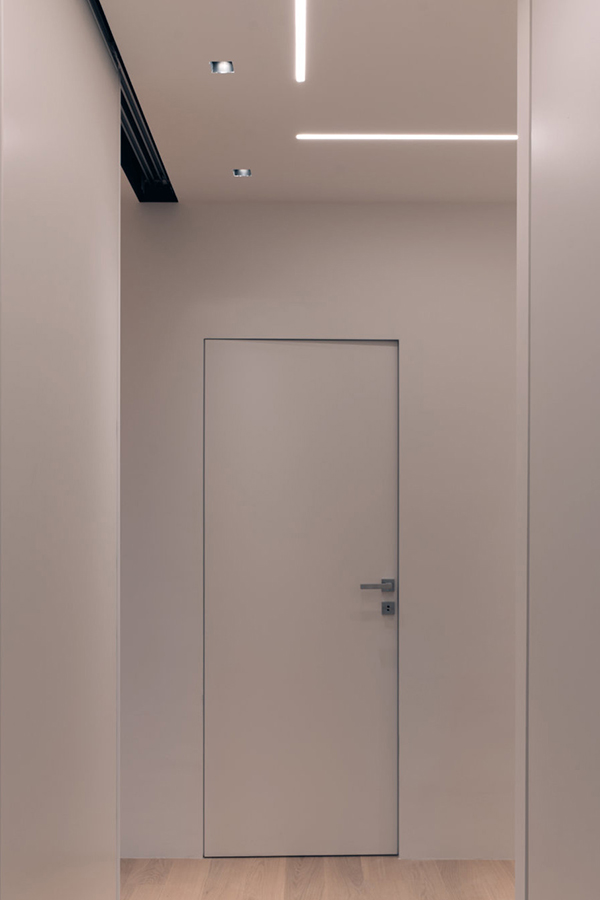

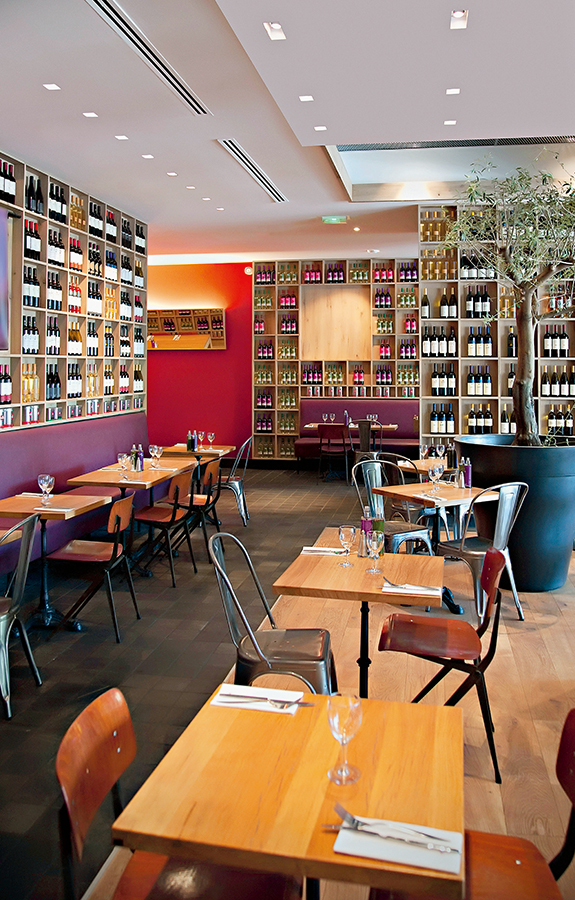

Gallery

Accessories and power supply units

Accessories (1)

Outer casings

Required outer casing not included

WC2001

Outer casing for plasterboard

Power supply units (54)

A13350VL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 8W
Power	4W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A14500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A15500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A16350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 11W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A19220TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	100mA constant current; max 4,1W 120mA constant current; max 5W 140mA constant current; max 5,8W 160mA constant current; max 6,6W 180mA constant current; max 7,4W 200mA constant current; max 8,3W 220mA constant current; max 9,1W 240mA constant current; max 10W 260mA constant current; max 10,8W 280mA constant current; max 11,6W 300mA constant current; max 12,4W 320mA constant current; max 13,2W 340mA constant current; max 14,1W 360mA constant current; max 15W 60mA constant current; max 2,5W 80mA constant current; max 3,3W
Dimmering	ON/OFF
Power supply unit IP	IP20

A19350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 15W
Dimmering	ON/OFF
Power supply unit IP	IP20

A310500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

A310500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

A312350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP67

A312350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP20

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI039T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1050mA constant current; max 39W 350mA constant current; max 15W 500mA constant current; max 21W 550mA constant current; max 23W 650mA constant current; max 27W 700mA constant current; max 29W 750mA constant current; max 31W 850mA constant current; max 35W 900mA constant current; max 37W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI042T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1000mA constant current; max 42W 1050mA constant current; max 42W 300mA constant current; max 13W 350mA constant current; max 15W 400mA constant current; max 18W 450mA constant current; max 20W 500mA constant current; max 22W 550mA constant current; max 24W 600mA constant current; max 27W 650mA constant current; max 29W 700mA constant current; max 31W 750mA constant current; max 32W 800mA constant current; max 33W 850mA constant current; max 35W 900mA constant current; max 38W 950mA constant current; max 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNIC30T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 19,5W 400mA constant current; max 21W 430mA constant current; max 22,5W 460mA constant current; max 24W 490mA constant current; max 26W 520mA constant current; max 27,5W 550mA constant current; max 29W 580mA constant current; max 30W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	350mA constant current; max 18W
Dimmering	Mains dimming, ON/OFF
Power supply unit IP	IP20

AD020500TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	500mA constant current; max 21W
Dimmering	Mains dimming, ON/OFF
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 12W 350mA constant current; max 17W 400mA constant current; max 19W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 20W 400mA constant current; max 21W 430mA constant current; max 23W 460mA constant current; max 25W 490mA constant current; max 26W 520mA constant current; max 26W 550mA constant current; max 27W 580mA constant current; max 29W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV36060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	36Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	48Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV48150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (14)

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,5W With 24 Vdc input:; 350mA constant current; max 25W With 48 Vdc input:; 350mA constant current; max 50W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 48 Vdc input:; 500mA constant current; max 72W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input	24Vdc 48Vdc
Output	1 channel With 24 Vdc input:; 1050mA constant current; max 20W With 24 Vdc input:; 350mA constant current; max 6,7W With 24 Vdc input:; 500mA constant current; max 9,5W With 24 Vdc input:; 700mA constant current; max 13,3W With 48 Vdc input:; 1050mA constant current; max 45W With 48 Vdc input:; 350mA constant current; max 15,5W With 48 Vdc input:; 500mA constant current; max 21,5W With 48 Vdc input:; 700mA constant current; max 30W 2 channels With 24 Vdc input:; 1050mA constant current; max 40W With 24 Vdc input:; 350mA constant current; max 13,3W With 24 Vdc input:; 500mA constant current; max 19W With 24 Vdc input:; 700mA constant current; max 26,6W With 48 Vdc input:; 1050mA constant current; max 90,3W With 48 Vdc input:; 350mA constant current; max 30W With 48 Vdc input:; 500mA constant current; max 43W With 48 Vdc input:; 700mA constant current; max 60W 3 channels With 24 Vdc input:; 1050mA constant current; max 60W With 24 Vdc input:; 350mA constant current; max 20W With 24 Vdc input:; 500mA constant current; max 28,5W With 24 Vdc input:; 700mA constant current; max 40W With 48 Vdc input:; 1050mA constant current; max 135W With 48 Vdc input:; 350mA constant current; max 45W With 48 Vdc input:; 500mA constant current; max 64,5W With 48 Vdc input:; 700mA constant current; max 90,3W 4 channels With 24 Vdc input:; 1050mA constant current; max 80W With 24 Vdc input:; 350mA constant current; max 26,6W With 24 Vdc input:; 500mA constant current; max 38W With 24 Vdc input:; 700mA constant current; max 53,2W With 48 Vdc input:; 1050mA constant current; max 180W With 48 Vdc input:; 350mA constant current; max 62W With 48 Vdc input:; 500mA constant current; max 86W With 48 Vdc input:; 700mA constant current; max 120W
Dimmering	0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 350mA constant current; max 4,2W With 24 Vdc input:; 350mA constant current; max 8,4W 2 channels With 12 Vdc input:; 350mA constant current; max 8,4W With 24 Vdc input:; 350mA constant current; max 16,8W 3 channels With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W 4 channels With 12 Vdc input:; 350mA constant current; max 16,8W With 24 Vdc input:; 350mA constant current; max 33,6W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 500mA constant current; max 6W With 24 Vdc input:; 500mA constant current; max 12W 2 channels With 12 Vdc input:; 500mA constant current; max 12W With 24 Vdc input:; 500mA constant current; max 24W 3 channels With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W 4 channels With 12 Vdc input:; 500mA constant current; max 24W With 24 Vdc input:; 500mA constant current; max 48W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input	12-24-48Vdc
Output	1050mA constant current; max 201,6W 350mA constant current; max 67,2W 700mA constant current; max 134,4W
Dimmering	Radio frequency
Power supply unit IP	IP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 350mA constant current; max 25,2W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 350mA constant current; max 37,8W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 12 Vdc input:; 700mA constant current; max 25,2W With 24 Vdc input:; 350mA constant current; max 25,2W With 24 Vdc input:; 700mA constant current; max 50,4W With 36 Vdc input:; 350mA constant current; max 37,8W With 36 Vdc input:; 700mA constant current; max 75,6W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W With 36 Vdc input:; 350mA constant current; max 37,8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	350mA constant current; max 8,4W
Dimmering	PWM
Power supply unit IP	IP20

WFA024500

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	500mA constant current; max 12W
Dimmering	PWM
Power supply unit IP	IP20

Control input (10)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW

Projects

Hospitality
WC Beautique Hotel
Lisbon, Portugal

Versions
