Bitpop 4.1

Recessed for indoor applications

recessed for indoor applications - 18W / 26W 230Vac 169x49x71 mm

Two ways to install

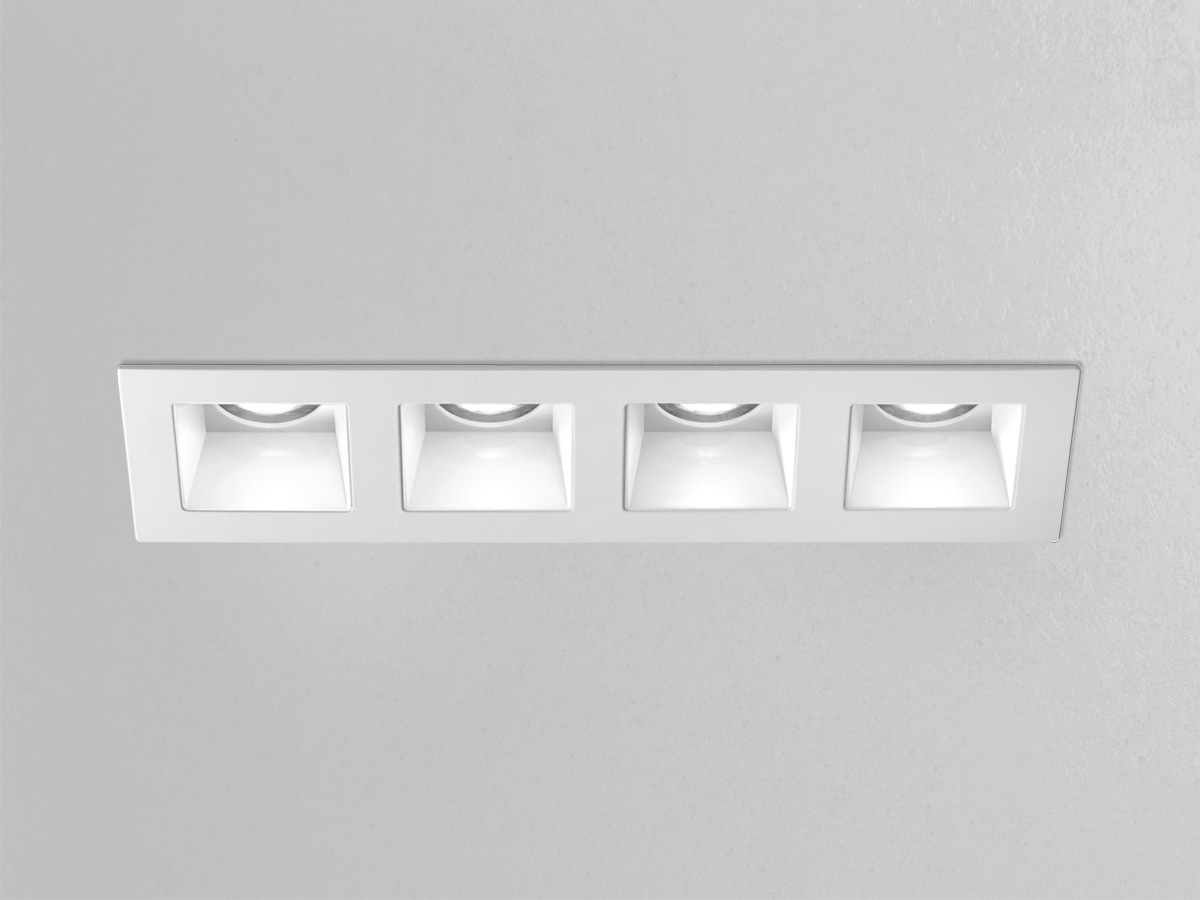

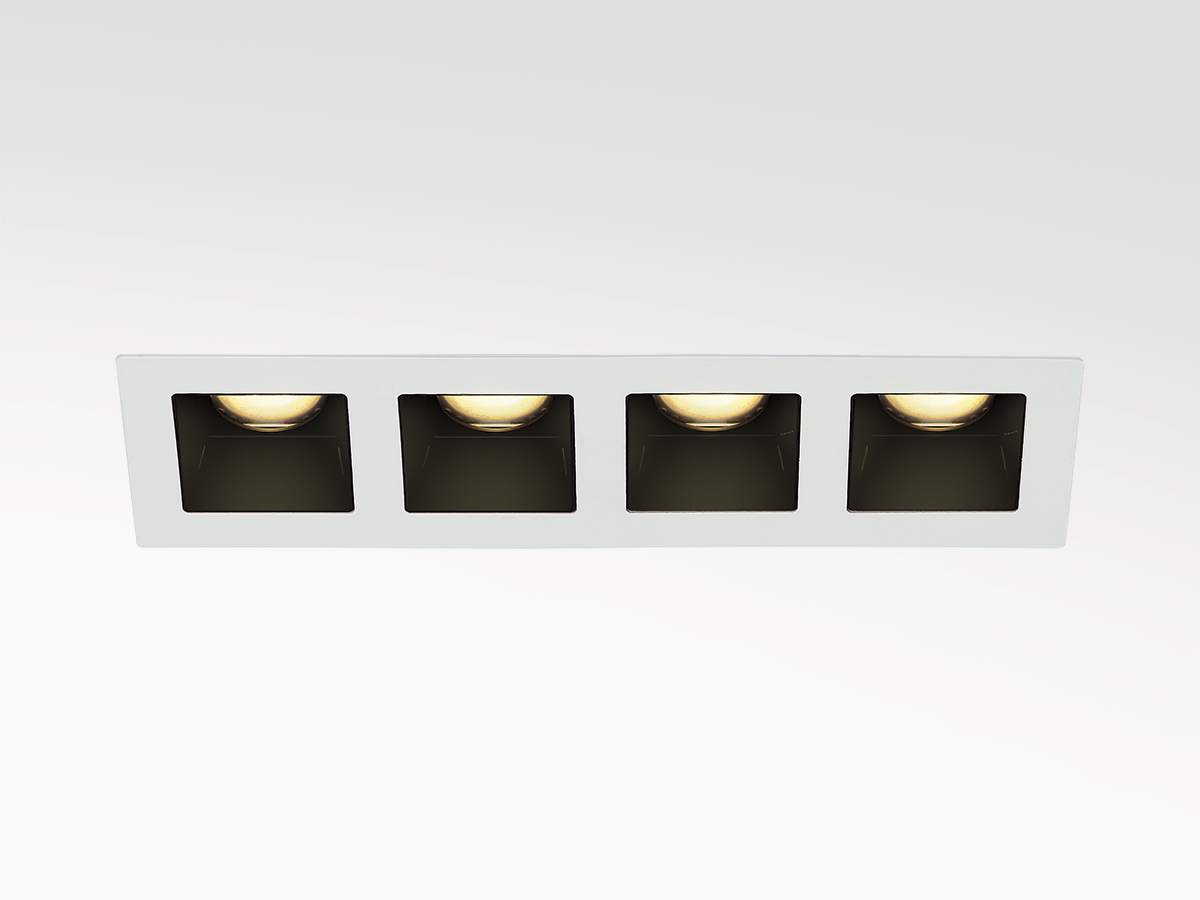

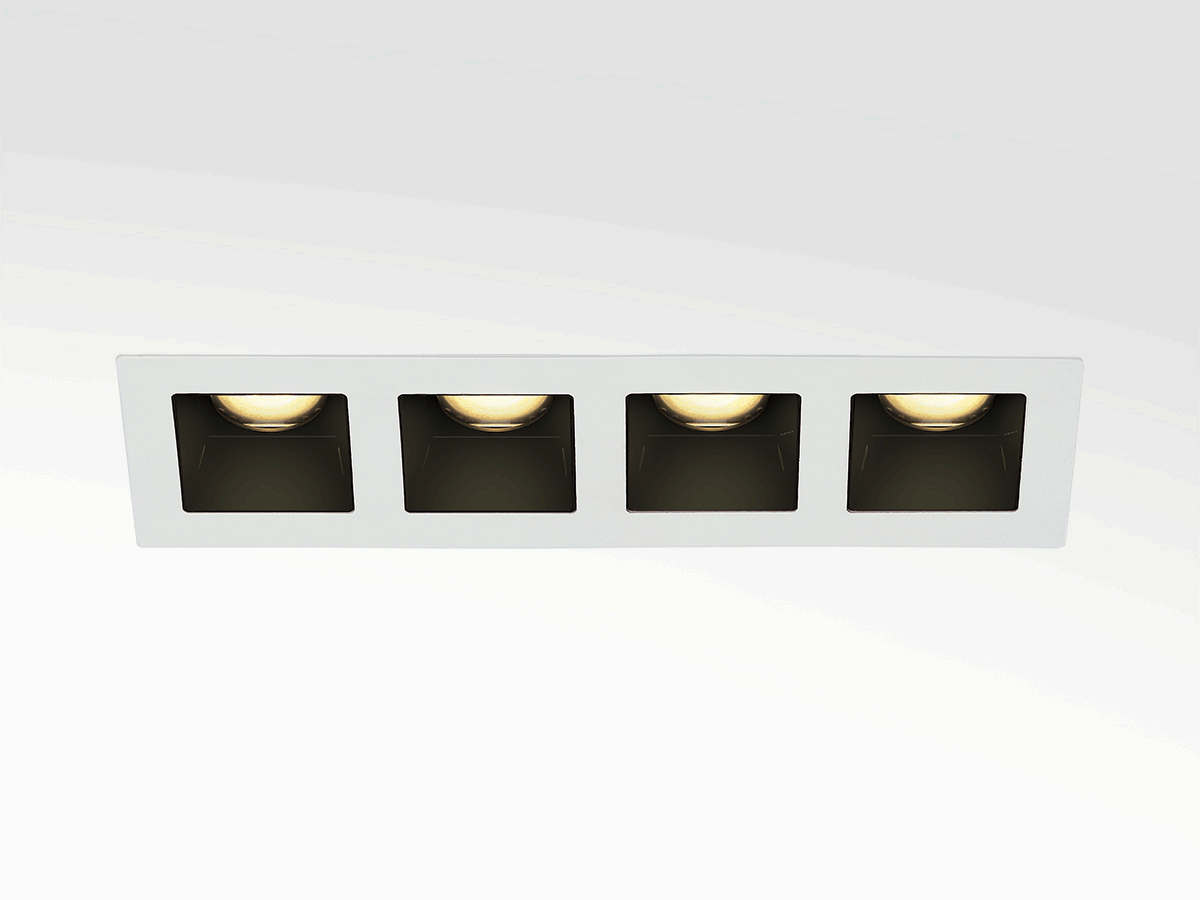

rebated

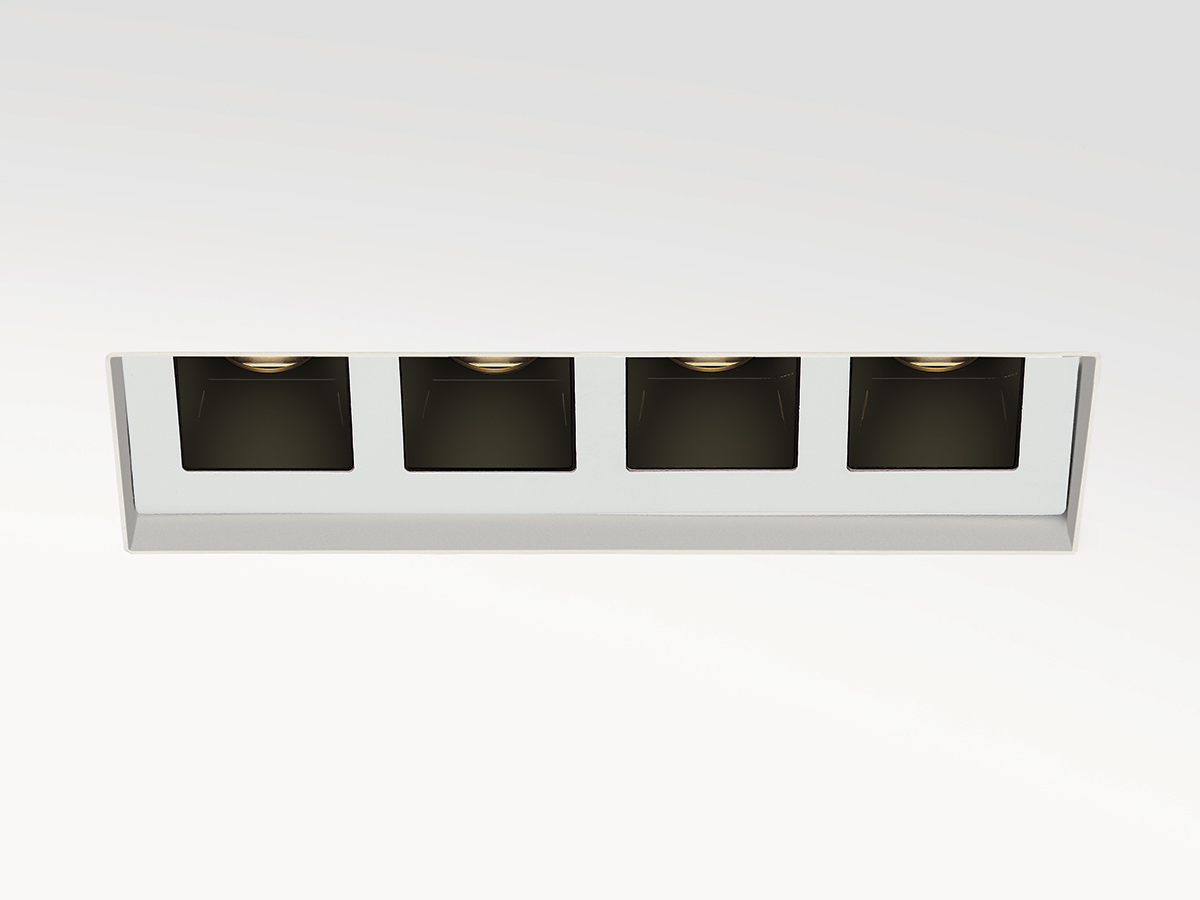

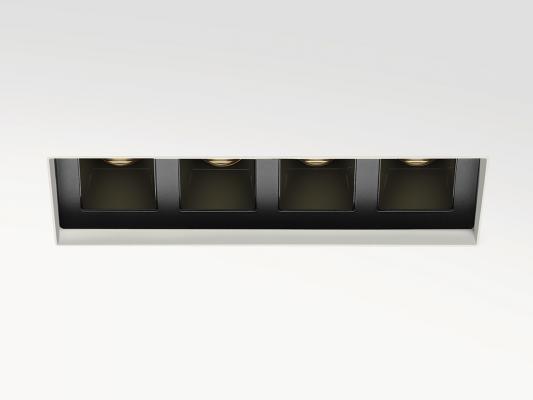

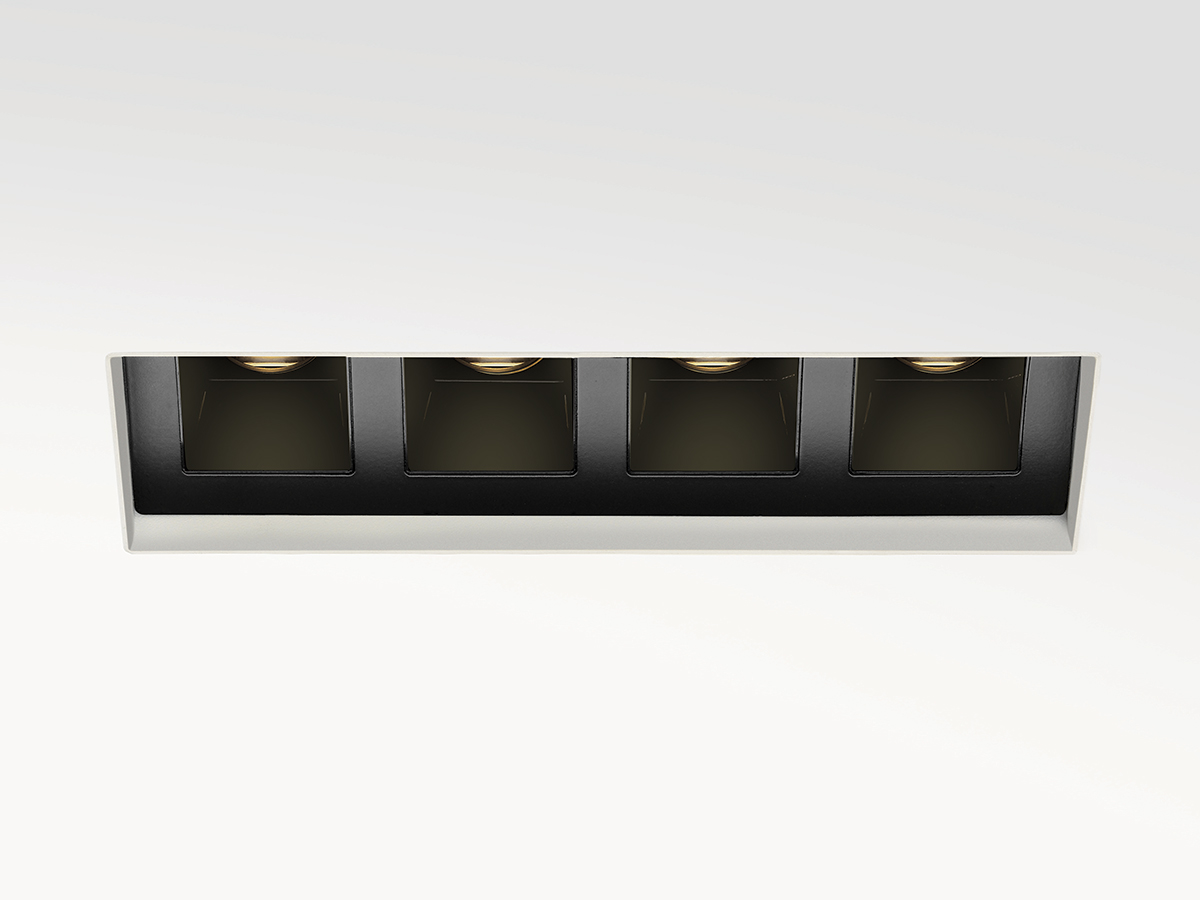

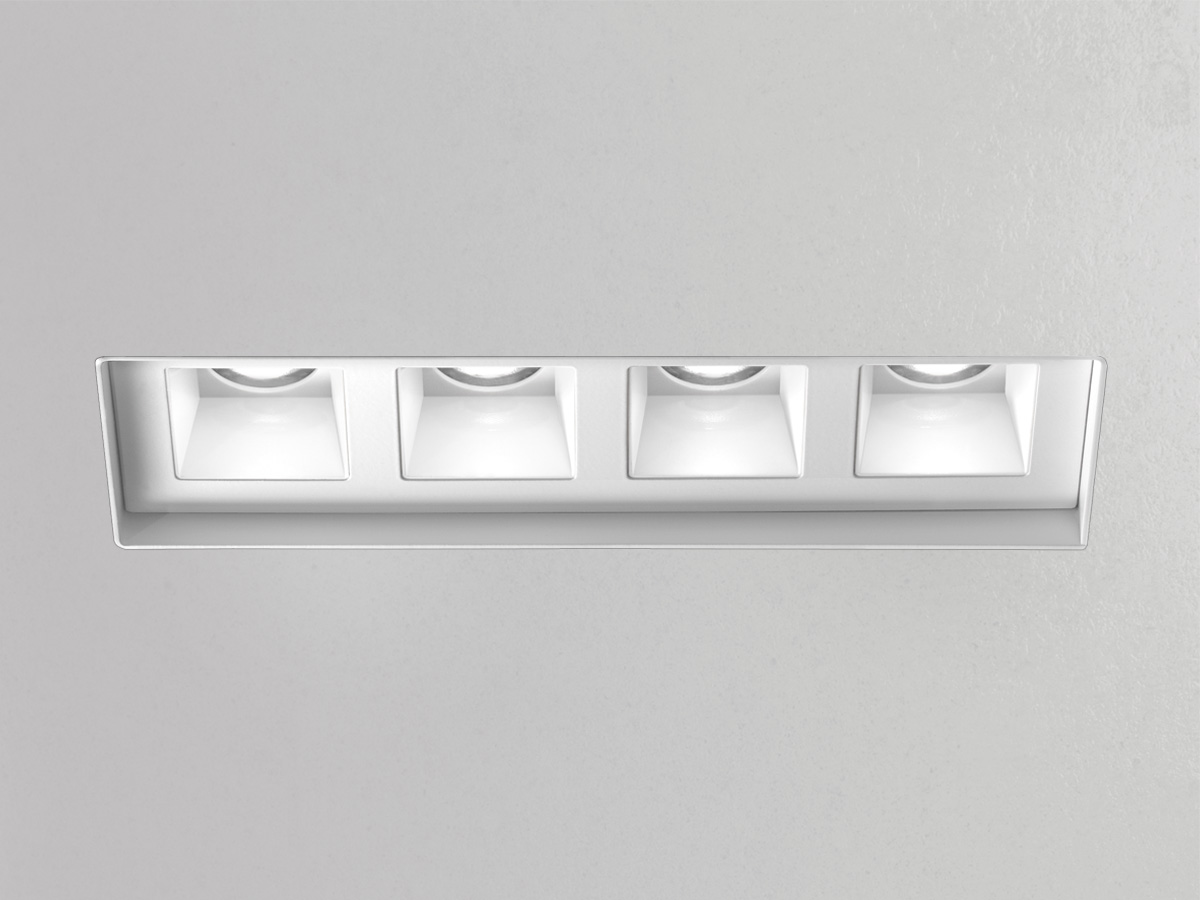

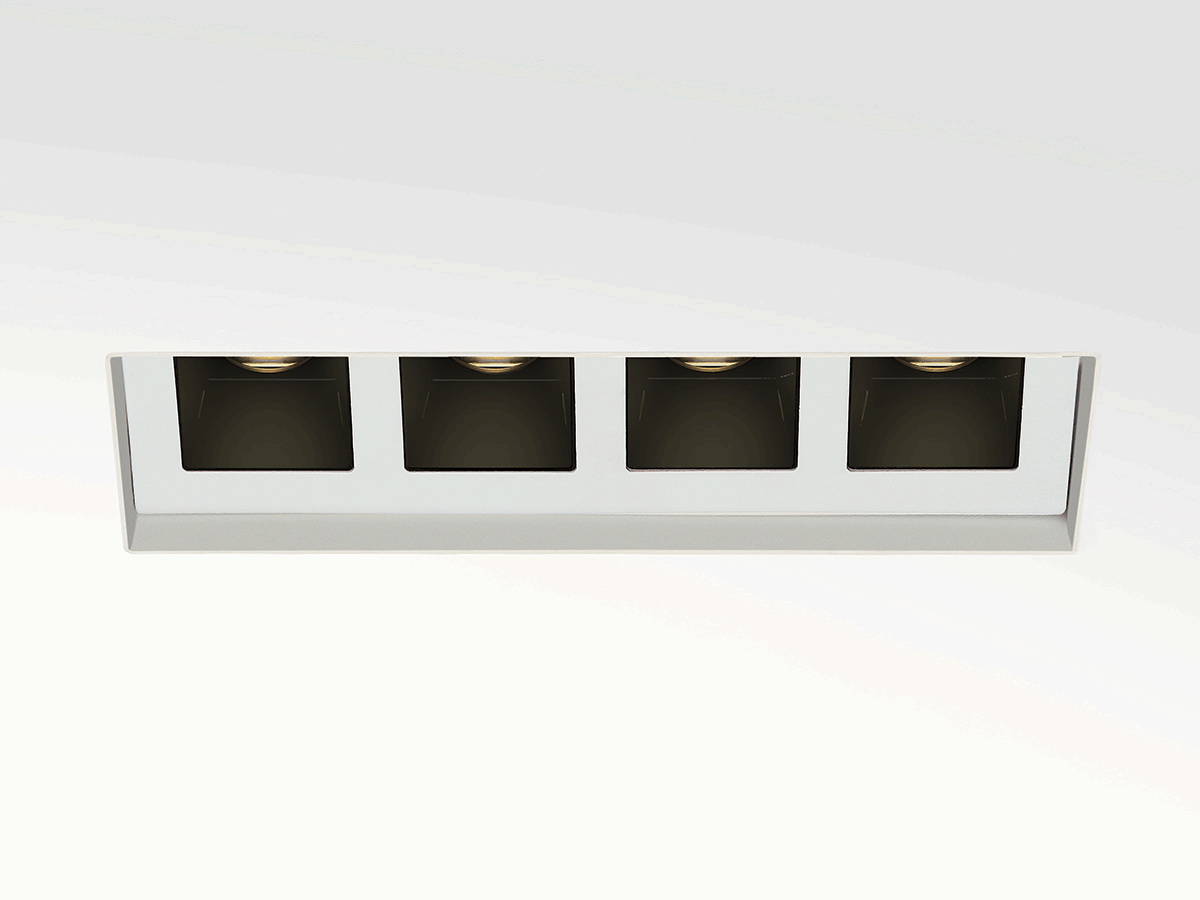

deep-set

Technical data

Print technical data

Outer casing for deep-set installation not included

kg 0,42
162x42 mm
IP40
DALI
PUSH
0/1-10V

Installation	recessed downlight for indoor applications
Power consumption	18W, 26W
Power supply	230Vac
Lumen output at source	1400 lm (3000K, 18W), 1920 lm (3000K, 26W)
Delivered lumen output	1340 lm (3000K, 30°, 26W), 992 lm (3000K, 30°, 18W)
Datasheet	Bitpop 4.1 recessed downlight for indoor applications; recessed (ceiling: rebated or deep set); Power consumption: 18W, 26W; Power supply: 230Vac; Lumen output at source: 1400 lm (3000K, 18W), 1920 lm (3000K, 26W); Delivered lumen output: 1340 lm (3000K, 30°, 26W), 992 lm (3000K, 30°, 18W); 4 high-intensity power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 17°: optical system consisting of 4 TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy black paste to ensure high quality and visual comfort, 17°: optical system consisting of 4 TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy white paste to ensure high quality and visual comfort, 30°, 42°: optical system consisting of 4 TIR lenses, set back inside a polycarbonate element in glossy white paste to ensure high quality and visual comfort, 30°, 42°: optical system consisting of 4 TIR lenses, set back inside a polycarbonate element in glossy black paste to ensure high quality and visual comfort, 17°x45°: optical system consisting of 4 elliptical TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy black paste to ensure high quality and visual comfort, 17°x45°: optical system consisting of 4 elliptical TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy white paste to ensure high quality and visual comfort; CRI Colour Rendering Index: 80, >90; Body material: radiator made from aluminium profile to act as a cooling element, then anodized black; with springs in AISI 301 harmonic steel; Frame + optical comp. finish: frame for recessing in white-painted steel, optical compartment with white finish (RAL 9003), frame for recessing in black-painted steel, optical compartment with black finish (RAL 9005), frame for recessing in white-painted steel, optical compartment with black finish; RAL finish on request; Installation: installed by mounting with springs on plasterboard. Outer casings available for installation in solid walls or trimless installation, set 8 mm deep only on plasterboard; Thickness of installation surface: min 7.5 mm, max 20 mm; power supply unit included; includes 0,30 m cable; Control system: PUSH, DALI, ON/OFF, 0/1-10V; Ingress protection: IP40; UGR < 10 for 17° and 30° optics; 2700K, 3000K: CRI >90, 4000K: CRI 80, Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 420 g; Dimensions: 169x49x71 mm; Cutout dimensions: 162x42 mm; Volume of thermal heatsink: 340x100x130 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC8702 Outer casing for flush installation in solid ceilings, WC8705 Outer casing for deep-set installation in plasterboard ceilings - white, WC8705N Outer casing for deep-set installation in plasterboard ceilings - black; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBitpop 4.1 recessed downlight for indoor applications recessed (ceiling: rebated or deep set) Power consumption: 18W, 26W Power supply: 230Vac Lumen output at source: 1400 lm (3000K, 18W), 1920 lm (3000K, 26W) Delivered lumen output: 1340 lm (3000K, 30°, 26W), 992 lm (3000K, 30°, 18W) 4 high-intensity power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 17°: optical system consisting of 4 TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy black paste to ensure high quality and visual comfort, 17°: optical system consisting of 4 TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy white paste to ensure high quality and visual comfort, 30°, 42°: optical system consisting of 4 TIR lenses, set back inside a polycarbonate element in glossy white paste to ensure high quality and visual comfort, 30°, 42°: optical system consisting of 4 TIR lenses, set back inside a polycarbonate element in glossy black paste to ensure high quality and visual comfort, 17°x45°: optical system consisting of 4 elliptical TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy black paste to ensure high quality and visual comfort, 17°x45°: optical system consisting of 4 elliptical TIR lenses combined with high-quality technical filters, set back inside a polycarbonate element in glossy white paste to ensure high quality and visual comfort CRI Colour Rendering Index: 80, >90 Body material: radiator made from aluminium profile to act as a cooling element, then anodized black; with springs in AISI 301 harmonic steel Frame + optical comp. finish: frame for recessing in white-painted steel, optical compartment with white finish (RAL 9003), frame for recessing in black-painted steel, optical compartment with black finish (RAL 9005), frame for recessing in white-painted steel, optical compartment with black finish RAL finish on request Installation: installed by mounting with springs on plasterboard. Outer casings available for installation in solid walls or trimless installation, set 8 mm deep only on plasterboard Thickness of installation surface: min 7.5 mm, max 20 mm power supply unit included includes 0,30 m cable Control system: PUSH, DALI, ON/OFF, 0/1-10V Ingress protection: IP40 UGR < 10 for 17° and 30° optics 2700K, 3000K: CRI >90, 4000K: CRI 80, Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 420 g Dimensions: 169x49x71 mm Cutout dimensions: 162x42 mm Volume of thermal heatsink: 340x100x130 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC8702 Outer casing for flush installation in solid ceilings, WC8705 Outer casing for deep-set installation in plasterboard ceilings - white, WC8705N Outer casing for deep-set installation in plasterboard ceilings - black tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling: rebated or deep set)
Number and type of LED	4 high-intensity power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

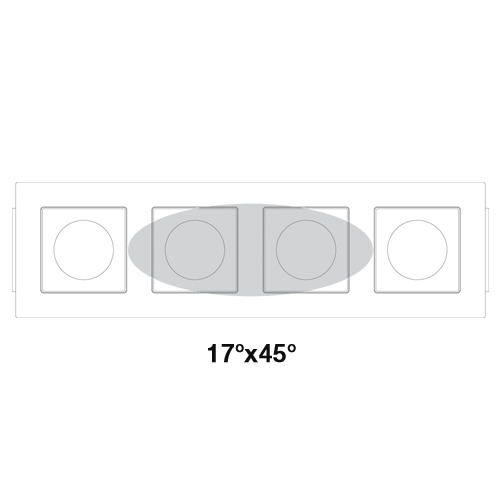

Optics	17°, 30°, 42°, 17°x45°
CRI Colour Rendering Index	80, >90
Body material	body in black-anodized aluminium, trim in steel

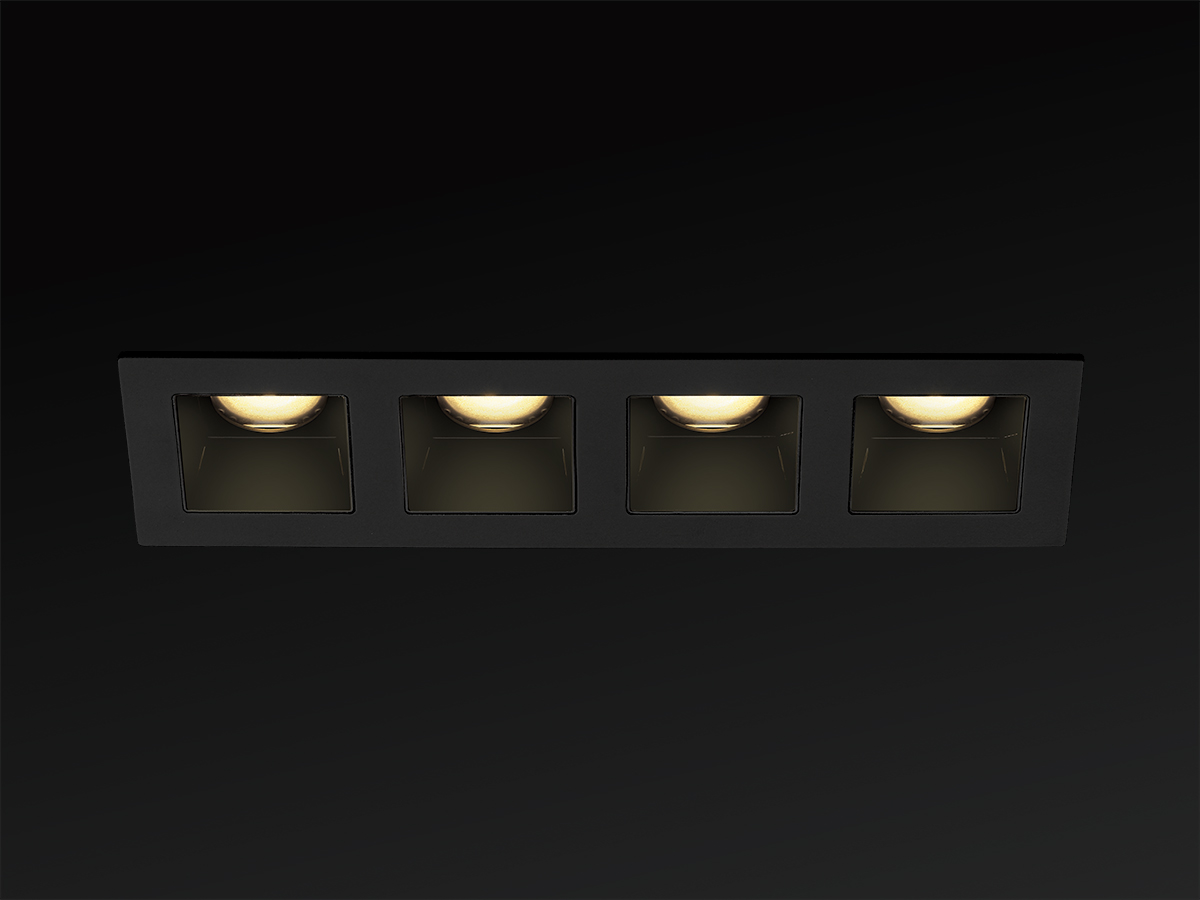

Frame + optical comp. finish	white - white, black - black, white - black
Power supply unit	power supply unit included
Power cables	includes 0,30 m cable
Control system	PUSH, DALI, ON/OFF, 0/1-10V
Ingress protection	IP40
Features	UGR < 10 for 17° and 30° optics
Notes	2700K, 3000K: CRI >90, 4000K: CRI 80, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (3)

Outer casings

WC8702 Outer casing for flush installation in solid ceilings	WC8705 Outer casing for deep-set installation in plasterboard ceilings - white
WC8705N Outer casing for deep-set installation in plasterboard ceilings - black

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
