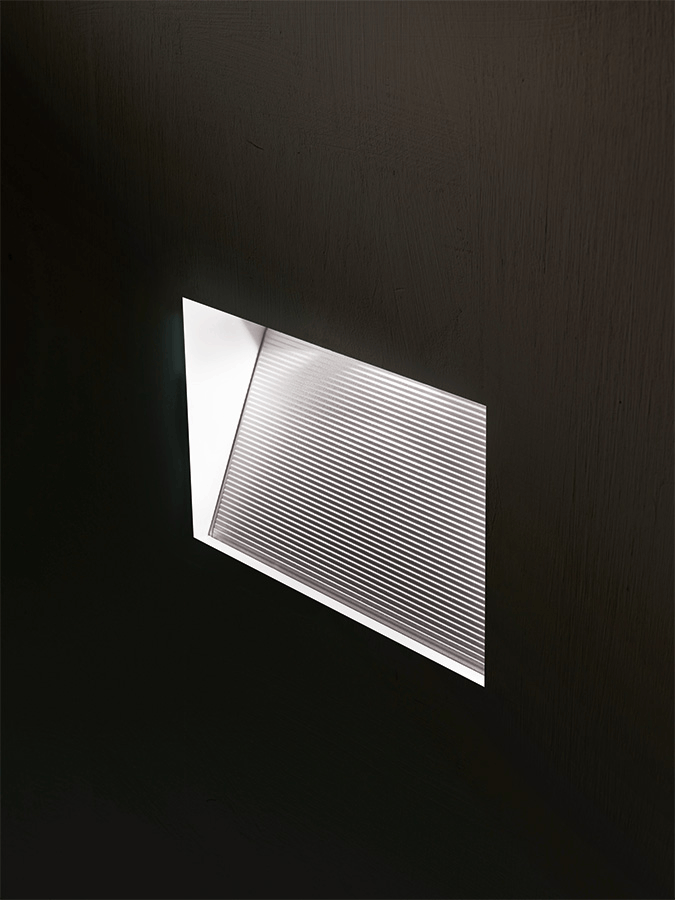

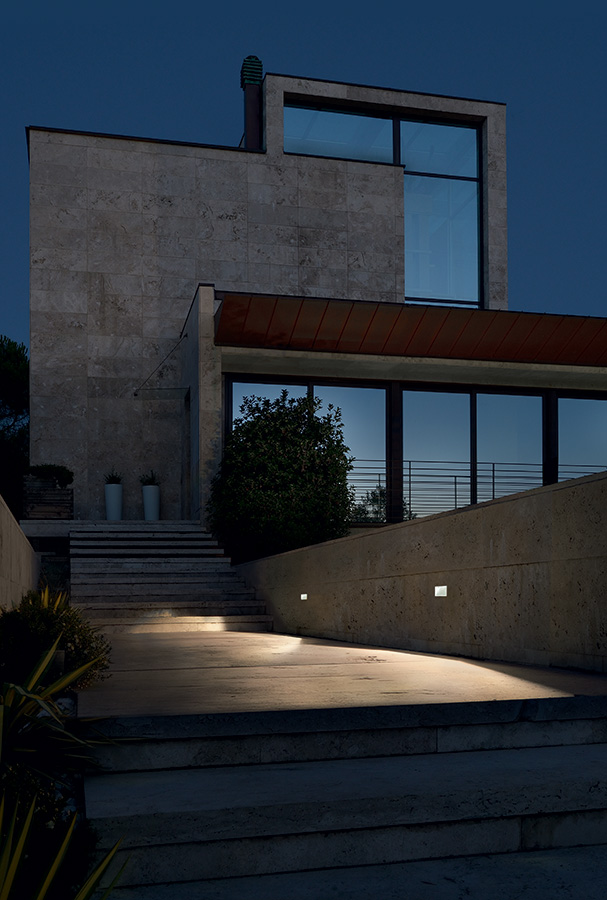

Pasito 1.0 Outdoor step lights for lighting walkways

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

RAL finishes
2200K LED colour

Technical data

Print technical data

Updated to PA10100FAH

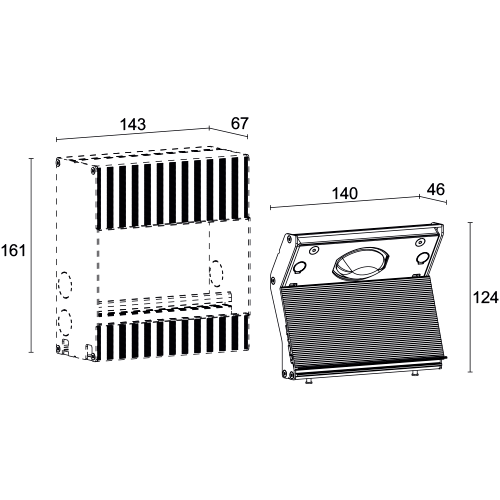

Required outer casing not included

230Vac
kg 0,49
IP65
IK07

Installation	step light for outdoor applications
Power consumption	13W
Power supply	230Vac
Lumen output at source	851 lm (3000K, CRI 80)
Delivered lumen output	390 lm (3000K, 150°x90° asymmetrical, CRI 80, white finish)
Datasheet	Pasito 1.0 code: PA10100FAH step light for outdoor applications; recessed, flush (wall); Power consumption: 13W; Power supply: 230Vac; Lumen output at source: 851 lm (3000K, CRI 80); Delivered lumen output: 390 lm (3000K, 150°x90° asymmetrical, CRI 80, white finish); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: asymmetrical 150°x90°: optical system consisting of an asymmetrical hemispherical lens, installed at an angle and set back in the chamber to to create a controlled downward light beam, reducing light spill to a minimum; Upward flux fraction: 14,72% (asymmetrical 150°x90°, white, grey finish), 1,49% (asymmetrical 150°x90°, cor-ten, anthracite finish), 13,44% (60°, white, grey finish) , 1,76% (60°, cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6060 low-copper-content aluminium alloy, made from an extruded profile, then anodized black to give the product better heat dissipation and increase its resistance to corrosion. Structured reflector made of extruded ANTICORODAL 6060 aluminium, painted in the same colour; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; power supply unit included; includes 0.20 m neoprene cable, H05RN-F 2x1.00 Ø7 mm; Ingress protection: IP65; Impact resistance: IK07; Casambi control using the Casambi app with dedicated electronics; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 490 g; Dimensions: 143x67x161 mm; Cutout dimensions: 143x161 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC1410H Outer casing - anthracite; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPasito 1.0 code: PA10100FAH step light for outdoor applications recessed, flush (wall) Power consumption: 13W Power supply: 230Vac Lumen output at source: 851 lm (3000K, CRI 80) Delivered lumen output: 390 lm (3000K, 150°x90° asymmetrical, CRI 80, white finish) 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K Optics: asymmetrical 150°x90°: optical system consisting of an asymmetrical hemispherical lens, installed at an angle and set back in the chamber to to create a controlled downward light beam, reducing light spill to a minimum Upward flux fraction: 14,72% (asymmetrical 150°x90°, white, grey finish), 1,49% (asymmetrical 150°x90°, cor-ten, anthracite finish), 13,44% (60°, white, grey finish) , 1,76% (60°, cor-ten, anthracite finish) CRI Colour Rendering Index: 80 Body material: body made of ANTICORODAL 6060 low-copper-content aluminium alloy, made from an extruded profile, then anodized black to give the product better heat dissipation and increase its resistance to corrosion. Structured reflector made of extruded ANTICORODAL 6060 aluminium, painted in the same colour Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request power supply unit included includes 0.20 m neoprene cable, H05RN-F 2x1.00 Ø7 mm Ingress protection: IP65 Impact resistance: IK07 Casambi control using the Casambi app with dedicated electronics Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 490 g Dimensions: 143x67x161 mm Cutout dimensions: 143x161 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC1410H Outer casing - anthracite tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed, flush (wall)
Number and type of LED	1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K

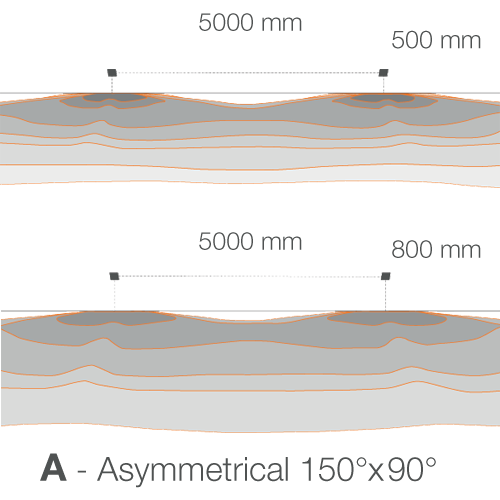

Optics	asymmetrical 150°x90°
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium
Finishes	anthracite
Power supply unit	power supply unit included
Power cables	includes 0.20 m neoprene cable, H05RN-F 2x1.00 Ø7 mm
Ingress protection	IP65
Impact resistance	IK07
Status	Available

Pasito 1.0

Generate code

Customize this product

Possible customizations:

Technical data

Read more

Close

Download

Gallery

Accessories and power supply units

Accessories (1)

Outer casings

Required outer casing not included

WC1410H

Outer casing - anthracite

Power supply units (0)

Control gear (0)

Control input (2)

AE01350T1

Emergency module integrated

EC0TIM12840020

Timer for CASAMBI
