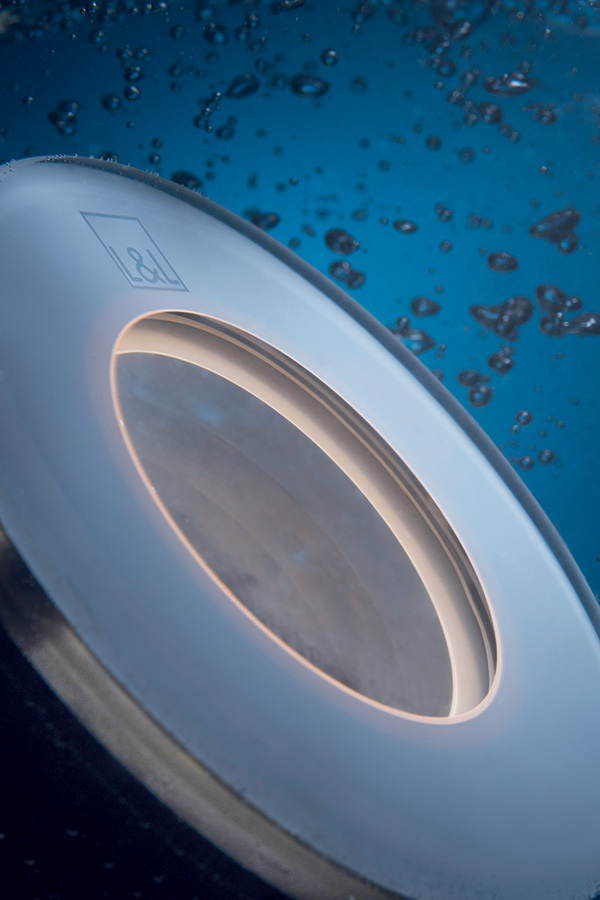

Moby P 2.1

Projectors for underwater applications

projector for underwater applications - 25W - 24Vdc - Ø155 mm - glass cover

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Cables in non-standard length

Technical data

Print technical data

kg 2,20
IP65
IP68
IK10

Installation	projector for underwater applications (not suitable for use in seawater, only suitable for underwater applications)
Power consumption	25W
Power supply	24Vdc
Lumen output at source	2135 lm (3000K), RGBW: 1694 lm, R: 104 lm G: 676 lm B: 224 lm W 690 lm (4000K), cyan: 1801 lm, G: 1353 lm B: 448 lm
Delivered lumen output	1515 lm (3000K, 21°), RGBW: 1203 lm, R: 74 lm G: 480 lm B: 159 lm W 490 lm (4000K), cyan: 1278 lm, G: 960 lm B: 318 lm
Datasheet	Moby P 2.1 projector for underwater applications (not suitable for use in seawater, only suitable for underwater applications); surface mounted (wall, floor), max depth 10 m; Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 2135 lm (3000K), RGBW: 1694 lm, R: 104 lm G: 676 lm B: 224 lm W 690 lm (4000K), cyan: 1801 lm, G: 1353 lm B: 448 lm; Delivered lumen output: 1515 lm (3000K, 21°), RGBW: 1203 lm, R: 74 lm G: 480 lm B: 159 lm W 490 lm (4000K), cyan: 1278 lm, G: 960 lm B: 318 lm; 3 power LEDs groups, 2-step MacAdam (white LED colour); RGBW: 3 RGBW LEDs groups; Cyan: 3 Cyan LEDs groups 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan; Optics: 21°, 35°, 59°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, 31°x61°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality elliptical technical filter.; CRI Colour Rendering Index: 80; Body material: body made of heat-dissipating technopolymer with a thermal conductivity equal to that of stainless steel. Bracket in AISI 316L stainless steel, tumble finished and painted; Screen material: glass cover in 12-mm-thick, tempered extra-clear glass with vitrified serigraphy suitable for installations in seawater and guaranteeing resistance to corrosion and to knocks and scratches. Mixing chamber to ensure the light's chromatic uniformity.; power supply unit not included; includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm; Ingress protection: IP65, IP68; Impact resistance: IK10; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: 0°C — +45°C (installation underwater); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 2200 g; Dimensions: Ø155x173 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WH0402 Honeycomb louvre ; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionMoby P 2.1 projector for underwater applications (not suitable for use in seawater, only suitable for underwater applications) surface mounted (wall, floor), max depth 10 m Power consumption: 25W Power supply: 24Vdc Lumen output at source: 2135 lm (3000K), RGBW: 1694 lm, R: 104 lm G: 676 lm B: 224 lm W 690 lm (4000K), cyan: 1801 lm, G: 1353 lm B: 448 lm Delivered lumen output: 1515 lm (3000K, 21°), RGBW: 1203 lm, R: 74 lm G: 480 lm B: 159 lm W 490 lm (4000K), cyan: 1278 lm, G: 960 lm B: 318 lm 3 power LEDs groups, 2-step MacAdam (white LED colour); RGBW: 3 RGBW LEDs groups; Cyan: 3 Cyan LEDs groups 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan Optics: 21°, 35°, 59°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, 31°x61°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality elliptical technical filter. CRI Colour Rendering Index: 80 Body material: body made of heat-dissipating technopolymer with a thermal conductivity equal to that of stainless steel. Bracket in AISI 316L stainless steel, tumble finished and painted Screen material: glass cover in 12-mm-thick, tempered extra-clear glass with vitrified serigraphy suitable for installations in seawater and guaranteeing resistance to corrosion and to knocks and scratches. Mixing chamber to ensure the light's chromatic uniformity. power supply unit not included includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm Ingress protection: IP65, IP68 Impact resistance: IK10 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: 0°C — +45°C (installation underwater) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 2200 g Dimensions: Ø155x173 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WH0402 Honeycomb louvre tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall, floor), max depth 10 m
Number and type of LED	3 power LEDs groups, 2-step MacAdam (white LED colour); RGBW: 3 RGBW LEDs groups; Cyan: 3 Cyan LEDs groups 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, RGBW, shades of cyan
Optics	21°, 35°, 59°, 31°x61°
CRI Colour Rendering Index	80
Body material	body in thermally conductive technopolymer, bracket in AISI 316L stainless steel
Screen material	glass cover with vitrified serigraphy
Power supply unit	power supply unit not included
Power cables	includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection	IP65, IP68
Impact resistance	IK10
Status	Available

Read more

Close

Download

See all downloads

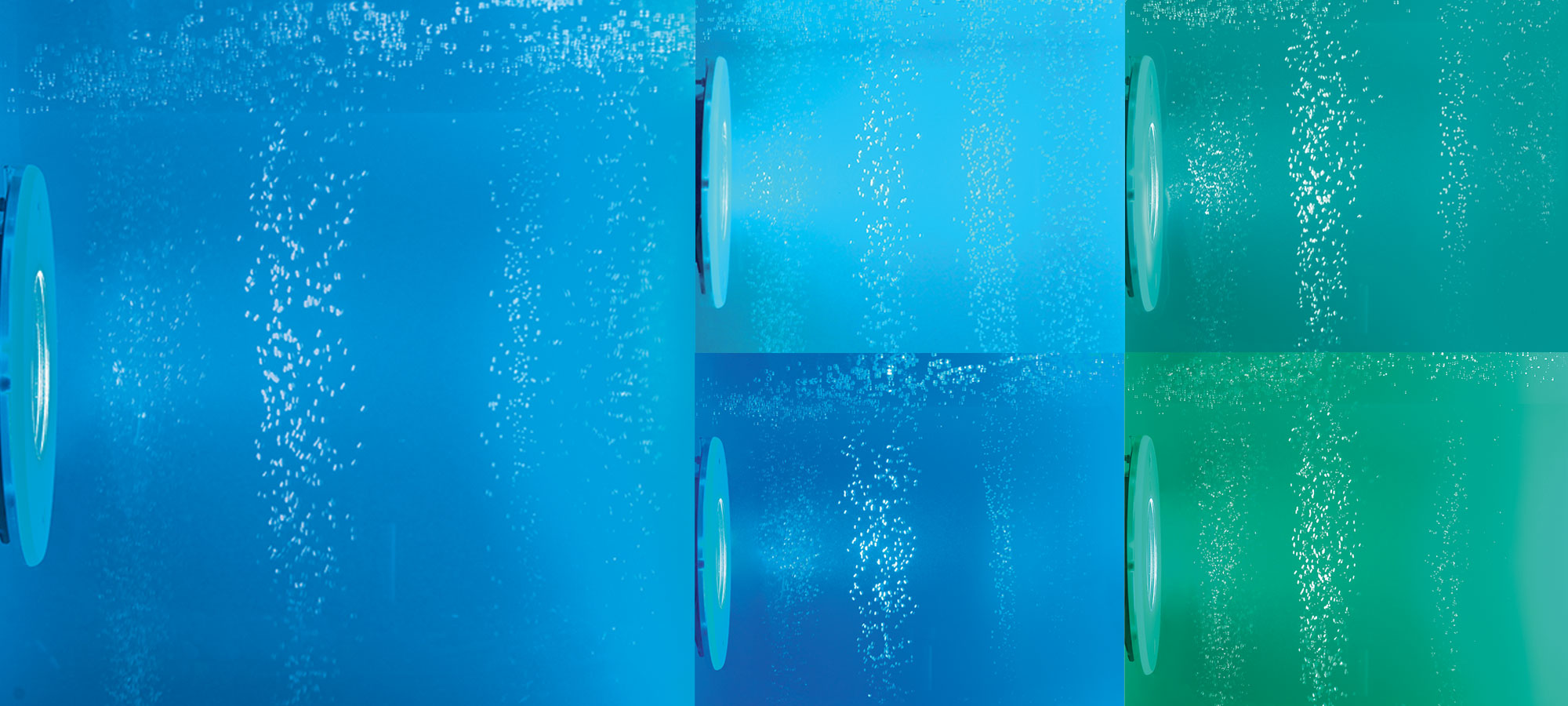

Gallery

Accessories and power supply units

Accessories (1)

Honeycomb louvre

Order together with the lighting fixture

WH0402

Honeycomb louvre

built into the lighting fixture

Power supply units (17)

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (8)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input	12-24Vdc
Output	With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W
Dimmering	Radio frequency
Power supply unit IP	IP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input	12-24Vdc
Output	With 12 Vdc input:; 12Vdc; 240W With 24 Vdc input:; 24Vdc; 480W
Dimmering	Radio frequency
Power supply unit IP	IP20

TLR02-01

Controller with integrated 4-channel receiver for RGB/RGBW/dynamic white/dimming

order in addition to PSU
RGB/RGBW: Required TLC08 or TLC09 remote control, not included
Dynamic white/dimming: PUSH switch

Input	12-24Vdc
Output	3 channels With 12 Vdc input:; 12Vdc; 90W With 24 Vdc input:; 24Vdc; 180W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Stand alone, Radio frequency
Power supply unit IP	IP20

TLR03

Cyan colour controller with integrated 2-channel receiver

order in addition to PSU
Required TLC10 remote control, not included

Input	12-24Vdc
Output	With 12 Vdc input:; 12Vdc; 96W With 24 Vdc input:; 24Vdc; 192W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

Control input (11)

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC10

Remote control for TLR03

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW

Projects

Public spaces

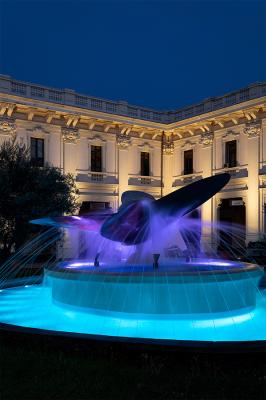

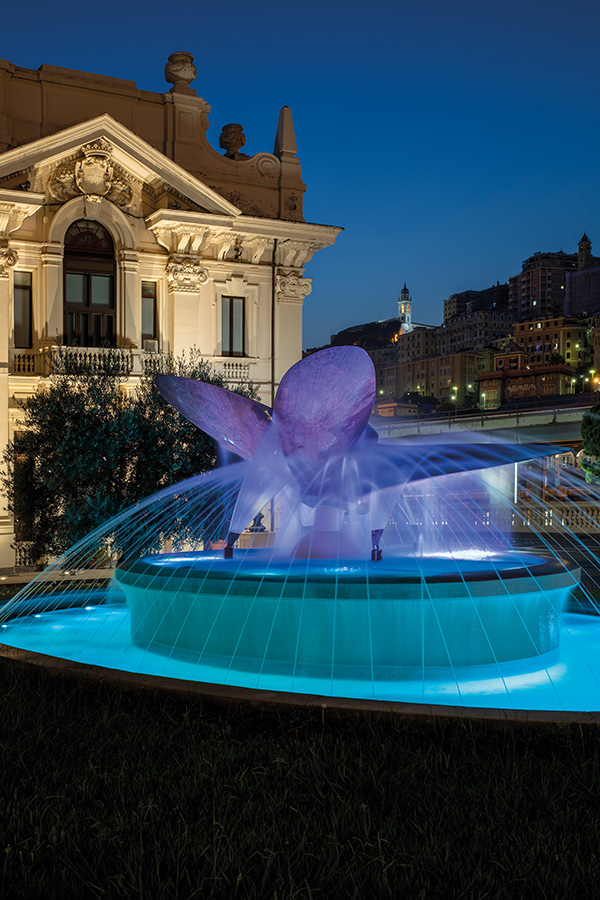

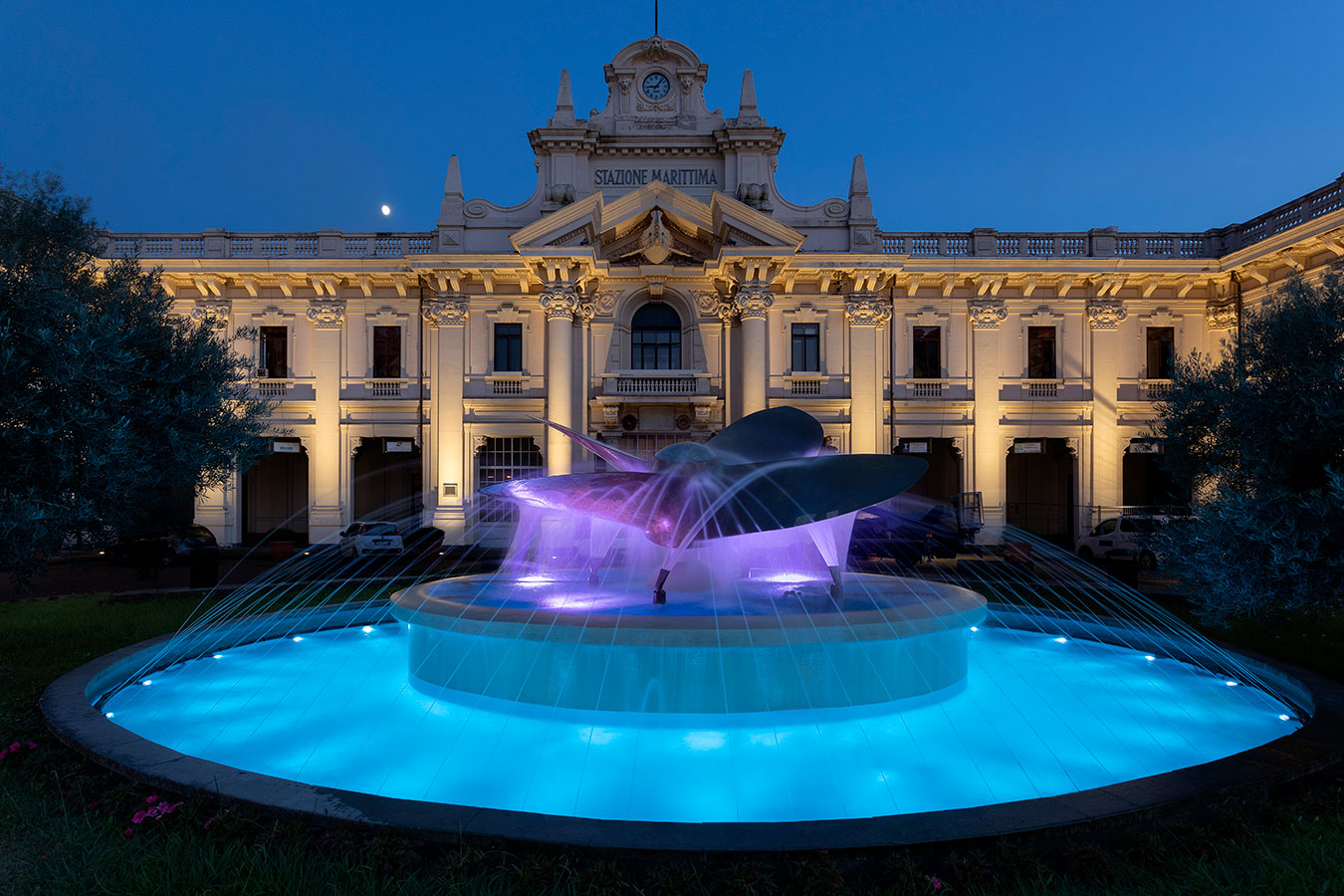

The maritime station in Genoa
