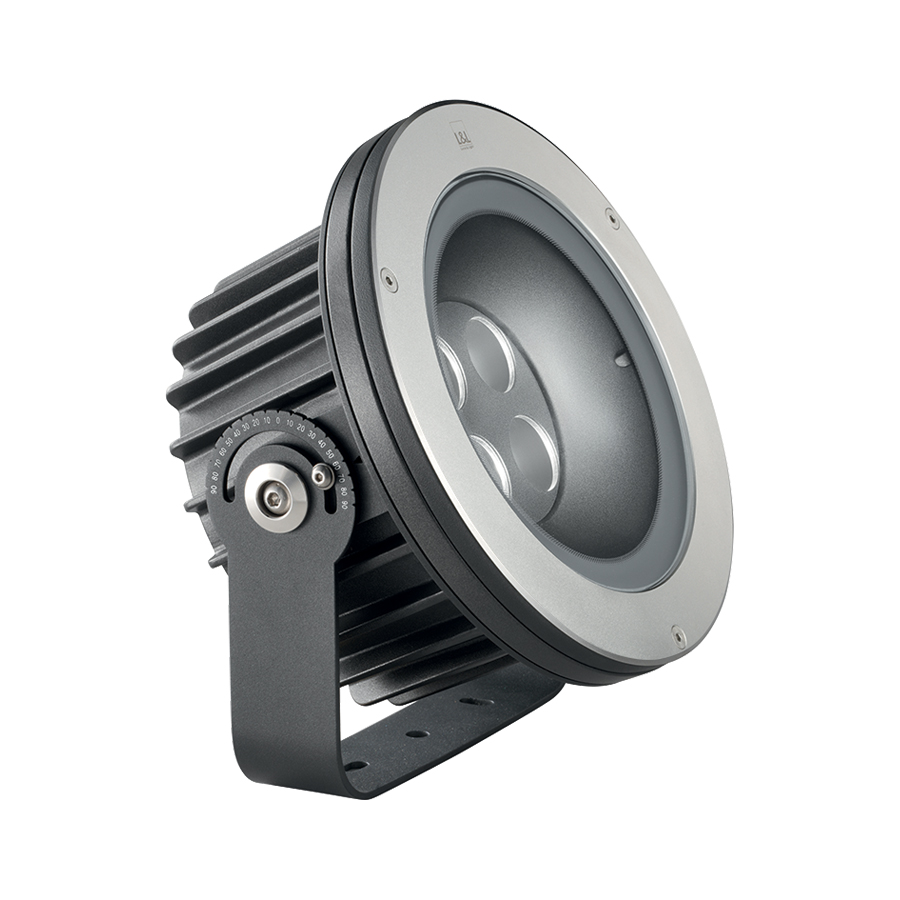

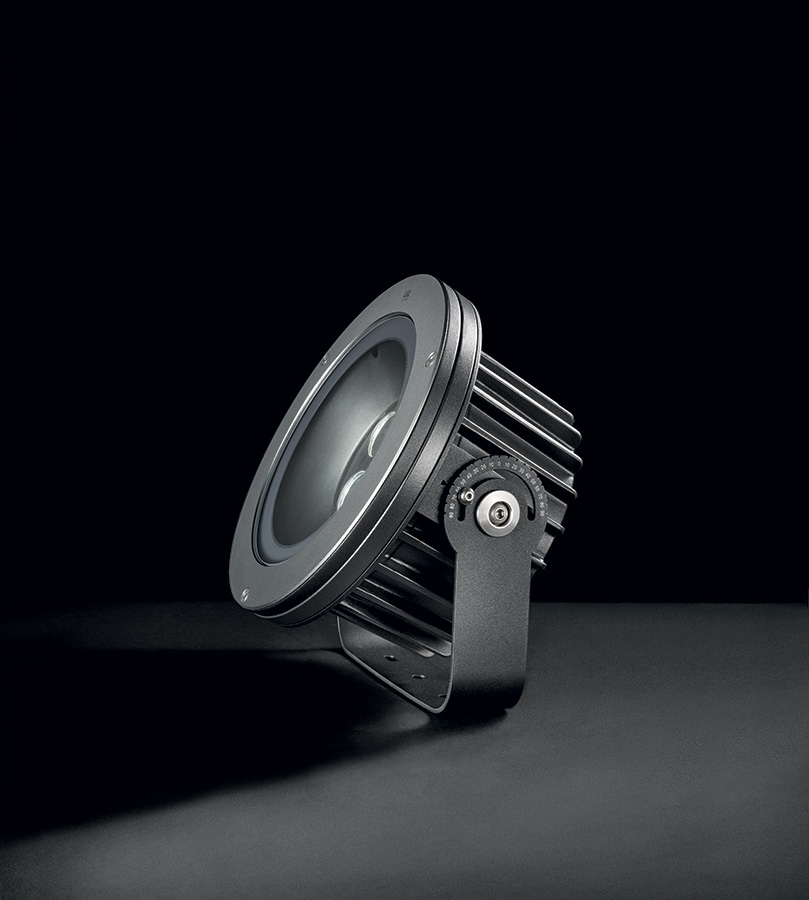

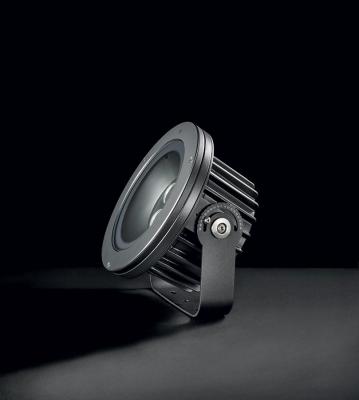

Stra P 1.0

Projectors for outdoor applications

projector for outdoor applications - 37W 230Vac - body adjustable through 180° - 66°x11° optics adjustable through 360° using the magnet provided (patented) - dimmable - CRI 80 and CRI >90

Patented

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control

Technical data

Print technical data

kg 6,00
IP66
IK10
0/1-10V

Installation	projector for outdoor applications
Power consumption	37W
Power supply	230Vac
Lumen output at source	3152 lm (3000K, CRI >90), 3402 lm (3000K, CRI 80)
Delivered lumen output	1619 lm (3000K, 30°, CRI >90), 1764 lm (3000K, 66°x11° adjustable, CRI >90), 2024 lm (3000K, 30°, CRI 80), 2205 lm (3000K, 66°x11° adjustable, CRI 80)
Datasheet	Stra P 1.0 projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 37W; Power supply: 230Vac; Lumen output at source: 3152 lm (3000K, CRI >90), 3402 lm (3000K, CRI 80); Delivered lumen output: 1619 lm (3000K, 30°, CRI >90), 1764 lm (3000K, 66°x11° adjustable, CRI >90), 2024 lm (3000K, 30°, CRI 80), 2205 lm (3000K, 66°x11° adjustable, CRI 80); 4 high-intensity power LEDs, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 11°, 14°, 30°, 37°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, 10°x45°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality elliptical technical filter., adjustable 66°x11°: optical system consisting of a high-efficiency TIR lens combined with a high-quality elliptical technical filter and integrated with magnetic material for adjusting the ellipsis (patented); CRI Colour Rendering Index: 80, >90; Body material: body made of die-cast aluminium. Trim in AISI 316L stainless steel, made with a CNC lathe then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance. Bracket in AISI 316L stainless steel, tumble finished and painted; Finishes: die-cast body painted anthracite with an initial treatment of a ceramic nanoparticle coating, as surface preparation for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard (automotive standard); Screen material: 15-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches; built-in power supply unit; includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7,00 mm; Control system: ON/OFF, 0/1-10V; Ingress protection: IP66; Impact resistance: IK10; 66°x11° optics adjustable through 360º using the magnet provided; DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; The SPD (Surge Protection Device) protects lighting fixtures from electrical phenomena external to the system, such as power surges. In particular, this device is specifically for protection against serious events with a high energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 6000 g; Dimensions: Ø252x138 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WE0201 Magnet for adjustable optics and zoom lens, WH0610 Honeycomb louvre, WN7100 Anti-fall kit; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionStra P 1.0 projector for outdoor applications surface mounted (ceiling, wall, floor) Power consumption: 37W Power supply: 230Vac Lumen output at source: 3152 lm (3000K, CRI >90), 3402 lm (3000K, CRI 80) Delivered lumen output: 1619 lm (3000K, 30°, CRI >90), 1764 lm (3000K, 66°x11° adjustable, CRI >90), 2024 lm (3000K, 30°, CRI 80), 2205 lm (3000K, 66°x11° adjustable, CRI 80) 4 high-intensity power LEDs, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 11°, 14°, 30°, 37°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, 10°x45°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality elliptical technical filter., adjustable 66°x11°: optical system consisting of a high-efficiency TIR lens combined with a high-quality elliptical technical filter and integrated with magnetic material for adjusting the ellipsis (patented) CRI Colour Rendering Index: 80, >90 Body material: body made of die-cast aluminium. Trim in AISI 316L stainless steel, made with a CNC lathe then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance. Bracket in AISI 316L stainless steel, tumble finished and painted Finishes: die-cast body painted anthracite with an initial treatment of a ceramic nanoparticle coating, as surface preparation for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard (automotive standard) Screen material: 15-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches built-in power supply unit includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7,00 mm Control system: ON/OFF, 0/1-10V Ingress protection: IP66 Impact resistance: IK10 66°x11° optics adjustable through 360º using the magnet provided DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; The SPD (Surge Protection Device) protects lighting fixtures from electrical phenomena external to the system, such as power surges. In particular, this device is specifically for protection against serious events with a high energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 6000 g Dimensions: Ø252x138 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WE0201 Magnet for adjustable optics and zoom lens, WH0610 Honeycomb louvre, WN7100 Anti-fall kit tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, floor)
Number and type of LED	4 high-intensity power LEDs, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	11°, 14°, 30°, 37°, 10°x45°, adjustable 66°x11°
CRI Colour Rendering Index	80, >90
Body material	body in die-cast aluminium, trim in AISI 316L stainless steel
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite
Power supply unit	built-in power supply unit
Power cables	includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7,00 mm
Control system	ON/OFF, 0/1-10V
Ingress protection	IP66
Impact resistance	IK10
Features	66°x11° optics adjustable through 360º using the magnet provided
Notes	DALI version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (3)

Honeycomb louvre

Order together with the lighting fixture

WH0610

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all fixed optics except for 66°x11° optics

Various accessories

WN7100

Anti-fall kit

Spare parts

WE0201

Magnet for adjustable optics and zoom lens

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs

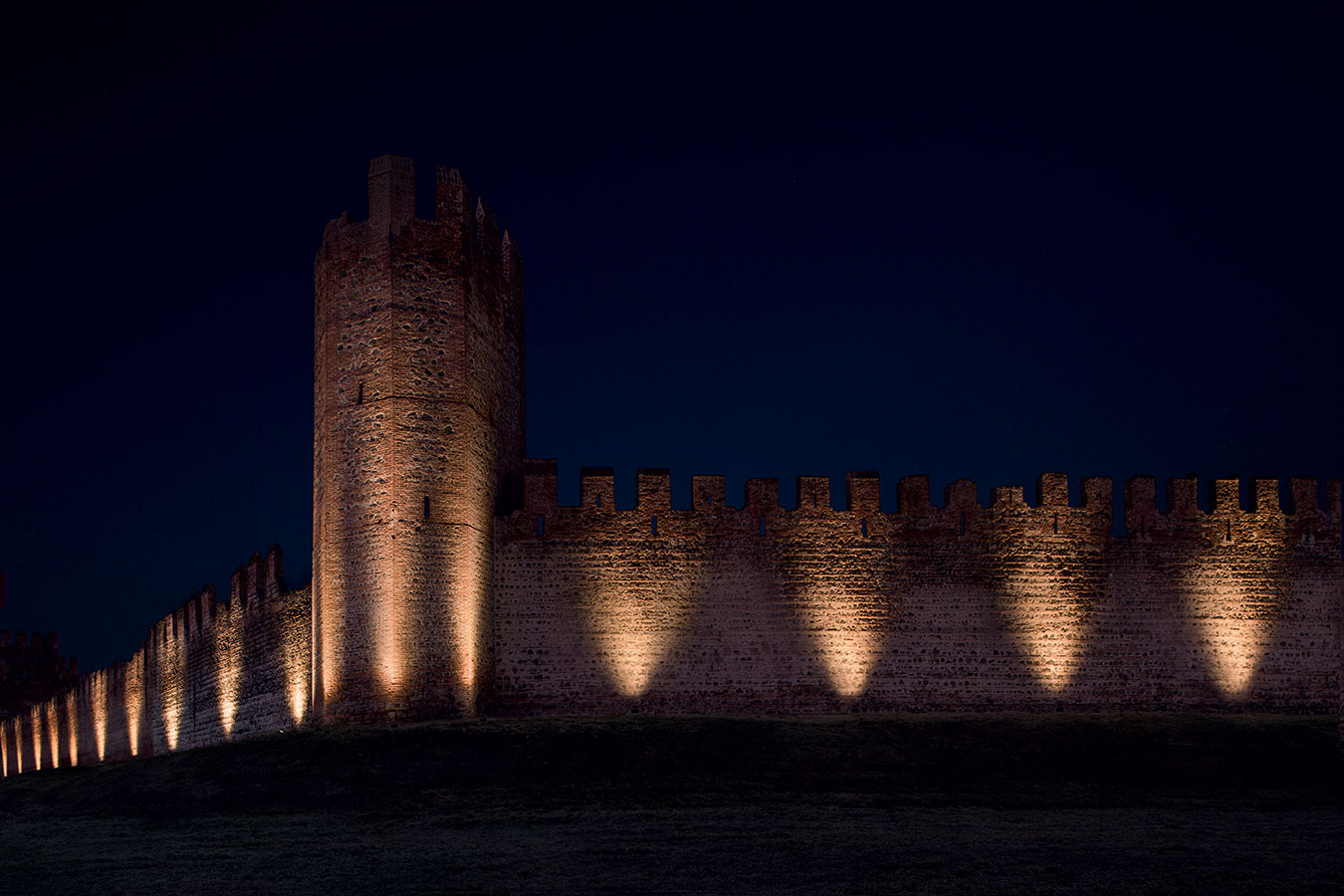

Projects
