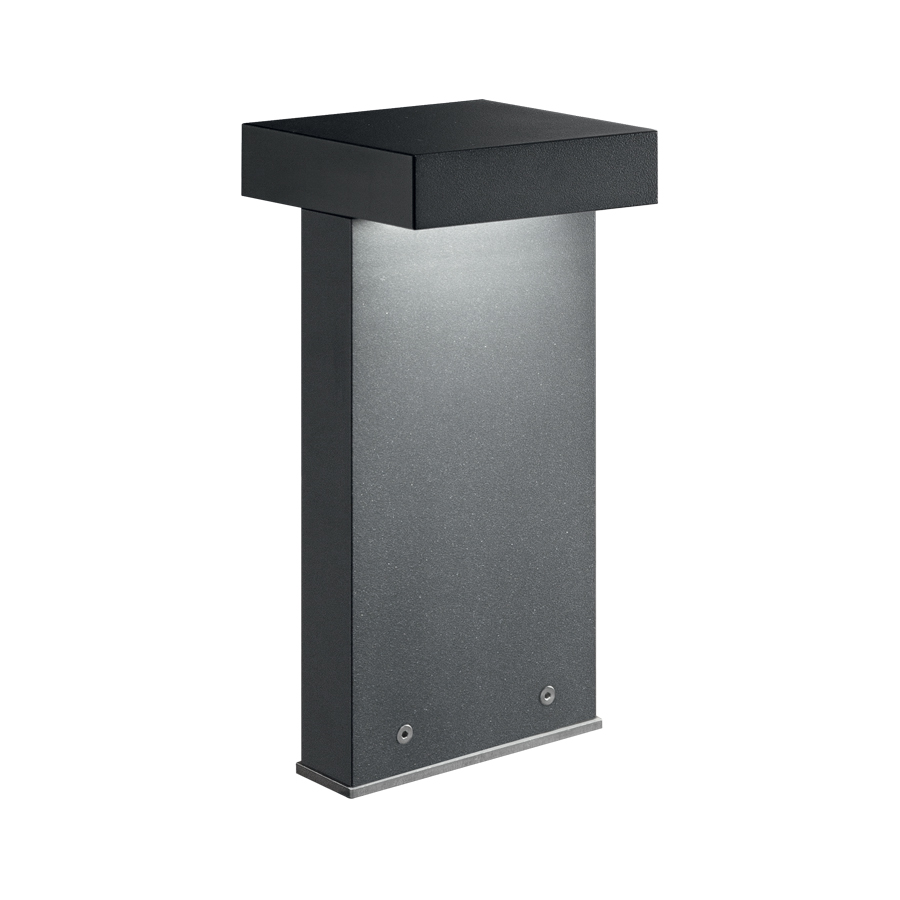

Plin 3.0 Bollards for lighting paths, walkways and gardens

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control

Technical data

Print technical data

Updated to PN30105AH

kg 1,80
IP65
IK08

Installation	bollard for outdoor applications, double beam
Power consumption	24W
Power supply	230Vac
Lumen output at source	2484 lm (3000K)
Delivered lumen output	984 lm (3000K)
Datasheet	Plin 3.0 code: PN30105AH bollard for outdoor applications, double beam; surface mounted (floor); Power consumption: 24W; Power supply: 230Vac; Lumen output at source: 2484 lm (3000K); Delivered lumen output: 984 lm (3000K); 36 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C); LED colour: 3000K; Optics: diffuse, asymmetrical: optical system consisting of serigraphed, tempered, transparent extra-clear glass, combined with a technical filter in PMMA, housed inside the tilted head and illuminating the front and rear areas; Upward flux fraction: 0,40%; CRI Colour Rendering Index: 80; Body material: head made of ANTICORODAL 6082 aluminium alloy, produced entirely on a CNC lathe. Body in aluminium alloy 6060, produced with die-casting; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: screen in serigraphed, tempered, transparent extra-clear glass; built-in power supply unit; Ingress protection: IP65; Impact resistance: IK08; non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; with watertight connector for cables up to Ø12 mm; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1800 g; Dimensions: 124x103x260 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPlin 3.0 code: PN30105AH bollard for outdoor applications, double beam surface mounted (floor) Power consumption: 24W Power supply: 230Vac Lumen output at source: 2484 lm (3000K) Delivered lumen output: 984 lm (3000K) 36 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C) LED colour: 3000K Optics: diffuse, asymmetrical: optical system consisting of serigraphed, tempered, transparent extra-clear glass, combined with a technical filter in PMMA, housed inside the tilted head and illuminating the front and rear areas Upward flux fraction: 0,40% CRI Colour Rendering Index: 80 Body material: head made of ANTICORODAL 6082 aluminium alloy, produced entirely on a CNC lathe. Body in aluminium alloy 6060, produced with die-casting Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: screen in serigraphed, tempered, transparent extra-clear glass built-in power supply unit Ingress protection: IP65 Impact resistance: IK08 non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; with watertight connector for cables up to Ø12 mm Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1800 g Dimensions: 124x103x260 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (floor)
Number and type of LED	36 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour	3000K

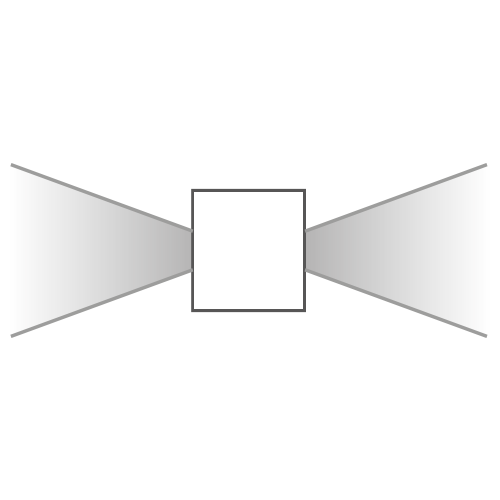

Optics	diffuse, asymmetrical
CRI Colour Rendering Index	80
Body material	head and column in aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite
Power supply unit	built-in power supply unit
Ingress protection	IP65
Impact resistance	IK08
Notes	non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Close

Accessories and power supply units

Accessories (0)

Accessories for product code PN30105AH

No accessories

Power supply units (0)

Power supply units for product code PN30105AH

No power supply units

Control gear (0)

Control gear for product code PN30105AH

No controllers

Control input (0)

No control inputs

Plin 3.0

Generate code

Customize this product

Possible customizations:

Technical data

Read more

Close

Download

Gallery

Accessories and power supply units

Accessories (0)

Power supply units (0)

Control gear (0)

Control input (0)

Projects

Hospitality

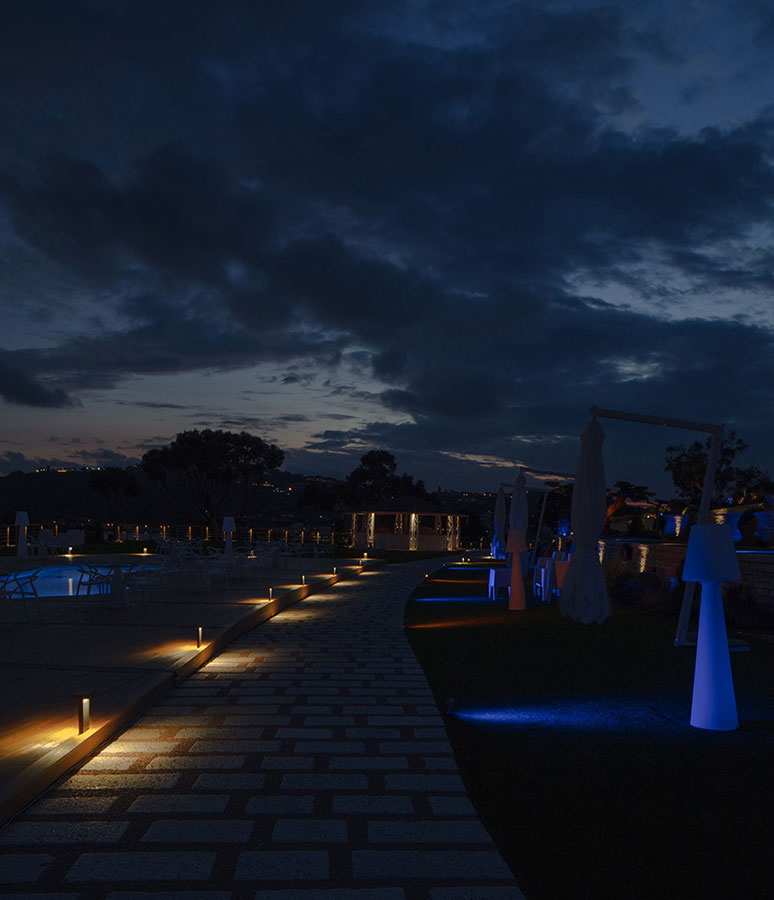

Villa Punta Pennata
