Plin 1.0

Bollards for outdoor applications

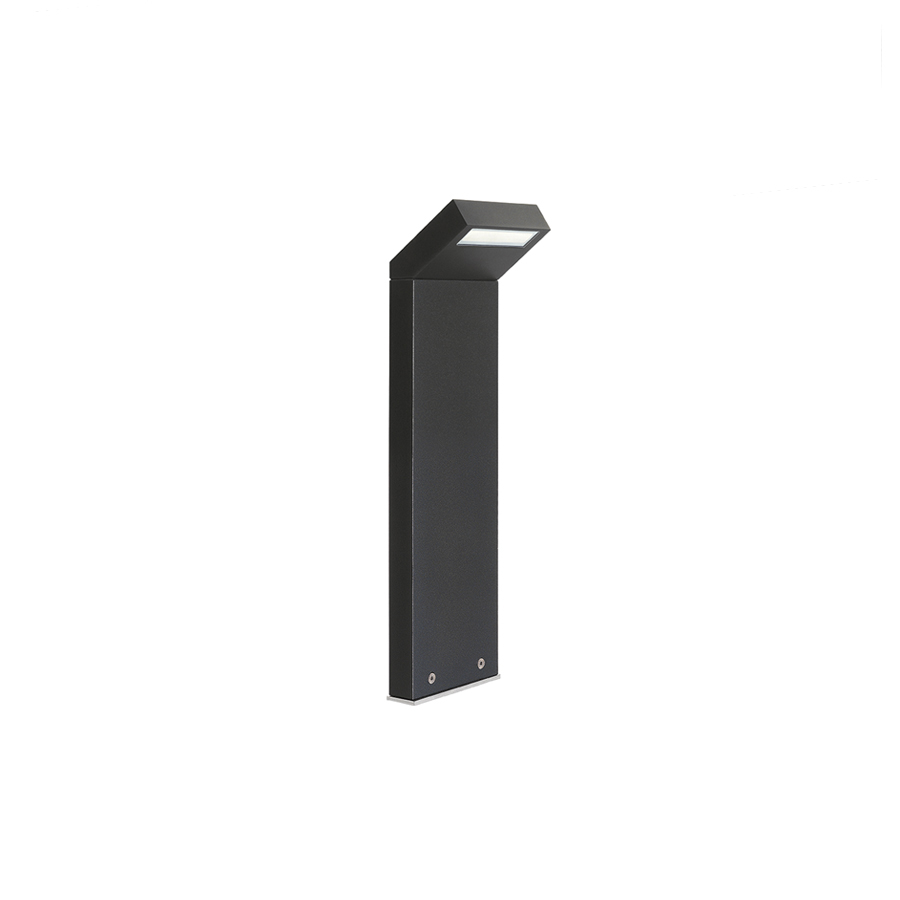

bollard for outdoor applications - 12W 230Vac - diffuse optics - h 300 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control

Technical data

Print technical data

Updated to PN10105AH

kg 1,30
IP65
IK08

Installation	bollard for outdoor applications
Power consumption	12W
Power supply	230Vac
Lumen output at source	1242 lm (3000K)
Delivered lumen output	558 lm (3000K)

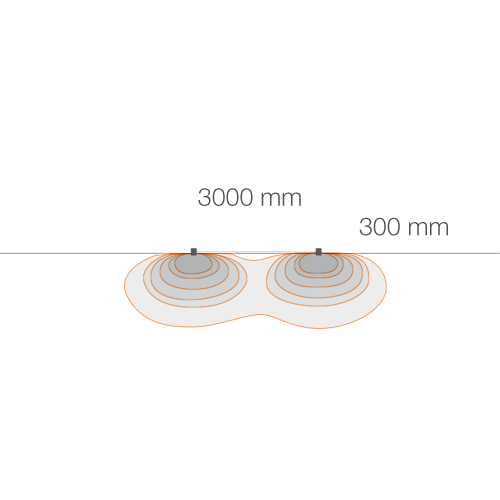

Datasheet	Plin 1.0 code: PN10105AH bollard for outdoor applications; surface mounted (floor); Power consumption: 12W; Power supply: 230Vac; Lumen output at source: 1242 lm (3000K); Delivered lumen output: 558 lm (3000K); 18 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C); LED colour: 3000K; Optics: diffuse: optical system consisting of serigraphed, tempered, extra-clear microprismatic glass, housed inside the tilted head and illuminating the front and rear areas; Upward flux fraction: 1,20%; CRI Colour Rendering Index: 80; Body material: head made of aluminium alloy EN AB 46100, produced with die-casting. Body in aluminium alloy 6060, produced with die-casting; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: screen in serigraphed, tempered, extra-clear microprismatic glass; built-in power supply unit; Ingress protection: IP65; Impact resistance: IK08; non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; with watertight connector for cables up to Ø12 mm; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1300 g; Dimensions: 120x30x300 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPlin 1.0 code: PN10105AH bollard for outdoor applications surface mounted (floor) Power consumption: 12W Power supply: 230Vac Lumen output at source: 1242 lm (3000K) Delivered lumen output: 558 lm (3000K) 18 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C) LED colour: 3000K Optics: diffuse: optical system consisting of serigraphed, tempered, extra-clear microprismatic glass, housed inside the tilted head and illuminating the front and rear areas Upward flux fraction: 1,20% CRI Colour Rendering Index: 80 Body material: head made of aluminium alloy EN AB 46100, produced with die-casting. Body in aluminium alloy 6060, produced with die-casting Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: screen in serigraphed, tempered, extra-clear microprismatic glass built-in power supply unit Ingress protection: IP65 Impact resistance: IK08 non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; with watertight connector for cables up to Ø12 mm Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1300 g Dimensions: 120x30x300 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (floor)
Number and type of LED	18 mid-power LEDs, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour	3000K
Optics	diffuse
CRI Colour Rendering Index	80
Body material	head in die-cast aluminium, column in aluminium
Screen material	screen in serigraphed, tempered, extra-clear microprismatic glass
Finishes	anthracite
Power supply unit	built-in power supply unit
Ingress protection	IP65
Impact resistance	IK08
Notes	non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Plin 1.0
- Specific, for code PN10105AH
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product Plin 1.0
- Specific, for code PN10105AH
IES Photometric file Type
- Generic, for the product Plin 1.0
- Specific, for code PN10105AH
CB marking
EU declaration of conformity

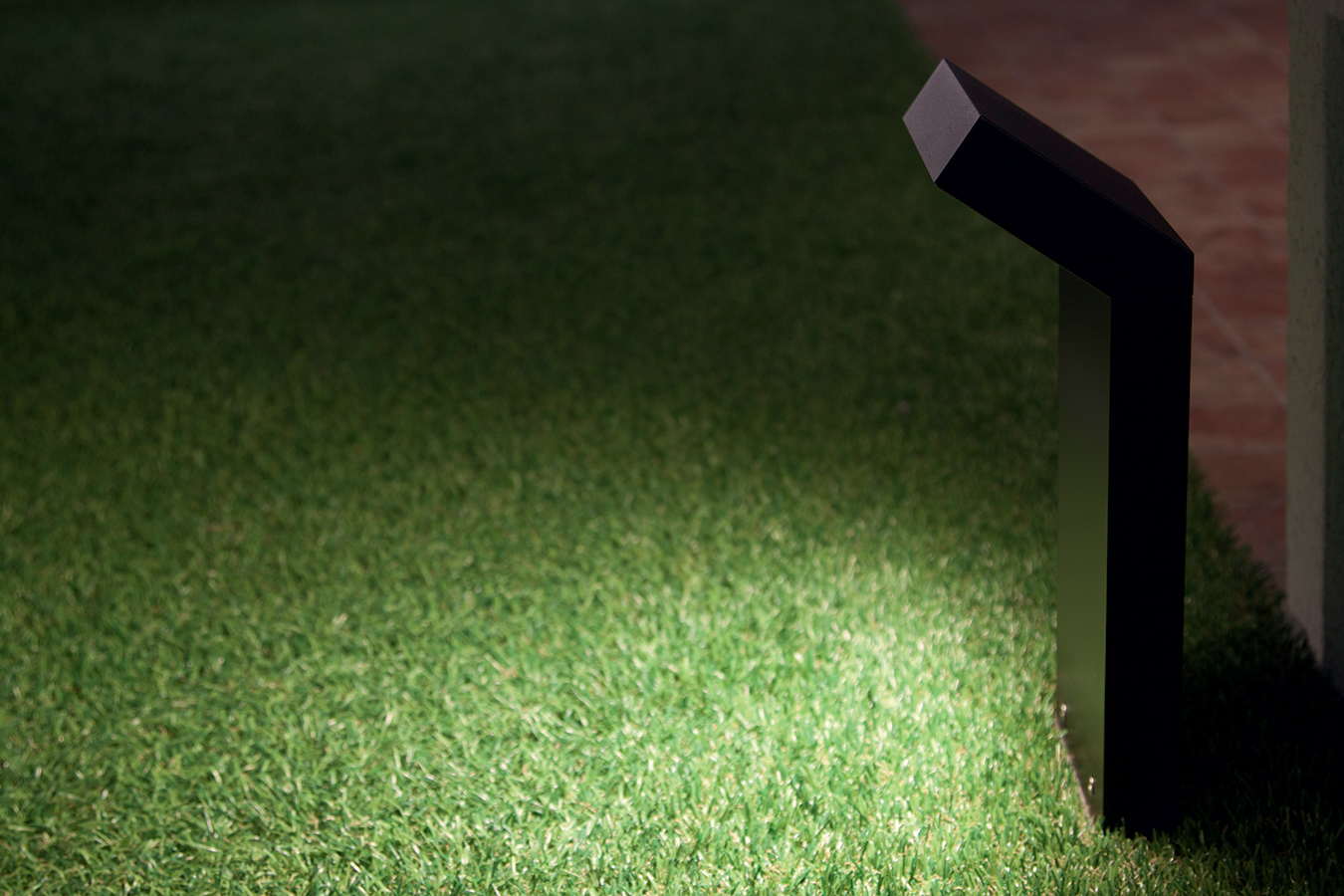

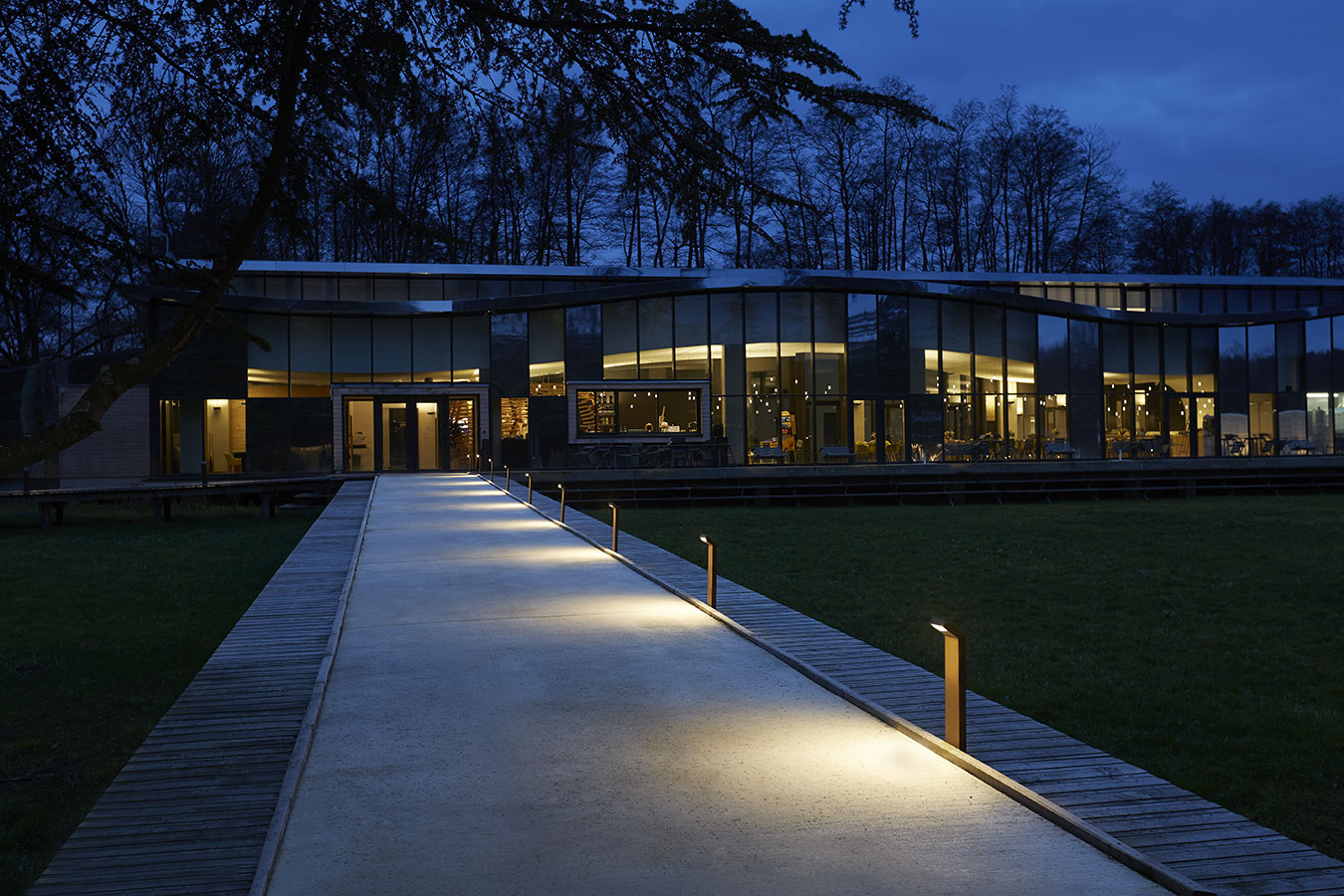

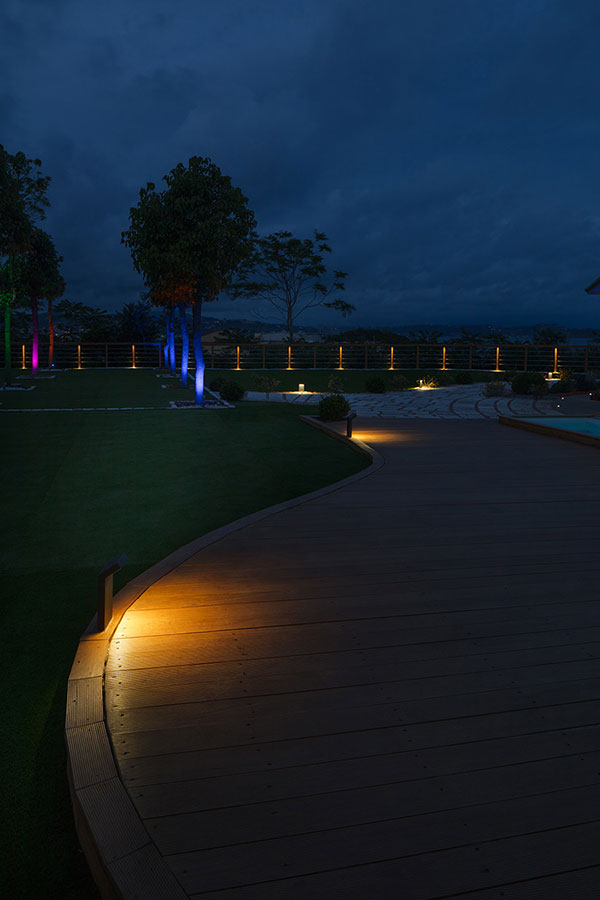

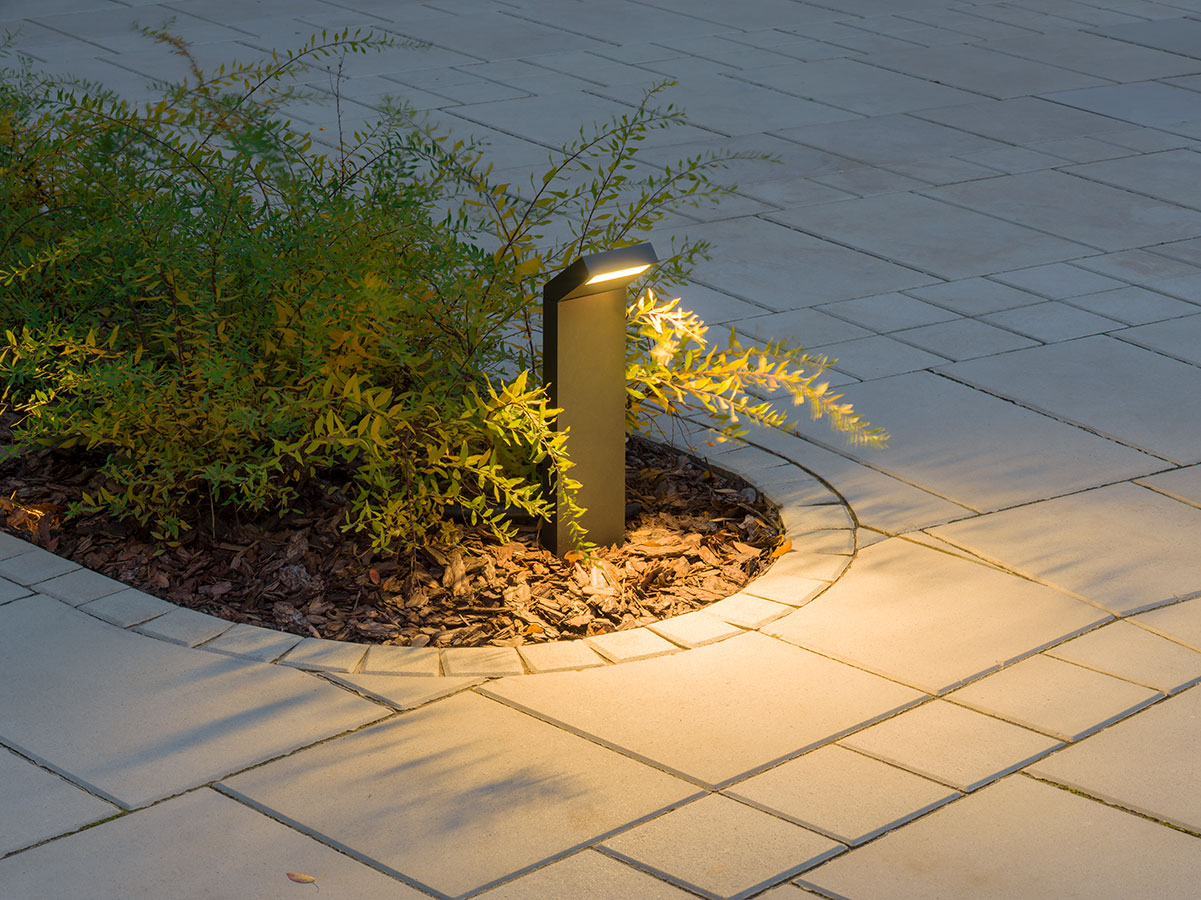

Gallery
