Ello OUT 3.0

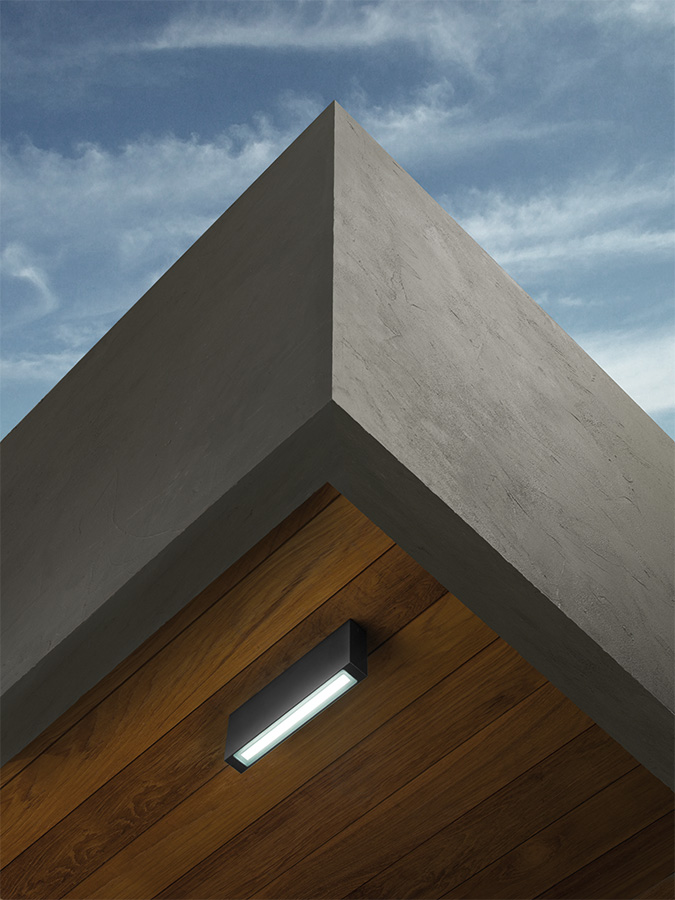

Ceiling mounted for outdoor applications
ceiling mounted for outoor applications - 19W 230Vac - 294 mm
Ceiling mounted for outdoor applications
ceiling mounted for outoor applications - 19W 230Vac - 294 mm
This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.
Installation | ceiling mounted for outoor applications |
---|---|
Power consumption | 19W |
Power supply | 230Vac |
Lumen output at source | 2862 lm (3000K) |
Delivered lumen output | 1478 lm (3000K) |
Datasheet | Copied |
Mounting | surface mounted (ceiling) |
---|---|
Number and type of LED | 54 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) |
LED colour | 2700K, 3000K, 4000K |
Optics | diffuse |
CRI Colour Rendering Index | 80 |
Body material | body in anticorodal aluminium |
Screen material | screen in serigraphed extra-clear microprismatic glass |
Finishes | grey, cor-ten, white, anthracite |
Power supply unit | built-in power supply unit |
Power cables | includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm |
Ingress protection | IP65 |
Impact resistance | IK08 |
Notes | Casambi-compatible version, controllable with the Casambi app, available on request |
Status | Available |
