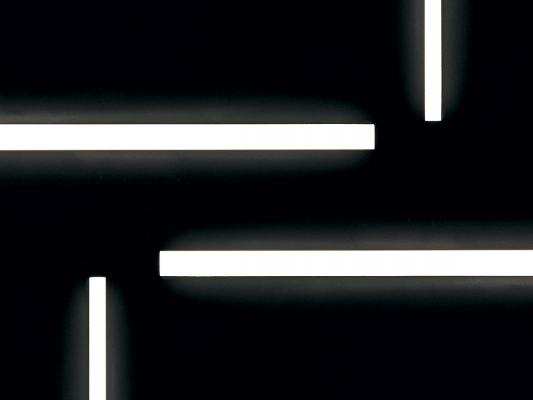

Rio 1.2

Linear profiles for outdoor applications

linear profile for outdoor applications - 12W 24Vdc, RGB: 17W, 24Vdc - 1010 mm - drive-over - RGB

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Non-standard lengths

Technical data

Print technical data

kg 5000 - kN 50
kg 0,82
IP65
IP67
IK10

Installation	linear profile for outdoor applications
Power consumption	12W; RGB: 17W
Power supply	24Vdc
Lumen output at source	1344 lm (2800K), RGB: 280 lm, R: 60 lm G: 180 lm B: 40 lm
Delivered lumen output	280 lm (2800K), RGB: 200 lm, R: 44 lm G: 128 lm B: 28 lm
Datasheet	Rio 1.2 linear profile for outdoor applications; drive-over up to 5000 kg; recessed (ceiling, wall, floor); Power consumption: 12W; RGB: 17W; Power supply: 24Vdc; Lumen output at source: 1344 lm (2800K), RGB: 280 lm, R: 60 lm G: 180 lm B: 40 lm; Delivered lumen output: 280 lm (2800K), RGB: 200 lm, R: 44 lm G: 128 lm B: 28 lm; 96 SMD low power LEDs, 3-step MacAdam; RGB: SMD full-colour LED 50 000h L95 B10 (Ta 25°C); LED colour: 2600K, 2800K, 3700K, RGB; Optics: diffuse: optical system consisting of light sources placed in a line on a rigid electronic circuit; CRI Colour Rendering Index: 80; Body material: body and screen made of co-extruded opal PMMA to provide high strength combined with high aesthetics. Caps in AISI 316L stainless steel and screws in A4 stainless steel; Seals: silicone rubber O-rings with anti-ageing treatment for an excellent mechanical seal; power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+PCP cable (equivalent to H05RN-F cable), 4x0,50/0,50 Ø6,3 mm; Ingress protection: IP65, IP67; Impact resistance: IK10; drive-over up to 5000 kg with aluminium casing, drive-over up to 500 kg with stainless steel casing. Non-standard lengths available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 820 g; Dimensions: 1010x20x43 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC8112 Aluminium outer casing - 1014 mm, WC8152 Stainless steel outer casing - 1013 mm, WC8312 Aluminium outer casing for plasterboard - 1014 mm, WN6005 Alignment kit for outer casing, WN6006 Pair of extractors for outer casings, WN8003 U-shaped brackets pair, WN8011 Alignment kit for stainless steel outer casings, WN8101 Anti-fall kit; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionRio 1.2 linear profile for outdoor applications drive-over up to 5000 kg recessed (ceiling, wall, floor) Power consumption: 12W; RGB: 17W Power supply: 24Vdc Lumen output at source: 1344 lm (2800K), RGB: 280 lm, R: 60 lm G: 180 lm B: 40 lm Delivered lumen output: 280 lm (2800K), RGB: 200 lm, R: 44 lm G: 128 lm B: 28 lm 96 SMD low power LEDs, 3-step MacAdam; RGB: SMD full-colour LED 50 000h L95 B10 (Ta 25°C) LED colour: 2600K, 2800K, 3700K, RGB Optics: diffuse: optical system consisting of light sources placed in a line on a rigid electronic circuit CRI Colour Rendering Index: 80 Body material: body and screen made of co-extruded opal PMMA to provide high strength combined with high aesthetics. Caps in AISI 316L stainless steel and screws in A4 stainless steel Seals: silicone rubber O-rings with anti-ageing treatment for an excellent mechanical seal power supply unit not included includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+PCP cable (equivalent to H05RN-F cable), 4x0,50/0,50 Ø6,3 mm Ingress protection: IP65, IP67 Impact resistance: IK10 drive-over up to 5000 kg with aluminium casing, drive-over up to 500 kg with stainless steel casing. Non-standard lengths available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 820 g Dimensions: 1010x20x43 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC8112 Aluminium outer casing - 1014 mm, WC8152 Stainless steel outer casing - 1013 mm, WC8312 Aluminium outer casing for plasterboard - 1014 mm, WN6005 Alignment kit for outer casing, WN6006 Pair of extractors for outer casings, WN8003 U-shaped brackets pair, WN8011 Alignment kit for stainless steel outer casings, WN8101 Anti-fall kit tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling, wall, floor)
Number and type of LED	96 SMD low power LEDs, 3-step MacAdam; RGB: SMD full-colour LED 50 000h L95 B10 (Ta 25°C)
LED colour	2600K, 2800K, 3700K, RGB
Optics	diffuse
CRI Colour Rendering Index	80
Body material	body in PMMA, screen in opal PMMA, end caps in AISI 316L stainless steel
Power supply unit	power supply unit not included
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+PCP cable (equivalent to H05RN-F cable), 4x0,50/0,50 Ø6,3 mm
Ingress protection	IP65, IP67
Impact resistance	IK10
Notes	drive-over up to 5000 kg with aluminium casing, drive-over up to 500 kg with stainless steel casing. Non-standard lengths available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (8)

Outer casings

drive-over: kg 5000 / kN 50 WC8112 Aluminium outer casing - 1014 mm	drive-over: kg 500 / kN 5 WC8152 Stainless steel outer casing - 1013 mm
WC8312 Aluminium outer casing for plasterboard - 1014 mm

Various accessories

WN6005

Alignment kit for outer casing

WN8101

Anti-fall kit

Spare parts

WN6006 Pair of extractors for outer casings	WN8003 U-shaped brackets pair
WN8011 Alignment kit for stainless steel outer casings

Cables

Choose the power cable in the code generator

Power supply units (22)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 12W 350mA constant current; max 17W 400mA constant current; max 19W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (8)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARV230PD1

Easy RGB - Low-voltage 3-channel controller with constant-voltage output

order in addition to PSU

Input	12-24Vdc
Output	With 12 Vdc input:; 12Vdc; 90W With 24 Vdc input:; 24Vdc; 180W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input	12-24Vdc
Output	With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W
Dimmering	Radio frequency
Power supply unit IP	IP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input	12-24Vdc
Output	With 12 Vdc input:; 12Vdc; 240W With 24 Vdc input:; 24Vdc; 480W
Dimmering	Radio frequency
Power supply unit IP	IP20

TLR02-01

Controller with integrated 4-channel receiver for RGB/RGBW/dynamic white/dimming

order in addition to PSU
RGB/RGBW: Required TLC08 or TLC09 remote control, not included
Dynamic white/dimming: PUSH switch

Input	12-24Vdc
Output	3 channels With 12 Vdc input:; 12Vdc; 90W With 24 Vdc input:; 24Vdc; 180W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Stand alone, Radio frequency
Power supply unit IP	IP20

Control input (11)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW
