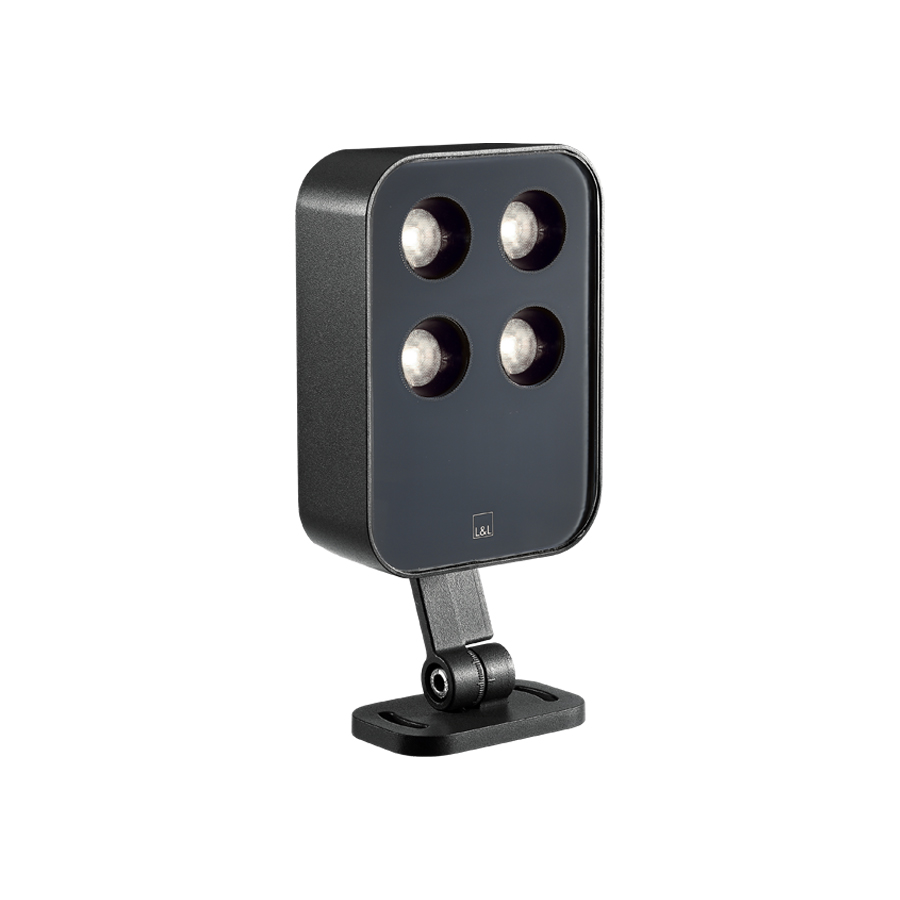

Siri 2.0

Projectors for outdoor applications

projector for outdoor applications - 16W 230Vac - adjustable 200°

Technical data

Print technical data

Updated to SR20105VH

kg 1,41
IP66
IK06

Installation	projector for outdoor applications
Power consumption	16W
Power supply	230Vac
Lumen output at source	1311 lm (3000K)
Delivered lumen output	925 lm (3000K, 30°)
Datasheet	Siri 2.0 code: SR20105VH projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 16W; Power supply: 230Vac; Lumen output at source: 1311 lm (3000K); Delivered lumen output: 925 lm (3000K, 30°); 4 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C); LED colour: 3000K; Optics: 6°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK06; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1410 g; Dimensions: 254x123x58 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB5020H Anti-glare hood - anthracite, WP0300 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSiri 2.0 code: SR20105VH projector for outdoor applications surface mounted (ceiling, wall, ground, spike) Power consumption: 16W Power supply: 230Vac Lumen output at source: 1311 lm (3000K) Delivered lumen output: 925 lm (3000K, 30°) 4 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C) LED colour: 3000K Optics: 6°: optical system consisting of a high-efficiency TIR lens CRI Colour Rendering Index: 80 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches built-in power supply unit includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK06 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1410 g Dimensions: 254x123x58 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB5020H Anti-glare hood - anthracite, WP0300 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	4 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C)
LED colour	3000K
Optics	6°
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite
Power supply unit	built-in power supply unit
Power cables	includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK06
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Siri 2.0
- Specific, for code SR20105VH
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file Type
- Generic, for the product Siri 2.0
- Specific, for code SR20105VH
IES Photometric file Type
- Generic, for the product Siri 2.0
- Specific, for code SR20105VH
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (2)

Accessories for product code SR20105VH

Spikes and arms

WP0300

Spike for in-ground installation

Anti-glare screens

WB5020H

Anti-glare hood - anthracite

On request, the anti-glare hood is available in the same finish as the lighting fixture

Power supply units (0)

Power supply units for product code SR20105VH

No power supply units

Control gear (0)

Control gear for product code SR20105VH

No controllers

Control input (0)

No control inputs
