Siri 1.0

Projectors for outdoor applications

projector for outdoor applications - 9W 230Vac - adjustable 200°

Technical data

Print technical data

kg 1,03
IP66
IK07

Installation	projector for outdoor applications
Power consumption	9W
Power supply	230Vac
Lumen output at source	603 lm (3000K)
Delivered lumen output	422 lm (3000K, 30°)
Datasheet	Siri 1.0 projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 9W; Power supply: 230Vac; Lumen output at source: 603 lm (3000K); Delivered lumen output: 422 lm (3000K, 30°); 2 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 6°: optical system consisting of a high-efficiency TIR lens, 12°, 30°, 40°, 10°x45°: optical system composed of a series of light sources. The deep-set TIR lens guarantees high-quality light emission and visual comfort; CRI Colour Rendering Index: 80; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006); RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; built-in power supply unit; includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK07; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1030 g; Dimensions: 240x90x58 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB5010H Anti-glare hood - anthracite, WH5010 Honeycomb louvre , WP0300 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSiri 1.0 projector for outdoor applications surface mounted (ceiling, wall, ground, spike) Power consumption: 9W Power supply: 230Vac Lumen output at source: 603 lm (3000K) Delivered lumen output: 422 lm (3000K, 30°) 2 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 6°: optical system consisting of a high-efficiency TIR lens, 12°, 30°, 40°, 10°x45°: optical system composed of a series of light sources. The deep-set TIR lens guarantees high-quality light emission and visual comfort CRI Colour Rendering Index: 80 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006) RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches built-in power supply unit includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK07 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1030 g Dimensions: 240x90x58 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB5010H Anti-glare hood - anthracite, WH5010 Honeycomb louvre , WP0300 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	2 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

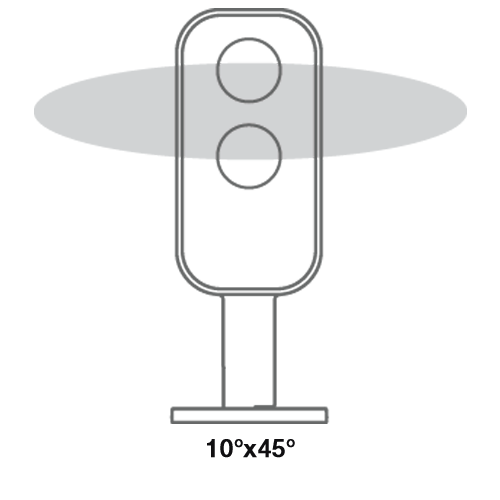

Optics	6°, 12°, 30°, 40°, 10°x45°
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite, cor-ten, white, grey
Power supply unit	built-in power supply unit
Power cables	includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK07
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (3)

Spikes and arms

WP0300

Spike for in-ground installation

Honeycomb louvre

Order together with the lighting fixture

WH5010

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all fixed optics, except for the 6° optics

Anti-glare screens

WB5010H

Anti-glare hood - anthracite

On request, the anti-glare hood is available in the same finish as the lighting fixture

Cables

Choose the power cable in the code generator

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
