Olo 1.1

Technical data

kg 7,20
IP66
IK10
DALI-2

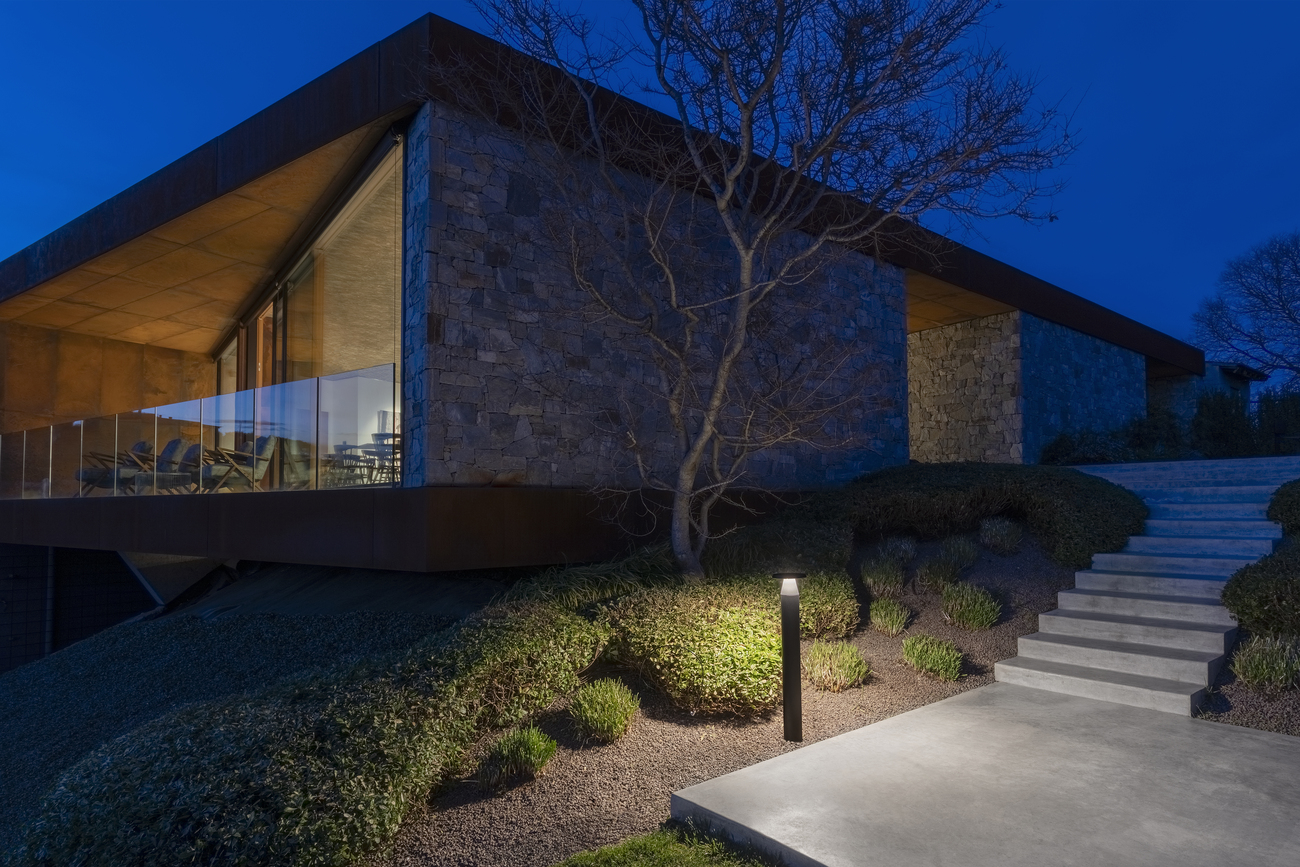

Installation	bollard for outdoor applications
Power consumption	19W, 14W
Power supply	230Vac
Lumen output at source	2240 lm (3000K, 14W), 3200 lm (3000K, 19W)
Delivered lumen output	1460 lm (3000K, 180°, 14W), 2057 lm (3000K, 360°, 19W)
Datasheet	Olo 1.1 bollard for outdoor applications; surface mounted (floor); Power consumption: 19W, 14W; Power supply: 230Vac; Lumen output at source: 2240 lm (3000K, 14W), 3200 lm (3000K, 19W); Delivered lumen output: 1460 lm (3000K, 180°, 14W), 2057 lm (3000K, 360°, 19W); 156 mid-power LEDs, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C), 72 mid-power LEDs, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 2200K, 2200K+3000K, 2700K, 3000K, 4000K; Optics: radial 180°, radial 360°; CRI Colour Rendering Index: 80; Body material: head made of aluminium alloy EN AB 47100 low-copper-content aluminium alloy for excellent resistance to corrosion, produced with die-casting. column in aluminium alloy 6082, produced with die-casting and mountig plate in 316L stainless steel; Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006); RAL finish on request; Screen material: screen made of optical grade polycarbonate with anti-UV coating, characterised by excellent resistance to impacts; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; built-in power supply unit; Control system: DALI-2, DALI-2 (DT6), ON/OFF; Ingress protection: IP66; Impact resistance: IK10; Protection systems: The SPD (Surge Protection Device) protects lighting fixtures from electrical phenomena external to the system, such as power surges. In particular, this device is specifically for protection against serious events with a high energy content; Operating temperature: -20°C — +50°C; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 7200 g; Dimensions: Ø206x1000 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WFA02 IP68 “h”-type three-way connector (82x53.3x28 mm), WFA06 Two-pin male-female connector, WULL10A0 Kit anchor bolts; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionOlo 1.1 bollard for outdoor applications surface mounted (floor) Power consumption: 19W, 14W Power supply: 230Vac Lumen output at source: 2240 lm (3000K, 14W), 3200 lm (3000K, 19W) Delivered lumen output: 1460 lm (3000K, 180°, 14W), 2057 lm (3000K, 360°, 19W) 156 mid-power LEDs, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C), 72 mid-power LEDs, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C) LED colour: 2200K, 2200K+3000K, 2700K, 3000K, 4000K Optics: radial 180°, radial 360° CRI Colour Rendering Index: 80 Body material: head made of aluminium alloy EN AB 47100 low-copper-content aluminium alloy for excellent resistance to corrosion, produced with die-casting. column in aluminium alloy 6082, produced with die-casting and mountig plate in 316L stainless steel Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006) RAL finish on request Screen material: screen made of optical grade polycarbonate with anti-UV coating, characterised by excellent resistance to impacts Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time built-in power supply unit Control system: DALI-2, DALI-2 (DT6), ON/OFF Ingress protection: IP66 Impact resistance: IK10 Protection systems: The SPD (Surge Protection Device) protects lighting fixtures from electrical phenomena external to the system, such as power surges. In particular, this device is specifically for protection against serious events with a high energy content Operating temperature: -20°C — +50°C Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 7200 g Dimensions: Ø206x1000 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WFA02 IP68 “h”-type three-way connector (82x53.3x28 mm), WFA06 Two-pin male-female connector, WULL10A0 Kit anchor bolts tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (floor)
Number and type of LED	156 mid-power LEDs, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C), 72 mid-power LEDs, 3-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour	2200K, 2200K+3000K, 2700K, 3000K, 4000K
Optics	radial 180°, radial 360°
CRI Colour Rendering Index	80
Body material	head in die-cast aluminium EN AB 47100, column in ANTICORODAL 6082 aluminium alloy and mountig plate in 316L stainless steel
Screen material	screen in optical grade PC
Finishes	white, anthracite, cor-ten, grey
Power supply unit	built-in power supply unit
Control system	DALI-2, DALI-2 (DT6), ON/OFF
Ingress protection	IP66
Impact resistance	IK10
Status	Available
