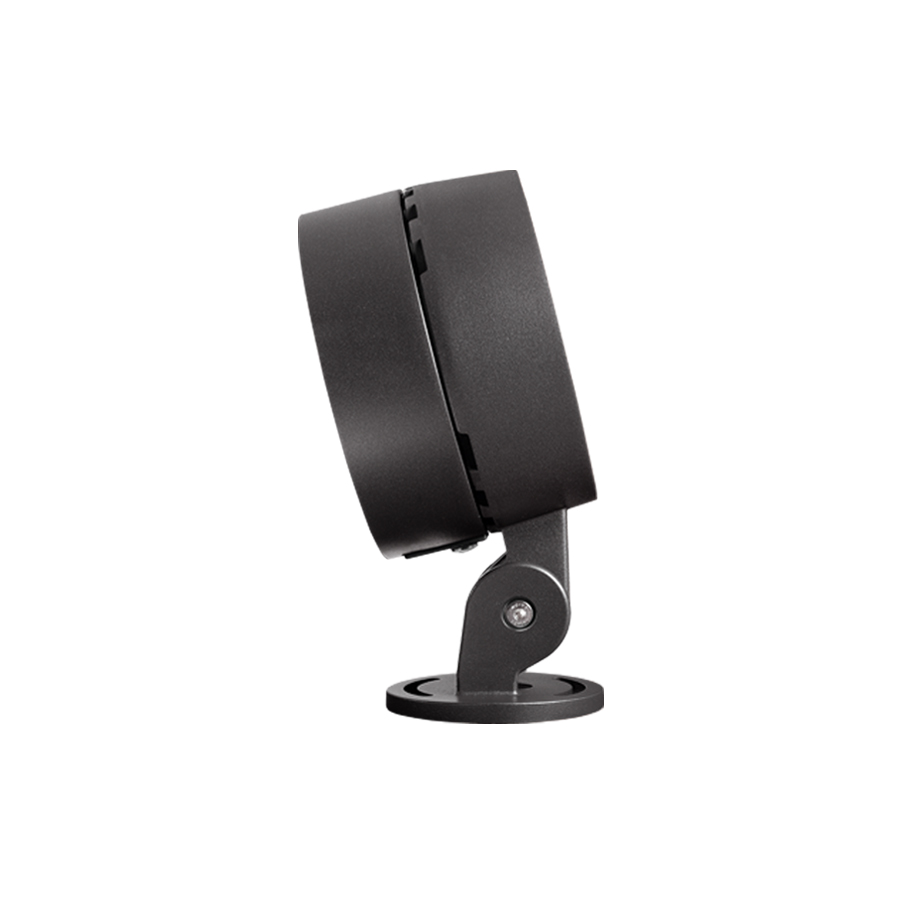

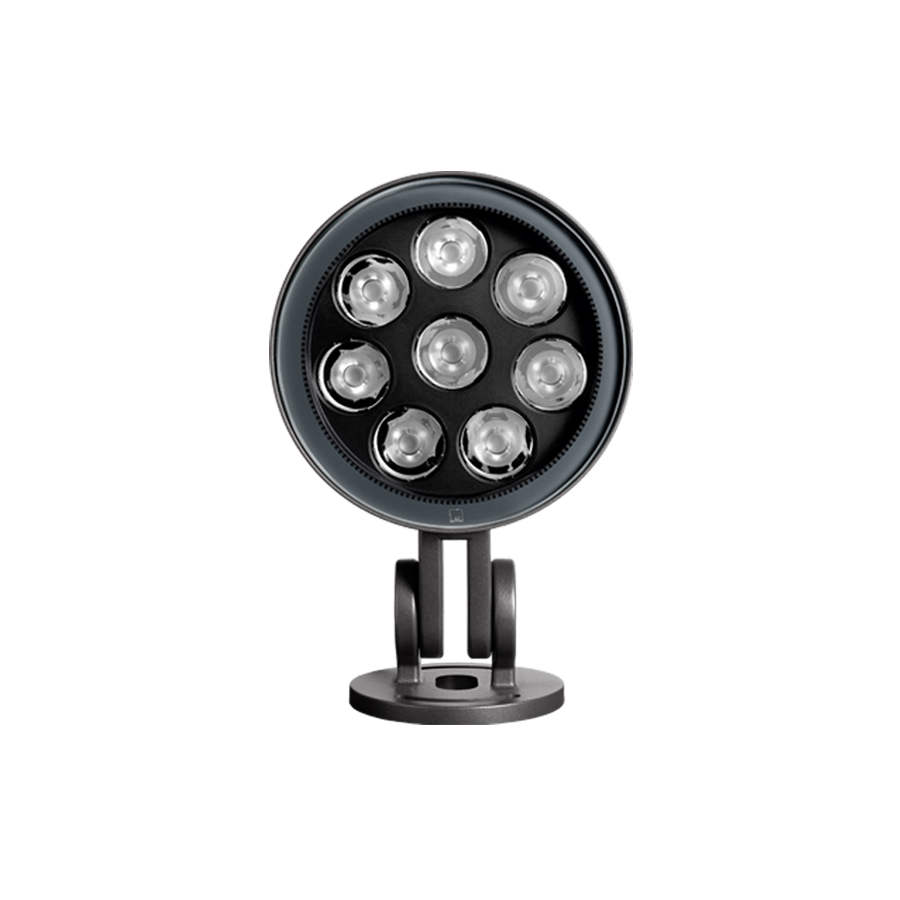

Oliver 1.0

Projectors for outdoor applications, urban lighting

projector for outdoor applications - 34W / 37W 230Vac - adjustable 150°

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Optional accessory: wall shelf
Version with midnight function

Technical data

Print technical data

Updated to LV10110D00N0LH-1

kg 4,0
IP66
IK09
DALI-2

Installation	projector for outdoor applications
Power consumption	37W
Power supply	230Vac
Lumen output at source	3957 lm (3000K, 37W)
Delivered lumen output	3300 lm (3000K, 10°, 37W)
Datasheet	Oliver 1.0 code: LV10110D00N0LH-1 projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 37W; Power supply: 230Vac; Lumen output at source: 3957 lm (3000K, 37W); Delivered lumen output: 3300 lm (3000K, 10°, 37W); 12 power LEDs, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2200K; Optics: 31°; CRI Colour Rendering Index: 80; Body material: body and bracket made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion.; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; Screen material: 8-mm-thick transparent extra-clear glass with grey vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; Installation: body can be tilted along the horizontal axis by 150°; built-in power supply unit; includes 5 m neoprene cable H05RN-F 2x0,75 Ø6,3 mm; Control system: DALI-2; Ingress protection: IP66; Impact resistance: IK09; Protection systems: The SPD (Surge Protection Device) protects lighting fixtures from electrical phenomena external to the system, such as power surges. In particular, this device is specifically for protection against serious events with a high energy content; Operating temperature: -20°C — +50°C; Glow wire test: 850°C; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 4000 g; Dimensions: Ø180x272x119 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WBA18H Standard snoot - anthracite, WBA19H Asymmetrical snoot - anthracite, WPA12H Flange for pole installation Ø60 mm - anthracite, WPA13H Flange for pole installation Ø89 mm - anthracite; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionOliver 1.0 code: LV10110D00N0LH-1 projector for outdoor applications surface mounted (ceiling, wall, floor) Power consumption: 37W Power supply: 230Vac Lumen output at source: 3957 lm (3000K, 37W) Delivered lumen output: 3300 lm (3000K, 10°, 37W) 12 power LEDs, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C) LED colour: 2200K Optics: 31° CRI Colour Rendering Index: 80 Body material: body and bracket made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion. Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector Screen material: 8-mm-thick transparent extra-clear glass with grey vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches Installation: body can be tilted along the horizontal axis by 150° built-in power supply unit includes 5 m neoprene cable H05RN-F 2x0,75 Ø6,3 mm Control system: DALI-2 Ingress protection: IP66 Impact resistance: IK09 Protection systems: The SPD (Surge Protection Device) protects lighting fixtures from electrical phenomena external to the system, such as power surges. In particular, this device is specifically for protection against serious events with a high energy content Operating temperature: -20°C — +50°C Glow wire test: 850°C Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 4000 g Dimensions: Ø180x272x119 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WBA18H Standard snoot - anthracite, WBA19H Asymmetrical snoot - anthracite, WPA12H Flange for pole installation Ø60 mm - anthracite, WPA13H Flange for pole installation Ø89 mm - anthracite tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, floor)
Number and type of LED	12 power LEDs, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C)
LED colour	2200K
Optics	31°
CRI Colour Rendering Index	80
Body material	body and arm in Anticorodal aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite
Power supply unit	built-in power supply unit
Power cables	includes 5 m neoprene cable H05RN-F 2x0,75 Ø6,3 mm
Control system	DALI-2
Ingress protection	IP66
Impact resistance	IK09
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Oliver 1.0
- Specific, for code LV10110D00N0LH-1
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product Oliver 1.0
- Specific, for code LV10110D00N0LH-1
IES Photometric file Type
- Generic, for the product Oliver 1.0
- Specific, for code LV10110D00N0LH-1
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (4)

Accessories for product code LV10110D00N0LH-1

Snoots

WBA18H

Standard snoot - anthracite

WBA19H

Asymmetrical snoot - anthracite

Various accessories

WPA12H

Flange for pole installation Ø60 mm - anthracite

WPA13H

Flange for pole installation Ø89 mm - anthracite

Power supply units (0)

Power supply units for product code LV10110D00N0LH-1

No power supply units

Control gear (0)

Control gear for product code LV10110D00N0LH-1

No controllers

Control input (0)

No control inputs
