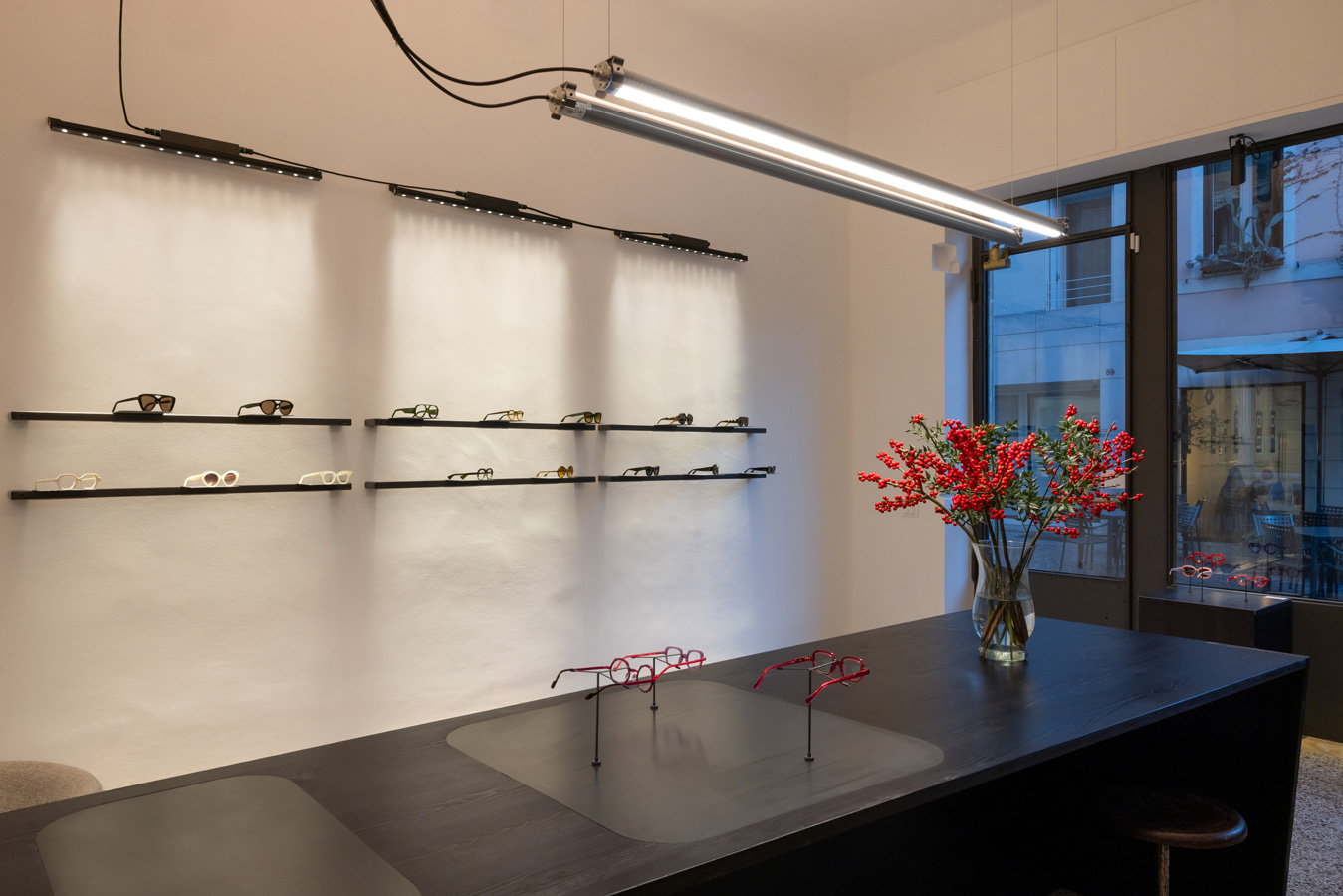

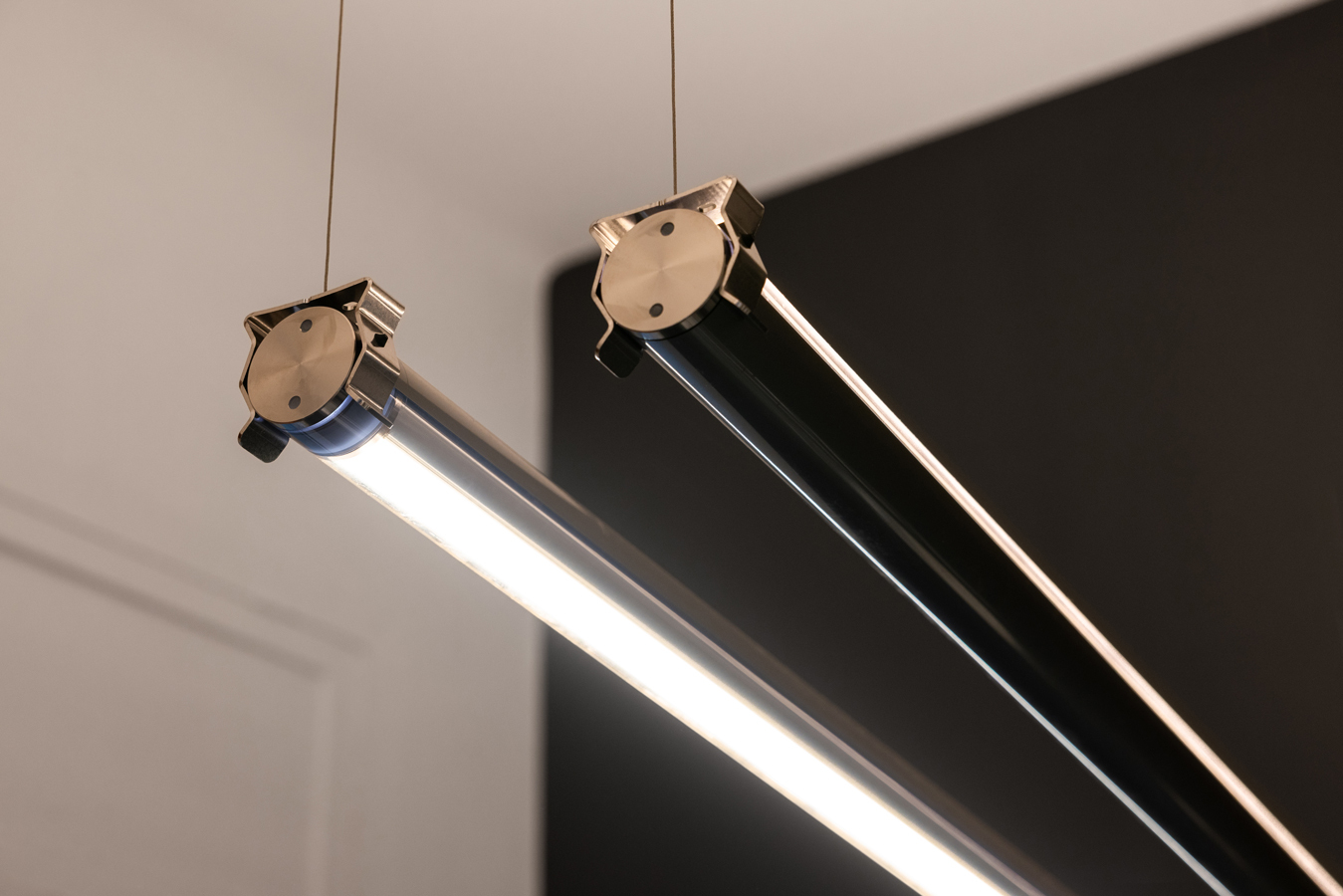

Trevi S 2.6

Suspended for outdoor applications

suspended for outdoor applications - 25W 24Vdc - 653 mm

Generate code

Technical data

Print technical data
Required pair of clips, not included
Required suspension kit, not included
  • RGBW
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 1.90
  • IP65
  • IP68
  • IK10
  • F
Installation pendant for outdoor applications
Power consumption 25W
Power supply 24Vdc
Lumen output at source R: 179 lm G: 660 lm B: 124 lm W: 739 lm (3000K)
Delivered lumen output 1435 lm, R: 162 lm G: 599 lm B: 112 lm W: 670 lm (3000K, DIFFUSE)
Datasheet

Copied
Mounting surface mounted (ceiling)
Number and type of LED 168 mid power LED full colour + LED white, 60 000h L80 B10 (Ta 25°C)
LED colour RGBW
Optics 39°x95°, diffuse
Body material end caps in AISI 316L stainless steel, internal anticorodal aluminium heat sink
Screen material screen in transparent polycarbonate
Clip Clips pair (WMA04), Pair of tamper-resistant clips (WMA05)

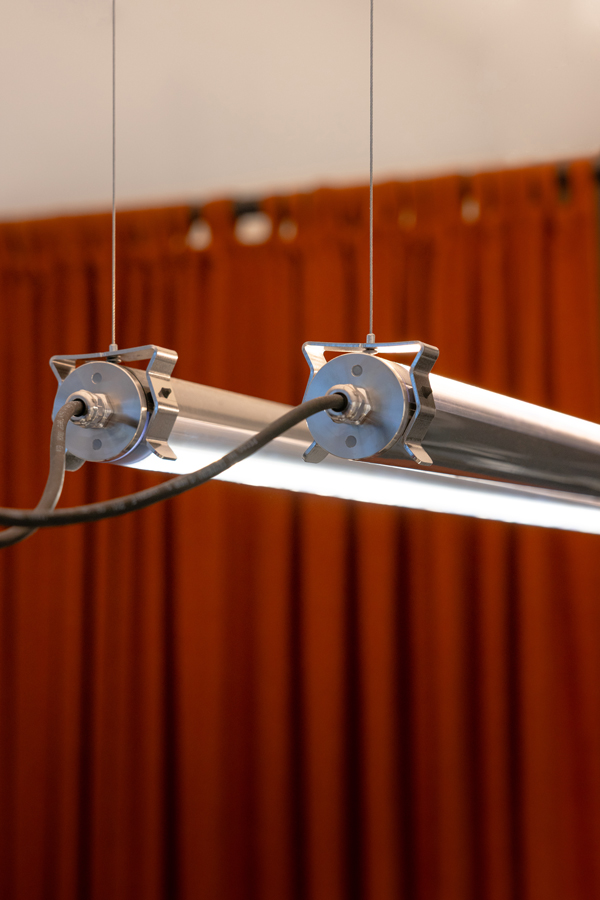

Suspension kit WMA07
Power supply unit power supply unit not included
Power cables includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection IP65, IP68
Impact resistance IK10
Status Available

Read more

Close

Accessories and power supply units

Accessories (3)

Various accessories

Required installation accessories, not included

WMA04

Clips pair
Required installation accessories, not included

WMA05

Pair of tamper-resistant clips
Required installation accessories, not included

WMA07

Suspension kit

Power supply units (17)

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W ✓
Power120W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W ✓
Power180W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W ✓
Power30W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
Power100W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W ✓
Power200W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W ✓
Power300W
DimmeringDALI-2
Power supply unit IPIP66

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67
Read more

Control gear (5)

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ⚠
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ✓
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input12-24Vdc
OutputWith 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ✓
DimmeringRadio frequency
Power supply unit IPIP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24Vdc
OutputWith 12 Vdc input:; 12Vdc; 240W ⚠
With 24 Vdc input:; 24Vdc; 480W ✓
DimmeringRadio frequency
Power supply unit IPIP20

TLR02-01

Controller with integrated 4-channel receiver for RGB/RGBW/dynamic white/dimming

order in addition to PSU
RGB/RGBW: Required TLC08 or TLC09 remote control, not included
Dynamic white/dimming: PUSH switch

Input12-24Vdc
Output

3 channels

With 12 Vdc input:; 12Vdc; 90W ⚠
With 24 Vdc input:; 24Vdc; 180W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ✓
DimmeringPUSH, Stand alone, Radio frequency
Power supply unit IPIP20
Read more

Control input (10)

EC0TIM12840020

Timer for CASAMBI

Input12-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
