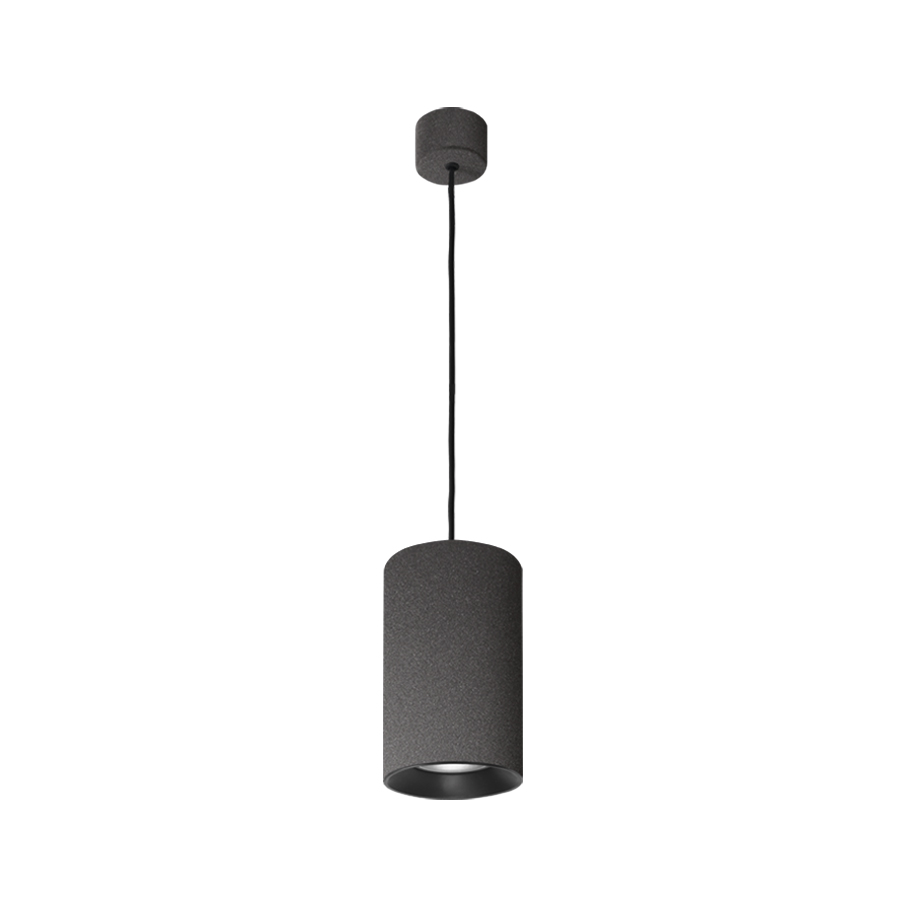

Altopiano S 3.0

Suspended for outdoor applications

suspended for outdoor applications - 15W/20W - 110-230Vac - Ø150 mm

Technical data

Print technical data

2,6 kg
IP66
IK08
DALI-2

Installation	suspended for outdoor applications
Power consumption	15W, 20W
Power supply	110-230Vac
Lumen output at source	1506 lm (3000K, 15W, CRI >90), 1780 lm (3000K, 15W, CRI 80), 2090 lm (3000K, 20W, CRI >90), 2469 lm (3000K, 20W, CRI 80)
Delivered lumen output	1212 lm (3000K, 18°, 15W, CRI >90), 1431 lm (3000K, 18°, 15W, CRI 80), 1683 lm (3000K, 18°, 20W, CRI >90), 1988 lm (3000K, 18°, 20W, CRI 80)
Datasheet	Altopiano S 3.0 suspended for outdoor applications; surface mounted (ceiling) with ceiling rose; Power consumption: 15W, 20W; Power supply: 110-230Vac; Lumen output at source: 1506 lm (3000K, 15W, CRI >90), 1780 lm (3000K, 15W, CRI 80), 2090 lm (3000K, 20W, CRI >90), 2469 lm (3000K, 20W, CRI 80); Delivered lumen output: 1212 lm (3000K, 18°, 15W, CRI >90), 1431 lm (3000K, 18°, 15W, CRI 80), 1683 lm (3000K, 18°, 20W, CRI >90), 1988 lm (3000K, 18°, 20W, CRI 80); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: 18°, 24°, 37°, 61°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas; CRI Colour Rendering Index: 80, >90; Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). External body made of Anticorodal® aluminium 6060, for excellent resistance to corrosion. Ceiling rose in steel; Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; Installation: Ceiling rose fixed magnetically to the bracket, hiding the fixing screws and leaving a clean look; built-in power supply unit; on/off: includes 3 m neoprene cable H07RN-F 2x1,0 Ø8,3 mm DALI-2: includes 3 m neoprene cable H07RN-F 4x1,0 Ø10,0 mm; Control system: ON/OFF, DALI-2; Ingress protection: IP66; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +50°C; Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 2600 g; Dimensions: Ø150x255 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, anti-glare shield, WF2002 Neoprene cable - H07RN-F 2x1,00 Ø8,3 mm, WFA02AA Neoprene cable - H07RN-F 4x1,00 Ø10 mm, WNAP10A1 Windproof cable; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionAltopiano S 3.0 suspended for outdoor applications surface mounted (ceiling) with ceiling rose Power consumption: 15W, 20W Power supply: 110-230Vac Lumen output at source: 1506 lm (3000K, 15W, CRI >90), 1780 lm (3000K, 15W, CRI 80), 2090 lm (3000K, 20W, CRI >90), 2469 lm (3000K, 20W, CRI 80) Delivered lumen output: 1212 lm (3000K, 18°, 15W, CRI >90), 1431 lm (3000K, 18°, 15W, CRI 80), 1683 lm (3000K, 18°, 20W, CRI >90), 1988 lm (3000K, 18°, 20W, CRI 80) 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: 18°, 24°, 37°, 61°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas CRI Colour Rendering Index: 80, >90 Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). External body made of Anticorodal® aluminium 6060, for excellent resistance to corrosion. Ceiling rose in steel Finishes: grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time Installation: Ceiling rose fixed magnetically to the bracket, hiding the fixing screws and leaving a clean look built-in power supply unit on/off: includes 3 m neoprene cable H07RN-F 2x1,0 Ø8,3 mm DALI-2: includes 3 m neoprene cable H07RN-F 4x1,0 Ø10,0 mm Control system: ON/OFF, DALI-2 Ingress protection: IP66 Impact resistance: IK08 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: -20°C — +50°C Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 2600 g Dimensions: Ø150x255 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, anti-glare shield, WF2002 Neoprene cable - H07RN-F 2x1,00 Ø8,3 mm, WFA02AA Neoprene cable - H07RN-F 4x1,00 Ø10 mm, WNAP10A1 Windproof cable tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling) with ceiling rose
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K
Optics	18°, 24°, 37°, 61°, diffuse
CRI Colour Rendering Index	80, >90
Body material	body in anticorodal aluminium, ceiling rose in steel
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	grey, cor-ten, white, anthracite
Power supply unit	built-in power supply unit
Power cables	on/off: includes 3 m neoprene cable H07RN-F 2x1,0 Ø8,3 mm DALI-2: includes 3 m neoprene cable H07RN-F 4x1,0 Ø10,0 mm
Control system	ON/OFF, DALI-2
Ingress protection	IP66
Impact resistance	IK08
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

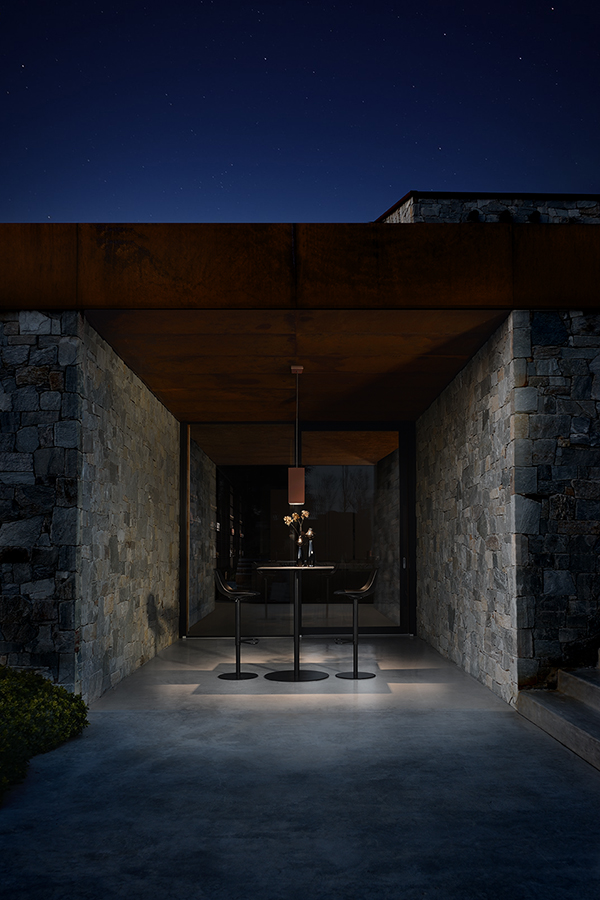

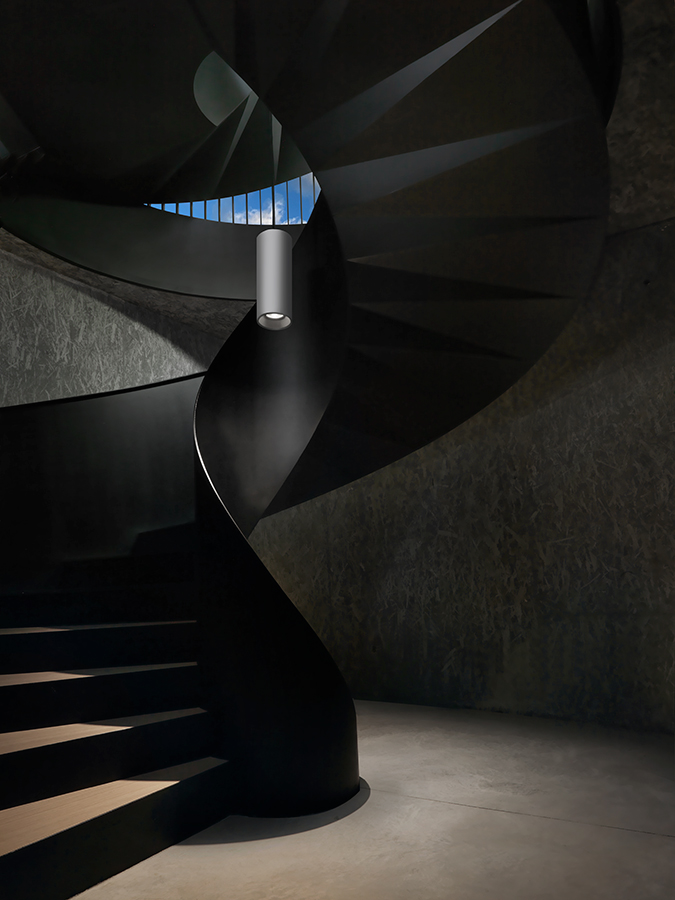

Gallery

Accessories and power supply units

Accessories (5)

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

Can be fitted on all optics except for diffuse optics

Anti-glare shield

Add the optical accessory in the code generator

anti-glare shield

built into the lighting fixture

Can be fitted on all optics except for diffuse optics

Various accessories

WNAP10A1

Windproof cable

Cables

Order together with the lighting fixture

WF2002

Neoprene cable - H07RN-F 2x1,00 Ø8,3 mm

your choice of length

on/off

Order together with the lighting fixture

WFA02AA

Neoprene cable - H07RN-F 4x1,00 Ø10 mm

your choice of length

DALI-2

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
