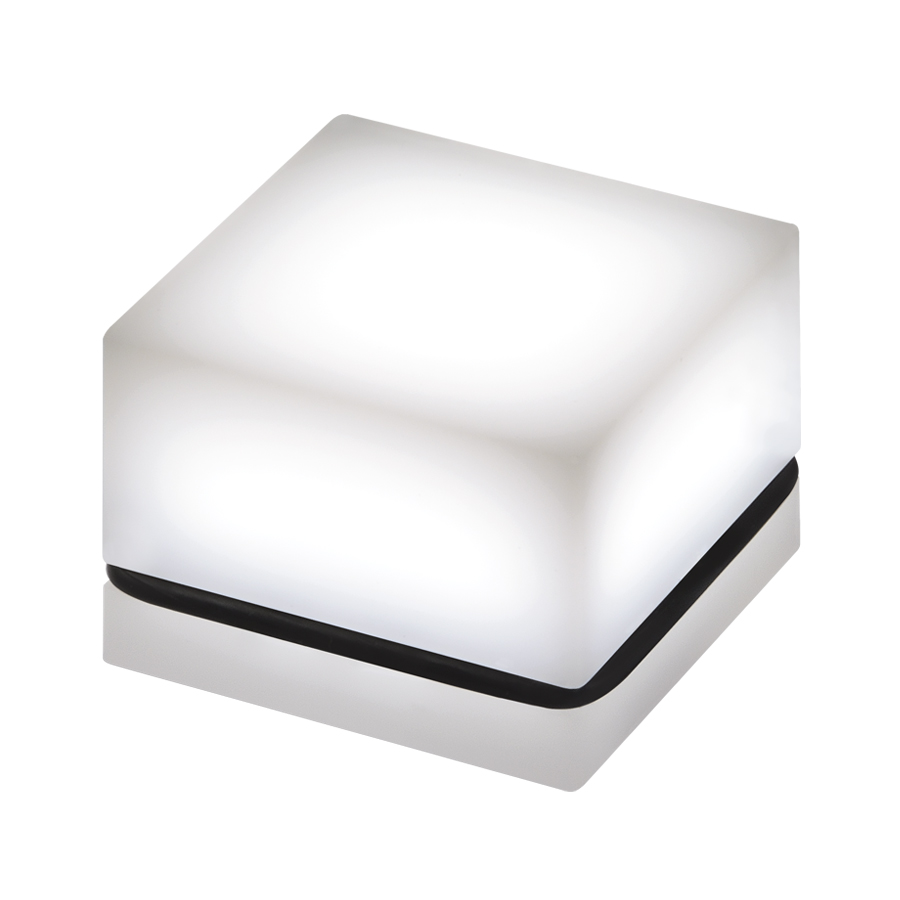

Goccia 2.5

Step lights for outdoor applications

step light for outdoor applications - 1.5W 24Vdc - 45x45x33 mm

Generate code

Technical data

Print technical data

kg 0.105
IP65
IP68
IK10

Installation	step light for outdoor applications (not suitable for use in immersion in swimming pools or fountains)
Power consumption	1,5W
Power supply	24Vdc
Lumen output at source	96 lm (3000K)
Delivered lumen output	32 lm (3000K)
Datasheet	Goccia 2.5 step light for outdoor applications (not suitable for use in immersion in swimming pools or fountains); walkover; recessed (wall, floor); Power consumption: 1,5W; Power supply: 24Vdc; Lumen output at source: 96 lm (3000K); Delivered lumen output: 32 lm (3000K); 1 mid-power LED, 3-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: diffuse: uniform diffuse output obtained through a mixing chamber built into the polyurethane resin body; CRI Colour Rendering Index: 80; Body material: moulded polyurethane resin body. Internal aluminium heat sink. Nitril rubber O-ring to seal the outer casing; Seals: The NBR nitrile rubber O-rings ensure the fixture’s IP rating is preserved, guaranteeing continued protection; power supply unit not included; includes 1.50/5 m neoprene cable, 05RN-F 2x0.35 Ø4.6 mm; Ingress protection: IP65, IP68; Impact resistance: IK10; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 105 g; Dimensions: 45x45x33 mm; Volume of thermal heatsink: Ø100x90 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WCA11 Outer casing for solid walls, WCA29 Outer casing for plasterboard, WL0100 Suction cup; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionGoccia 2.5 step light for outdoor applications (not suitable for use in immersion in swimming pools or fountains) walkover recessed (wall, floor) Power consumption: 1,5W Power supply: 24Vdc Lumen output at source: 96 lm (3000K) Delivered lumen output: 32 lm (3000K) 1 mid-power LED, 3-step MacAdam, 60 000h L80 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: diffuse: uniform diffuse output obtained through a mixing chamber built into the polyurethane resin body CRI Colour Rendering Index: 80 Body material: moulded polyurethane resin body. Internal aluminium heat sink. Nitril rubber O-ring to seal the outer casing Seals: The NBR nitrile rubber O-rings ensure the fixture’s IP rating is preserved, guaranteeing continued protection power supply unit not included includes 1.50/5 m neoprene cable, 05RN-F 2x0.35 Ø4.6 mm Ingress protection: IP65, IP68 Impact resistance: IK10 Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 105 g Dimensions: 45x45x33 mm Volume of thermal heatsink: Ø100x90 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WCA11 Outer casing for solid walls, WCA29 Outer casing for plasterboard, WL0100 Suction cup tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor)
Number and type of LED	1 mid-power LED, 3-step MacAdam, 60 000h L80 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K
Optics	diffuse
CRI Colour Rendering Index	80
Body material	resin body
Power supply unit	power supply unit not included
Power cables	includes 1.50/5 m neoprene cable, 05RN-F 2x0.35 Ø4.6 mm
Ingress protection	IP65, IP68
Impact resistance	IK10
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (3)

Outer casings

WCA11

Outer casing for solid walls

WCA29

Outer casing for plasterboard

Various accessories

Recommended accessory

WL0100

Suction cup

Cables

Choose the power cable in the code generator

Power supply units (24)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 12W 350mA constant current; max 17W 400mA constant current; max 19W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 12Vdc; 144W With 24 Vdc input:; 24Vdc; 288W With 48 Vdc input:; 48Vdc; 576W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IP	IP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input	12-24-48Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W With 48 Vdc input:; 48Vdc; 240W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W With 48 Vdc input:; 48Vdc; 480W 3 channels With 12 Vdc input:; 12Vdc; 180W With 24 Vdc input:; 24Vdc; 360W With 48 Vdc input:; 48Vdc; 720W 4 channels With 12 Vdc input:; 12Vdc; 192W With 24 Vdc input:; 24Vdc; 384W With 48 Vdc input:; 48Vdc; 768W
Dimmering	0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	12-24Vdc 24Vdc
Output	1 channel With 12 Vdc input:; 12Vdc; 60W With 24 Vdc input:; 24Vdc; 120W 2 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 3 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W 4 channels With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input	12-24Vdc 24Vdc
Output	With 12 Vdc input:; 12Vdc; 120W With 24 Vdc input:; 24Vdc; 240W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

Control input (1)

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g
