Naka 2.0

Step lights for outdoor applications

step light for outdoor applications - max 2W max 700mA / 3W 230Vac

Generate code

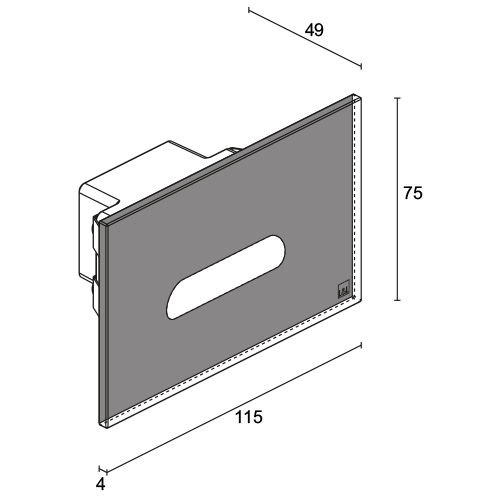

Technical data

Print technical data

Required outer casing not included

kg 0.200
IP66
IK07

Installation	step light for outdoor applications
Power consumption	max 2W - max 700mA; 3W - 230Vac
Power supply	230Vac, max 700mA
Lumen output at source	220 lm
Delivered lumen output	46 lm (3000K)
Datasheet	Naka 2.0 step light for outdoor applications; recessed (wall); Power consumption: max 2W - max 700mA; 3W - 230Vac; Power supply: 230Vac, max 700mA; Lumen output at source: 220 lm; Delivered lumen output: 46 lm (3000K); 1 power LED, 2-step MacAdam / 3 step Macadam (2200K), 60 000h L80 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: asymmetrical: optical system consisting of an asymmetrical reflector installed in the body of the fixture to create a controlled downward light beam and reduce light spill to a minimum, asymmetrical; CRI Colour Rendering Index: >90; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent corrosion resistance, painted black. Black finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; Glass serigraphy: white vitrified serigraphy, black vitrified serigraphy; Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity and tempered for excellent resistance to knocks and scratches, and white vitrified serigraphy, 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity and tempered for excellent resistance to knocks and scratches, and black vitrified serigraphy; Installation: with special outer casing (required, but not included) for installation flush with the wall; with kit for standard box 503 (required, but not included); built-in power supply unit, power supply unit not included; 700mA version: includes 0.25 m PVC cable FROR 2x0.35 Ø4.0 mm; 230Vac version: includes 0.15 m FEP + PVC cable, 2x0.75 Ø4.7 mm; Ingress protection: IP66; Impact resistance: IK07; only compatible with Casambi in the 700mA version; Operating temperature: -20°C — +50°C; Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II, class III; Weight: 200 g; Dimensions: 115x75x49 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WCA24 Outer casing for solid walls or plasterboard thickness 12.5 mm, WL0500 Suction cup, WN0C20A0 Kit for 20-mm-thick plasterboard, WN0C20A1 Kit for standard box 503; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionNaka 2.0 step light for outdoor applications recessed (wall) Power consumption: max 2W - max 700mA; 3W - 230Vac Power supply: 230Vac, max 700mA Lumen output at source: 220 lm Delivered lumen output: 46 lm (3000K) 1 power LED, 2-step MacAdam / 3 step Macadam (2200K), 60 000h L80 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: asymmetrical: optical system consisting of an asymmetrical reflector installed in the body of the fixture to create a controlled downward light beam and reduce light spill to a minimum, asymmetrical CRI Colour Rendering Index: >90 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent corrosion resistance, painted black. Black finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector Glass serigraphy: white vitrified serigraphy, black vitrified serigraphy Screen material: 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity and tempered for excellent resistance to knocks and scratches, and white vitrified serigraphy, 4-mm-thick transparent extra-clear glass, with high transmittance to ensure chromatic uniformity and tempered for excellent resistance to knocks and scratches, and black vitrified serigraphy Installation: with special outer casing (required, but not included) for installation flush with the wall; with kit for standard box 503 (required, but not included) built-in power supply unit, power supply unit not included 700mA version: includes 0.25 m PVC cable FROR 2x0.35 Ø4.0 mm; 230Vac version: includes 0.15 m FEP + PVC cable, 2x0.75 Ø4.7 mm Ingress protection: IP66 Impact resistance: IK07 only compatible with Casambi in the 700mA version Operating temperature: -20°C — +50°C Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II, class III Weight: 200 g Dimensions: 115x75x49 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WCA24 Outer casing for solid walls or plasterboard thickness 12.5 mm, WL0500 Suction cup, WN0C20A0 Kit for 20-mm-thick plasterboard, WN0C20A1 Kit for standard box 503 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall)
Number and type of LED	1 power LED, 2-step MacAdam / 3 step Macadam (2200K), 60 000h L80 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K

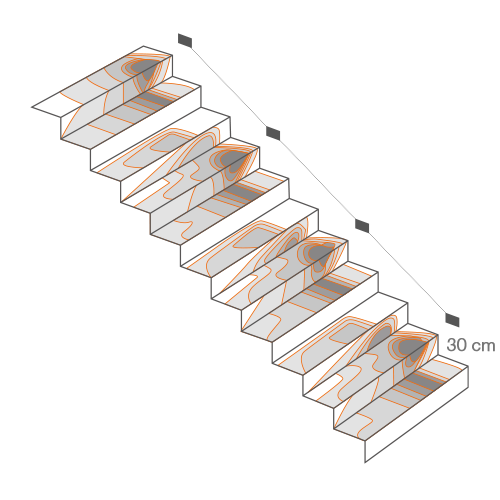

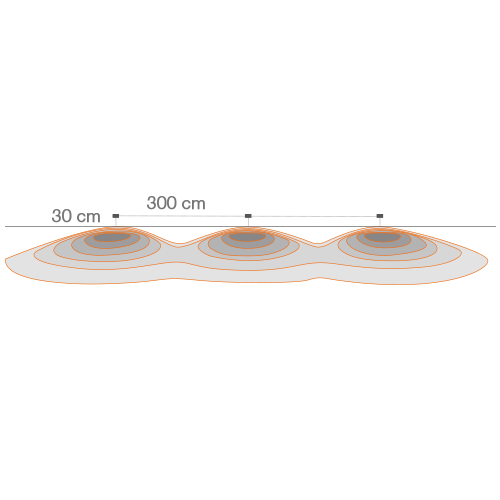

Optics	asymmetrical
CRI Colour Rendering Index	>90
Body material	body in die-cast aluminium
Screen material	screen in serigraphed, tempered, transparent extra-clear glass
Glass serigraphy	white, black
Power supply unit	built-in power supply unit, power supply unit not included
Power cables	700mA version: includes 0.25 m PVC cable FROR 2x0.35 Ø4.0 mm; 230Vac version: includes 0.15 m FEP + PVC cable, 2x0.75 Ø4.7 mm
Ingress protection	IP66
Impact resistance	IK07
Notes	only compatible with Casambi in the 700mA version
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (4)

Outer casings

Required outer casing not included WCA24 Outer casing for solid walls or plasterboard thickness 12.5 mm	WN0C20A0 Kit for 20-mm-thick plasterboard for outer casing WCA23 / WCA24
WN0C20A1 Kit for standard box 503

Various accessories

Recommended accessory

WL0500

Suction cup

Power supply units (26)

A13350VL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 8W
Power	8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A13500TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 6W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A13700IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	700mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A13700QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	700mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A14500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A15500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A16350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 11W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A19220TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	100mA constant current; max 4,1W 120mA constant current; max 5W 140mA constant current; max 5,8W 160mA constant current; max 6,6W 180mA constant current; max 7,4W 200mA constant current; max 8,3W 220mA constant current; max 9,1W 240mA constant current; max 10W 260mA constant current; max 10,8W 280mA constant current; max 11,6W 300mA constant current; max 12,4W 320mA constant current; max 13,2W 340mA constant current; max 14,1W 360mA constant current; max 15W 60mA constant current; max 2,5W 80mA constant current; max 3,3W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A19350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 15W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A310500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A310500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A312350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A312350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A39700IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI039T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1050mA constant current; max 39W 350mA constant current; max 15W 500mA constant current; max 21W 550mA constant current; max 23W 650mA constant current; max 27W 700mA constant current; max 29W 750mA constant current; max 31W 850mA constant current; max 35W 900mA constant current; max 37W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI042T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1000mA constant current; max 42W 1050mA constant current; max 42W 300mA constant current; max 13W 350mA constant current; max 15W 400mA constant current; max 18W 450mA constant current; max 20W 500mA constant current; max 22W 550mA constant current; max 24W 600mA constant current; max 27W 650mA constant current; max 29W 700mA constant current; max 31W 750mA constant current; max 32W 800mA constant current; max 33W 850mA constant current; max 35W 900mA constant current; max 38W 950mA constant current; max 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNIC30T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 19,5W 400mA constant current; max 21W 430mA constant current; max 22,5W 460mA constant current; max 24W 490mA constant current; max 26W 520mA constant current; max 27,5W 550mA constant current; max 29W 580mA constant current; max 30W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	350mA constant current; max 18W
Dimmering	Mains dimming
Power supply unit IP	IP20

AD020500TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	500mA constant current; max 21W
Dimmering	Mains dimming
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 12W 350mA constant current; max 17W 400mA constant current; max 19W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI
Power supply unit IP	IP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 20W 400mA constant current; max 21W 430mA constant current; max 23W 460mA constant current; max 25W 490mA constant current; max 26W 520mA constant current; max 26W 550mA constant current; max 27W 580mA constant current; max 29W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	PUSH, DALI
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming
Power supply unit IP	IP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, DALI
Power supply unit IP	IP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

Control gear (6)

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input	24Vdc 48Vdc
Output	1 channel With 24 Vdc input:; 1050mA constant current; max 20W With 24 Vdc input:; 350mA constant current; max 6,7W With 24 Vdc input:; 500mA constant current; max 9,5W With 24 Vdc input:; 700mA constant current; max 13,3W With 48 Vdc input:; 1050mA constant current; max 45W With 48 Vdc input:; 350mA constant current; max 15,5W With 48 Vdc input:; 500mA constant current; max 21,5W With 48 Vdc input:; 700mA constant current; max 30W 2 channels With 24 Vdc input:; 1050mA constant current; max 40W With 24 Vdc input:; 350mA constant current; max 13,3W With 24 Vdc input:; 500mA constant current; max 19W With 24 Vdc input:; 700mA constant current; max 26,6W With 48 Vdc input:; 1050mA constant current; max 90,3W With 48 Vdc input:; 350mA constant current; max 30W With 48 Vdc input:; 500mA constant current; max 43W With 48 Vdc input:; 700mA constant current; max 60W 3 channels With 24 Vdc input:; 1050mA constant current; max 60W With 24 Vdc input:; 350mA constant current; max 20W With 24 Vdc input:; 500mA constant current; max 28,5W With 24 Vdc input:; 700mA constant current; max 40W With 48 Vdc input:; 1050mA constant current; max 135W With 48 Vdc input:; 350mA constant current; max 45W With 48 Vdc input:; 500mA constant current; max 64,5W With 48 Vdc input:; 700mA constant current; max 90,3W 4 channels With 24 Vdc input:; 1050mA constant current; max 80W With 24 Vdc input:; 350mA constant current; max 26,6W With 24 Vdc input:; 500mA constant current; max 38W With 24 Vdc input:; 700mA constant current; max 53,2W With 48 Vdc input:; 1050mA constant current; max 180W With 48 Vdc input:; 350mA constant current; max 62W With 48 Vdc input:; 500mA constant current; max 86W With 48 Vdc input:; 700mA constant current; max 120W
Dimmering	0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 350mA constant current; max 4,2W With 24 Vdc input:; 350mA constant current; max 8,4W 2 channels With 12 Vdc input:; 350mA constant current; max 8,4W With 24 Vdc input:; 350mA constant current; max 16,8W 3 channels With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W 4 channels With 12 Vdc input:; 350mA constant current; max 16,8W With 24 Vdc input:; 350mA constant current; max 33,6W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 500mA constant current; max 6W With 24 Vdc input:; 500mA constant current; max 12W 2 channels With 12 Vdc input:; 500mA constant current; max 12W With 24 Vdc input:; 500mA constant current; max 24W 3 channels With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W 4 channels With 12 Vdc input:; 500mA constant current; max 24W With 24 Vdc input:; 500mA constant current; max 48W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	350mA constant current; max 8,4W
Dimmering	PWM
Power supply unit IP	IP20

WFA024500

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	500mA constant current; max 12W
Dimmering	PWM
Power supply unit IP	IP20

WFA024700

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	700mA constant current; max 16,8W
Dimmering	PWM
Power supply unit IP	IP20

Control input (5)

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input	110-230Vac 50/60Hz
Output	2 clean contacts
Ingress protection	IP20
Dimensions	58x43x21 mm
Cutout dimensions	Ø50 mm

Versions
