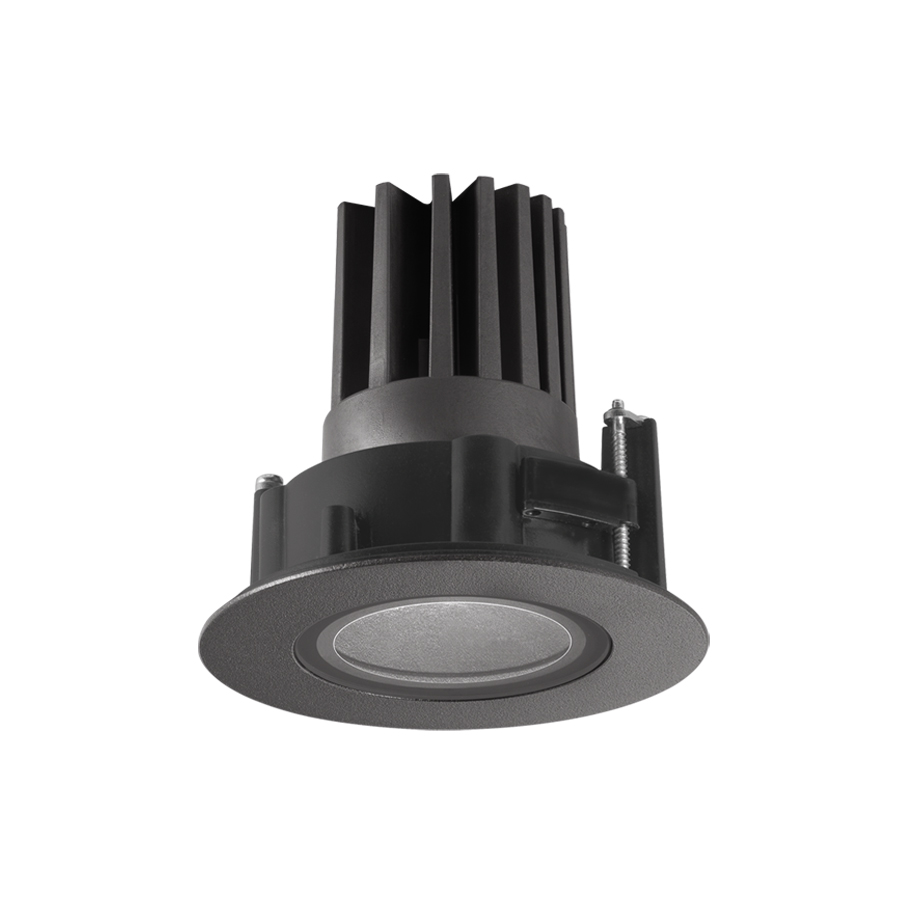

Altopiano 1.0

Recessed for outdoor applications

recessed for outdoor applications - 8W 110-230Vac - Ø98 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Screen in white-serigraphed glass

Technical data

Print technical data

0,6 kg
Ø90 mm
IP66
IK08
DALI-2

Installation	recessed for outdoor applications
Power consumption	8W
Power supply	110-230Vac
Lumen output at source	781 lm (3000K, CRI >90), 921 lm (3000K, CRI 80)
Delivered lumen output	498 lm (3000K, 25°, CRI >90), 588 lm (3000K, 25°, CRI 80)
Datasheet	Altopiano 1.0 recessed for outdoor applications; recessed (ceiling); Power consumption: 8W; Power supply: 110-230Vac; Lumen output at source: 781 lm (3000K, CRI >90), 921 lm (3000K, CRI 80); Delivered lumen output: 498 lm (3000K, 25°, CRI >90), 588 lm (3000K, 25°, CRI 80); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: 19°, 25°, 37°, 50°, 23°x64°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas; CRI Colour Rendering Index: 80, >90; Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 430 stainless steel, laser cut, machined and finished, then passivated to provide corrosion resistance of more than 1500 salt spray hours; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; Installation: The screw fastening system leaves plasterboard panels intact during installation. Fixture body just 90 mm high for installation in shallow spaces. Trim fixed magnetically to the cover, hiding the fixing screws and leaving a clean look; power supply unit included; includes 0.50 m neoprene cable, H07RN-F 2x1.0 Ø8.0 mm; Control system: ON/OFF, DALI-2; Ingress protection: IP66; Impact resistance: IK08; UGR < 19 for 19°, 25° and 37° optics; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 600 g; Dimensions: Ø98x90 mm; Cutout dimensions: Ø90 mm; Volume of thermal heatsink: Ø225x175 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, anti-glare shield, WCA19 Outer casing for solid walls (ceiling), WFA06 Two-pin male-female connector, WGA02 Retaining spring clip, WNAP10A0 Anti-fall kit; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionAltopiano 1.0 recessed for outdoor applications recessed (ceiling) Power consumption: 8W Power supply: 110-230Vac Lumen output at source: 781 lm (3000K, CRI >90), 921 lm (3000K, CRI 80) Delivered lumen output: 498 lm (3000K, 25°, CRI >90), 588 lm (3000K, 25°, CRI 80) 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: 19°, 25°, 37°, 50°, 23°x64°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas CRI Colour Rendering Index: 80, >90 Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 430 stainless steel, laser cut, machined and finished, then passivated to provide corrosion resistance of more than 1500 salt spray hours Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9006), white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003), finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be painted with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time Installation: The screw fastening system leaves plasterboard panels intact during installation. Fixture body just 90 mm high for installation in shallow spaces. Trim fixed magnetically to the cover, hiding the fixing screws and leaving a clean look power supply unit included includes 0.50 m neoprene cable, H07RN-F 2x1.0 Ø8.0 mm Control system: ON/OFF, DALI-2 Ingress protection: IP66 Impact resistance: IK08 UGR < 19 for 19°, 25° and 37° optics Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 600 g Dimensions: Ø98x90 mm Cutout dimensions: Ø90 mm Volume of thermal heatsink: Ø225x175 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, anti-glare shield, WCA19 Outer casing for solid walls (ceiling), WFA06 Two-pin male-female connector, WGA02 Retaining spring clip, WNAP10A0 Anti-fall kit tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K

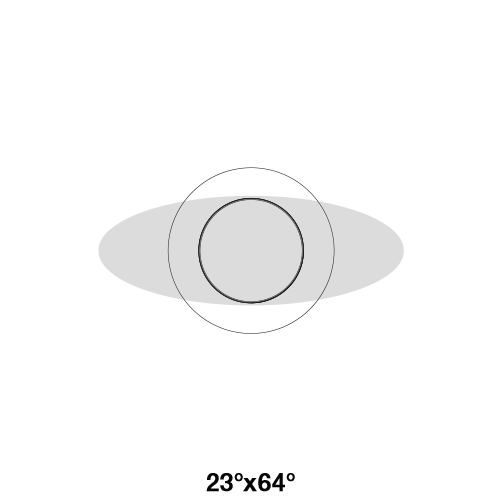

Optics	19°, 25°, 37°, 50°, 23°x64°, diffuse
CRI Colour Rendering Index	80, >90
Body material	body in thermally conductive technopolymer, trim in stainless steel
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	anthracite, cor-ten, grey, white, primer
Power supply unit	power supply unit included
Power cables	includes 0.50 m neoprene cable, H07RN-F 2x1.0 Ø8.0 mm
Control system	ON/OFF, DALI-2
Ingress protection	IP66
Impact resistance	IK08
Features	UGR < 19 for 19°, 25° and 37° optics
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (6)

Outer casings

WCA19

Outer casing for solid walls (ceiling)

Retaining spring clips

WGA02

Retaining spring clip

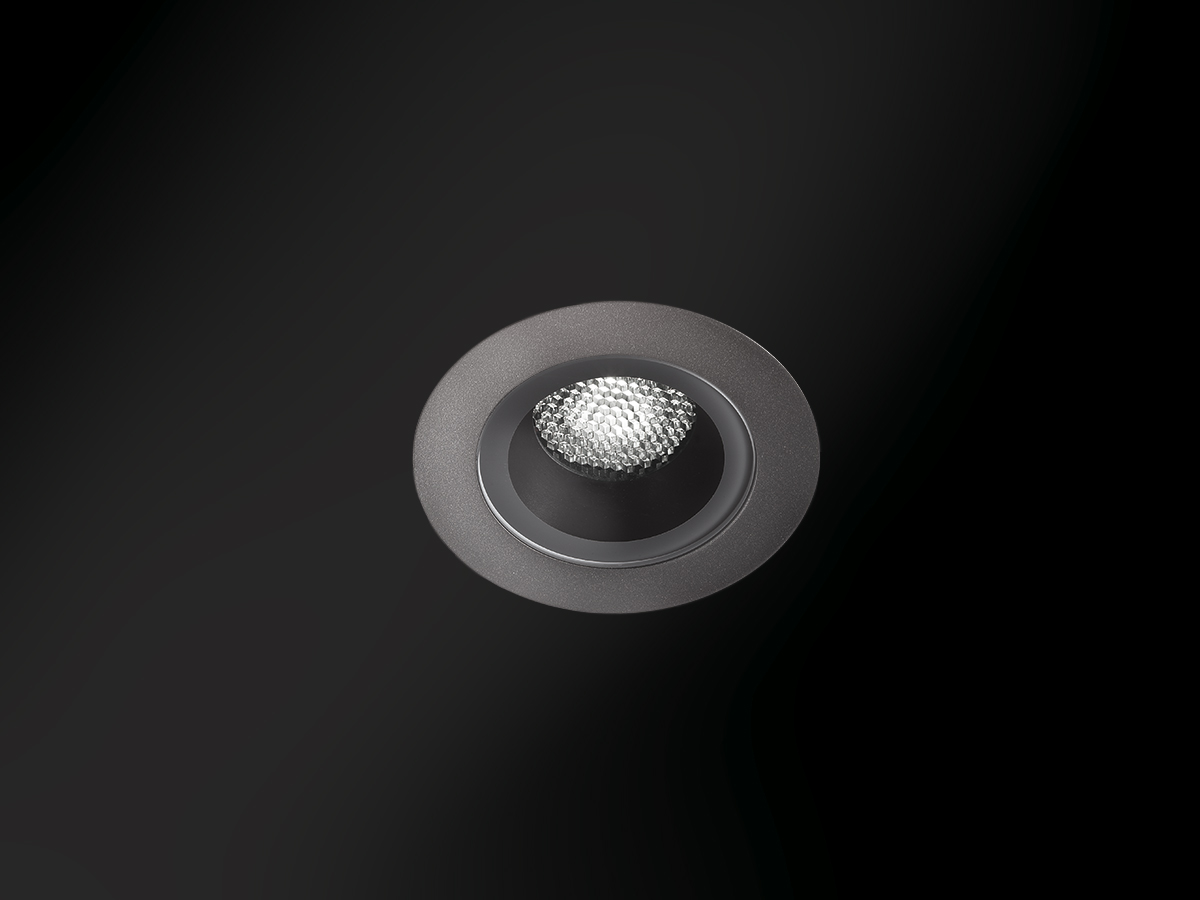

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be provided on all fixed optics except for diffuse and elliptical optics

Anti-glare shield

Add the optical accessory in the code generator

anti-glare shield

built into the lighting fixture

The anti-glare shield can be provided on all fixed optics except for diffuse and elliptical optics

Various accessories

WNAP10A0

Anti-fall kit

Wiring materials

WFA06

Two-pin male-female connector

IP66-IP68

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs

Versions
