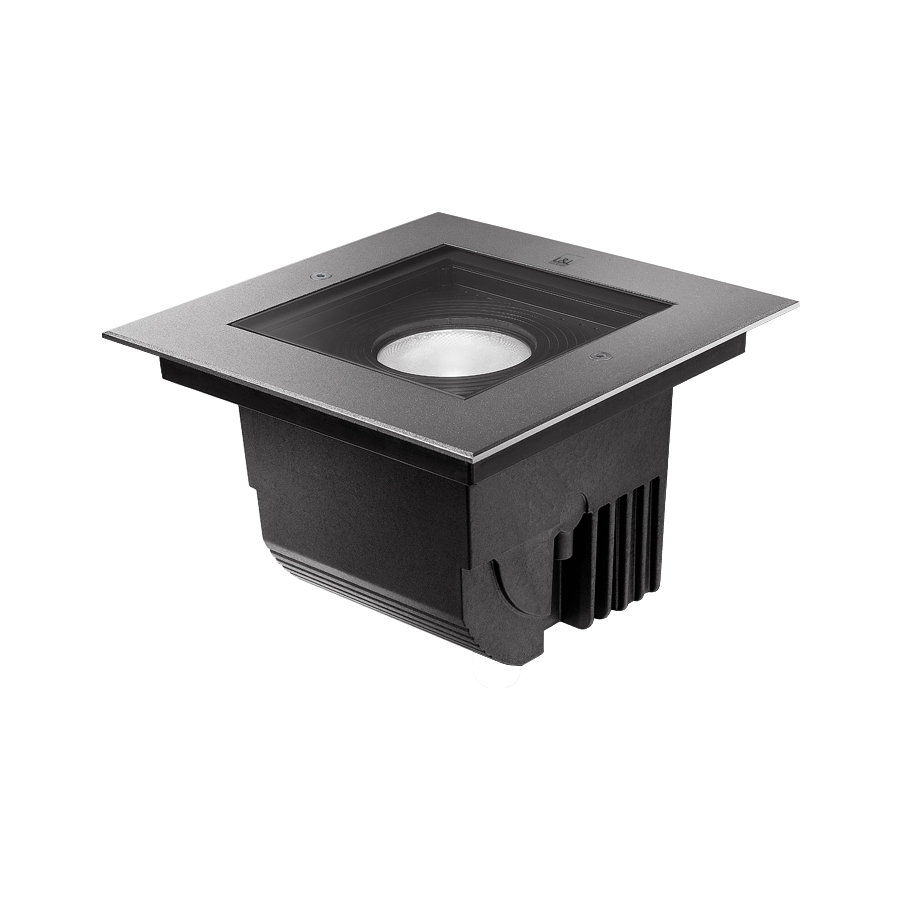

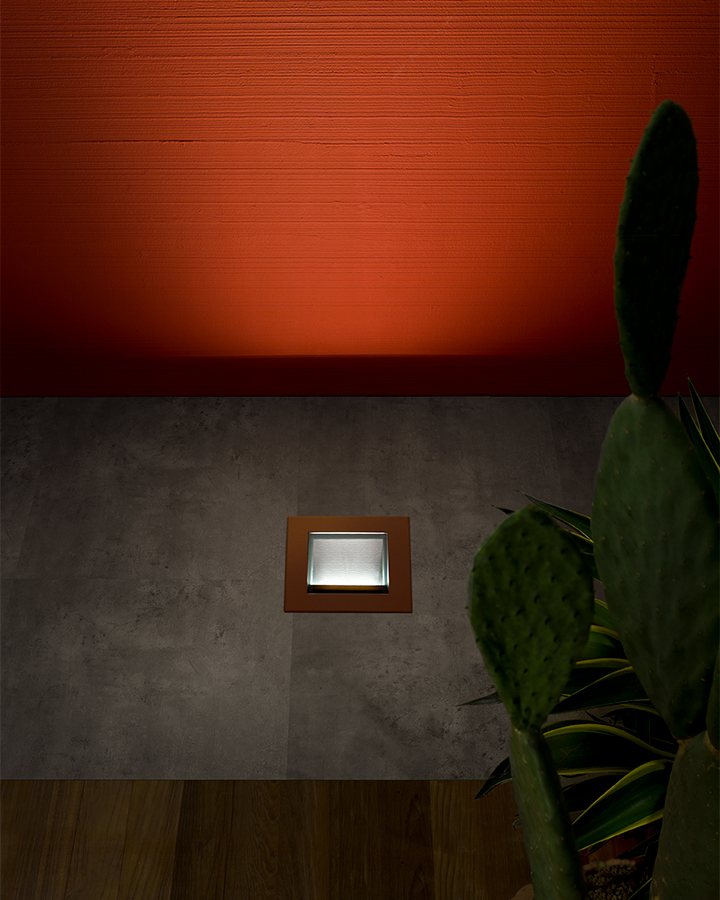

Quilatero 4.1

Recessed for outdoor applications

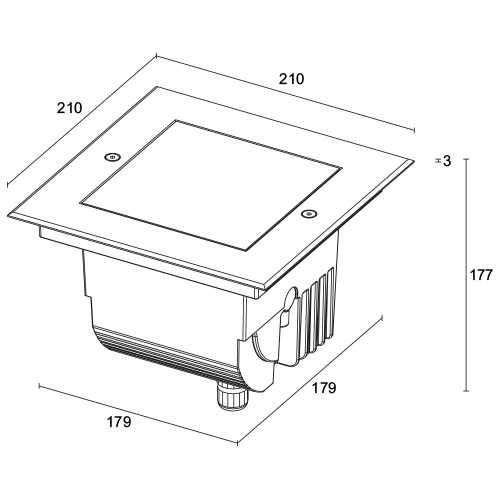

recessed for outdoor applications - 22W / 19W (wall washer optics) 110-230Vac (on/off) / 230Vac (DALI+PUSH) - 210x210 mm

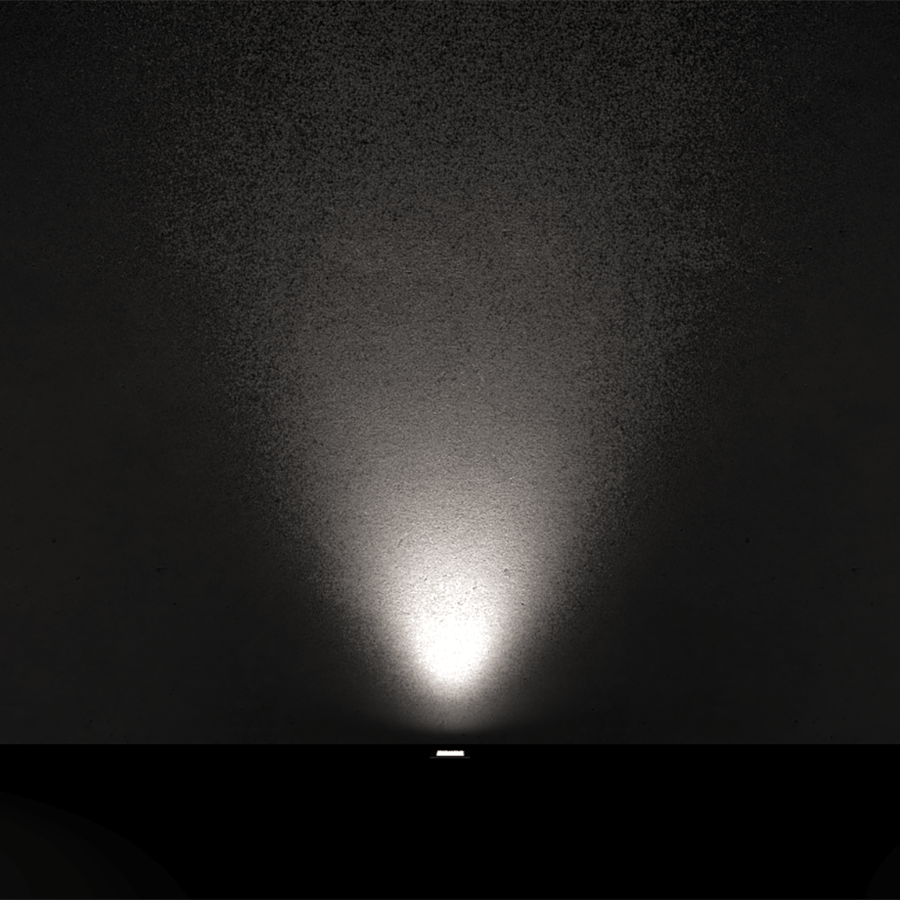

fixed focus

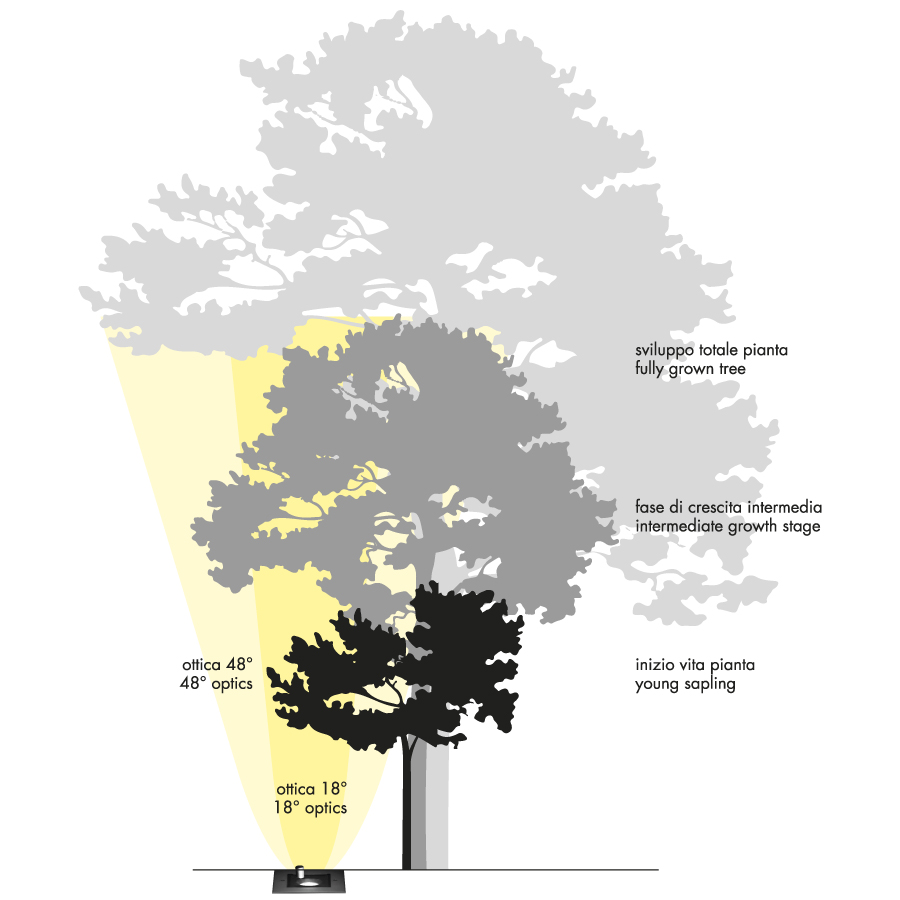

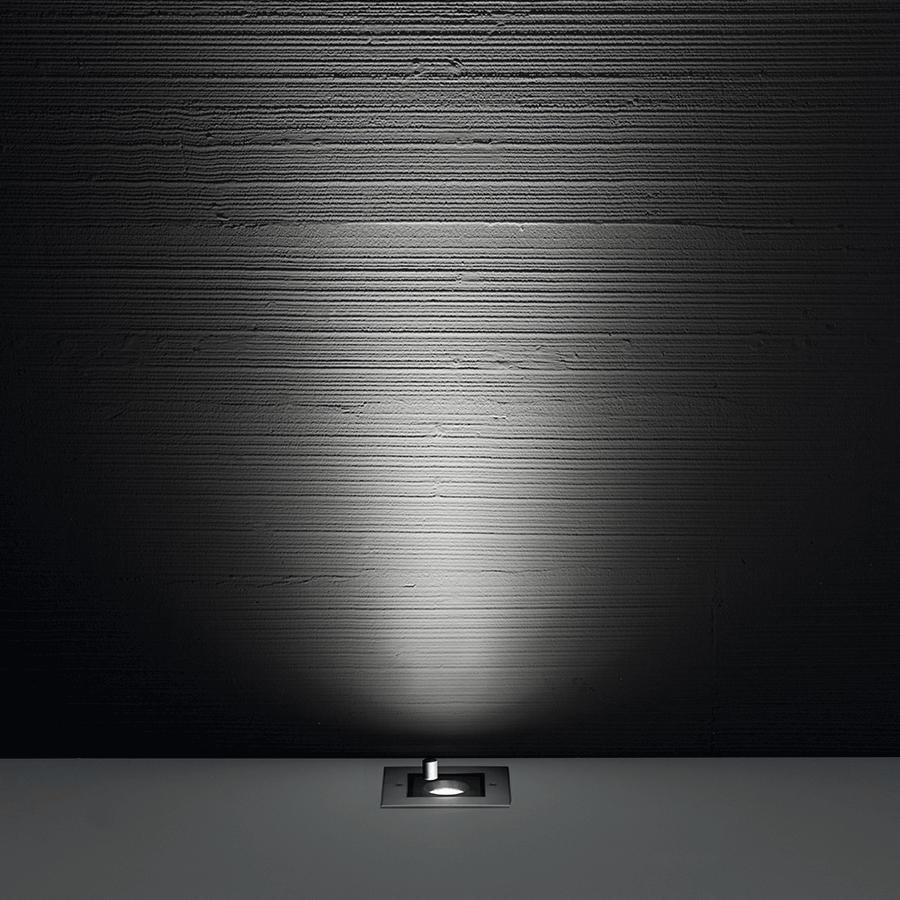

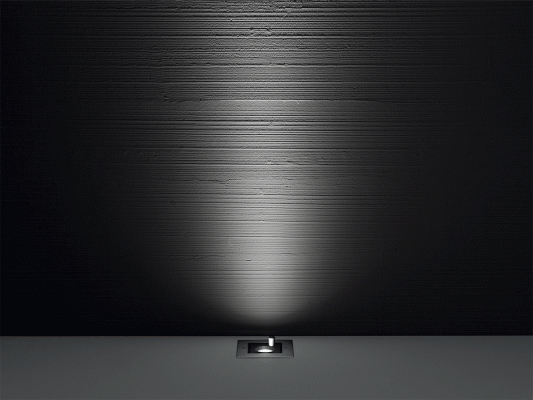

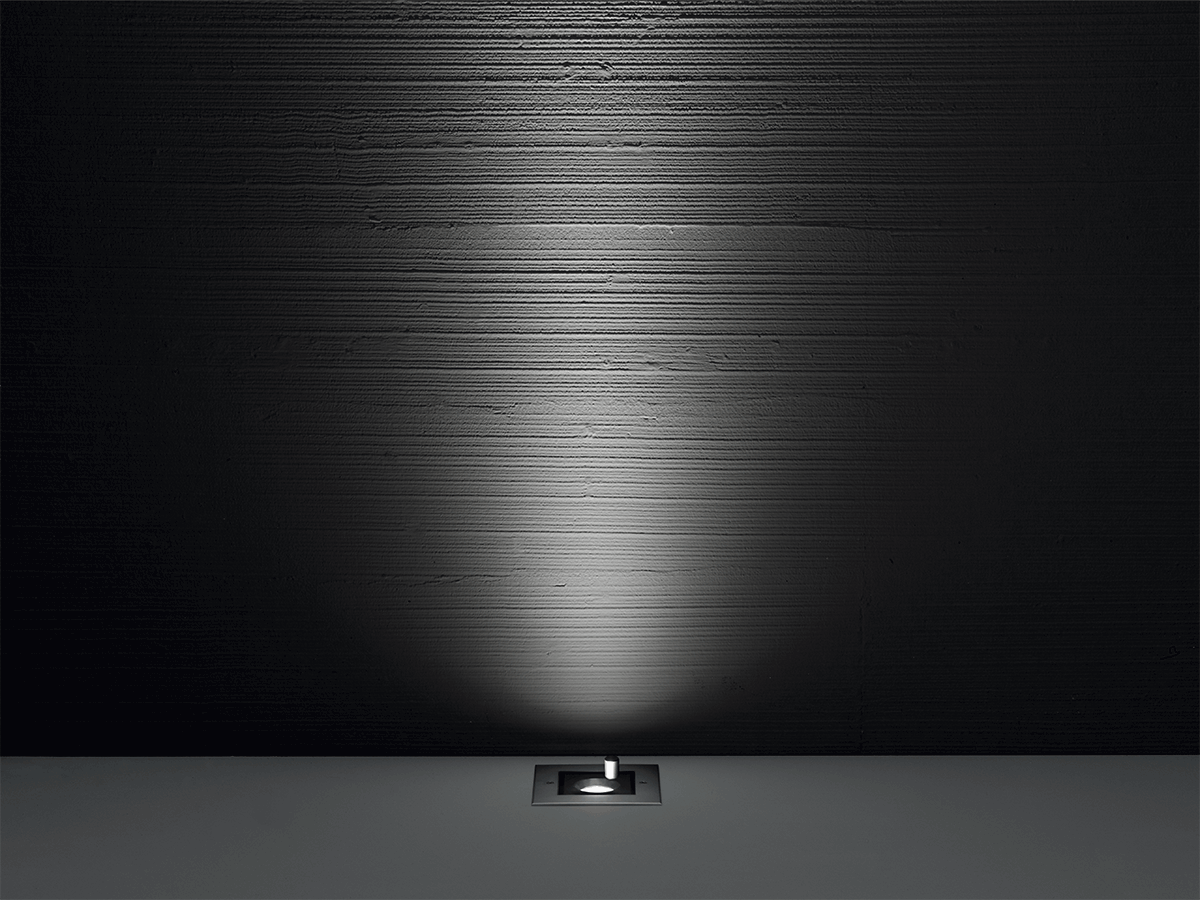

manual zoom lens adjustable using magnet included (20°—41°)

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Pre-wired cable in non-standard length
RAL finishes

Technical data

Print technical data

Required outer casing not included

kg 3000 - kN 30
2,53
IP6872h
IP66
IP69
IK10
DALI
PUSH

Installation	recessed for outdoor applications
Power consumption	22W, 19W (wall washer optics)
Power supply	on/off: 110-230Vac DALI+PUSH: 230Vac
Lumen output at source	2090 lm (3000K, CRI >90), 2469 lm (3000K, CRI 80)
Delivered lumen output	1541 lm (3000K, 17°, CRI >90), 1821 lm (3000K, 17°, CRI 80)
Datasheet	Quilatero 4.1 recessed for outdoor applications; drive-over up to 3000 kg; recessed (wall, floor); Power consumption: 22W, 19W (wall washer optics); Power supply: on/off: 110-230Vac DALI+PUSH: 230Vac; Lumen output at source: 2090 lm (3000K, CRI >90), 2469 lm (3000K, CRI 80); Delivered lumen output: 1541 lm (3000K, 17°, CRI >90), 1821 lm (3000K, 17°, CRI 80); 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); wall washer optics: 22 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: 17°, 24°, 32°, 53°, 17°x69°, 30°x73°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, sharp 43°: SHARP optical system consisting of a deep-set plano-convex lens for an extremely well-defined light beam, optical range 20°—41°: optical system consisting of a high-efficiency TIR lens combined with a magnet-adjusted rotary zoom controller for extreme flexibility of choice of light emission, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas, wall washer: optical system consisting of a recessed, tilted high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: 80, >90; Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh (saline) environments. Trim in AISI 316L stainless steel, laser cut, machined and finished, then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance of more than 2000 hours of salt spray (version with trim in stainless steel), body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 316L stainless steel, laser cut, machined and finished (version with cor-ten trim); Finishes: stainless steel, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 2000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 12-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance, 12-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light. Glass partially serigraphed black (RAL 9005), with serigraphed-grey edge (RAL 7015), and tempered for excellent impact and scratch resistance (version with wall-washer optics); Seals: the silicone rubber O-rings guarantee excellent, continued resistance to UV rays, resistance to water infiltration, and unchanging mechanical characteristics; Installation: product complete with IP68 connector and built-in IPS system. Compatible with H07RN-F cable with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Simplified connection for quick, effective installation; built-in power supply unit; Control system: ON/OFF, PUSH, DALI; Ingress protection: IP68 72h, IP66, IP69; Impact resistance: IK10; Fast installation: direct connection between fixture and mains power supply; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 2530 g; Dimensions: 210x210x177 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: anti-glare screen, honeycomb louvre, WCA16 Outer casing, WE0201 Magnet for adjustable optics and zoom lens; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionQuilatero 4.1 recessed for outdoor applications drive-over up to 3000 kg recessed (wall, floor) Power consumption: 22W, 19W (wall washer optics) Power supply: on/off: 110-230Vac DALI+PUSH: 230Vac Lumen output at source: 2090 lm (3000K, CRI >90), 2469 lm (3000K, CRI 80) Delivered lumen output: 1541 lm (3000K, 17°, CRI >90), 1821 lm (3000K, 17°, CRI 80) 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); wall washer optics: 22 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: 17°, 24°, 32°, 53°, 17°x69°, 30°x73°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, sharp 43°: SHARP optical system consisting of a deep-set plano-convex lens for an extremely well-defined light beam, optical range 20°—41°: optical system consisting of a high-efficiency TIR lens combined with a magnet-adjusted rotary zoom controller for extreme flexibility of choice of light emission, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas, wall washer: optical system consisting of a recessed, tilted high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: 80, >90 Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh (saline) environments. Trim in AISI 316L stainless steel, laser cut, machined and finished, then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance of more than 2000 hours of salt spray (version with trim in stainless steel), body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 316L stainless steel, laser cut, machined and finished (version with cor-ten trim) Finishes: stainless steel, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 2000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 12-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance, 12-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light. Glass partially serigraphed black (RAL 9005), with serigraphed-grey edge (RAL 7015), and tempered for excellent impact and scratch resistance (version with wall-washer optics) Seals: the silicone rubber O-rings guarantee excellent, continued resistance to UV rays, resistance to water infiltration, and unchanging mechanical characteristics Installation: product complete with IP68 connector and built-in IPS system. Compatible with H07RN-F cable with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Simplified connection for quick, effective installation built-in power supply unit Control system: ON/OFF, PUSH, DALI Ingress protection: IP68 72h, IP66, IP69 Impact resistance: IK10 Fast installation: direct connection between fixture and mains power supply Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 2530 g Dimensions: 210x210x177 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: anti-glare screen, honeycomb louvre, WCA16 Outer casing, WE0201 Magnet for adjustable optics and zoom lens tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor)
Number and type of LED	1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); wall washer optics: 22 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K

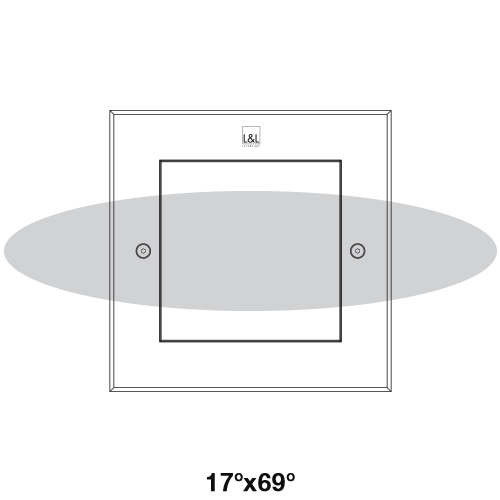

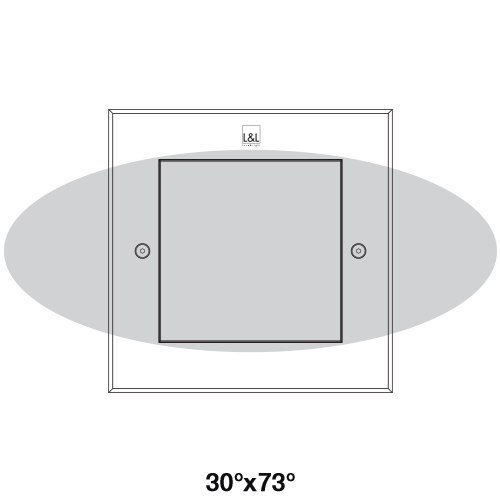

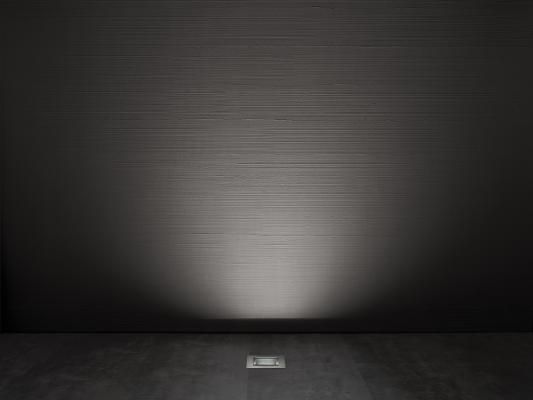

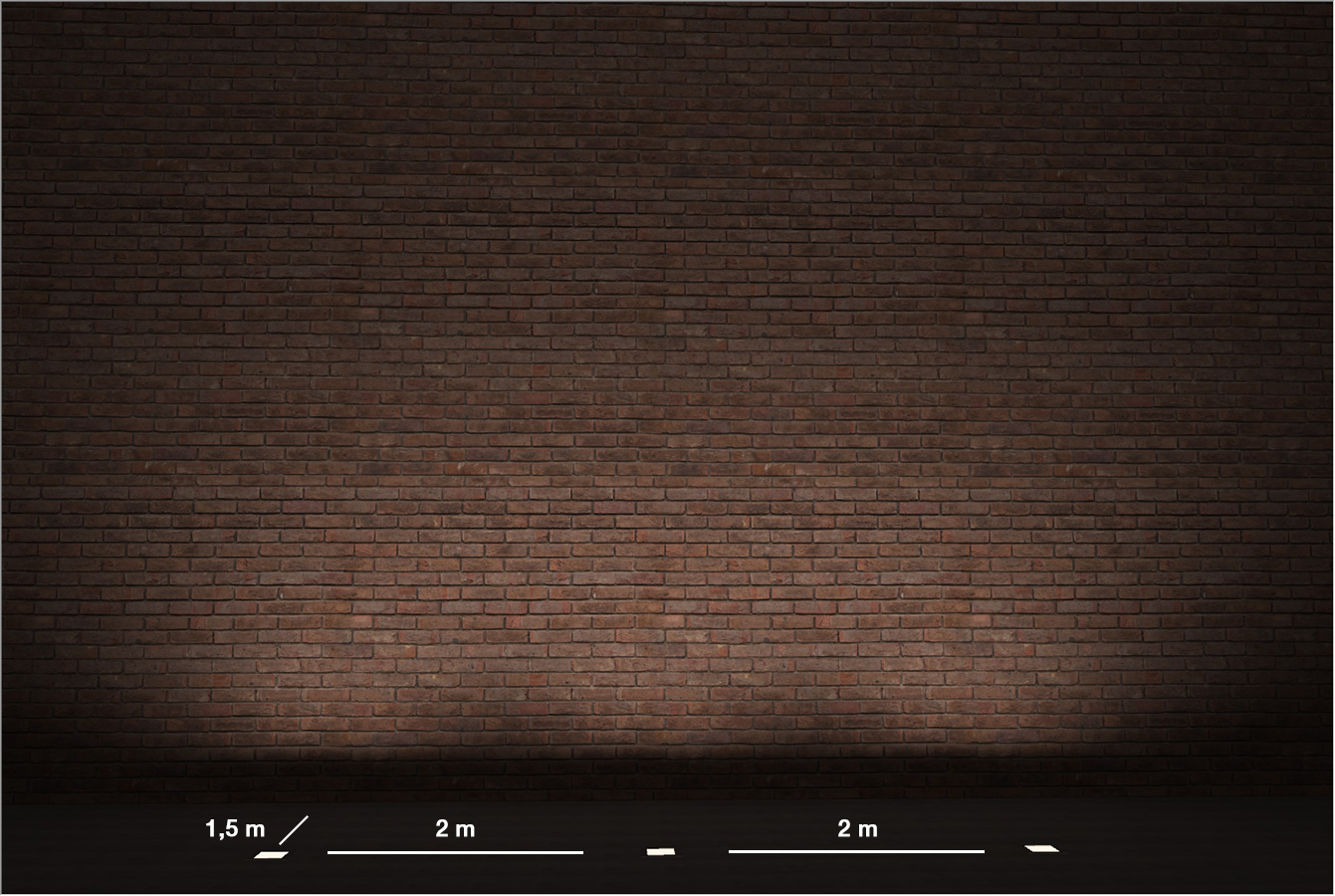

Optics	17°, 24°, 32°, sharp 43°, 53°, 17°x69°, optical range 20°—41°, 30°x73°, diffuse, wall washer
CRI Colour Rendering Index	80, >90
Body material	body in thermally conductive technopolymer, trim in AISI 316L stainless steel
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	stainless steel, cor-ten
Power supply unit	built-in power supply unit
Control system	ON/OFF, PUSH, DALI
Ingress protection	IP68 72h, IP66, IP69
Impact resistance	IK10
Features	Fast installation: direct connection between fixture and mains power supply
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (4)

Outer casings

Required outer casing not included

WCA16

Outer casing

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on the 17°, 24°, 32° and 53° optics

Screens

Add the optical accessory in the code generator

anti-glare screen

half transparent and half serigraphed black

not compatible with diffuse and wall washer optics

Spare parts

WE0201

Magnet for adjustable optics and zoom lens

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs

Versions
