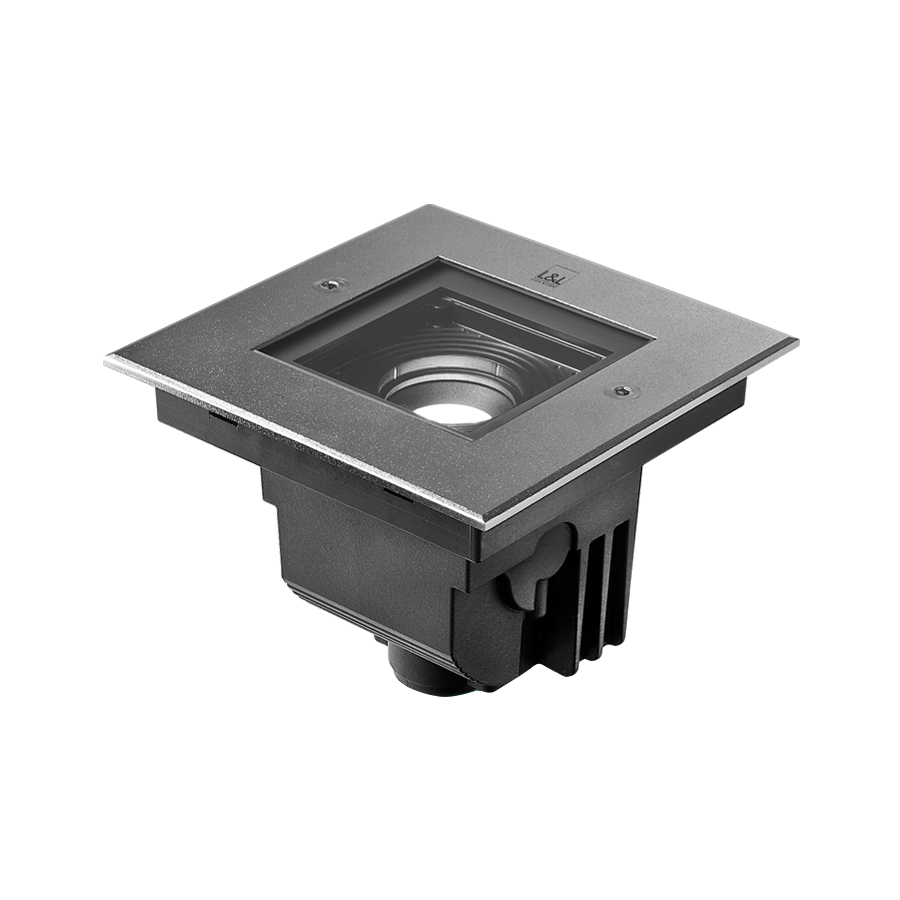

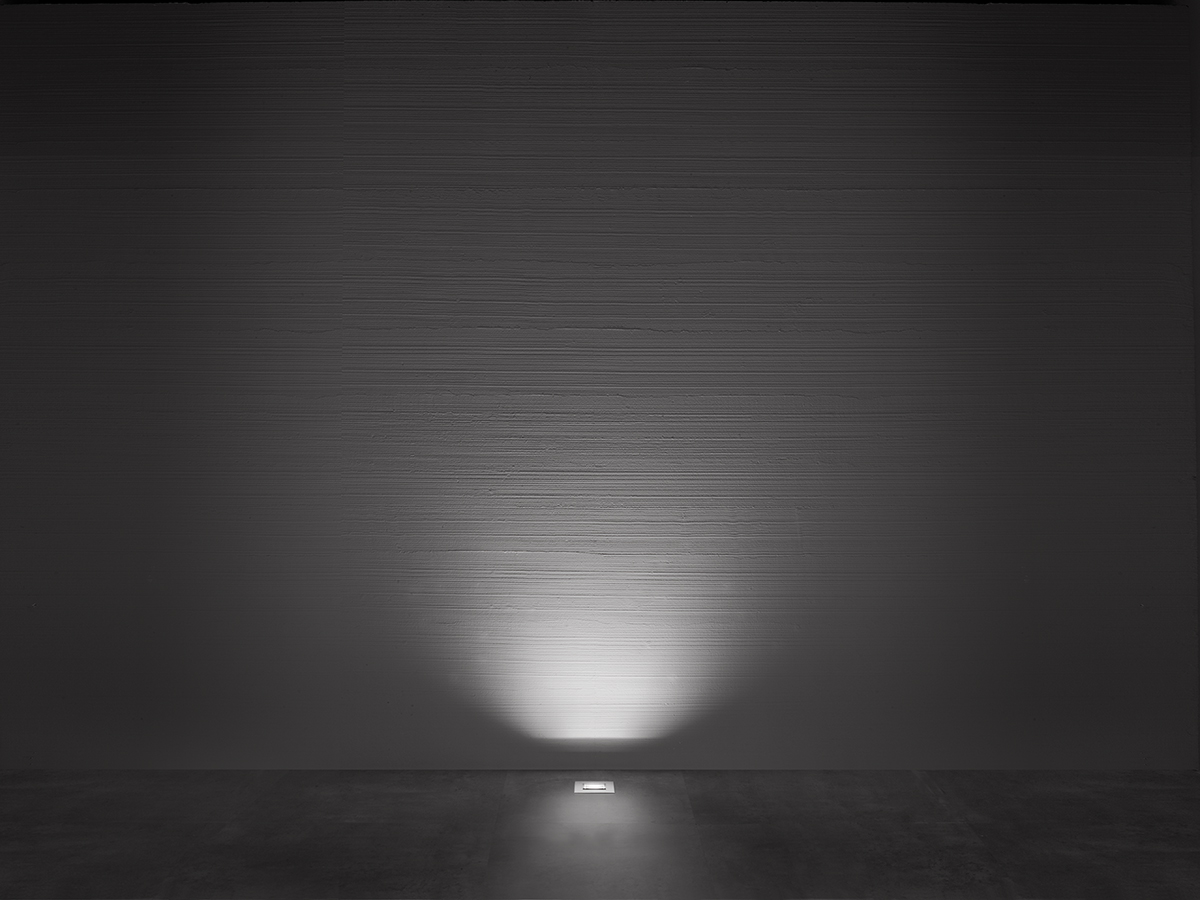

Quilatero 2.1

Recessed for outdoor applications

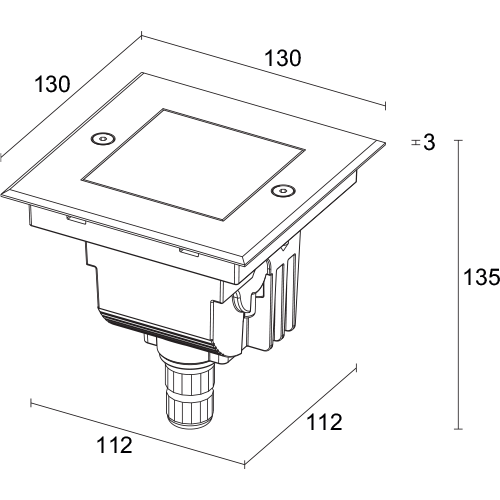

recessed for outdoor applications - 6W (wall washer optics) / 8W 110-230Vac - 130x130 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Pre-wired cable in non-standard length
RAL finishes

Technical data

Print technical data

Required outer casing not included

kg 2000 - kN 20
0,91
IP6872h
IP66
IP69
IK10

Installation	recessed for outdoor applications
Power consumption	6W (wall washer optics), 8W
Power supply	110-230Vac
Lumen output at source	526 lm (3000K, CRI >90), 657 lm (3000K, CRI 80)
Delivered lumen output	389 lm (3000K, CRI >90, 12°), 482 lm (3000K, CRI 80, 12°)
Datasheet	Quilatero 2.1 recessed for outdoor applications; drive-over up to 2000 kg; recessed (wall, floor); Power consumption: 6W (wall washer optics), 8W; Power supply: 110-230Vac; Lumen output at source: 526 lm (3000K, CRI >90), 657 lm (3000K, CRI 80); Delivered lumen output: 389 lm (3000K, CRI >90, 12°), 482 lm (3000K, CRI 80, 12°); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); wall washer optics: 9 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 8°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 12°, 34°: optical system consisting of a deep-set, high-efficiency TIR lens, 18°, 47°, 20°x47°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, sharp 63°: SHARP optical system consisting of a deep-set plano-convex lens for an extremely well-defined light beam, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas, wall washer: optical system consisting of a recessed, tilted high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: 80, >90; Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 316L stainless steel, laser cut, machined and finished (version with cor-ten trim), body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh (saline) environments. Trim in AISI 316L stainless steel, laser cut, machined and finished, then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance of more than 2000 hours of salt spray (version with trim in stainless steel); Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 2000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, stainless steel; RAL finish on request; Screen material: 10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance, 10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light. Glass partially serigraphed black (RAL 9005), with serigraphed-grey edge (RAL 7015), and tempered for excellent impact and scratch resistance (version with wall-washer optics); Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; Installation: product complete with IP68 connector and built-in IPS system. Compatible with H07RN-F cable with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Simplified connection for quick, effective installation; built-in power supply unit; Ingress protection: IP68 72h, IP66, IP69; Impact resistance: IK10; Fast installation: direct connection between fixture and mains power supply; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 910 g; Dimensions: 130x130x135 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: anti-glare screen, honeycomb louvre, WCA14 Outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionQuilatero 2.1 recessed for outdoor applications drive-over up to 2000 kg recessed (wall, floor) Power consumption: 6W (wall washer optics), 8W Power supply: 110-230Vac Lumen output at source: 526 lm (3000K, CRI >90), 657 lm (3000K, CRI 80) Delivered lumen output: 389 lm (3000K, CRI >90, 12°), 482 lm (3000K, CRI 80, 12°) 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); wall washer optics: 9 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 8°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, 12°, 34°: optical system consisting of a deep-set, high-efficiency TIR lens, 18°, 47°, 20°x47°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter, sharp 63°: SHARP optical system consisting of a deep-set plano-convex lens for an extremely well-defined light beam, diffuse: optical system consisting of a screen in frosted / transparent Plexiglas, wall washer: optical system consisting of a recessed, tilted high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: 80, >90 Body material: body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 316L stainless steel, laser cut, machined and finished (version with cor-ten trim), body made of heat-dissipating, carbon-fibre-reinforced semicrystalline technopolymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh (saline) environments. Trim in AISI 316L stainless steel, laser cut, machined and finished, then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance of more than 2000 hours of salt spray (version with trim in stainless steel) Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 2000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, stainless steel RAL finish on request Screen material: 10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light, serigraphed grey (RAL 7015), and tempered for excellent impact and scratch resistance, 10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light. Glass partially serigraphed black (RAL 9005), with serigraphed-grey edge (RAL 7015), and tempered for excellent impact and scratch resistance (version with wall-washer optics) Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time Installation: product complete with IP68 connector and built-in IPS system. Compatible with H07RN-F cable with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Simplified connection for quick, effective installation built-in power supply unit Ingress protection: IP68 72h, IP66, IP69 Impact resistance: IK10 Fast installation: direct connection between fixture and mains power supply Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 910 g Dimensions: 130x130x135 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: anti-glare screen, honeycomb louvre, WCA14 Outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor)
Number and type of LED	1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); wall washer optics: 9 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

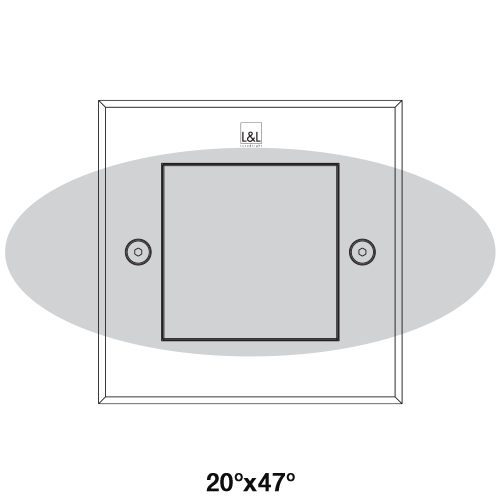

Optics	8°, 12°, 18°, 34°, 47°, sharp 63°, 20°x47°, diffuse, wall washer
CRI Colour Rendering Index	80, >90
Body material	body in thermally conductive technopolymer, trim in AISI 316L stainless steel
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	cor-ten, stainless steel
Power supply unit	built-in power supply unit
Ingress protection	IP68 72h, IP66, IP69
Impact resistance	IK10

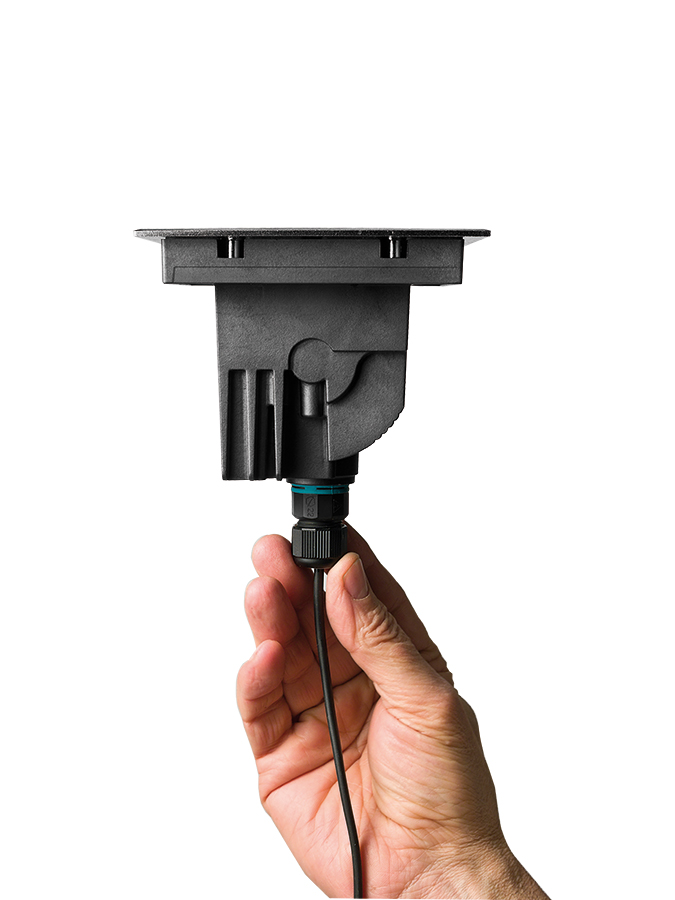

Features	Fast installation: direct connection between fixture and mains power supply
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

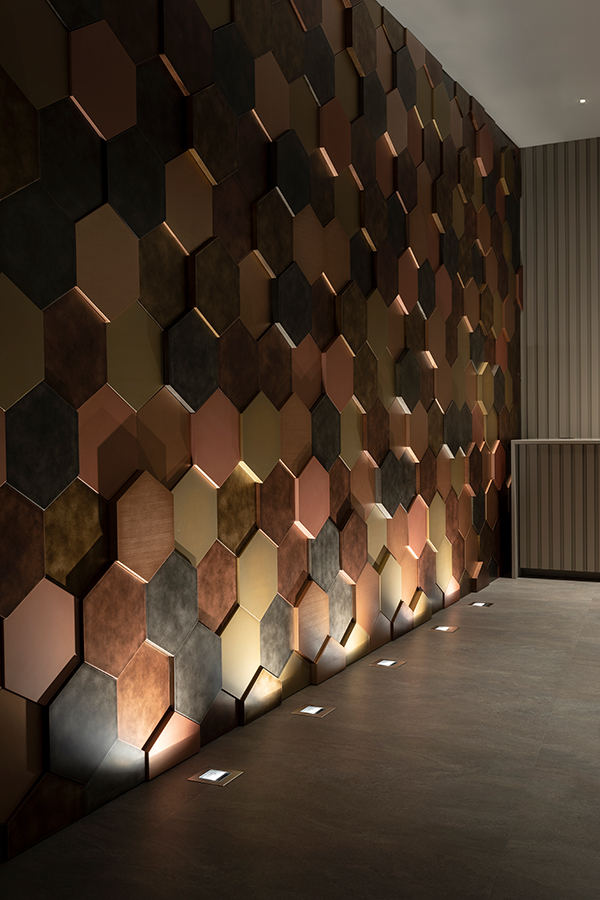

Gallery

Accessories and power supply units

Accessories (3)

Outer casings

Required outer casing not included

WCA14

Outer casing

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics except for sharp, diffuse and wall washer optics

Screens

Add the optical accessory in the code generator

anti-glare screen

half transparent and half serigraphed black

not compatible with diffuse and wall washer optics

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
