Berica IN 1.1

Wall mounted for indoor applications

wall mounted for indoor applications, double beam - 27W 230Vac - 340x120x33 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finish: black, anthracite

Technical data

Print technical data

0,90 kg
IP40
DALI
PUSH

Installation	wall mounted for indoor applications, double beam
Power consumption	27W
Power supply	230Vac
Lumen output at source	3280 lm (3000K)
Delivered lumen output	2624 lm (3000K, 43°x96°)
Datasheet	Berica IN 1.1 wall mounted for indoor applications, double beam; surface mounted (ceiling, wall); Power consumption: 27W; Power supply: 230Vac; Lumen output at source: 3280 lm (3000K); Delivered lumen output: 2624 lm (3000K, 43°x96°); 64 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 43°x96°, 54°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: >90; Body material: body and convex cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and convex cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel; Finishes: body painted white (RAL 9003), cover and end caps painted matt antique white (RAL 9001) (RAL 9001), body painted white (RAL 9003), cover and end caps painted antique bronze, body, cover and end caps painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003), cover and end caps painted matt aluminium grey, body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces; RAL finish on request; built-in power supply unit; Control system: ON/OFF, PUSH, DALI; Ingress protection: IP40; non-standard lengths available on request (max 1100mm), single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Glow wire test: 650°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 900 g; Dimensions: 340x120x33 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBerica IN 1.1 wall mounted for indoor applications, double beam surface mounted (ceiling, wall) Power consumption: 27W Power supply: 230Vac Lumen output at source: 3280 lm (3000K) Delivered lumen output: 2624 lm (3000K, 43°x96°) 64 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 43°x96°, 54°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: >90 Body material: body and convex cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and convex cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel Finishes: body painted white (RAL 9003), cover and end caps painted matt antique white (RAL 9001) (RAL 9001), body painted white (RAL 9003), cover and end caps painted antique bronze, body, cover and end caps painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003), cover and end caps painted matt aluminium grey, body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces RAL finish on request built-in power supply unit Control system: ON/OFF, PUSH, DALI Ingress protection: IP40 non-standard lengths available on request (max 1100mm), single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Glow wire test: 650° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 900 g Dimensions: 340x120x33 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall)
Number and type of LED	64 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

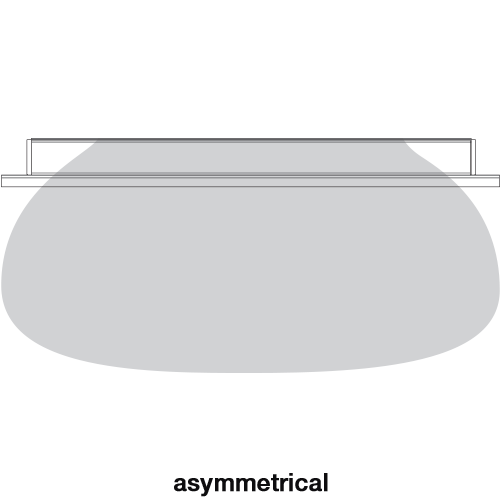

Optics	43°x96°, 54°x90°, asymmetrical, diffuse
CRI Colour Rendering Index	>90
Body material	body and cover in anticorodal aluminium
Finishes	antique white, antique bronze, white, matt aluminium grey, primer
Power supply unit	built-in power supply unit
Control system	ON/OFF, PUSH, DALI
Ingress protection	IP40
Notes	non-standard lengths available on request (max 1100mm), single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available
