River Wall 1.0

Linear profiles for outdoor applications

linear profile for outdoor applications - 20W 230Vac - with optics - 520 mm - pitch 50

Technical data

Print technical data

Required brackets, not included

kg 3,00
IP66
IK06

Installation	linear profile for outdoor applications
Power consumption	20W
Power supply	230Vac
Lumen output at source	1450 lm (3000K)
Delivered lumen output	1050 lm (3000K, 30°)
Datasheet	River Wall 1.0 linear profile for outdoor applications; surface mounted (ceiling, wall, floor) with brackets; Power consumption: 20W; Power supply: 230Vac; Lumen output at source: 1450 lm (3000K); Delivered lumen output: 1050 lm (3000K, 30°); 10 power LEDs pitch 50 mm, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: 11°, 30°, 47°, 10°x40°; CRI Colour Rendering Index: 80; Body material: body in anodized aluminium; Finishes: grey (RAL 9006); RAL finish on request; Screen material: screen in tempered, transparent glass; built-in power supply unit; includes 1,5 m neoprene cable, H07RN-F 3x1,0 Ø9,3 mm; Ingress protection: IP66; Impact resistance: IK06; DALI and 0/1-10V versions, and in/out connection, available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 45°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 3000 g; Dimensions: 520x55x73 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WM0811 Pair of brackets 125 mm, WM0812 Pair of brackets 275 mm; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionRiver Wall 1.0 linear profile for outdoor applications surface mounted (ceiling, wall, floor) with brackets Power consumption: 20W Power supply: 230Vac Lumen output at source: 1450 lm (3000K) Delivered lumen output: 1050 lm (3000K, 30°) 10 power LEDs pitch 50 mm, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, blue Optics: 11°, 30°, 47°, 10°x40° CRI Colour Rendering Index: 80 Body material: body in anodized aluminium Finishes: grey (RAL 9006) RAL finish on request Screen material: screen in tempered, transparent glass built-in power supply unit includes 1,5 m neoprene cable, H07RN-F 3x1,0 Ø9,3 mm Ingress protection: IP66 Impact resistance: IK06 DALI and 0/1-10V versions, and in/out connection, available on request, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 45°C (Ta 25°C) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 3000 g Dimensions: 520x55x73 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WM0811 Pair of brackets 125 mm, WM0812 Pair of brackets 275 mm tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, floor) with brackets
Number and type of LED	10 power LEDs pitch 50 mm, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, blue
Optics	11°, 30°, 47°, 10°x40°
CRI Colour Rendering Index	80
Body material	body in anodized aluminium
Screen material	screen in transparent, tempered glass
Finishes	grey
Power supply unit	built-in power supply unit
Power cables	includes 1,5 m neoprene cable, H07RN-F 3x1,0 Ø9,3 mm
Ingress protection	IP66
Impact resistance	IK06
Notes	DALI and 0/1-10V versions, and in/out connection, available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Product being discontinued

Read more

Close

Download

See all downloads

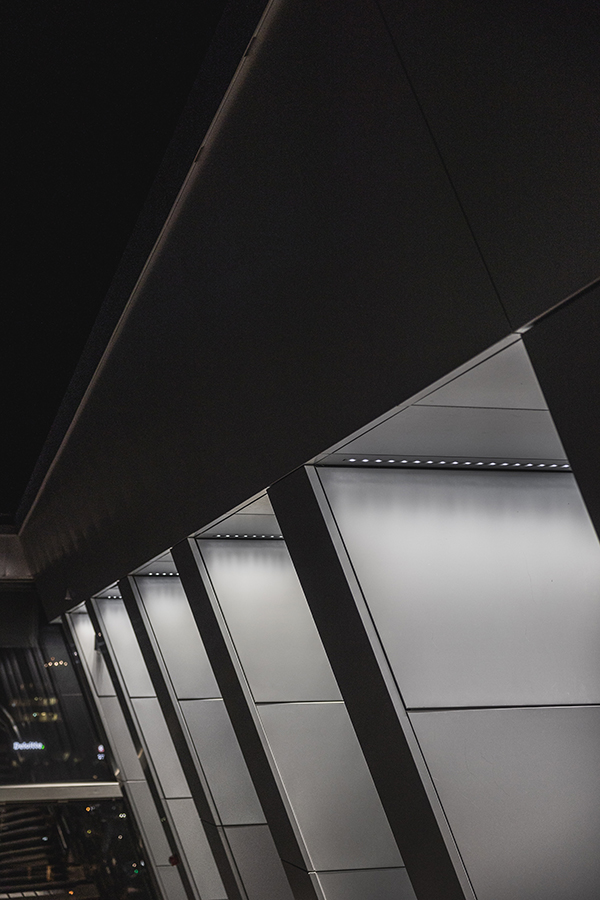

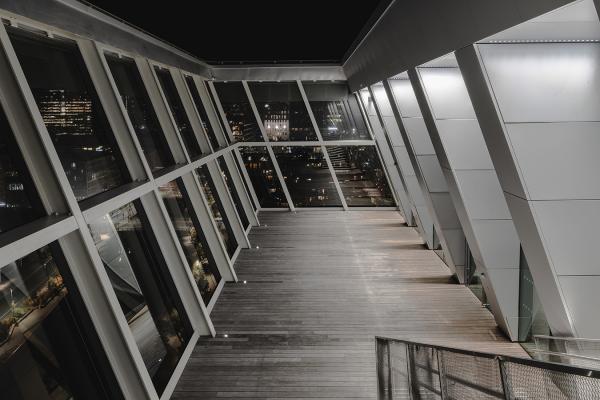

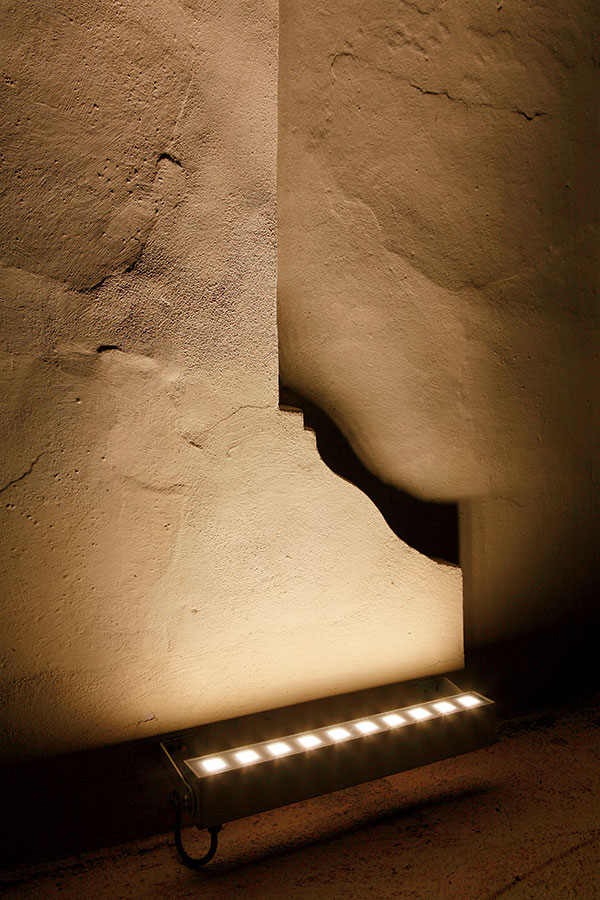

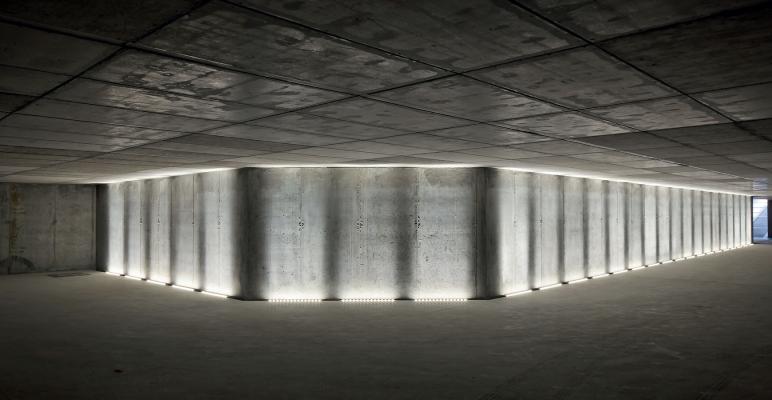

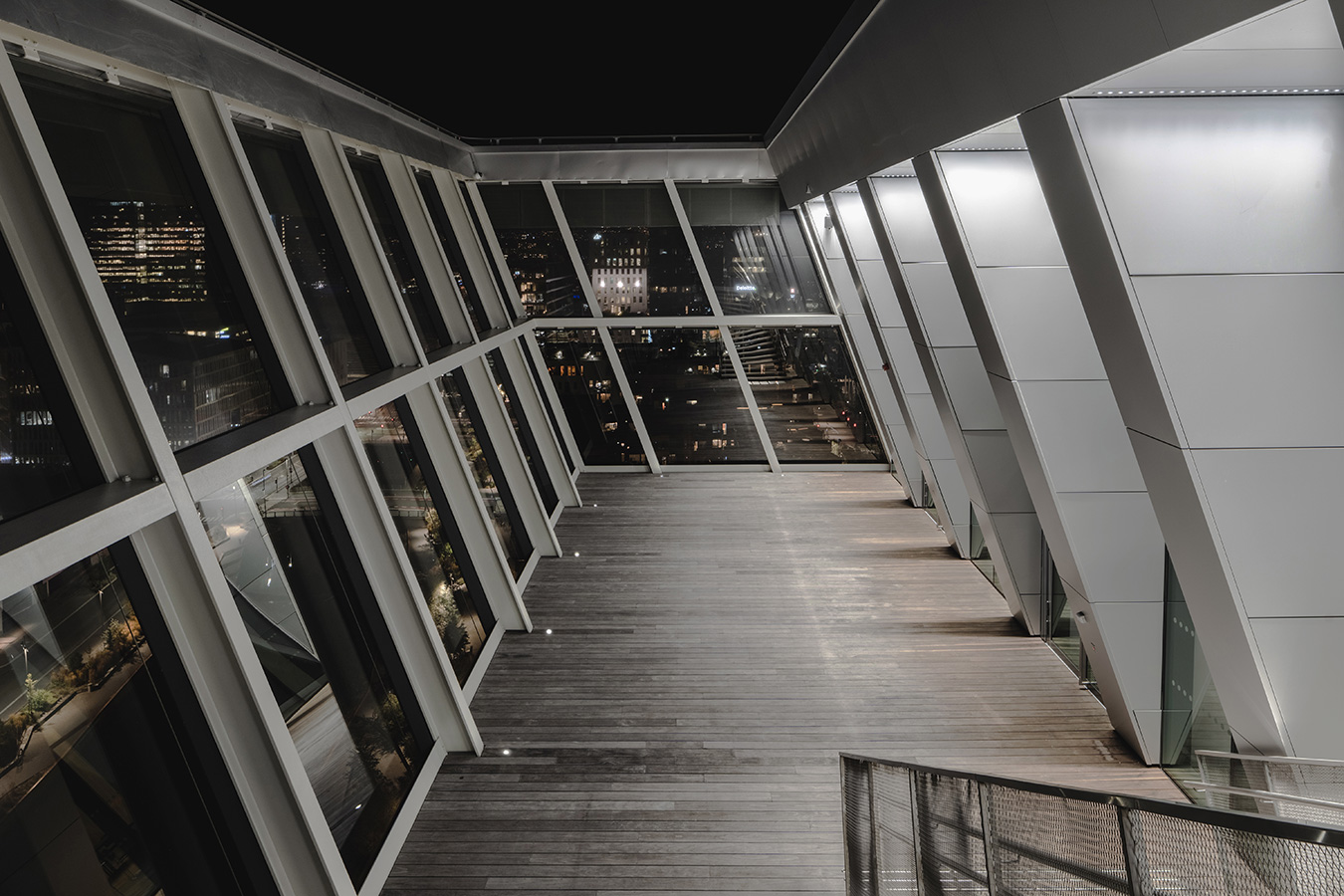

Gallery

Accessories and power supply units

Accessories (2)

Various accessories

WM0811

Pair of brackets 125 mm

WM0812

Pair of brackets 275 mm

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
