Linear 2.4

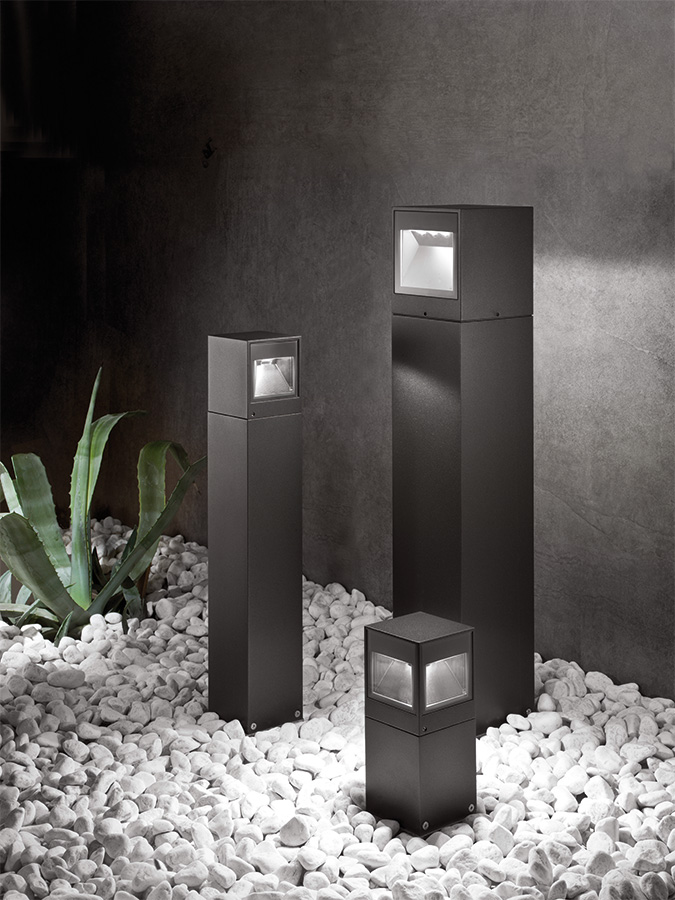

Bollards for outdoor applications

bollard for outdoor applications - 13W 230Vac - 4 beams - h 250/600/800 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Constant-current or constant-voltage power supply for remote DALI control
Finish: black

Technical data

Print technical data

kg 1,6 - 2,0 - 2,7 - 3,1
IP65
IK07

Installation	bollard for outdoor applications, 4 beams
Power consumption	13W
Power supply	230Vac
Lumen output at source	736 lm (3000K)
Delivered lumen output	400 lm (3000K)
Datasheet	Linear 2.4 bollard for outdoor applications, 4 beams; surface mounted (floor); Power consumption: 13W; Power supply: 230Vac; Lumen output at source: 736 lm (3000K); Delivered lumen output: 400 lm (3000K); 4 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: asymmetrical; Upward flux fraction: 1,05%; CRI Colour Rendering Index: 80; Body material: head in aluminium, column in anticorodal aluminium; Finishes: cor-ten, anthracite, grey (RAL 9006); RAL finish on request; Screen material: screen in serigraphed, transparent and tempered extra-clear glass; built-in power supply unit; connection box with 1 m cable, H05RN-F 2x0,75 Ø6,3 mm; Ingress protection: IP65; Impact resistance: IK07; non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: h 00 mm: 1600 g; h 250 mm: 2000 g; h 600 mm: 2700 g; h 800 mm: 3100 g; Dimensions: 100x100x120/250/600/800 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WT000000 Plate for ground installation, WT20250F Column - total height 250 mm - grey, WT20250H Column - total height 250 mm - anthracite, WT20250T Column - total height 250 mm - cor-ten, WT20600F Column - total height 600 mm - grey, WT20600H Column - total height 600 mm - anthracite, WT20600T Column - total height 600 mm - cor-ten, WT20800F Column - total height 800 mm - grey, WT20800H Column - total height 800 mm - anthracite, WT20800T Column - total height 800 mm - cor-ten; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionLinear 2.4 bollard for outdoor applications, 4 beams surface mounted (floor) Power consumption: 13W Power supply: 230Vac Lumen output at source: 736 lm (3000K) Delivered lumen output: 400 lm (3000K) 4 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: asymmetrical Upward flux fraction: 1,05% CRI Colour Rendering Index: 80 Body material: head in aluminium, column in anticorodal aluminium Finishes: cor-ten, anthracite, grey (RAL 9006) RAL finish on request Screen material: screen in serigraphed, transparent and tempered extra-clear glass built-in power supply unit connection box with 1 m cable, H05RN-F 2x0,75 Ø6,3 mm Ingress protection: IP65 Impact resistance: IK07 non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: h 00 mm: 1600 g; h 250 mm: 2000 g; h 600 mm: 2700 g; h 800 mm: 3100 g Dimensions: 100x100x120/250/600/800 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WT000000 Plate for ground installation, WT20250F Column - total height 250 mm - grey, WT20250H Column - total height 250 mm - anthracite, WT20250T Column - total height 250 mm - cor-ten, WT20600F Column - total height 600 mm - grey, WT20600H Column - total height 600 mm - anthracite, WT20600T Column - total height 600 mm - cor-ten, WT20800F Column - total height 800 mm - grey, WT20800H Column - total height 800 mm - anthracite, WT20800T Column - total height 800 mm - cor-ten tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (floor)
Number and type of LED	4 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

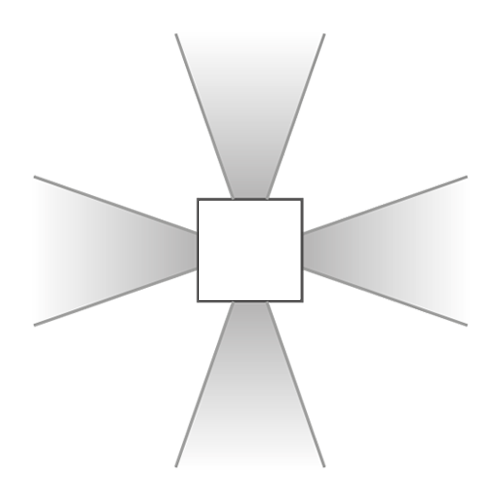

Optics	asymmetrical
CRI Colour Rendering Index	80
Body material	head in aluminium, column in anticorodal aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	cor-ten, anthracite, grey
Power supply unit	built-in power supply unit
Power cables	connection box with 1 m cable, H05RN-F 2x0,75 Ø6,3 mm
Ingress protection	IP65
Impact resistance	IK07
Notes	non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (10)

Plates

WT000000

Plate for ground installation

Columns

WT20250F Column - total height 250 mm - grey	WT20250H Column - total height 250 mm - anthracite
WT20250T Column - total height 250 mm - cor-ten	WT20600F Column - total height 600 mm - grey
WT20600H Column - total height 600 mm - anthracite	WT20600T Column - total height 600 mm - cor-ten
WT20800F Column - total height 800 mm - grey	WT20800H Column - total height 800 mm - anthracite
WT20800T Column - total height 800 mm - cor-ten

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (0)

No control inputs
